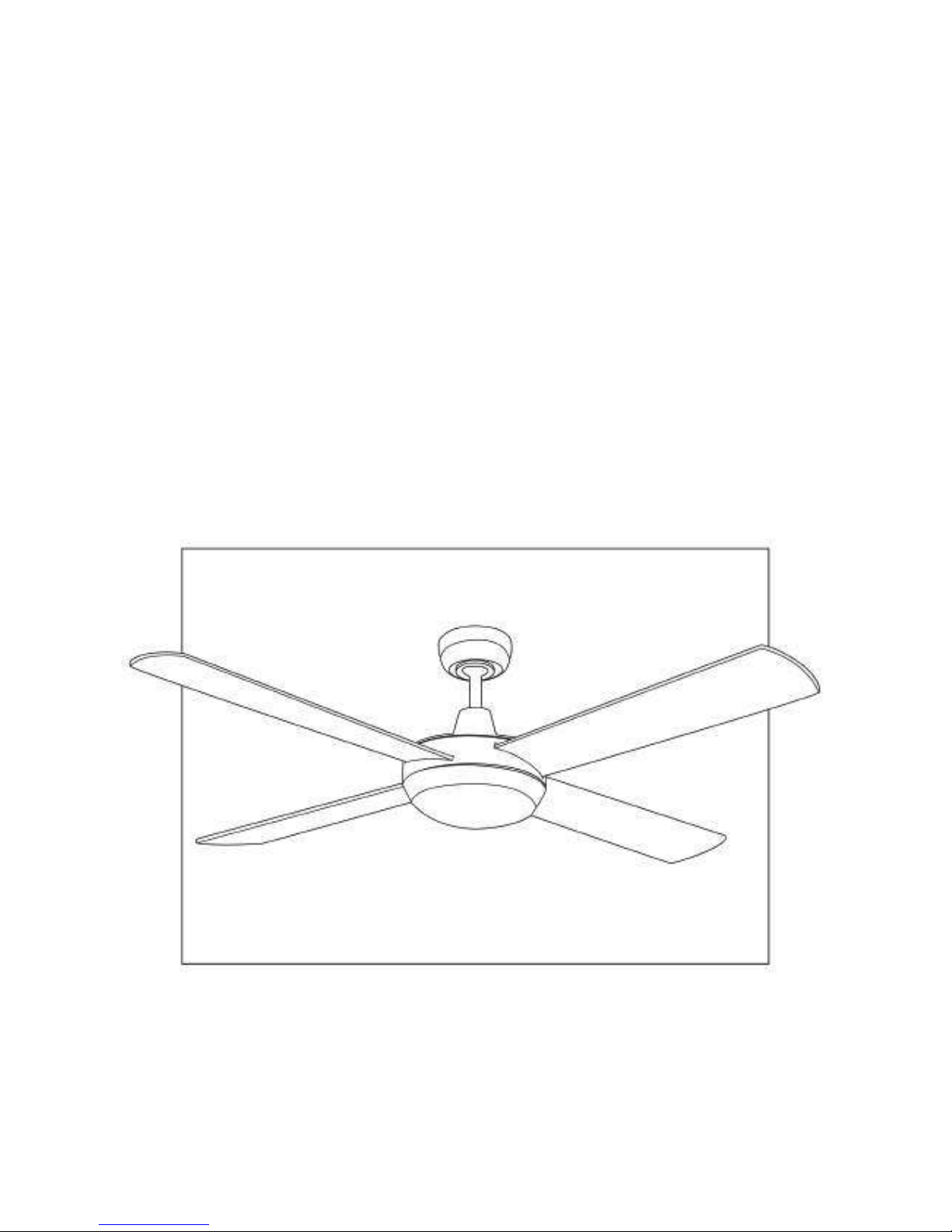

Fanco Urban 2 Series Bedienungsanleitung
Urban 2
Series
Ceiling Fan Instruction Book
IMPORTANT SAFEGUARDS
READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. KEEP THE
INSTRUCTIONS HANDY FOR FUTURE REFERENCE.
IMPORTANT: Always operate the product from a power source of the same Voltage, Frequency and rating
as on the product Identication Plate.
IMPORTANT:
Avoid contacting moving parts, keep hands, hair and clothing well away from the product while it is in
operation.
“This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.”
“Young children should be supervised at all times to ensure that they do not play with the appliance.”
Do not operate any product which has been or appears damaged in any matter or after the product
malfunctions.
CAUTION: To reduce the risk of electric shock, do not install the product where it can be exposed to rain,
moisture or any liquid.
Do not use the product for other than its intended use as described in these instructions. This product
is intended for normal domestic household use only. The use of accessory attachments other than those
recommended by the manufacturer may cause safety hazards.
SAFETY
licensed electrician lawfully MUST carry out installation. Means for disconnection must be incorporated in
steel structure or timber frame, etc. and MUST be nailed between beams if the timber option is required.
ONLY install the wall controller kit that comes supplied by Fanco within package. DO NOT control operation
of fan and light with any other wall control than what was approved by Fanco and supplied within this
package, as this will void warranty.
WARNING
Only approved Fanco wall controllers should be used for the operation of our fans. The use of unauthorised
controllers will void the warranty. DO NOT mix blades from one fan to another. All blades must be replaced
if damaged.
Page 1

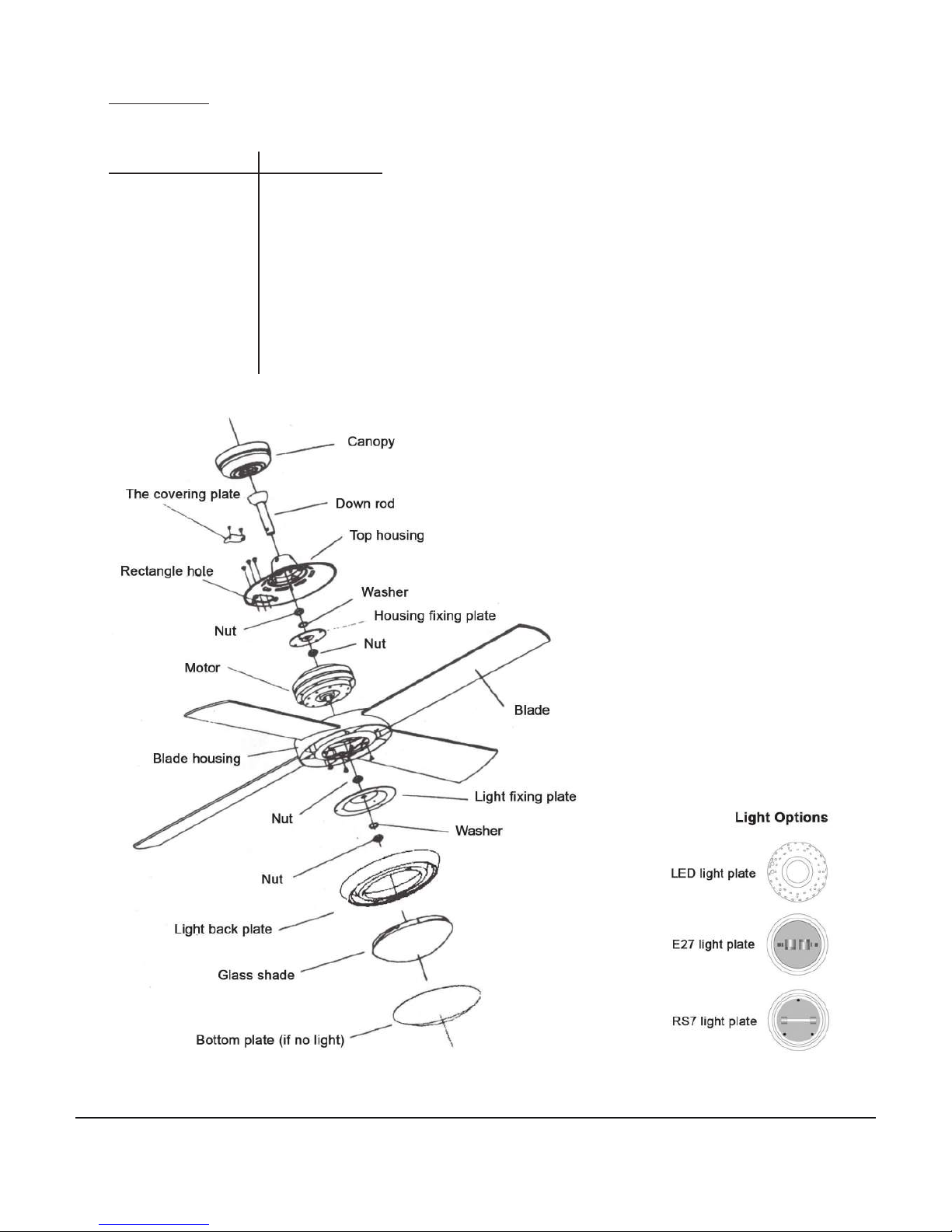

PARTS LIST
DESCRIPTION
Motor assembly
Instruction manual
Screw kit
Balancing kit
Hanging bracket
Wall control kit
QUANTITY
1
1
1
1
1
1
Page 2

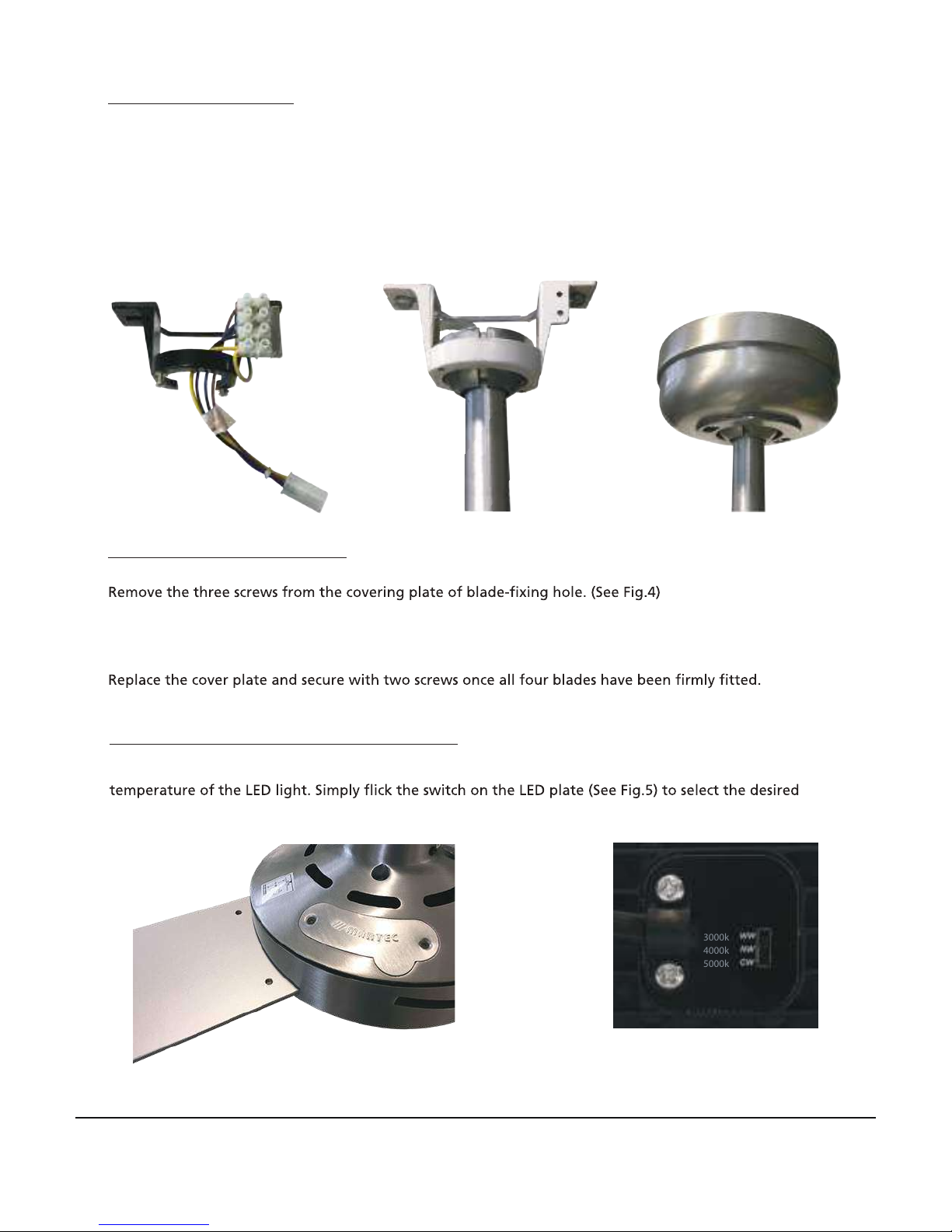

HOW TO ASSEMBLE
Secure the hanger bracket to ceiling beam or a suitable piece of timber inserted between the ceiling
beams. Fanco recommends the bracket to be attached with two long screws as supplied within the
package. (See Fig.1)
Place fan into hanger bracket and align Ball Joint Slot with hanger bracket as illustrated. (See Fig.2)
After wiring is completed, attach the canopy to the hanger bracket by pushing upwards and twisting anti-
clockwise. Locate screws in keyholes and tighten., ensuring canopy is not touching the ball joint. (See Fig.3)
Fig.1 Fig.2
Fig.3
HOW TO INSTALL BLADES
Insert blades one at a time through four slots around the centre band and secure with three screws for
each blade through the top opening. Repeat this procedure for all blades. (See Fig.4)
Page 3
Fig.4
CCT (Colour changeable temperature)
Please ensure the light on the fan is switched o before changing the colour
colour temperature (3000K, 4000K or 5000K).
3000k
4000k
5000k
Fig.5
USE IN ALL SEASONS
Always ensure fan is set to ‘OFF’ and blades are still, prior to changing direction of blades.
Reverse switch on fan should ideally be set on ‘FORWARD’ (down position) during warmer season to move
blades in a clockwise direction & ‘REVERSE’ (up position) during cooler seasons to make the fan rotate in an
anticlockwise direction (See Fig.6)
Page 4
Fig.6
HOW TO REMOVE THE SHADE (Version with light)
Remove the Lamp Shade carefully as shown (See Fig.7). Turn anticlockwise to remove and clockwise to
tighten the lampshade.
DLS1044 / DLS1344 Models: Only 2 x 15W (MAX) CFL bulbs shall be used. Insert the CFL bulb in the holder
(See Fig.8). Always use a pair of gloves or keep your hands clean when installing or replacing CFL bulbs.
Keeping the globe clean is important and the lifetime of a dirty globe may be shorter than a cleaner globe.
CAUTION: Make sure the power to the fan is not on when inserting light globes (globes not included with
the fan).
DLS134 / DLS1341 Models: Only Quartz Halogen globes with 100W (MAX) shall be used. Insert the Quartz
Halogen bulb in the holder (See Fig.9). Always wear a pair of gloves or keep your hands clean while
installing or replacing Halogen Globes. Keeping the globe clean is important and the lifetime of a dirty
globe may be shorter than a cleaner globe.
Fig.7
Fig.8 Fig.9
Page 5

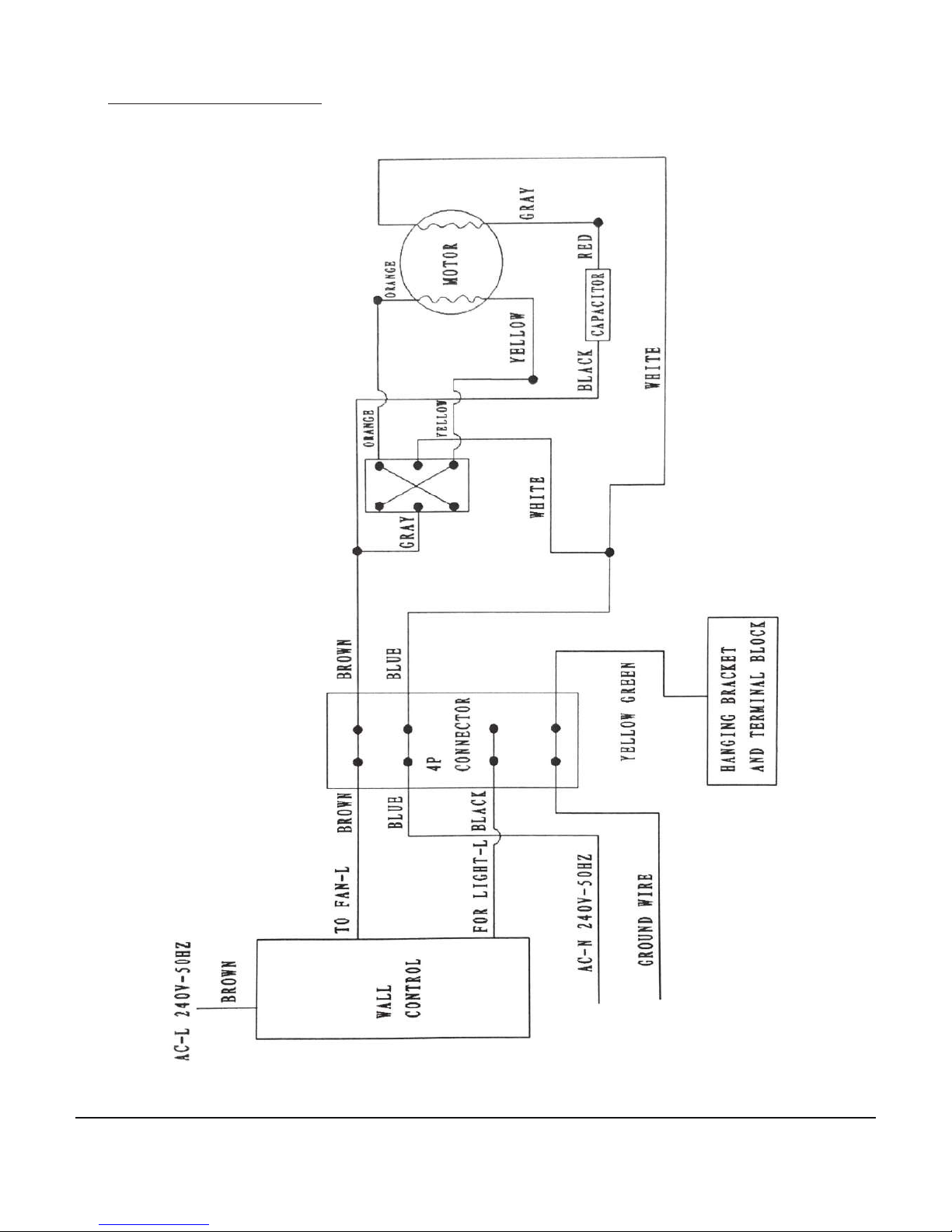

WIRING INSTRUCTIONS
