FastCap Best Fence PRO Bedienungsanleitung

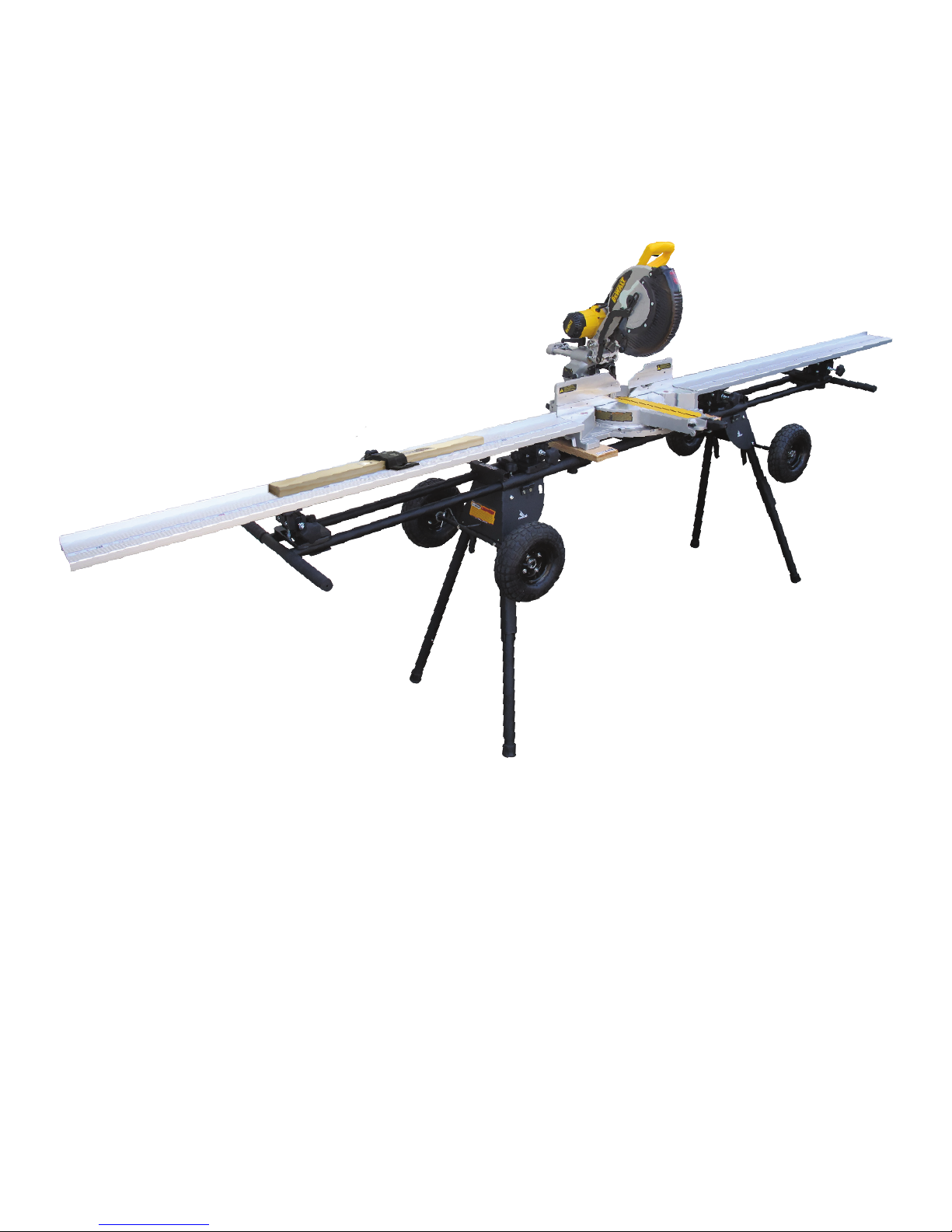

BEST FENCE PRO
INSTRUCTION MANUAL
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR
SYSTEM. PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.
FastCap, LLC
5016 Pacific Highway
Ferndale, WA 98248
Toll Free: 1-888-443-3748
Phone: 1-360-752-2138
Fax: 1-360-650-1075
Web: www.fastcap.com
Email: [email protected]
FOR ALL BEST FENCE PRO SYSTEMS

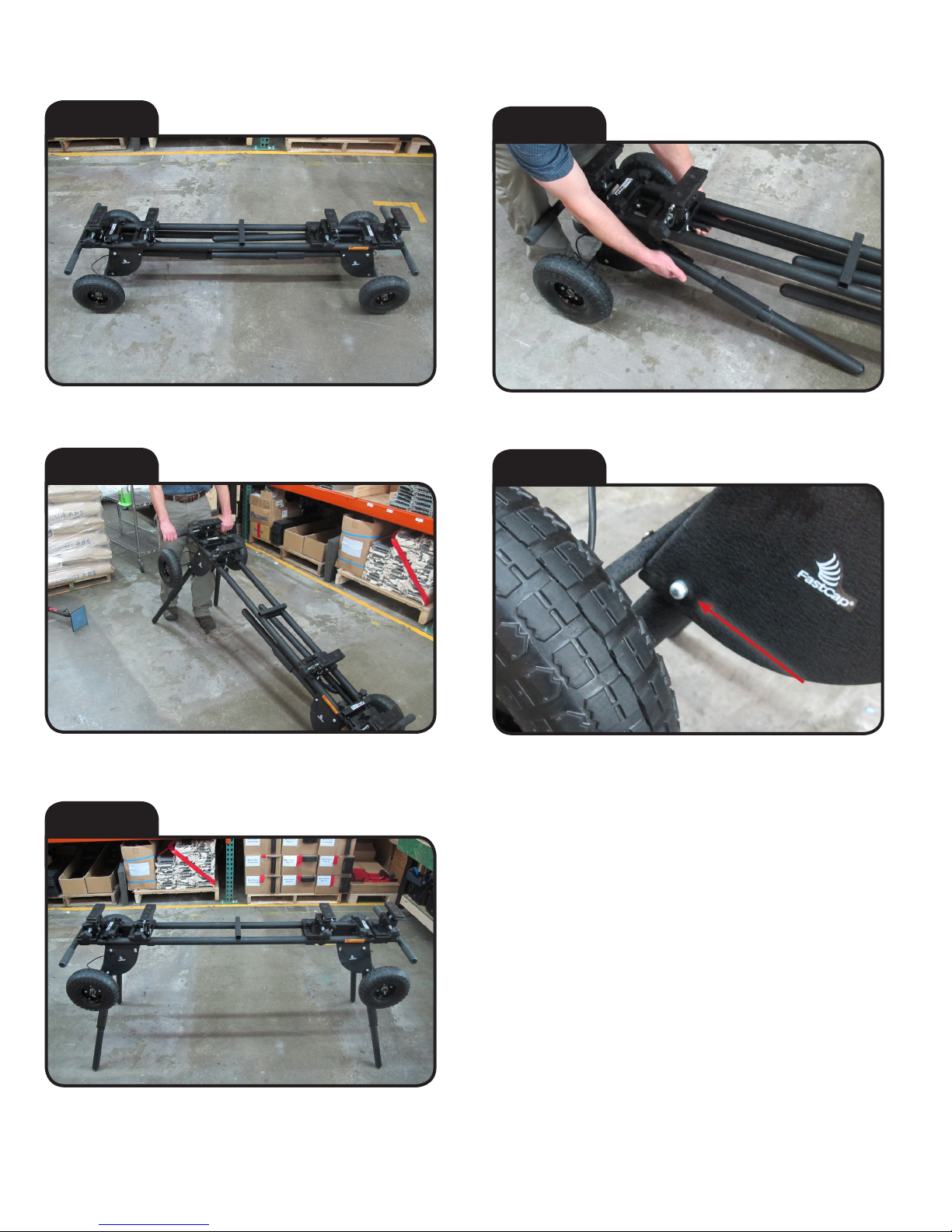

RELEASE LEGS BY PULLING HANDLES
ON BOTH SIDES
MAKE SURE BALL DETENT IS LOCKED
IN STANDING POSITION
STEP 2
STEP 4
POSITION THE STAND WHERE YOU
WANT TO SET IT UP
STEP 1
LIFT ONE SIDE OF FENCE AND PULL
LEGS TO STANDING POSITION
REPEAT ON OTHER SIDE TO FINISH
STAND SETUP
STEP 3
STEP 5
BEST FENCE PRO STAND SETUP
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.

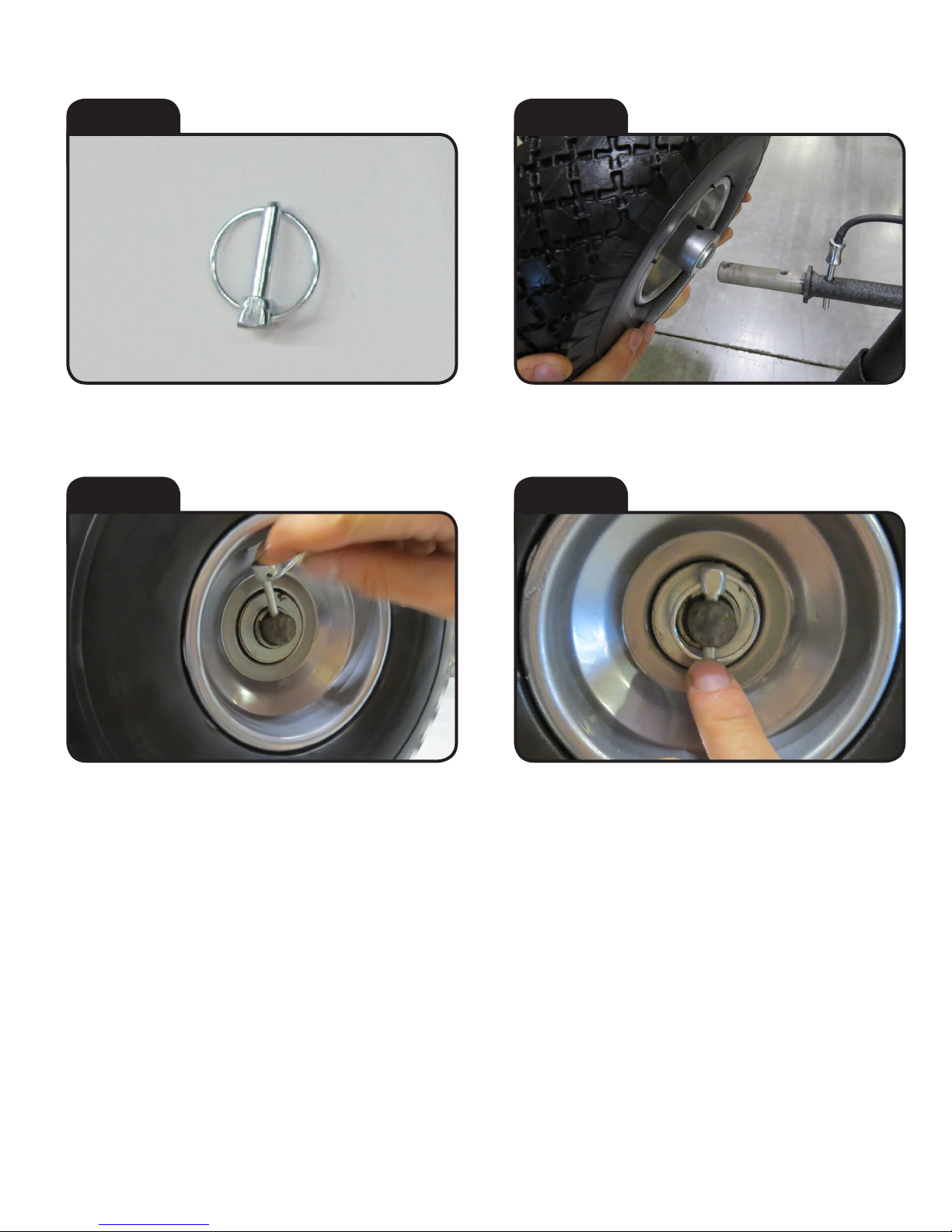

INSERT LOCKING PIN THROUGH HOLE
IN AXLE
STEP 3
SLIDE WHEEL ONTO AXLE
STEP 2
LOCATE WHEELS LOCK PINS IN
HARDWARE KIT
STEP 1
FLIP DOWN RING TO LOCK PIN IN PLACE
STEP 4
BEST FENCE PRO WHEEL INSTALLATION
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.
ROTATE BRACKET 90º AND TIGHTEN
KNOB TO LOCK IN PLACE
STEP 3

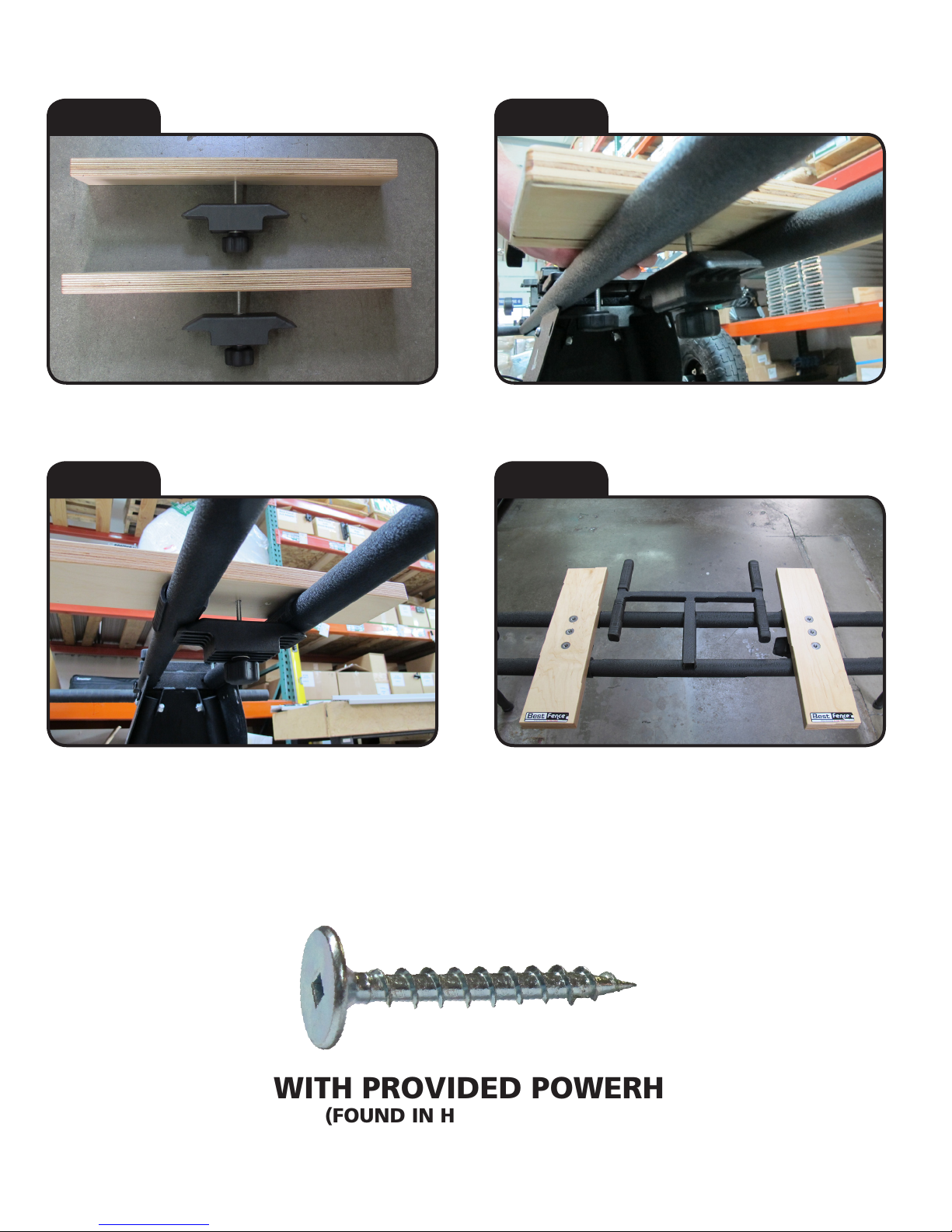

POSITION SAW MOUNT ON RAILS
WITH PLASTIC BRACKET PARALLEL
STEP 2
LOCATE SAW MOUNTS
STEP 1
ALLOW ENOUGH SPACING FOR RACK
(FOUND IN HARDWARE KIT)
MOUNT SAW WITH PROVIDED POWERHEAD SCREWS
STEP 4
BEST FENCE PRO SAW SETUP
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.

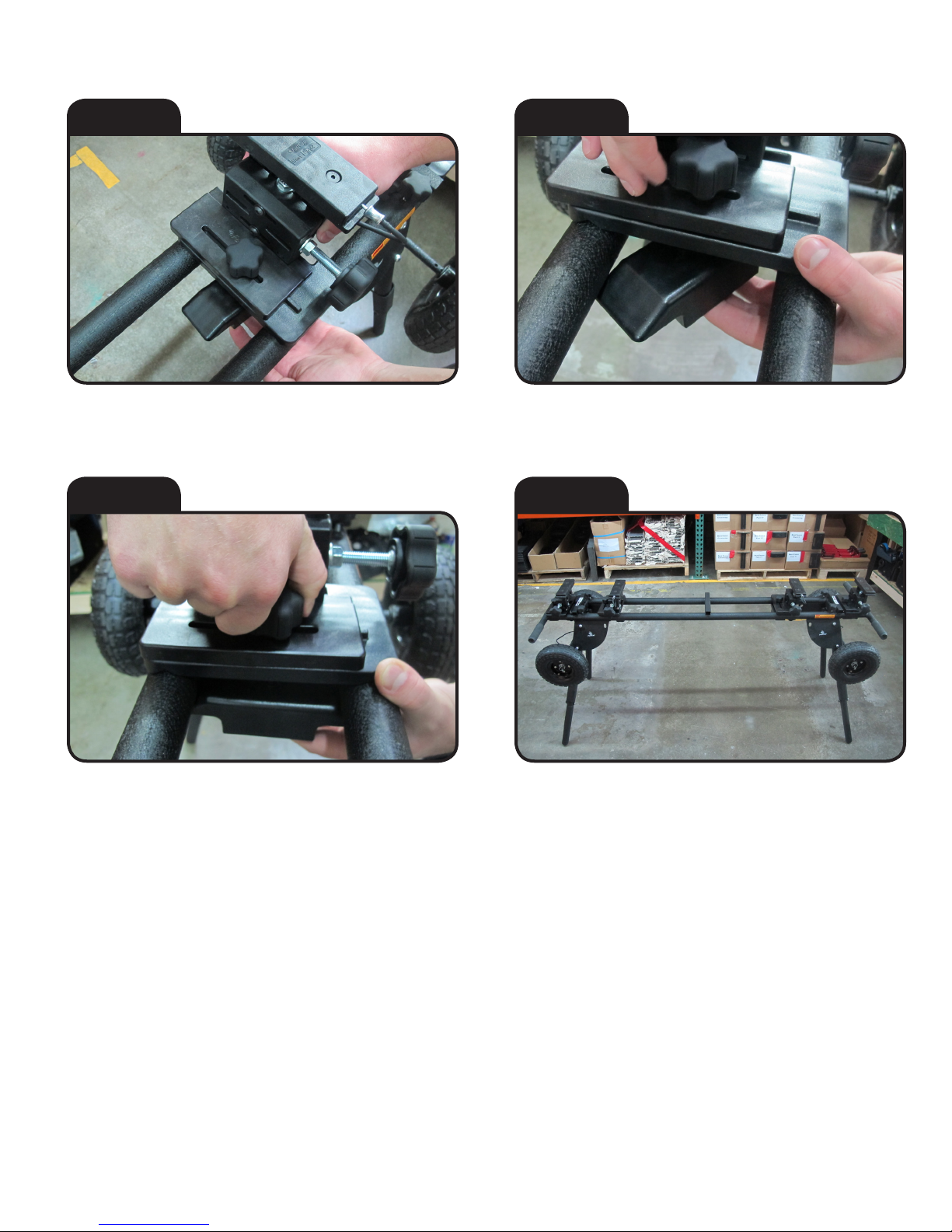

TIGHTEN ADJUSTMENT KNOB TO LOCK
BLOCK IN PLACE
STEP 3
LOOSEN AND HOLD ASSEMBLY WHILE
ROTATING BOTTOM BRACKET 90º
STEP 2
POSITION BLOCK ON RAILS WITH
BOTTOM BRACKET PARALLEL
STEP 1
BEST FENCE PRO BLOCK INSTALLATION
REPEAT WITH OTHER BLOCKS
STEP 4
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.

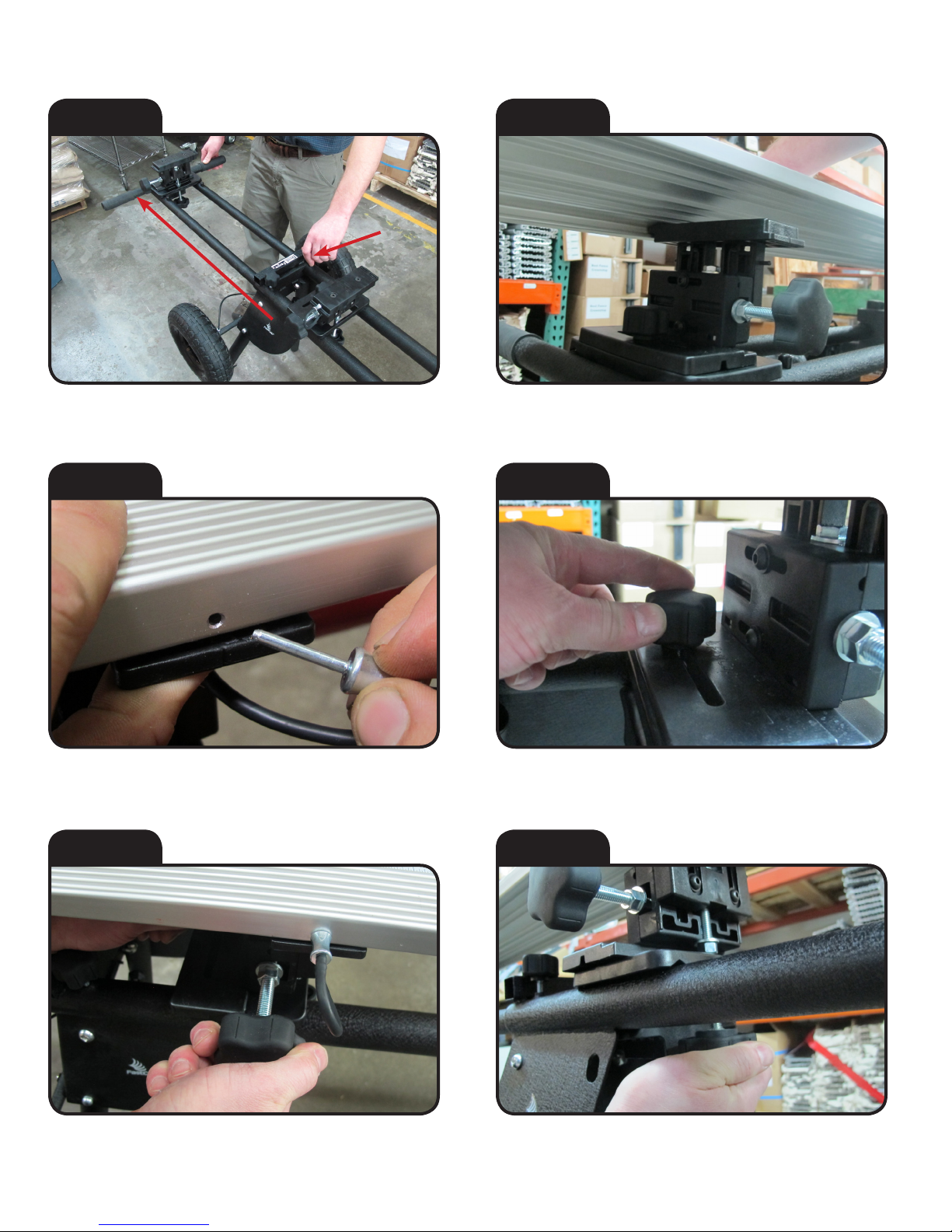

ALIGN HOLE ON FENCE WITH LINE ON
PRECISION ADJUSTMENT BLOCK AND
INSERT PIN TO LOCK IN PLACE
SIDE KNOB MICRO ADJUSTMENT
FOR IN AND OUT
STEP 3
STEP 5
PLACE FENCE ON PRECISION
ADJUSTMENT BLOCKS BY HOOKING
THE BACKSIDE FIRST
STEP 2
LOOSEN KNOBS AND PULL OUT ARMS
FROM STAND. TIGHTEN KNOBS.
STEP 1
TOP KNOB MACRO ADJUST
FOR IN AND OUT
BOTTOM KNOB FOR
HEIGHT ADJUSTMENT
STEP 4
STEP 6
BEST FENCE PRO FENCE SETUP
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.

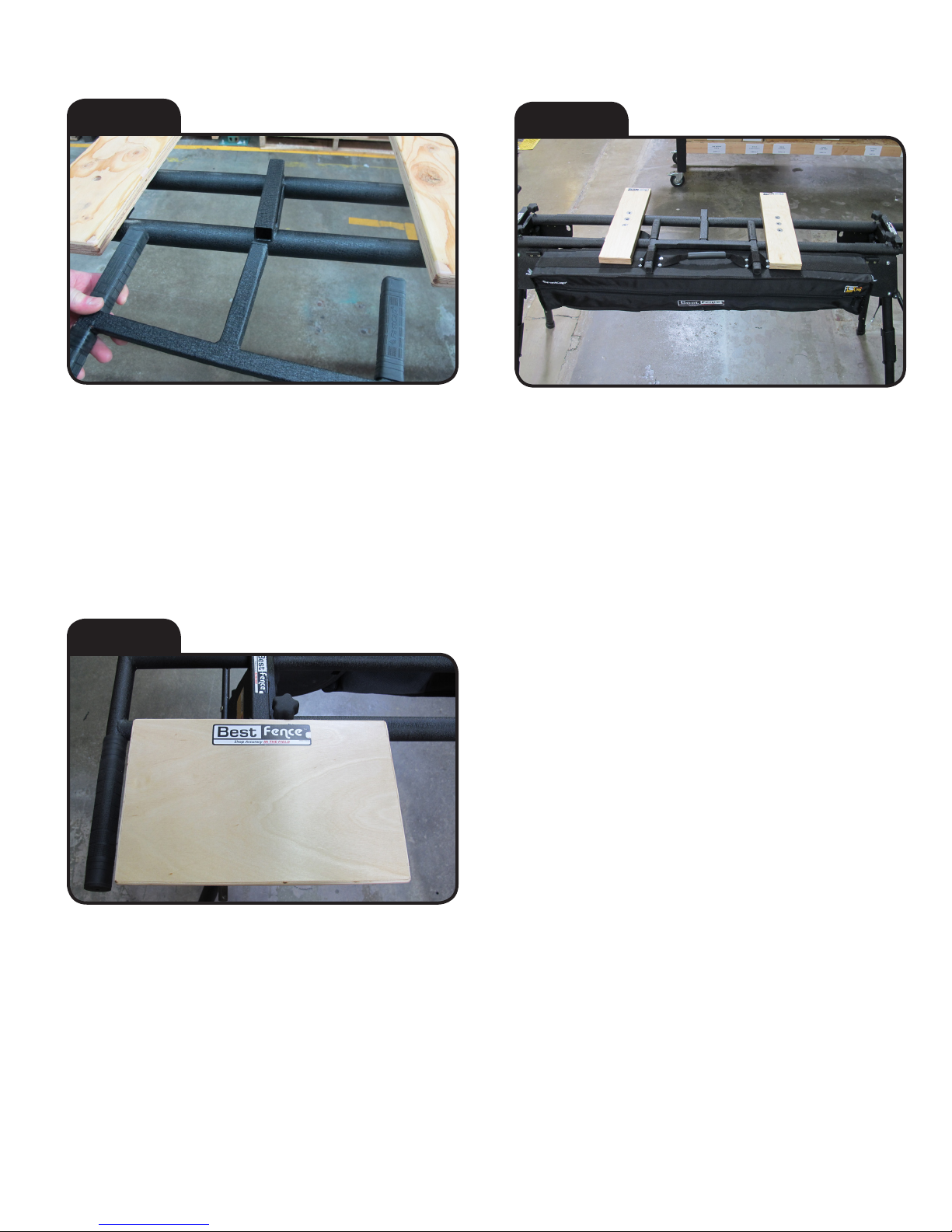

SLIDE BAG ONTO FRONT RACK
STEP 2
ATTACH FRONT BAG RACK BY SLIDING
POST INTO HOLE
INSERT WORK TABLE INTO ACCESSO-
RY HOLE WHERE DESIRED
STEP 1
STEP 1
BEST FENCE PRO BAG & RACK
BEST FENCE PRO ACCESSORY
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.

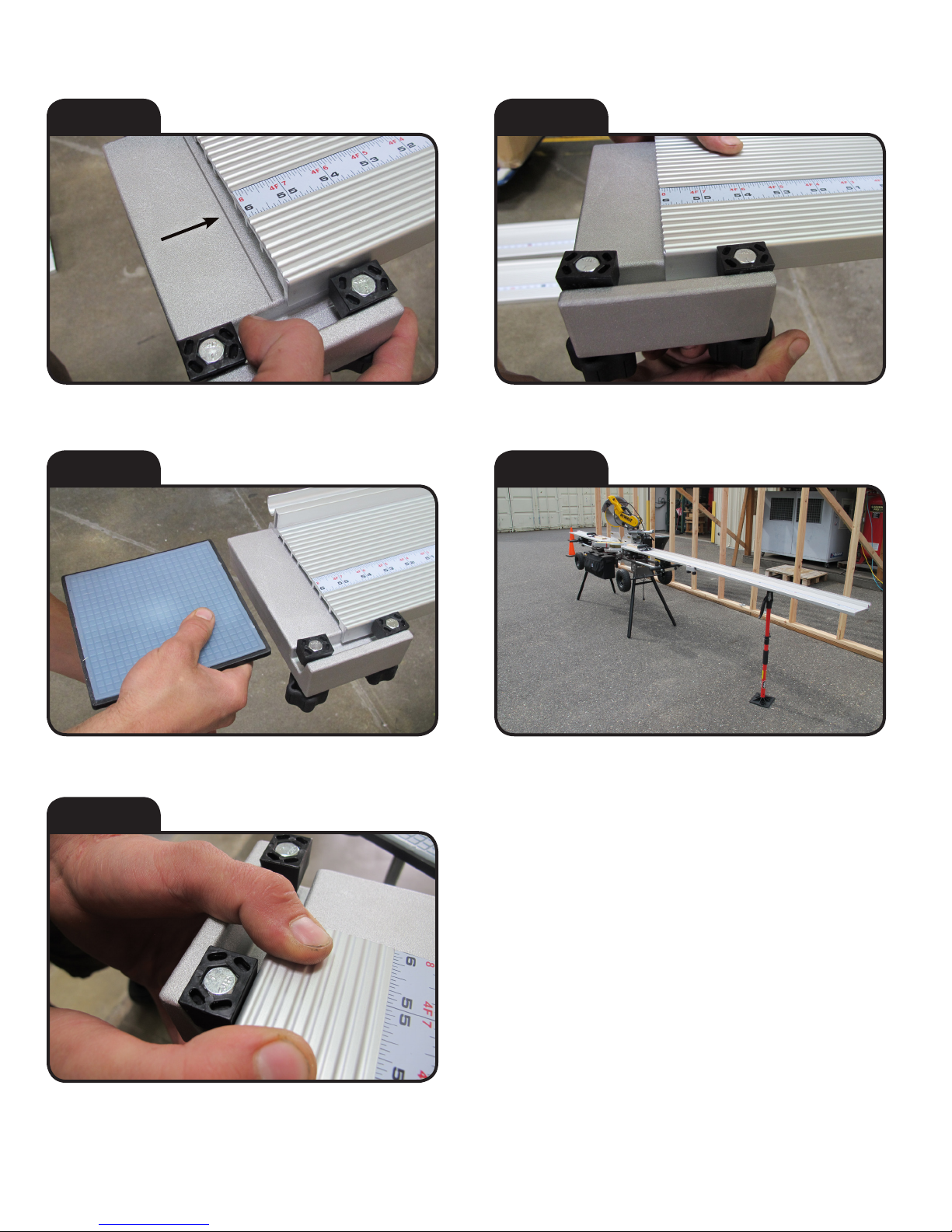

ADJUST UPPER HAND SO TOP OF FOOT
MATCHES TOP OF CONNECTOR
TO REMOVE CONNECTOR LOOSEN
KNOBS THEN PRESS BOLT UPWARDS
TO UNLOCK CAM
STEP 3
STEP 5
HOOK REAR FIRST, THEN TIGHTEN
CAM KNOB DOWN TO LOCK IN PLACE
STEP 2
POSITION MALE-MALE CONNECTOR SO
THAT FENCE END IS ON MIDDLE LINE
STEP 1
ATTACH SECOND FENCE AND POSITION
UPPER HAND FOR SUPPORT
STEP 4
BEST FENCE PRO MALE-MALE SETUP
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.

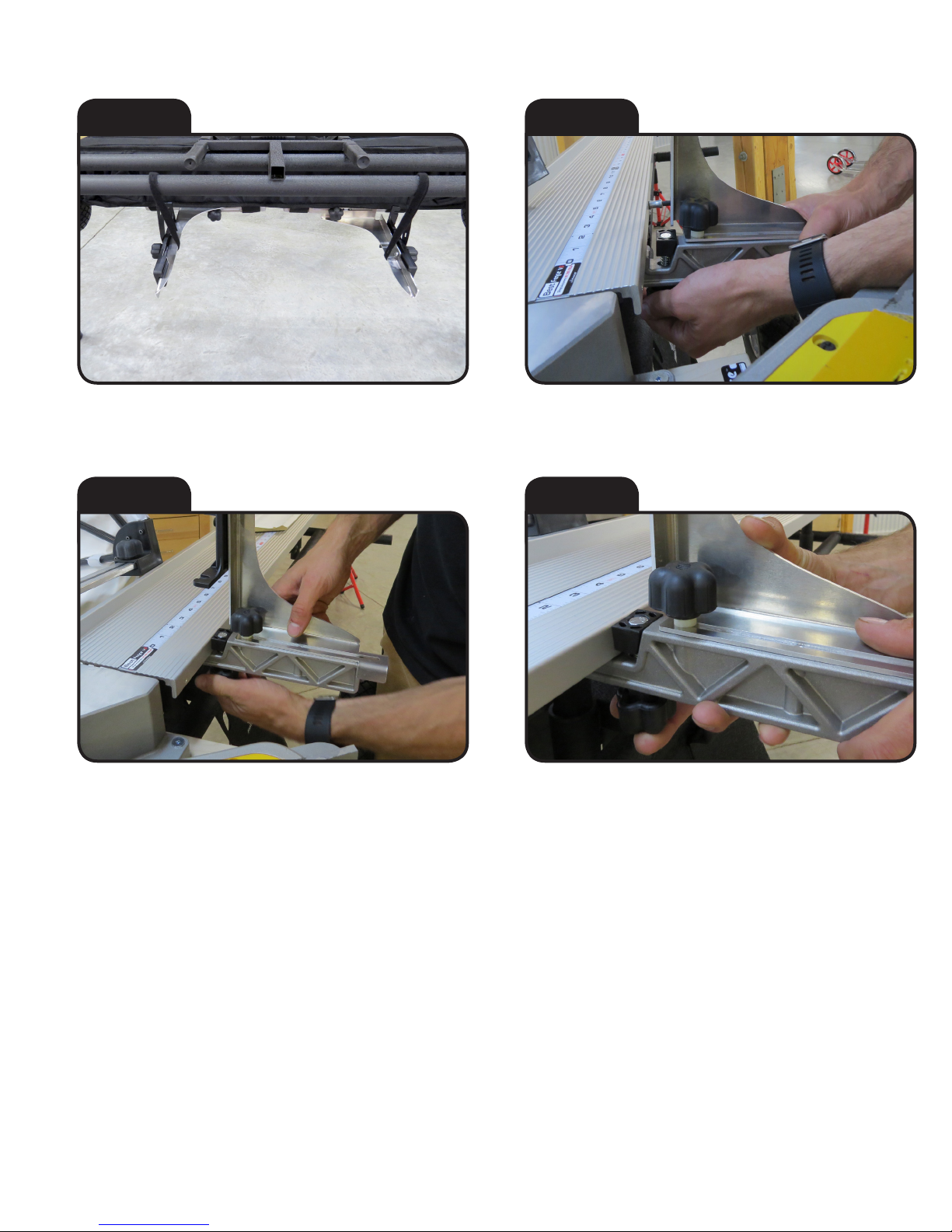

ADJUST L-BRACKET AND PLASTIC
SLIDE TO FIT SIZE OF YOUR CROWN
MOLDING
STEP 3
ATTACH ALUMINUM ARM BY
HOOKING REAR FIRST THEN
TIGHTENING WEDGE KNOB
STEP 2
LOCATE COMPONENTS
IN ACCESSORY BAG
STEP 1
TO REMOVE ARM, SLIDE ALL PIECES OFF
THE BEST FENCE. UNSCREW BOTTOM
KNOB AND PUSH UP TO RELEASE
WEDGE FROM BEST FENCE.
STEP 4
BEST FENCE CROWN MOLDING STOP
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.
STEP 4
TROUBLESHOOTING
STEP 2

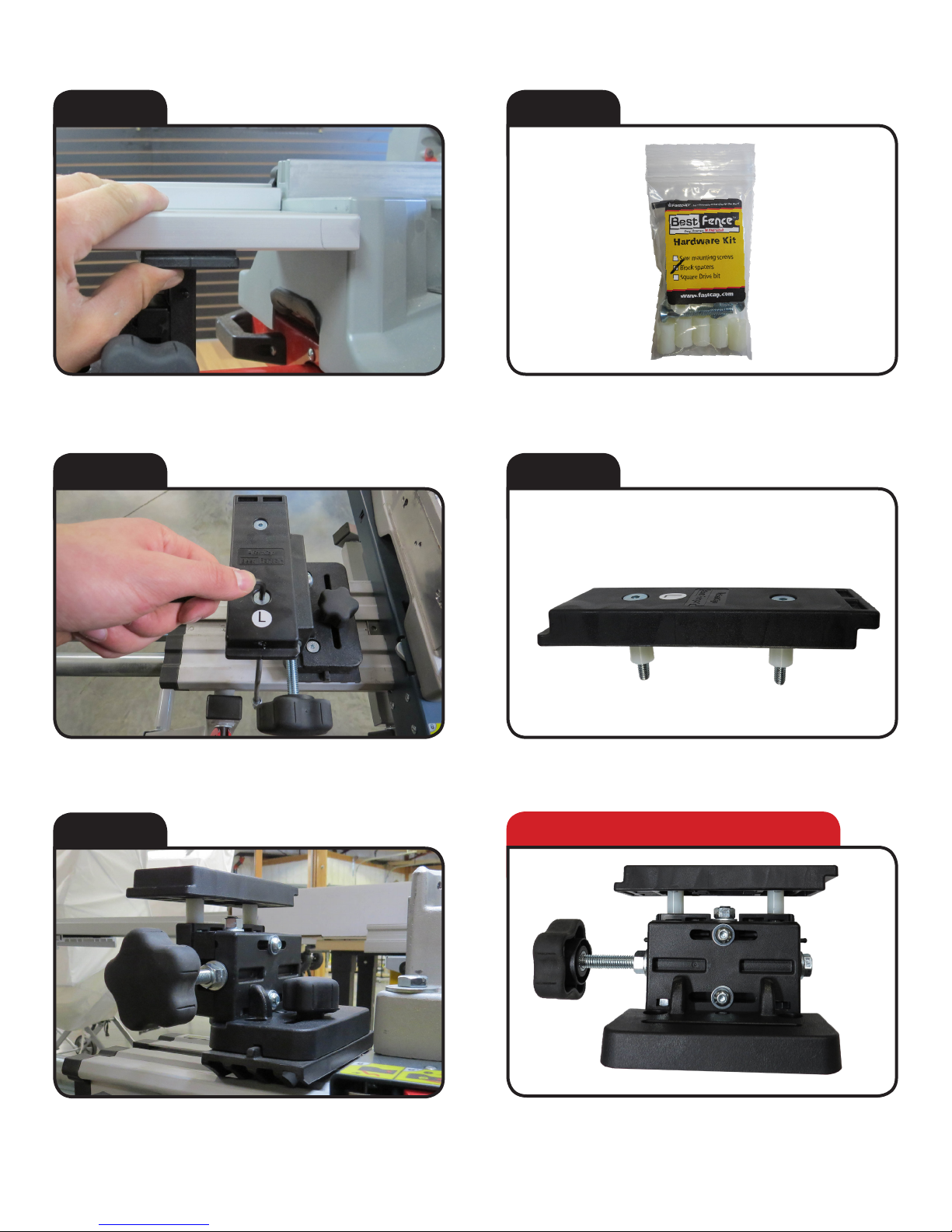

INSTALL INCLUDED SPACERS
TO TOP PLATE
IF THERE IS EXCESS MOVEMENT IN
THE PRECISION ADJUSTMENT BLOCK
TIGHTEN THE ALLEN SCREWS
LOCATE BAG OF SPACER HARDWARE
INCLUDED WITH YOUR SYSTEM
STEP 3
STEP 1
STEP 5
REMOVE FENCE AND UNSCREW TOP
PLATE FROM BLOCK WITH INCLUDED
WRENCH
SOME SAWS HAVE HIGHER DECKS
REQUIRING SPACERS FOR PRECISION
ADJUSTMENT BLOCKS
REATTACH TOP PLATE TO PRECISION
ADJUSTMENT BLOCK WITH LONGER
SCREWS
BEST FENCE PRO FENCE SPACER
SOME FEATURES AND ACCESSORIES MAY NOT BE INCLUDED WITH YOUR SYSTEM.
PLEASE VISIT WWW.FASTCAP.COM FOR MORE DETAILS.
