1 Introduction

The diagnostic device VEK FG2 is a measuring device to be used for control and trouble shooting of

induction loop detectors. With its 16-digit LCD display, it is able to indicate the frequencies of the various

loops of a detector. Thus, couplings between neighbouring loops, which occur due to a too small distance

between the base frequencies may be avoided. Furthermore, it facilitates the indication of a detuning of the

resonant circuit, as it is caused by a vehicle crossing the loop. Consequently, the responsiveness of the

detector may be perfectly adjusted. Short circuits or interruption of the loops are indicated likewise.

2 Operation

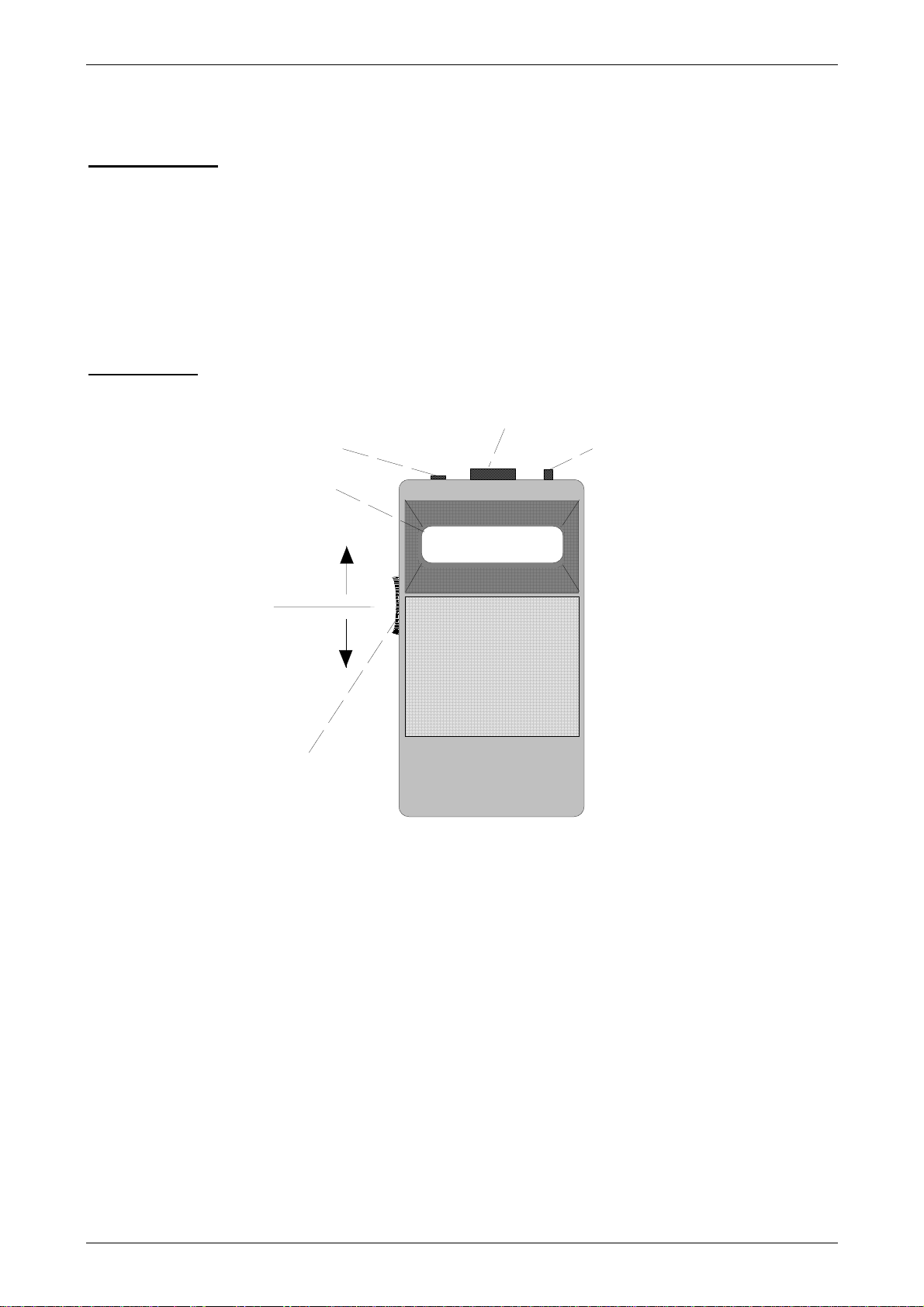

FEIG

ELECTRONIC

Diagnoseeinheit

VEK FG2

Obere Stellung:

Grundfrequenz

Untere Stellung:

Verstimmung

Schiebeschalter

Buchse fü

Diagnosekabel Taster für

Kanalumschaltung

Gerät

aus

Frequenzaneige

CH1 o .000 kHz

Klinkenbuchse 3.5mm

für Stecknetzteil

2.1 Initiation

Please charge the 9V-block accumulator prior to putting the device into operation. (see:how to charge the

accumulator)

With the help of the VEK FG2, loop diagnosis may be carried out at two different detector types at a time.

a) Detectors with 10-pole diagnostic socket

The VEK M... detectors are constantly sending the data currently determined by the micro processor

through the diagnostic socket. The VEK FG2 then reads this data, edits it and shows it on the display.

b) Detectors with frequency measuring sockets

For these older detectors of type VEK V..., the diagnostic device is connected parallel to the resonant

circuit of the detector. The diagnostic device internally simulates the complete function of a detector

at the highest sensitivity level. It determines the frequency of the resonant circuit and has the same

rebalancing mechanisms as the detector.

As accessories, two diagnostic cables come together with the VEK FG2. Furthermore, one cable with 3

bunch plugs (cable V) as well as a cable with a 10-pole diagnostic plug (cable M). Both cables end in a

western modular plug. This plug is put into the appropriate socket located at the upper side of the housing.

operating instructions VEK FG2-1

8 12/99 FEIG ELECTRONIC GmbH

The diagnostic device is able to recognize which detector type has been connected by means of the cable

that has been connected. Please refer to the charts in „Survey of detectors“ in order to find out which cable is

used for which detector.

A flashing decimal point on the display means that the detector is working, i.e. a frequency is fed to the

diagnostic cable or the diagnostic device is receiving data through the 10-pole diagnostic plug.

2.1.1 Frequency

In the position base frequency (slide switch up) the LCD-display shows the frequency of the detector

resonant circuit. It accrues from the loop inductivity and a possible crossing of the loop field by a vehicle. If

the loop is not covered, this frequency is the same as the base frequency of the detector. The relative

frequency changes of the resonant circuit, as indicated in position detuning (see detuning) , refer to this base

frequency.

Example:

The first thing that is indicated after having switched on the device, is the frequency of the first detector

channel. Press the key button located on the upper side to switch to the next channel. The diagnostic device

VEK FG2 is able to process the data of up to 4 detector channels and display it one after the other.

2.1.2 Detuning

The detuning display indicates the extent of the frequency change which has been caused by crossing the

loop with a metallic vehicle. A vehicle causes a change of inductivity at the loop, which means a relative

change of frequency. Therefore, the detuning is indicated as a relative value (increments) and not in Hz. The

responsiveness of the detector may be perfectly adjusted by using the indicated detuning and the charts

listed under „Selection of sensitivity“.

In order to activate the detuning display, the lateral slide switch has to be put in Detuning position (slide

switch down).

Now, the display shows the data of the first detector channel. You may then switch to the next channel by

shortly pressing the channel selection button located on the upper side of the housing.

The display now shows the following data:

•Selected detector channel

•Current detuning as a relative value compared to base frequency

•minimum detuning since the diagnostic device has been switched on

•maximum detuning since the diagnostic device has been switched on

Example:

In order to be able to discern the change of the detuning values from increasing to dropping and vice versa,

the display stays on current detuning for approx. 0,5s when reaching the inflection point. Due to this, all

saddle- and inflection points of the detuning curve may be determined by gradually crossing the loop.

CH1 94.078 kHz

Frequencyz

Det. channel

1 675. 98 1300

Current

detunin

Maximum

detuning

Det. channel Minimum

detuning

VEK FG2-1 operating instructions

FEIG ELECTRONIC GmbH 12/99 9

2.1.3 Number of vehicles

For each channel, one counter may be polled. This counter determines the number of vehicles resp.

detunings. It counts all vehicles, which cause a detuning of at least 10 increments at the loop. The count of

the counter is deleted by switching off the device.

In the detuning mode, (slide switch down) the counted number of vehicles of the selected detector channel is

displayed by pressing the channel selector key for a longer time. Press the key briefly in order to re-activate

the detuning display as described under „Detuning“.

Example:

2.2 Error messages

The display of the diagnostic device may show the following errors resp. messages:

* Battery warning

o Breach of loop

% Loop short

< Frequency exceeding

> Frequency underflow

The error memory of a channel is deleted by switching to the next channel.

Example:

2.3 Automatic cutoff

In order to avoid unnecessary stressing of the storage battery and thus a total discharge, the device is

automatically switched off 2 minutes after the diagnostic cable has been removed from the detector. Cutoff of

the device is delayed by 2 minutes by pressing the channel selection switch. Thus, the logging of the detector

data may be carried out at a later point of time (e.g. in the service vehicle). After automatic cutoff, the device

may be restarted by operating the slide switch.

1 _2. 27 342

Number of

vehicles Maximum

detunin

Det. channel Minimum

detuning

CH1 * 94.078 kHz

CH1 % 16.566 kHz

Loop short

Battery empty

operating instructions VEK FG2-1

10 12/99 FEIG ELECTRONIC GmbH

2.4 How to charge the accumulator

The 9V-accumulator may be charged with the accompanying plug power pack. The accumulator may remain

in the battery compartment for charging. The plug power pack, which has been adjusted at 12V=, feeds the

charging connection with a 3,5mm-jack bush. It is not necessary to switch on the diagnostic device in order to

start the charging process. The accumulator needs approx. 14 hours until it is fully charged.

Warning: In case of power pack operation, a conventional 9V-block battery has to be removed from the

battery compartment. Otherwise there is danger of destruction !

Polarity at the 3,5mm-jack bush:

The 9V-accumulator may also be charged with an external battery charger.

3 Technical Data

Power supply 9V accumulator or

12V DC plug power pack

Service life Akku Varta 5022 approx. 3 hours

Charging Conventional battery charger by removing the accumulator

or directly with power pack 12V DC via charging bush,

total charging 14 h

Temperature range 0 to 50°C

Storage temperature -20 to 50°C

Measuring range 10 - 150 kHz

Measuring accuracy +/- 1 Digit

Display LCD 1 x 16 Character

Housing Plastic housing with battery compartment

30 x 80 x 150 (H x B x L)

Weight 190 g (without battery)

Protection class IP 40

VEK FG2-1 operating instructions

FEIG ELECTRONIC GmbH 12/99 11

4 Accessories

4.1 Contract accessories

•Cable V: modular plug with flat cable at 3 bunch plugs

Colour code:

red CH1

blue CH2

black GND

•Cable M: modular plug with flat cable at 10-pole diagnostic plug

•Power pack

•9V accumulator (has to be charged prior to initiation !)

•Service box

•Operating instructions for diagnostic device

4.2 Optional accessories

•Cable M9: 9-pole Sub-D plug,

same functions as cable M, but other plug form for special detectors

Item No.: VEK FG2 S3/M8 Diagnostic cable Order No.: 548

•Cable M4: 4-pole plug,

same functions as cable M, but other plug form for special detectors

Item No.: VEK FG2 SVEK diagnostic cable Order No.: 782

•LCR Meter: fits in service box

Item No.: VEK FG LCR Diagnostic measuring instruments Order No.: 546

5 Initiation of induction loop detectors

5.1 Loop installation

5.1.1 Mechanical handicaps

In order to determine the minimum distance between the loops, the following rule applies:

Distance between

two loops =At least half of the length of the

parallel edge

The loops of a multiplex detector (e.g. VEK M...) do not affect each other. There is no need for a minimum

distance, which means that the loops may be interlaced without impairing the functioning of the device.

The size of the loop should be suitable so that the vehicle can be recognized. An optimum loop is covered

completely by the object crossing it.

The mechanical fixing of the loop has to be tight, in order to avoid malfunctions of the detector and

deformations of the loop geometry while vehicles are crossing. For this reason, only finished loops should be

used under paving stones.

The loop lead has to be thoroughly twisted (at least 25 twists/m) and installed in appropriate distance to other

live leads. Otherwise, disturbances may occur in the loop lead.

The diameter of the loop wire should be between 0,5mm2and 1,5mm2.

operating instructions VEK FG2-1

12 12/99 FEIG ELECTRONIC GmbH

5.1.2 Electrical handicaps

In order to be able to guarantee smooth operation of a loop, the required electrical values of the loop have to

be observed.

Resistance less than 20

Ω

Inductivity 50

H to 1000

Isolation resistance More than 2M

Ω

Loop resistance and inductivity may be checked with the help of an LCR-meter. The loop’s insulating

resistance against ground has to be measured with a ground tester at a measuring voltage of at least 500V.1

5.2 How to align the detector

The detector has to be aligned with the loops not occupied and is activated by pressing the reset key. For

most detectors, the alignment process is indicated by the flashing of a luminous diode. The alignment

process is completed after approx. 3s .

Automatic alignment is activated when switching on power supply (only for detectors without buffering). After

changing the frequency level, please carry out re-alignment!

5.3 How to adjust the detector

5.3.1 Sensitivity

The detector’s response level is determined by the selected sensitivity level.

For perfect adjustment, the loop is crossed by a passenger car. The minimum detuning that has been caused

by the car is then measured with diagnostic device VEK FG2. Possible sensitivity levels depending upon the

detuning are listed in the chart under „Selection of sensitivity“

Note:

In case of vehicles with a great distance between bottom of the car body and loop (lorries, trucksters, all-

terrain vehicles etc.), only the axles are detected if sensitivity is too low. In between the axles, the detector

falls back into the non-occupied condition. In this case, please choose a higher sensitivity level.

5.3.2 Stop period

For safety loops in for example barrier systems, the stop period should be set on infinite. With this

adjustment, vehicles on the loop are recognized and signalized for an infinite period of time. The busy signal

of the loop is not de-activated until the vehicle has left the loop.

If a limited stop period has been adjusted, (e.g. 5 minutes) it is easier for the detector to level out

interferences.

5.3.3 Frequency level

Loop frequencies have to be adjusted in a way that there is no coupling between other loops resp. detectors.

Please keep a frequency separation of at least 5 kHz for non-multiplex (VEK V...) and 10 kHz for multiplex

detectors (VEK M...).

Influences of high-frequency sources of interference may be avoided by selecting another frequency level.

With the help of the diagnostic device, the working frequency of the single channels may be measured and

checked in the base frequency position.

1Order data for LCR-Meter and ground tester are to be found in the appendix

VEK FG2-1 operating instructions

FEIG ELECTRONIC GmbH 12/99 13

6 Safety- and danger instructions

•The appliance shall only be used for the purpose intended by the manufacturer.

•The operating instructions are to be handed out to every user and should be stored in an easily accessible

place.

•Improper changes as well as the use of spare parts and accessories, that are not sold or recommended

by the manufacturer of the appliance, may cause fire, electric shock and injuries. Such measures

therefore lead to nonliability and the manufacturer does not grant any guarantee.

•For this appliance, the manufacturer’s guarantee clauses apply in the version valid at the time of

purchase. The manufacturer may not be held liable for improper or wrong manual or automatic

adjustment of parameters resp. improper use of the appliance.

•Repair work should only be carried out by the manufacturer.

•Connection, initiation, maintenance, measurement and adjustment of the traffic detector should only be

carried out by electricians with special knowledge regarding accident prevention.

•When handling appliances which come into contact with electricity, the current VDE-rules have to be

observed - especially VDE 0100, VDE 0550/0551, VDE 0700, VDE 0711, VDE 0860, VDE 0105 as well as

the fire- and accident prevention rule VBG4.

•The extinguishing of an operation indicator is no proof that the appliance is disconnected and idle.

•All works carried out on the appliance as well as its installation have to be done in compliance with the

national electric regulations and local prescriptions.

•The user is responsible for the correct mounting and connection of the appliance according to the

technical regulations of the country of installation as well as other regional prescriptions. Special attention

should be paid to cable dimensions, fuse protection, earthing, cutoff, disconnection, ground testing and

excess current protection.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Feig Electronic Diagnosegeräte Handbücher

Feig Electronic

Feig Electronic ID ISC.PRH101-B Bedienungsanleitung

Beliebte Diagnosegeräte Handbücher anderer Marken

Mindray

Mindray M7Vet Kurzanleitung

Autel

Autel MaxiProgrammer 201 Bedienungsanleitung

TEXA

TEXA TMD2 Bedienungsanleitung

Autel

Autel MaxiIM IM608 Bedienungsanleitung

Sealey

Sealey BT2012 Bedienungsanleitung

Diagnoptics

Diagnoptics Age Reader Bedienungsanleitung

LAUNCH TECH

LAUNCH TECH X-431 PRO5 Bedienungsanleitung

Hella Gutmann

Hella Gutmann Mega macs X Bedienungsanleitung

Foxwell

Foxwell I80TS Bedienungsanleitung

KaVo

KaVo 3D eXam Bedienungsanleitung

ATEQ

ATEQ VT46 Bedienungsanleitung

Hella Gutmann

Hella Gutmann mega macs X Bedienungsanleitung

Autel

Autel MaxiFlash VCMI Bedienungsanleitung

Qiagen

Qiagen QIAcube Connect MDx Bedienungsanleitung

Alber

Alber BDSU Bedienungsanleitung

St. Jude Medical

St. Jude Medical QUANTIEN Bedienungsanleitung

Bosch

Bosch DCU 100 Bedienungsanleitung

Launch

Launch CNC-602A Bedienungsanleitung
