FeiYu Tech G6 Bedienungsanleitung
3-Axis Stabilized Handheld Gimbal
Guilin Feiyu Technology Incorporated Company
User Manual EN V1.0
1
1. Product Overview
The showing sports camera is not included in the package
*
1/4-20 Thread Mount
Pan Axis
Positioning Pin
Trigger
Button
Vertical Arm
Tilt Axis
Roll Axis
Single Hand Grip
Knob Ring
Cross Arm
Mounting Plate
Thumb Screw
Horizontal
Adjustment
Button
Micro USB Port
Function Button
Setting Button
Display
Joystick
1/4-20 Thread Mount
Retainer Bar
Shutter Button
Micro USB cable x1
26650 Li-ion
rechargable
battery x1
Type C charging
cable x1
Accessories
2
2. Quick Start Guide
1Install Battery
2Put the camera on
Please fully charge the battery before power on the gimbal for
the first time.
Please mount the camera before power on the gimbal.
When not in use, turn off the gimbal and then remove the camera.
Remove the bottom cap, insert a 26650 battery and
then tighten the cap.
1-Normal Position1-Normal Position
Option 1
2-Reverse Position2-Reverse Position
Option 2
To work with RX0 camera, please change RX0 camera adapter kit.
RX0 Adapter
Plate
1
2
3
Put the RX0 camera on
*RX0 camera adapter kit is optional.
* It is suggested to turn on the camera before installation for normal position.
（1）Loose and take down the original fixed plate of the gimbal
（2）Install RX0 adapter plate and tighten the screw
（3）Insert the set screw of the camera from the bottom of RX0 adapter plate
（4）Place the camera and tighten the set screw
Replacement steps
1 2
3
Put the camera on mounting plate,then tighten the camera
with retainer bar and screw.
Take the GoPro HERO 5 camera for example.
3
3Balance the Gimbal
Best balance
Right-tilting
Left-tilting
If camera tilts to the left, loosen the knob ring , pull cross arm out to the right until camera is horizontal.
If camera tilts to the right, loosen the knob ring , push cross arm in to the left until camera is horizontal.
4Power on / off
Best balance
Power on / off: Long press the function button, the display will show and release it when you hear the beep tone.
Cross arm
Knob ring
Cross arm
Knob ring
( Before power on )
4
Connect the camera with the gimbal via
Type C charging cable, the camera can be
charged when gimbal is powered on.
1Charging for Gimbal
2Charging for Camera
3. Charging
Type C
Portr
Type C
Port
USB Port
Camera G6
Type C Port Micro USB Port
Type C
Charging Cable
Micro USB Port USB Port
Micro USB
Cable
Option 1: Charging with Micro USB cable.
(Equipped by user)
Input： 5V / 2A
Option 2: Remove the battery and charge the battery with charger (equipped by user).
Camera power-
supply port
Camera power-
supply port
Charging
Charging icons on display screen
Charging
Completes
5
4. Functions
Instructions of Button
Note: The firmware upgrade may occur manual operation function and the actual product features do not match. Please find the latest manual on the official website.
Swith the interface for
camera parameters
Swith camera modes /
main interface
Long press in the main interface can swith to the interface for camera
parameters
In the panning mode or follow mode, press and hold the trigger button to
enter the lock mode, release it to return previous mode
Under follow mode, control the roll axis by moving the joystick to the left
or right, and the control angle is -30 °~ +30°
Single tap in the main interface can switch to camera modes (camera needs to be
connected)
Single tap in the interface for camera parameters can switch to the main interface
Double tap
Long press
Single tap
Press and hold Lock mode
Five tap
Quadruple tap
Triple tap
Double tap
Single tap Panning Mode / Lock Mode
Single tap to switch between panning mode and lock mode
Follow mode
Rotate 180° in horizontal Make the camera lens rotate 180 °
Auto-rotation Mode Enter auto-rotation mode
Initialization Enter initialization
Reset
Return to panning mode, tilt,roll and pan axis return to initial level
Please refer to the chapter "Auto-rotation Mode" in
page 7~8
Please refer to the chapter "Gimbal Initialization" in page 11
Function Button Function Explanation
Trigger Button Function Explanation
Setting Button Function Explanation
6
Single tap on the setting button can switch the camera
modes.
After connecting the gimbal to camera via Feiyu On App,
single tap the button can control the camera for shooting.
Setting Button Operation
Shutter Button Operation

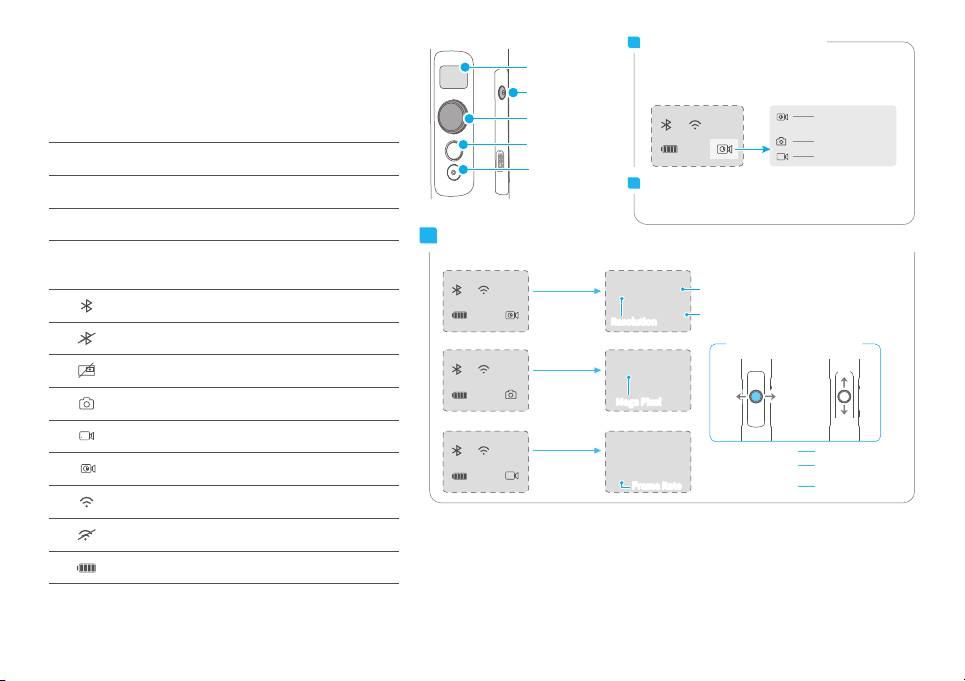

Modes
Display Icons Mode / Status
HF
AF
Panning mode
Follow mode
Lock mode
LK
SET WIFI FOR APP Prompt for users to open the App
settings in order to connect via WiFi
Display Description
The current mode or status of the gimbal can be
identified by the display
Bluetooth is connected
Bluetooth is not connected
Camera photo shooting
Camera video shooting
Camera time-lapse video shooting
WiFi is connected
WiFi is not connected
Battery level
Camera is not connected
Function Button
Shutter Button
Move to left / right Switch content
Joystick
Setting Button
Display
Left Right
Using the joystick
to set up parameters
Up
Down
W4K
OK
W12MP
OK
W4K
OK30
Setting
button
Long press
Setting
button
Long press
Setting
button
Long press
Field of View
Confirm Button
ResolutionResolution
Frame Rate
Frame Rate
Mega PixelMega Pixel
HF
HF
HF
Setting Parameters
Note: The parameters interface shall be different when connecting to RX0 camera
Move to right again
for confirmation
Move to right until
“OK” displays
Move to up / down Setting parameters
Time-lapse
video shooting
Photo shooting
Video shooting
Camera mode
HF
Main interface of
the display screen
① Please refer to the chapter "Connecting to camera" in page 10
①
①
Main interface of
the display screen Interface for camera
parameters
The roll and tilt direction are fixed, and the
camera moves according to the left-right
movements of the user's hand.
Panning Mode (Default mode )
The orientation of the camera is fixed.
Lock Mode
Return to panning mode, three axises return to
default position.
Reset
Follow Mode
The roll direction is fixed, and the camera moves
according to the left-right movements, up-down
movements of the user's hand.
7
Auto-rotation Mode
The G6 gimbal can easily create constant speed movements in the auto-rotation mode. This mode can be used for
recording both regular video and motion timelapse photography. For better performance, attach gimbal to the
FeiyuTech tripod, or other tripod, to keep it completely still.
( 1 ) Set rotation speed in Feiyu ON App
Note: Both the pan and tilt directions can be rotated.
G6
Rotation Speed
18s/
turn
12s/
turn
24s/
turn
30s/
turn
1min/
turn
2min/
turn
15min/
turn
8min/
turn
4min/
turn
4h/
turn
1h/
turn
(Default)
8h/
turn
30min/
turn
Connect to the Feiyu ON App and select desired speed from the auto-rotation mode rate option in the settings menu.
Manual Lock
Manually move camera to desired position,and hold for half a
second. New tilt and/or pan positions are automatically saved.
Take the tilt axis setting for example:
Camera can be manually positioned while in panning mode ,
follow mode or lock mode. Both the pan axis and tilt axis can
be manually set up.
Horizontal Angle Control
You can control the horizon angle via the horizontal
adjustment button while in panning mode, follow
mode or lock mode.
Horizontal
adjustment
button
Horizontal
adjustment
button
Move the horizontal adjustment button
to left or right
8
Record the first position (rotation start position) by manually moving
camera to desired position. Hold in position for half a second. Single
tap the function button to record rotation start position.
( 3 ) Set rotation start position
Record the second position (rotation end position) by manually
moving camera to desired position. Hold in position for half a second.
Single tap the function button to record rotation end position.
( 4 ) Set rotation end position
The gimbal automatically restores to the start position, while the
tilt axis and pan axis start rotating at a constant speed according
to pre-set speed to end position, it will enter the follow mode at
the end position.
( 5 ) Start auto rotation movements
( 2 ) Enter auto-rotation mode
Function
Button
(1)
After finishing the auto rotation, the gimbal shall automatically exit the auto-rotation mode and enter follow mode.
(2) In the process of auto-rotation mode or auto-rotation setting, double tap the trigger button to exit the auto-rotation mode and reset.
Function
Button
Tilt
Pan
Exit:
Tilt
Pan
Function
Button
Pan Axis
Tilt Axis
Enter auto-rotation mode by quadruple tapping the function
button.
9
5. Download and connect App
1
2Connecting App
Download and install “Feiyu ON” App
Turn on the bluetooth and run the App on smartphone, follow on the instructions to connect smartphone to gimbal via bluetooth.
(1) iOS version: (2) Android version:
?
G6
?
α2000
G series G series
Connect Connect
RESET
FOLLOW TILT-LOCK LOCK
360°
FY_G6 _XX
Choose a gimbal
FY_XXX_XX
FY_XXX_XX
FY_XXX_XX
×
App Store
Google play
Feiyu ON Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
Feiyu ON
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
Download
* Scan QR codes to automatically link to
App download page.
