Felix Storch Pro 3 Bedienungsanleitung
Touchscreen installation FELIX Pro
18 November 2019
Page 1
Introduction
Thank you for choosing FELIXprinters!
Kind regards,
FELIXprinters
1Contents
1CONTENTS ............................................................1
2INSTALLATION OF THE TOUCHSCREEN ...............2
WEBCAM .........................................................2
TOUCHSCREEN INSTALLATION.............................. 7
3FIRMWARE UPDATE ............................................ 10
CALIBRATION. ................................................ 16
Touchscreen installation FELIX Pro
18 November 2019
Page 2
2Installation of the touchscreen
Webcam
Follow these steps to install your new touchscreen, first remove the top cover of the machine.
This installation guide also goes over the webcam, if you don’t have that you can skip to 2.2.
Touchscreen installation FELIX Pro
18 November 2019
Page 3
First place the webcam cable through the slot. Plug the cable into the webcam.
Touchscreen installation FELIX Pro
18 November 2019
Page 4
Put in the cable guide. Screw the T-slot into the frame and tighten it to secure the webcam.
Touchscreen installation FELIX Pro
18 November 2019
Page 5

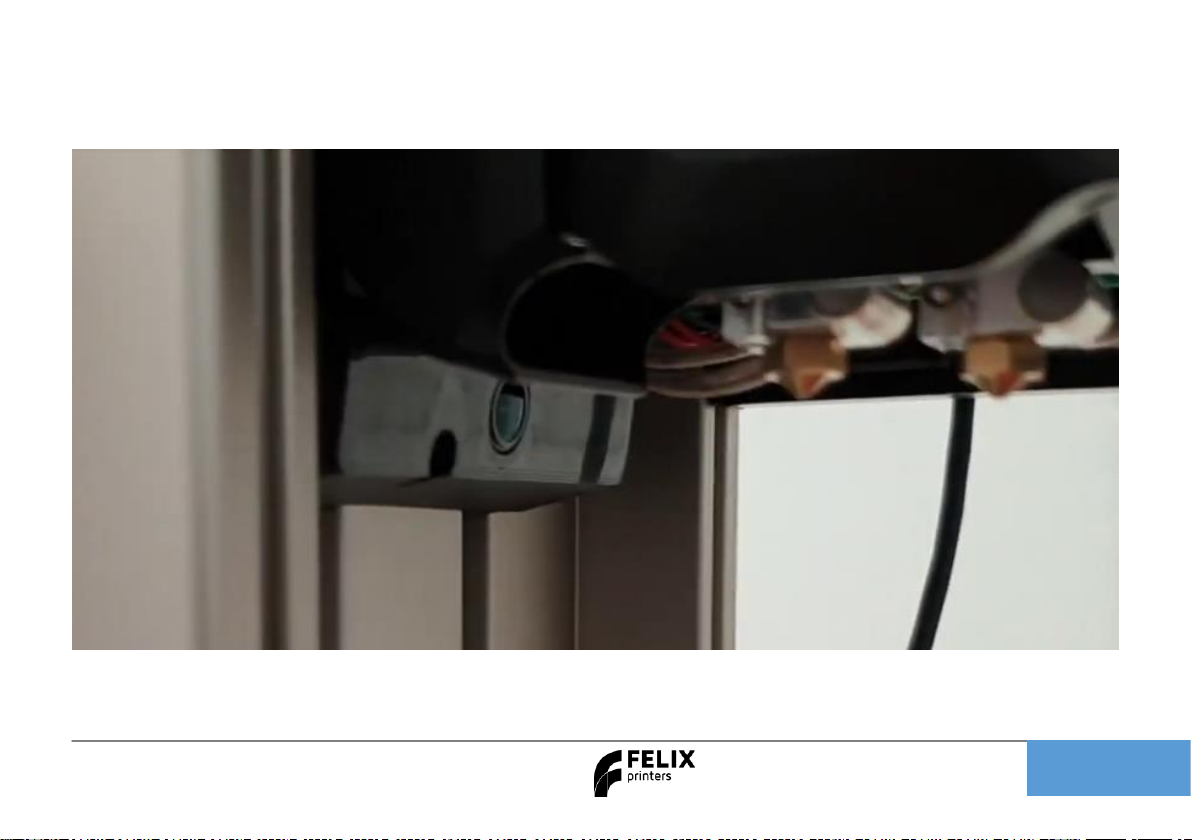

Move the head to the left to make sure it doesn’t hit the webcam.
Touchscreen installation FELIX Pro
18 November 2019
Page 6
Tie wrap the cable as shown, then cut of the remaining part of the tie wrap.
Touchscreen installation FELIX Pro
18 November 2019
Page 7
Touchscreen installation
Remove this cable it’s not used anymore. Place the same USB to LCD cable in this port.
Touchscreen installation FELIX Pro
18 November 2019
Page 8
Place the top cover on the machine and guide the cables through.
Place the cables into the screen as shown.
Touchscreen installation FELIX Pro
18 November 2019
Page 9
Now slide the screen in be careful not to pinch the cables. After this step you’re done and can turn on the machine, but
remember to install the touchscreen firmware for the machine see how to below.
