Fender Blues Junior Bedienungsanleitung

THE SOUNDTHAT CREATES LEGENDS

P/N 049312

Owner,sManual

BluesJuniorTM

ON/OFF SWITCH - This switch turns the AC

power ON and OFF. When the switch is OFF,

the amplifier is completely shut down.

POWER INDICATOR - When the indicator is illu-

minated, the Blues Junior is receiving power.

REVERB - Adjusts the amount of reverb.

MASTER - Adjusts the overall loudness of the

amplifier.

MIDDLE - Adjusts the amount of boost or cut in

the middle frequency range.

BASS - Adjusts the amount of boost or cut in the

low frequency range.

TREBLE - Adjusts the amount of boost or cut in

the high frequency range.

FAT SWITCH - When this button is depressed,

the amount of preamp gain will increase.

VOLUME - Adjusts the amount of preamp gain.

INPUT - A high impedance, high sensitivity plug-

in connection for instruments.

BLUES JUNIOR TOP PANEL FUNCTIONS

BLUES JUNIOR

INTRODUCTION

The Fender Blues Junior is a truly professional, small,

tube amplifier. A true classic, with that late-night

blues tone found nowhere else but in a Fender.

Compact size, professional tone, and traditional

styling make the Fender Blues Junior ideal for

rehearsal, backstage warm-up, and studio work.

The Blues Junior’s top panel mounted controls offer

both simplicity and versatility: Volume, Treble, Bass,

Middle, Master, “FAT” switch, and Reverb. You’ll get

everything from vintage clean, bell-like tones to the

most gnarly growl imaginable.

The Fender vintage special design 12” speaker is

connected through a standard 1/4” jack allowing

your choice of the internal speaker or any external

8Ωcabinets. The “FAT” switch may be controlled

from the top panel or with the optional footswitch.

Your selection of a Fender amplifier will be rewarded

with years of quality performance and a wide range

of musical sounds. The built in quality of a Fender

amplifier is the result of over four decades of dedica-

tion in the combined skills of research and develop-

ment by our engineers and musicians.

That is why we proudly say... FENDER, The Sound

That Creates Legends.

“FAT” FOOTSWITCH CONNECTOR- This jack

provides a connection for the optional external

footswitch (Fender Part# 041228). When

plugged in, the external footswitch disables the

Fat switch (Item H) on the top panel.

SPEAKER CONNECTOR- This jack provides a

connection for the internal speaker. An 8 Ohm

external speaker cabinet may be used instead of

the internal speaker.

LINE CORD

This amplifier is equipped with a grounding type sup-

ply cord to reduce the possibility of shock hazard.

DO NOT ALTER THE AC PLUG. ANY ATTEMPT TO

DEFEAT THIS FEATURE COULD RESULT IN SERIOUS

INJURY.

TUBES

The Blues Junior tube complement consists of three

12AX7s (Fender P/N 013341) and two

6BQ5s(EL84s) (Fender P/N 041255). Looking at the

back of a Blues Junior amplifier, the tube complement

appears as:

6BQ5 6BQ5 12AX7 12AX7 12AX7

TWEED COVERING CARE

The tweed covering is best cleaned with a water-

dampened sponge. Stubborn spots may be cleaned

with a sponge dampened with a light, soapy solu-

tion. Be careful not to let any liquid come in contact

with the operating surfaces. DO NOT have the ampli-

fier plugged into the power outlet during cleaning.

If the amp is set up but does not function, check the following items:

• Is the amp’s power cord properly plugged into an electrical outlet

• Is there power at the outlet?

• Is the speaker properly connected to the amplifier?

• Are the volume and master controls above “zero”?

• Is the volume control on the instrument turned up?

• Is your instrument properly plugged into the amplifier?

(Eliminate any effect pedals and/or try another cord.)

If, after checking all of the above, the system is not performing correctly, consult your Fender Service Center.

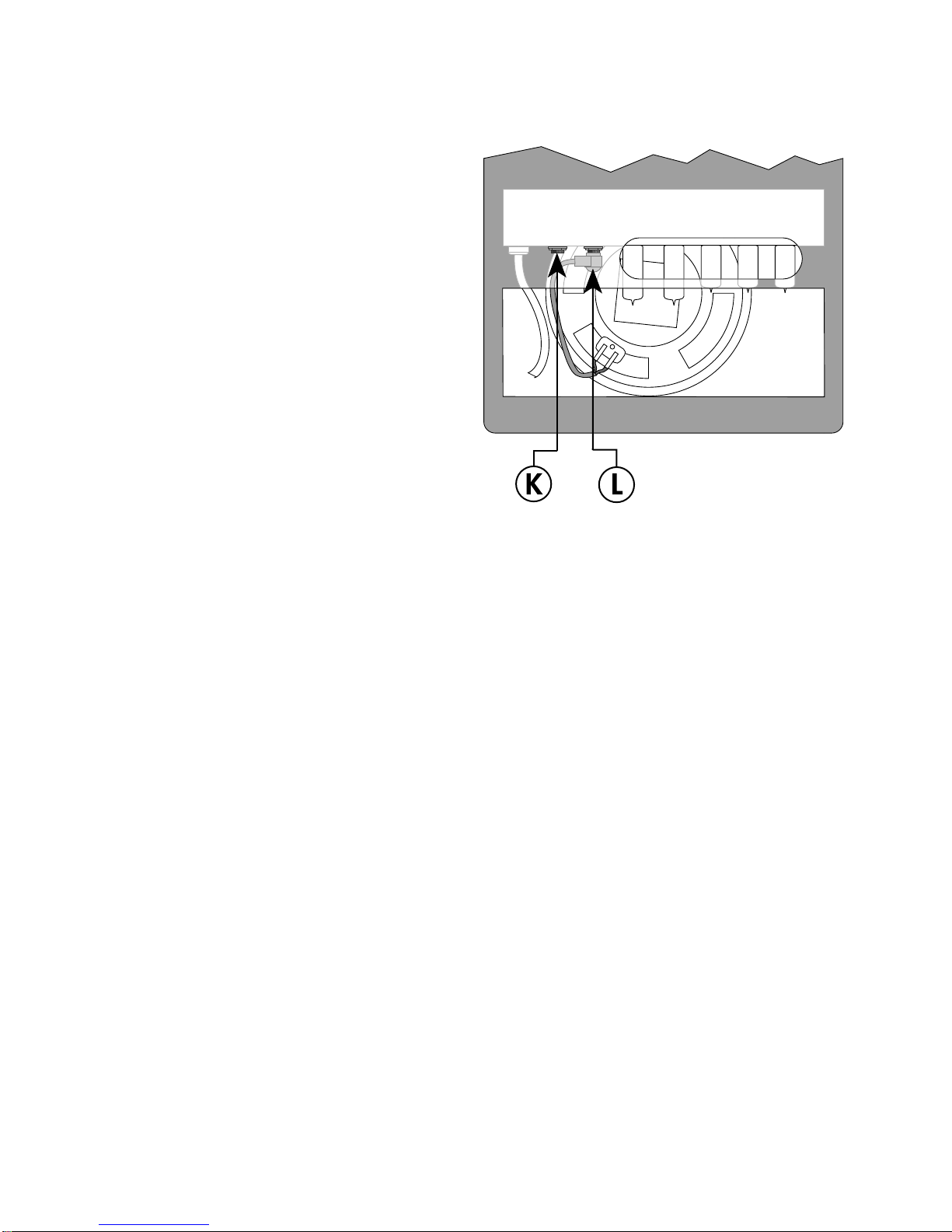

BLUES JUNIOR BOTTOM PANEL FUNCTIONS

TROUBLESHOOTER’S CHECKLIST

A PRODUCT OF:

FENDER MUSICAL INSTRUMENTS CORP.,

CORONA, CA 91720

PART NUMBER: 120V 21-3105

100V 21-3175

230V 21-3165

230V UK 21-3145

230V NORDIC 21-3185

240V AUSTRALIA/NZ 21-3135

DIMENSIONS: HEIGHT: 16” (41cm)

WIDTH: 18” (46cm)

DEPTH: 9-13/16” (25cm)

WEIGHT: 31lbs (14 kg)

POWER OUTPUT: 15W RMS minimum into 8Ω@ 5% THD, 1kHz

INPUT IMPEDANCE: 1MΩ

POWER

REQUIREMENTS: 100 - 120VAC 50/60Hz 180W

230 - 240VAC 50/60Hz 180W

SPEAKER COMPLEMENT: One 8Ω12” Fender re-issue “Gold Label”

speaker (Fender P/N 037617)

WARNINGS: NO USER SERVICEABLE PARTS INSIDE,

REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

THIS EQUIPMENT MUST BE EARTH GROUNDED.

BLUES JUNIOR SPECIFICATIONS

BLUES JUNIOR BLOCK DIAGRAM

FAT

FOOTSWITCH

VOLUME TONE

CONTROLS MASTER

REVERB

DRIVE

REVERB

PAN

REVERB

RECOVERY

REVERB

POWER

AMP

SPEAKER

INPUT

THIS EQUIPMENT CONFORMS TO

THE FOLLOWING DIRECTIVES :

EMC 89/336/EEC AND LV 73/23/EEC
