Ferroli Optimax HE Plus 38 C Fehlerbehebungshandbuch

OPTIMAX HE PLUS 38 C

wall-mounted gas fired,

pre-mix

condensing combination boiler

cod. 3540I892 - 02/2009 (Rev. 00)

,

G.C. n° 47-267-45

INSTRUCTIONS FOR USE INSTALLATION AND MAINTENANCE

Seasonal Efficiency

(SEDBUK)

band A

OPTIMAX HE PLUS 38 C

2Cod. 3540I892 - 02/2009 (Rev. 00)

• Read the warnings given in this manual thoroughly.

They provide important information for safe instal-

lation, use and maintenance

• By law the instruction manual must be left with the

end user.

• If the appliance is sold or transferred to another

owner or if the owner moves, leaving the appliance

behind, always ensure that the manual is kept with

the appliance for consultation by the new owner

and /or installer.

• Incorrect installation or poor maintenance absolves

the manufacturer from all liability for damage to

people or property.

• Installation and maintenance must be carried out

in conformity with current legislation, according

to the manufacturer’s instructions and by qualified

personnel.

• Before service or maintenance work is, carried out

isolate the appliance from the mains electricity

supply.

• In the event of malfunction or faulty operation, iso-

late the appliance. Do not attempt to repair or carry

out any other operation on the appliance directly.

Contact qualified personnel only.

• Repairs or the replacement of components must be

carried out exclusively by qualified personnel using

original spare parts only. Failure to respect the above

may compromise the safety of the appliance.

• To guarantee efficient operation, the appliance must

be serviced once a year by a corgi registered engi-

neer.

• The appliance may not be used for purposes other

than those for which it was explicitly designed. Any

other use is considered improper and therefore dan-

gerous.

• Incorrect installation and use or failure to follow the

instructions provided by the manufacturer absolve

the manufacturer from all liability for damage.

• After unpacking, check that the contentsare complete

and undamaged.

• Keep the packaging out of reach of children as it is

potentially hazardous.

• To clean external parts, use a damp cloth moistened

with soapy water if necessary. Avoid using abrasive

cleaning products and solvents.

This symbol indicates “Caution” and is placed next to all safety information.

Strictly follow these instructions in order to avoid danger and damage to persons,

or property.

This symbol calls attention to a note or important information, please read thor-

oughly.

IMPORTANT

•Your "benchmark" Installation, Commissioning and Service Record Log Book is enclosed in the

last pages of this manual. “This record must be completed and left with the end user”.

Ferroli is a member of the Benchmark initiative and fully supports the aims of the programme.

Benchmark has been introduced to improve the standards of installation and commissioning of

central heating systems in the UK and to encourage the regular servicing of all central heating

systems to ensure safety and efficiency. Please see installation and servicing guidelines.

•"Ferroli declare that no substances harmful to health are contained in the appliance or used

during the appliance manufacture”.

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

1. OPERATING INSTRUCTIONS .................................................................4

1.1 Introduction ............................................................................................................4

1.2 Control panel ..........................................................................................................5

1.3 Turning ON and OFF ..............................................................................................6

1.4 Adjustments ............................................................................................................8

1.5 Maintenance..........................................................................................................11

1.6 Faults.....................................................................................................................11

2. INSTALLATION.....................................................................................12

2.1 General Instructions..............................................................................................12

2.2 Boiler location .......................................................................................................13

2.3 Boiler water connections ......................................................................................14

2.4 Connection to the gas system..............................................................................16

2.5 Electrical Connections ..........................................................................................16

2.6 Flue system ...........................................................................................................18

2.7 Condensate outlet connection .............................................................................23

3. SERVICE AND MAINTENANCE............................................................25

3.1 Adjustments ..........................................................................................................25

3.2 System start-up.....................................................................................................26

3.3 Maintenance..........................................................................................................27

3.4 Troubleshooting....................................................................................................29

4. TECHNICAL CHARACTERISTICS AND DATA.......................................................... 31

4.1 Dimensions and connections ................................................................................31

4.2 General view and main components ....................................................................32

4.3 Hydraulic diagram.................................................................................................33

4.4 Technical data table..............................................................................................34

4.5 Diagrams ...............................................................................................................35

4.6 Wiring diagram .....................................................................................................36

Benchmark ..................................................................................................................38

,

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

1. OPERATING INSTRUCTIONS

1.1 Introduction

Dear Customer,

Thank you for choosing the OPTIMAX HE PLUS 38 C, a FERROLI wall-mounted boiler of the latest

generation, featuring advanced design and cutting-edge technology.

OPTIMAX HE PLUS 38 C is a high-efficiency condensing pre-mix appliance for heating and hot water

production with extremely low emissions, running on natural gas or LPG.

The boiler consists of an aluminium laminar heat exchanger providing effective condensation of the

water vapour contained in the flue gases, permitting extremely high efficiency.

Above the heat exchanger, in the boiler, there is a pre-mix burner, with a large ceramic surface, equip-

ped with electronic ignition and ionization flame control, which achieves extremely low emissions while

ensuring high reliability and long life operation.

The boiler is totally room sealed from the installation room: the air needed for combustion is drawn from

outside. The boiler also includes a modulating speed fan, modulating gas valve, pump, expansion vessel,

safety valve, flow sensor, temperature sensors, a safety thermostat and a low water pressure switch.

Thanks to the twin microprocessor control and adjustment system with advanced self-diagnosis, unit

operation is for the most part automatic. The power for heating is automatically governed by the control

system.

The user only has to set the temperature desired inside the home by means of a room thermostat and

appliance temperature control. The adjustment and control system will provide optimum operation

throughout the year.

The display continuously provides information on the unit’s operating status and it is easily possible

to obtain additional information on the sensor temperatures, set-points, etc. or configure them. Any

operating problems associated with the boiler or system is immediately signalled by the display and, if

possible, corrected automatically.

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

1.2 Control panel

eco

comfort

reset

1314

436

fig. 1

1= Domestic Hot Water temperature setpoint decreasing push button

2= Domestic Hot Water temperature setpoint increasing push button

3= Central Heating water temperature setpoint decreasing push button

4= Central Heating water temperature setpoint increasing push button

5= Display LCD

6= Reset / OTC push button

7= Economy-Comfort / On-Off push button

8= Domestic Hot Water symbol

9= Domestic Hot Water mode operation

11 = Multi-function indication (Flashing during heat exchanger protection)

12 = Economy symbol

13 = Central Heating mode operation

14 = Central Heating symbol

15 = Burner on and actual load indication (Flashing during flame current supervision)

Indication during boiler operation

Central Heating mode

The Central Heating heat demand (generated by the OpenTherm Remote Control, the Room Thermostat

or the Clock) is indicated by the flashing of the Hot Air symbol over the radiator (part. 13 and 14 – fig.

1). The display indicates the actual Central Heating water temperature (part. 11 – fig. 1) and during

central heating off time the text “d2”.

fig. 2

eco

comfort

reset

eco

comfort

reset

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

Domestic Hot Water mode

The Domestic Hot Water heat demand (generated by the DHW flow sensor or due to a Comfort request)

is indicated by the flashing of the Hot Water symbol under the tap (part. 8 and 9 – fig. 1). The display

indicates the actual Domestic Hot Water temperature (part. 11 – fig. 1) and during domestic hot water

off time the text “d1”.

1.3 Turning ON and OFF

Without main power supply

To avoid damage caused by freezing during long shutdowns in winter, it is advisable to drain all

water from the system.

Ignition

Ensure the power is on to the appliance.

For the firsts 120 seconds, the display shows FH that identifies the Air purge function.

During the first 5 seconds, the display shows the software version of the pcb.

Open the gas cock on the boiler and purge the air from the pipework upstream of the gas valve.

When the FH disappears, the boiler is ready to function automatically whenever the external controls

•

fig. 3

eco

comfort

reset

fig. 4 - Boiler without main power supply

eco

comfort

reset

eco

comfort

reset

fig. 5 Ignition fig. 6 Air purge

eco

comfort

reset

eco

comfort

reset

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

are calling for heat.

Turning off

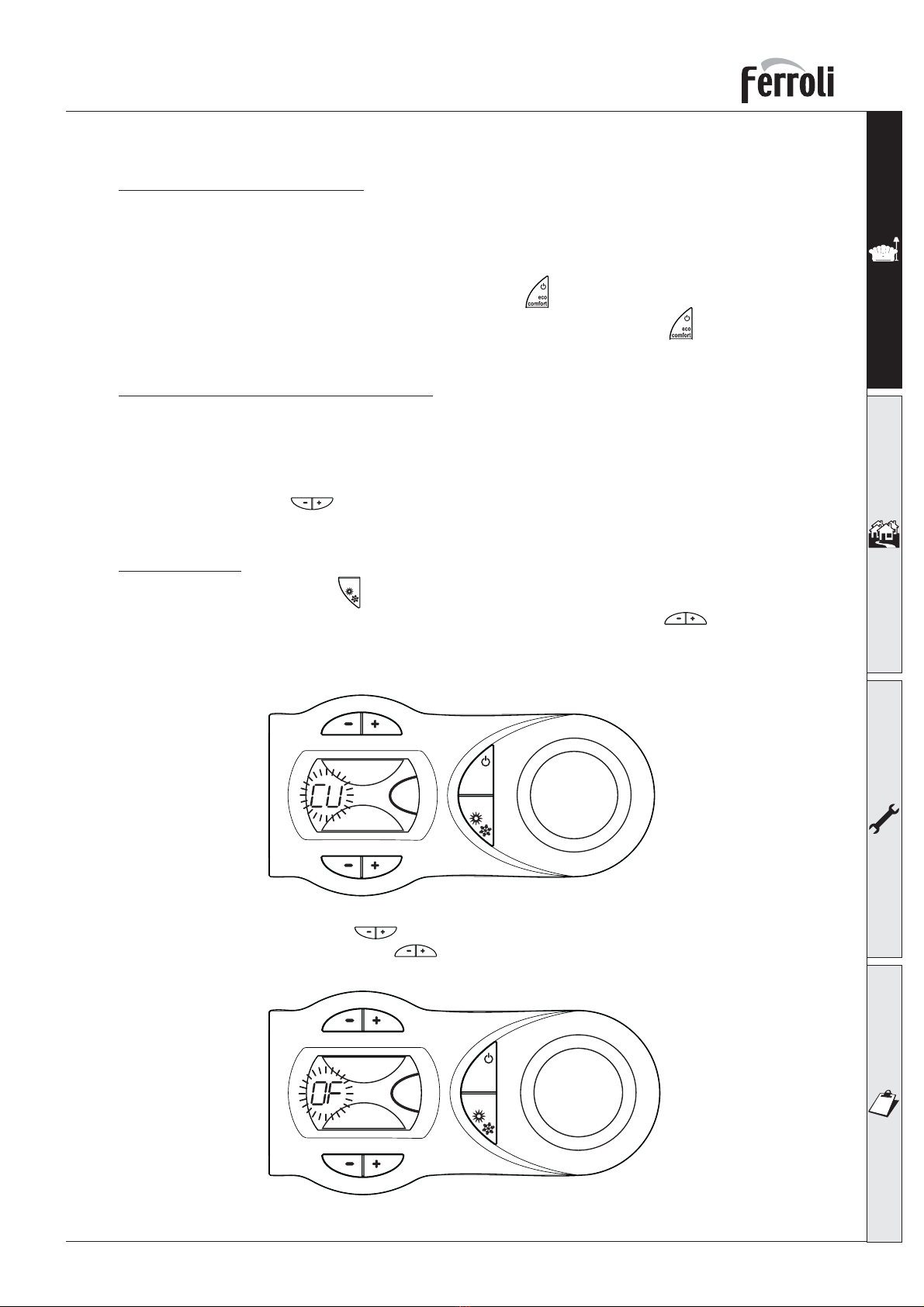

Press the (part. 7 - fig. 1) for 5 seconds.

When the boiler is turned off with this key, the p.c.b is still powered, heating operation is disabled and

the display is off however the frost protection will still be active.

To totally isolate close the gas cock ahead of the boiler and disconnect electrical power.

To avoid damage caused by freezing during long shutdowns in winter, it is advisable to drain all

water from the system.

To turn boiler on again, press (part.7 - fig.1) for 5 seconds.

The boiler is ready to function automatically whenever the external controls are calling for heat.

eco

comfort

reset

fig. 7 - Turning off

fig. 8

eco

comfort

reset

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

1.4 Adjustments

Heating temperature setting

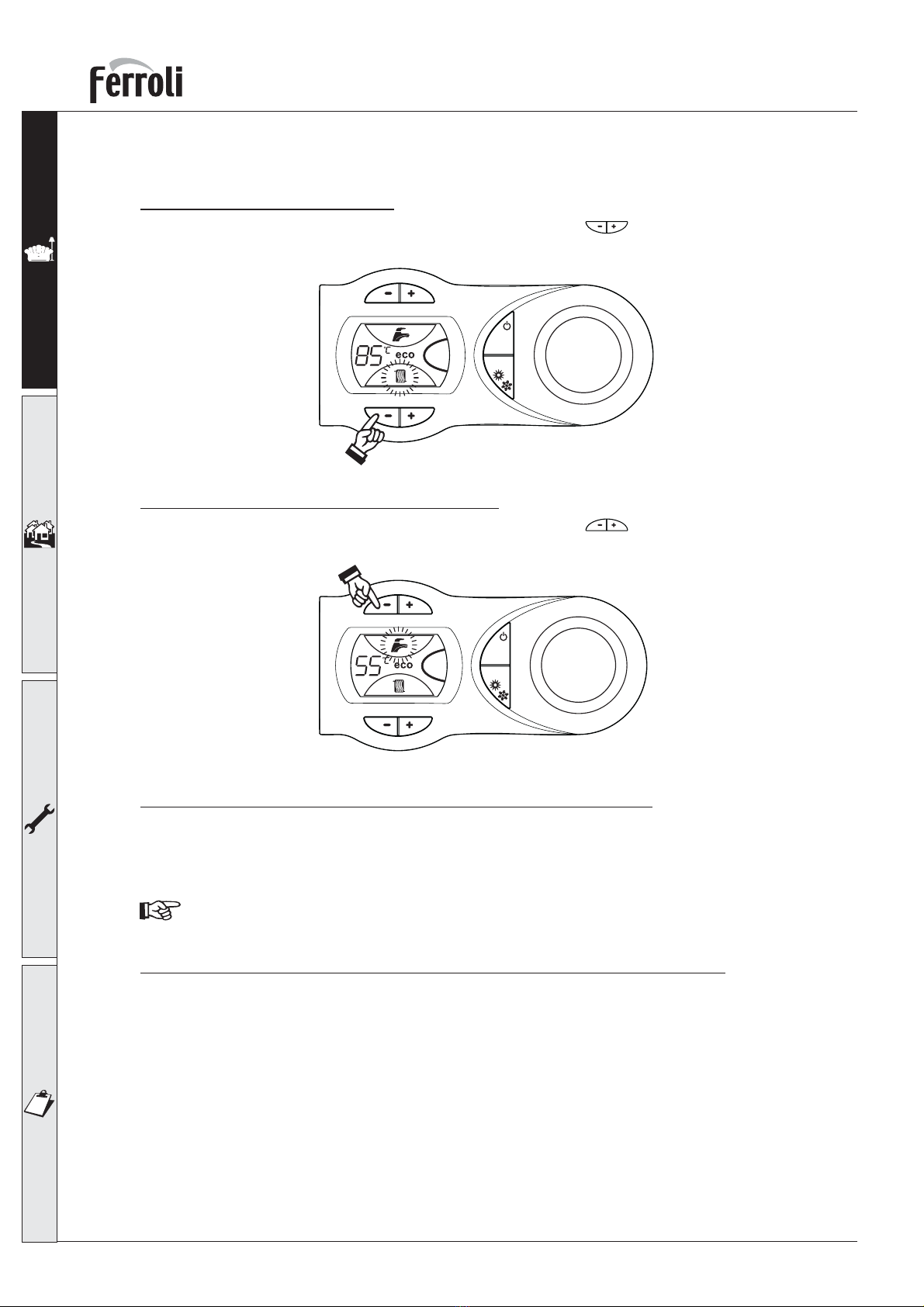

To set the system flow temperature, use the CH push buttons (Part. 3 and 4 – fig. 1). It can be

varied from a minimum of 20°C to a maximum of 90°C.

Domestic hot water temperature setting

To set the hot water temperature, use the DHW push buttons (Part. 1 and 2 – fig. 1). It can be

varied from a minimum of 40°C to a maximum of 55°C.

Room temperature adjustment (using a room thermostat )

Using the room thermostat, set the temperature desired. Controlled by the room thermostat, the boiler

lights and heats the system water to the system delivery setpoint temperature. The burner shuts down

when the desired temperature in the room is reached.

A room thermostat and programmer are a mandatory requirement (Building regulations Doc ‘L’

2002).

Room temperature adjustment (using an optional Remote Control)

Using the remote control, set the temperature desired. The flow temperature will be controlled by the

remote control. For settings and other informations, see the relative manual.

eco

comfort

reset

fig. 9

eco

comfort

reset

fig. 10

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

Economy/Comfort selection

The unit is equipped with a special internal device that ensures a high hot-water delivery speed and

excellent user comfort. When comfort mode is active the water in the boiler is maintained at a pre-de-

termined temperature, which means that hot water is available at the boiler outlet as soon as a tap is

opened, ie with no waiting.

The user can turn the device off (ECO mode) by pressing (part.7 - fig.1). In ECO mode the display

shows the relevant symbol (part. 12 - fig. 1). To turn on COMFORT mode, press (part.7 - fig.1) again,

the ECO symbol will vanish from the display.

Outside temperature compensation

When the (optional) external sensor kit is fitted to the appliance, the system can work in Outside tem-

perature compensation mode. In O.T.C. mode the temperature of the heating system is controlled

according to the external climate conditions, this will guarantee a high degree of comfort and energy

saving all year round.

By the CH push buttons (Part. 3 and 4 – fig. 1) is possible to set the maximum flow temperature

for the installation.

O.T.C. setting

To enter the OTC mode, press

reset

(Part. 6 – fig. 1) for 5 seconds.

The display shows CU flashing (fig. 11); to set Curve, use the DHW push buttons (Part. 1 and 2 – fig.

1). It can be varied from 1 to 10, in accordance with the chart (fig. 13). O means no O.T.C. mode.

It is recommended a start point of 20 - 30°C and a flow temperature of 85°C is required for the UK

(Curve 9 or 10).

By pressing the CH push buttons (Part. 3 e 4 – fig. 1), the display shows OF flashing (fig. 12); to

set Offset, use the DHW push buttons (Part. 1 and 2 – fig. 1). It can be varied from 20 to 40, in

accordance with the chart (fig. 14).

eco

comfort

reset

fig. 11

eco

comfort

reset

fig. 12

OPTIMAX HE PLUS 38 C

Cod. 3540I892 - 02/2009 (Rev. 00)

To exit the OTC mode, press

reset

(Part. 6 – fig. 1) for 5 seconds.

fig. 13

fig. 14

Maximum boiler flow temperature

Outside temperature

Outside temperature Outside temperature

Maximum boiler flow temperature

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Ferroli Kessel Handbücher

Ferroli

Ferroli SKY C 11 B Bedienungsanleitung

Ferroli

Ferroli BLUEHELIX TECH S 45H Fehlerbehebungshandbuch

Ferroli

Ferroli optima 2001 VMF7 Bedienungsanleitung

Ferroli

Ferroli DIVAcondens F28 Fehlerbehebungshandbuch

Ferroli

Ferroli PEGASUS F2 N 2S Fehlerbehebungshandbuch

Ferroli

Ferroli ATLAS D 30 K 100 Fehlerbehebungshandbuch

Ferroli

Ferroli Falcon Benutzerhandbuch

Ferroli

Ferroli BLUEHELIX B 32 K 50 Technisches Handbuch

Ferroli

Ferroli DIVAtech C 32 D Bedienungsanleitung

Ferroli

Ferroli PEGASUS D Ki 100 Bedienungsanleitung

Ferroli

Ferroli DIVACONDENS F D Fehlerbehebungshandbuch

Ferroli

Ferroli ATLAS 62 Bedienungsanleitung

Ferroli

Ferroli BLUEHELIX 352 RRT 24 C Technisches Handbuch

Ferroli

Ferroli Rendimax 23 CE Bedienungsanleitung

Ferroli

Ferroli BlueHelix HiTech RRT C Bedienungsanleitung

Ferroli

Ferroli DOMIcompact F 24 D Fehlerbehebungshandbuch

Ferroli

Ferroli DOMIcompact F 30 B Fehlerbehebungshandbuch

Ferroli

Ferroli BLUEHELIX TECH RRT 34 C Bedienungsanleitung

Ferroli

Ferroli GN2 N Bedienungsanleitung

Ferroli

Ferroli BLUEHELIX PRO RRT 32 C Technisches Handbuch

Ferroli

Ferroli DIVAtop MICRO LN C Technisches Handbuch

Ferroli

Ferroli OMNIA S HYBRID H 3.2 Kurzanleitung

Ferroli

Ferroli ATLAS D 32 CONDENS SI UNIT Technisches Handbuch

Ferroli

Ferroli FERELLAzip F 30 Bedienungsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung
