FIC AN19E Bedienungsanleitung

AN19E/AN19C

MAINBOARD

MANUAL

DOC No.: M02811

Rev. : A0

Date : 9, 2002

Part No. : 25-11659-00

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its

protective packaging, ensure that there is no static electric charge

in your body.

2. There is a danger of explosion if the battery is incorrectly

replaced. Replace only with the same or an equivalent type

recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s

instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

nWear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

nTouch a grounded or anti-static surface or a metal fixture such as a

water pipe.

nAvoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

mounting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

Notice

1 - 1

Overview

Chapter 1

The new 1stMainboard®AN19E/AN19CÔis an ATX sized motherboard sup-

porting the latest generation of AMD®processors at industry leading speeds.

By utilizing DDR ( Double Data Rate ) transfer rate the 100/133 MHz system bus

effectively reaches Front Side Bus speeds of 200/266/333 MHz. The board

provides users with an ATA133 data transaction for hard drives and has 3

PC1600/PC2100/PC2700 DDR333 DIMMs for up to 3 GB.

The optional serial ATA feature replaces the standard parallel ATA physical

storage interface and allows future enhancements to the computing platform.

It completely software compatible with parallel ATA, requiring no mofication

to your operating system.The board is equipped with 2 dual channeled en-

hanced PCI bus master IDE connectors, plus two optional IDE RAID ATA133

connectors for supporting more efficient data backup.

The board is based around the high performance VIA KT400Ôas North Bridge

and the VIA VT8235Ô as South Bridge. Its AGP 8X functions supported AGP

3.0 interface and the most robust 3D games with software environments. The

AGP slot allows 1.5 volt AGP card only and Maximum AGP interface bandwith

2.1 GB/s.

1 - 2

AN19E/AN19CMainboardManual

IMPORTANT:AMDCPUHEATSINKINSTALLATION

Be ware finish heat sink install. Before you boot system, please

check the heat sink is complete contact with die of CPU.

The poor contact will bring about over heat, it may damage your

processor.

Itis strongly recommendedthatat least a250-wattATX powerpupply

be used for this motherboard. Make sure that your ATX power sup-

ply can supply at least 20 amperes on teh +5-Volt lead and 10mA

on the +5-Volt standby lead (+5VSB). Your system may become

unstable / unreliable and may experience difficulty in powering up if

your power supply is inadequate.

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

þThe mainboard þThis user manual

þFDDcable þ Drivers CD þATA-66/100 cable

oRAIDATA-100 cable(optional)

oUSB cable (optional) oI/O shield (optional)

oGameport cable(optional) oSPD650 cable (optional)

oSerialATA cable(optional) oBluetooth module(optional)

1 - 3

Overview

The AN19E/AN19C Mainboard

1 - 4

AN19E/AN19CMainboardManual

Main Features

nEasy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives, Windows 98SE, Windows ME, Windows

||NT, Windows 2000, Windows XP, and OS/2.

nLeading Edge Chipset

VIA KT400 is a single-chip North Bridge for AMD CPUs with 200/266/333

MHz Front Side Bus with AGP 8X and PCI plus advanced memory con-

troller that supports PC1600/PC2100/PC2700 DDR SDRAM. VIA VT8235

is a Vlink client highly integrated controller that supports PC99-compliant

system. The VT8235 supports ATA133 protocol.

nVersatile Main Memory Support

Accepts up to 3 GB DRAM using three DDR333 DIMMs from 256 MB to 3

GB with support for lightenning-fast (PC1600/PC2100/PC2700) DDR

SDRAM .

nEnhanced PCI Bus Master IDE Controller with UltraDMA/33/66/100/

133 Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that up to four Enhanced IDE devices, including CD-

ROM and Tape Backup Drives, as well as Hard Disk Drives supporting

the new UltraDMA/133 Mode 6 protocol, standard PIO Mode 3, PIO

Mode 4, DMA Mode 2, DMA Mode 4, UltraDMA/100 Mode 5 devices

are also supported.

nAMD Processors Support

The socket A compatible AMD AthlonÔXP processor 1500+ to 2000+,

600MHz to 1.4GHz AMD AthlonÔand AMD DuronÔprocessor up to

1.3GHz.

nOptional IDE RAID Level 0/1 Support

The optional Promise IDE RAID controller and two connectors offer

ATA100 and Level 0, 1 for backing up huge amount data in a more effi-

cient way.

1 - 5

Overview

nAGP and PCI Expansion Slots

One AGP Bus and six PCI Bus expansion slots provided the room to

install a full range of add-on cards.

nCompact Onboard Audio Subsystem

Built-in AC97 digital audio by Realtek ALC650 (5.1 channel) that com-

plaint with AC97 2.2 specification. It provides 5.1-channel which is slot

selectable DAC (Digital Analog Converter) output for multi-channel ap-

plications. It also supports digital SPDIF functions.

nSuper Multi Input/Output (I/O) Support

Integrated Plug and Play multi-I/O chipset features two high-speed UART

16550 compatible serial ports, one EPP/ECP capable parallel port, one

game port, and one FDD connector.

nOnboard Accelerated Graphics Port (AGP)

The motherboard is installed one 32-bit 1.5V AGP 8X bus with a dedi-

cated 66MHz/133MHz path from the graphics card to the system memory

offering much greater bandwidth than the 32-bit PCI bus does. AGP en-

abled 3D graphics cards can directly access main memory across this fast

path instead of using local memory.

nConvenient Rear Panel USB Connection Support

Four USB 2.0 ports integrated in the rear I/O panel and two extra USB 2.0

ports for either front or rear panel connection allow convenient and high-

speed Plug and Play connections to the growing number of USB 2.0

compliant peripheral devices on the market.

nLAN Support (optional)

Onboard optional LAN controller with one optional jack integrated with

other rear panel I/O connectors provides users with a convenient con-

nection with network environment. The integrated 10/100MB fast Ethernet

controller in chipset with external VIA VT6103Ôphysical Layer by RJ-45

connector.

1 - 6

AN19E/AN19CMainboardManual

nIDE RAID Support (optional)

The optional feature allows this board to back up huge amount data in an

economic way. The chip on this board is a PCI-to-IDE UDMA/ATA133

RAID controller and designed for mainboard use. It offers features that of

level 0, 1, 0+1 and supports the most popular operating systems, such as

Windows 95/98/ME/NT 4.0/2000/XP and Linux.

nSerial ATA Support (optional)

The optional feature offers up to Serial ATA device for replacing the

parallel ATA interface and providing greater throughput. It supports cur-

rent operating systems, software, and all ATA and ATAPI devices includ-

ing high capacity removable devices, optical devices, tape storage de-

vices, and zip drives.

2-1

Installation

The mainboard has several user-adjustable jumpers on the board that allow

you to configure your system to suit your requirements. This chapter

contains information on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

?nStep 1 -Set system jumpers

?nStep 2 - Install memory modules

?nStep 3 - Install the Central Processing Unit (CPU)

?nStep 4 - Install expansion cards

?nStep 5 - Connect ribbon cables, cabinet wires, and power

?supply

?nStep 6 - Set up BIOS software

?nStep 7 - Install supporting software tools

WARNING: Excessive torque may damage the

mainboard. When using an electric screwdriver on the

mainboard, make sure that the torque is set to the

allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated

Circuit (IC) chips. To prevent static electricity from

harming any of the sensitive components, you should

follow the following precautions whenever working on the

computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the

IC chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the

wrist.

4.Place components on a grounded anti-static pad or on

the bag that came with the component whenever the

components are separated from the system.

Chapter 2

AN19E/AN19C Mainboard Manual

2-2

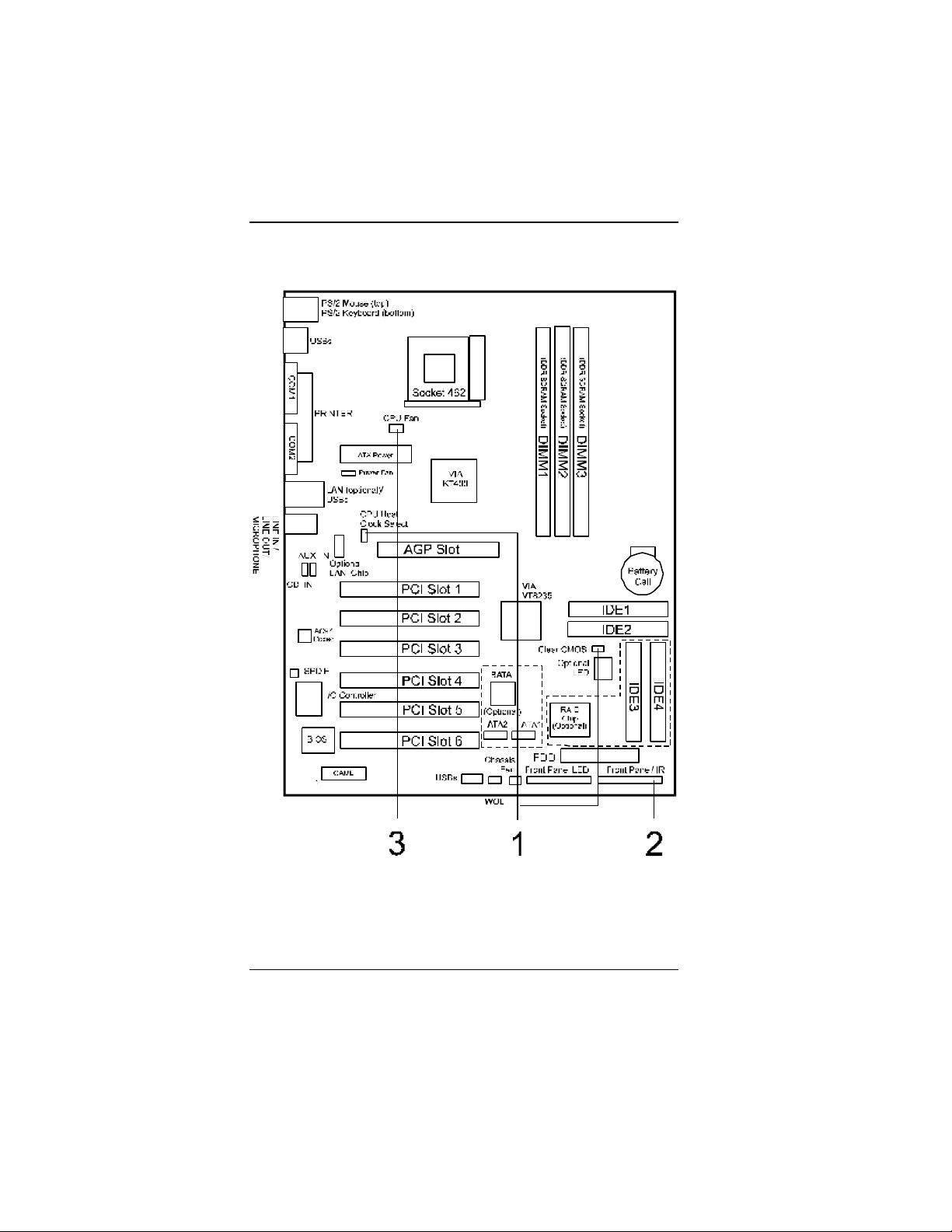

Mainboard Layout
