Fieldmann FZR 70385-0 Bedienungsanleitung

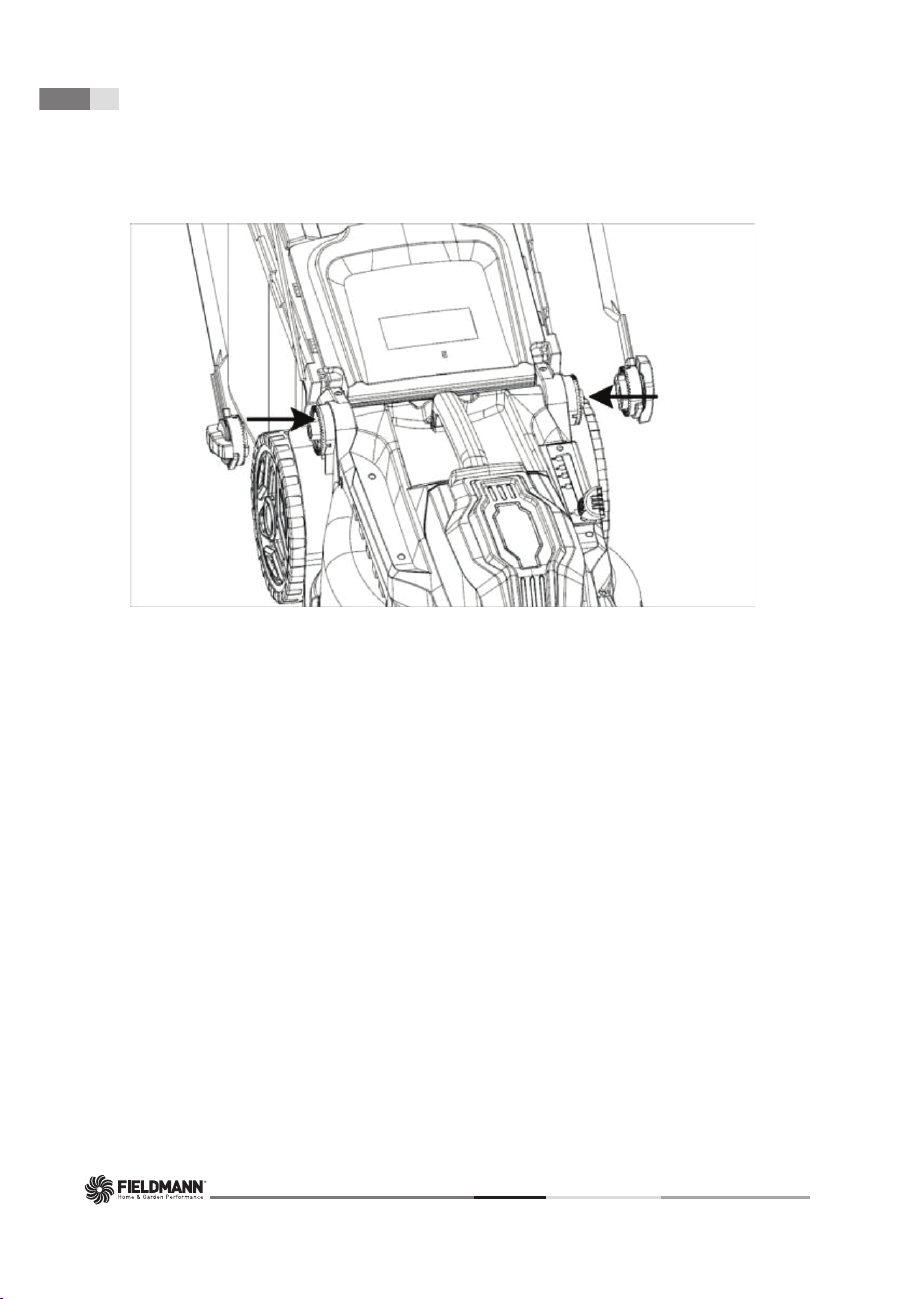

FZR 70385-0

CORDLESS LAWN MOWER 38CM USER’S MANUAL

(not included)

EN 4

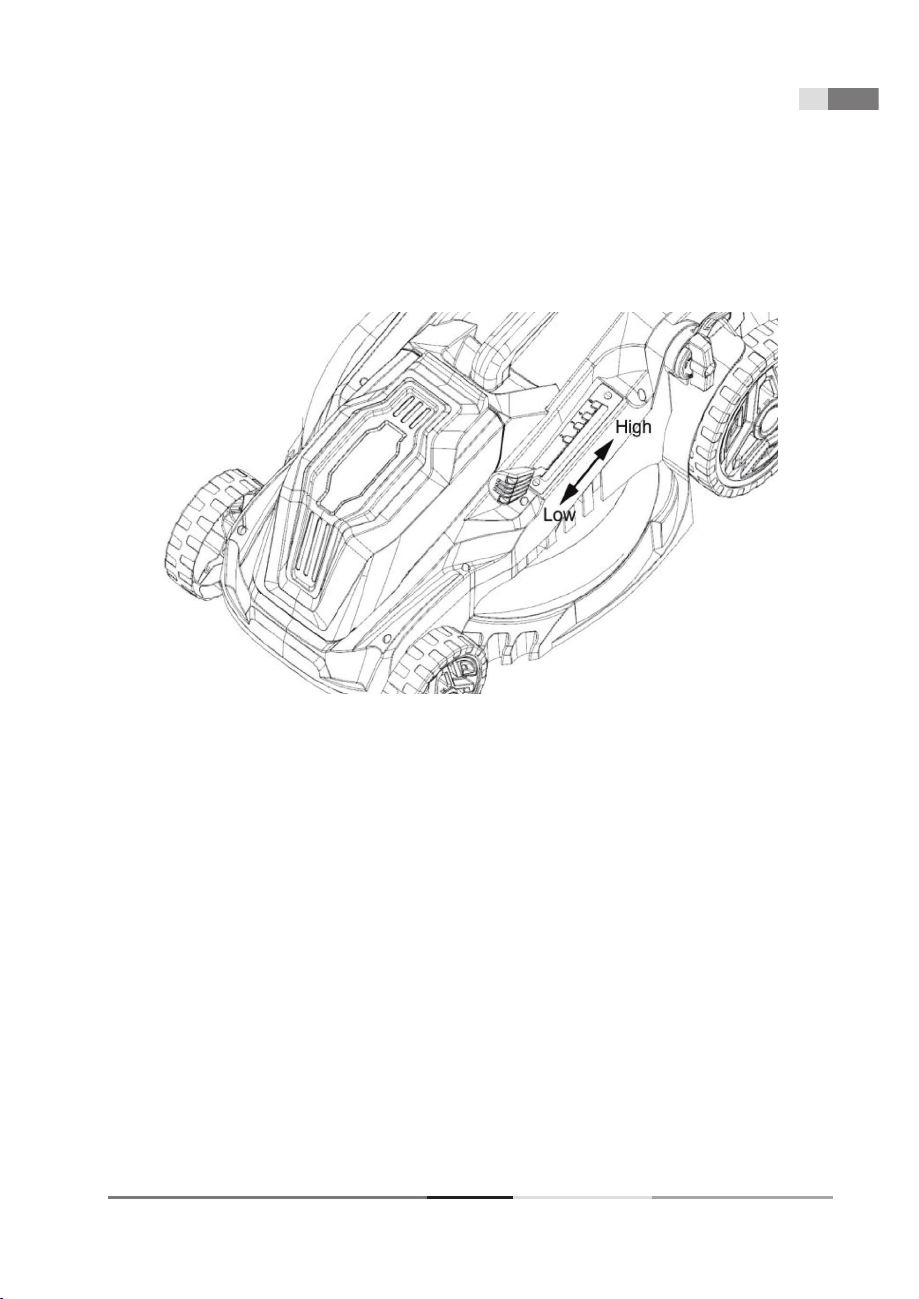

FZR 70385-0

CORDLESS LAWN MOWER 38CM USER’S MANUAL

EN 6

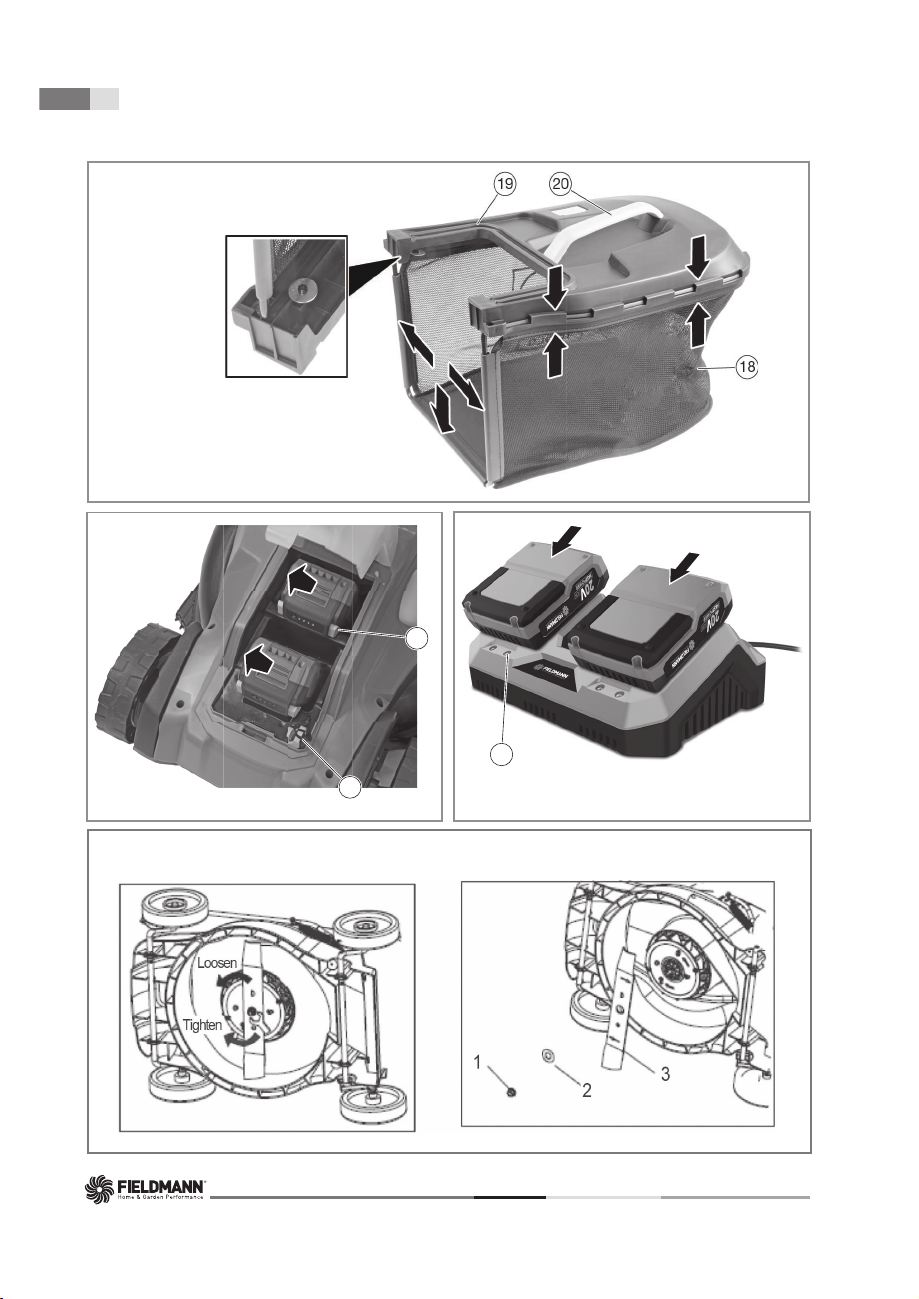

FZR 70385-0

(not included)

CORDLESS LAWN MOWER 38CM USER’S MANUAL

General safety regulations 8 7

CORDLESS LAWN MOWER 38CM

INSTRUCTIONS FOR USE

Thank you for purchasing this cordless lawn mower.

Before you start using it, please read this user manual carefully and save it for future use.

TABLE OF CONTENTS

Instructions for use..............................................................................................................................................................7

1. GENERAL SAFETY REGULATIONS..........................................................................................................................8

2. SYMBOLS..........................................................................................................................................................................9

3. DESCRIPTION................................................................................................................................................................10

4. BASIC WORK SAFETY................................................................................................................................................10

5. ASSEMBLY AND OPERATION.................................................................................................................................14

7. TECHNICAL SPECIFICATIONS................................................................................................................................21

8. TROUBLESHOOTING................................................................................................................................................. 22

9. MAINTENANCE........................................................................................................................................................... 23

10. DISPOSAL......................................................................................................................................................................24

EN 8General safety regulations

FZR 70385-0

1. GENERAL SAFETY REGULATIONS

IMPORTANT SAFETY NOTICE

Unpack the product carefully and do not throw away any of the packaging until you have found all the parts of

the product.

Store the product in a dry place out of reach of children.

Read all the warnings and instructions. Failure to comply with the warnings and instructions may lead to

electric shock, ﬁre and/or serious injuries.

PACKAGING

The product’s packaging prevents damage during transport. This packaging is a resource and can be recycled.

USER MANUAL

Before starting to work with the machine, please read the following safety regulations and instructions for use.

Get familiar with the controls and correct use of the equipment. Keep the user’s manual in a safe place for easy

future reference. Save the original packaging, including the internal packing material, guarantee card and proof

of purchase receipt for at least the time of the guarantee. If you need to transport this power tool, pack it in the

original cardboard box for maximum protection during shipping or transport (e.g. when moving or when you

need to send this power tool to a service centre for repair).

Note: If you hand over the appliance to somebody else, do so together with this user's manual. Make sure

you use the appliance properly by following the instructions in the included User manual. The user’s manual

also contains operating, maintenance, and repair instructions.

The manufacturer assumes no responsibility for accidents or damages arising from

failure to comply with these instructions.

CORDLESS LAWN MOWER 38CM USER’S MANUAL

Symbols 9

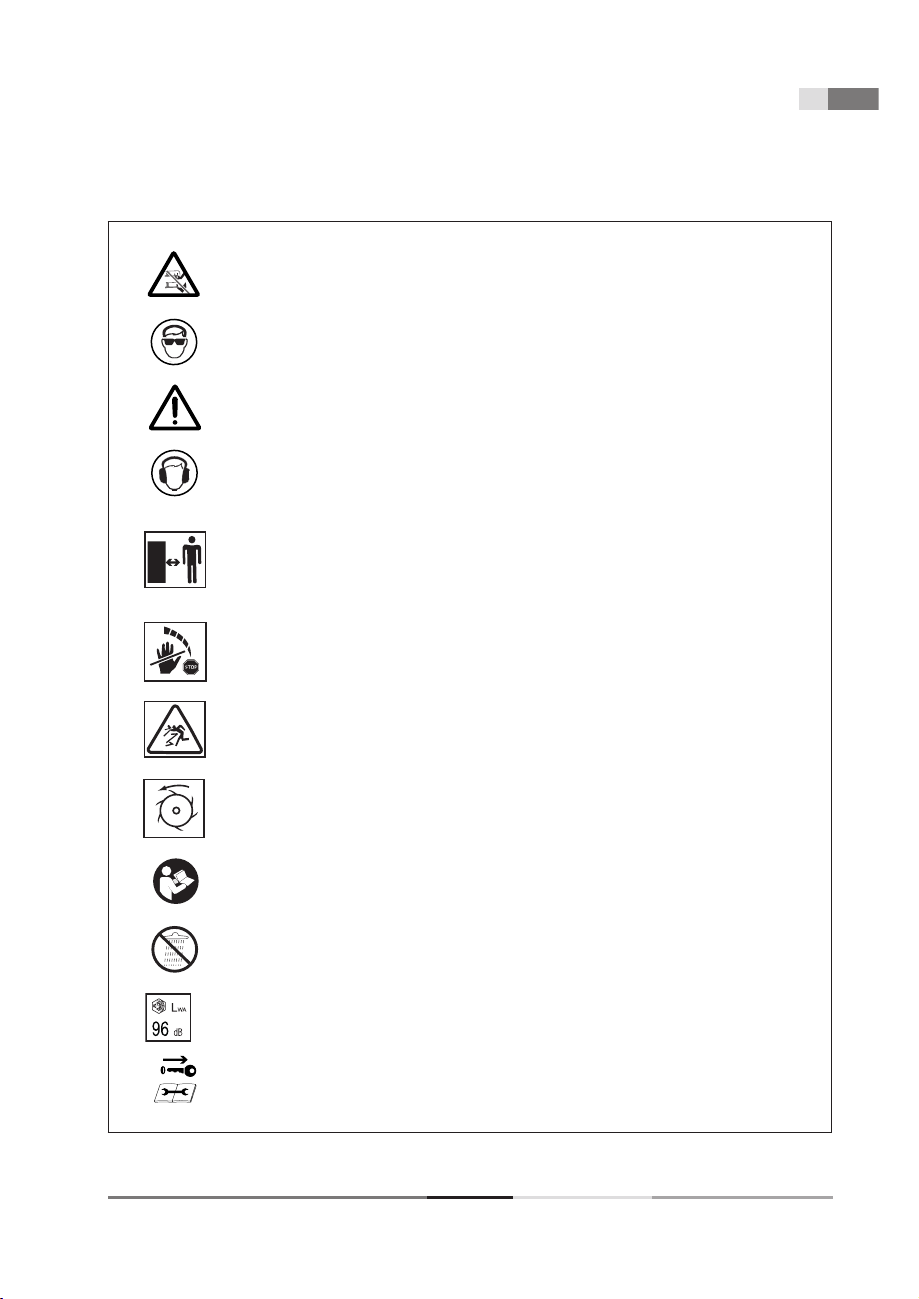

2. SYMBOLS

Risk of injury due to cutting mechanism!

Never reach into the cutting mechanism.

Use eye protection.

Observe the safety instructions before using the product

for the ﬁrst time.

Use ear protection.

Keep other persons in distance!

WARNING! When operating the device, take care that no

other persons are nearby (safe distance: 5m).

This is particularly valid for children and animals.

Be careful of the sharp blade edges.

Danger of injury!

Beware of hurled-away objects.

Keep bystanders away.

Be careful of the sharp blade edges. The blades continue

to rotate even after the motor is turned off.

Read the Instruction Manual attentively prior to use.

Protect the tool from the damp and never expose it to rain!

Guaranteed sound power level Lwa 96 dB (A)

Before doing any maintenance and repair work

disconnect the circuit breaker from the lawn mower.

EN 10 Description

FZR 70385-0

3. DESCRIPTION

4. BASIC WORK SAFETY

IMPORTANT ACCUMULATOR SAFETY INSTRUCTIONS

Batteries are a chemical source of electrical energy, containing chemical compounds that can cause injury

to health, property or the environment. Therefore, handle them with caution.

The battery is ready to supply power at any time, even in undesirable circumstances!

ATTENTION! even with a partially charged battery, a short circuit may occur and damage it. In the worst

case, it may cause an explosion or ﬁre. Therefore, always treat batteries in a way that prevents short circuits

(e.g. with paper clips, coins, keys, nails, screws or other small metal objects)!

Even when stored.

Use only batteries recommended by the device manufacturer.

The battery must not be stored or operated near an open ﬂame. It must also not be thrown into the ﬁre.

Do not dispose of old batteries into regular household waste.

Also, never touch the blades until the machine is disconnected from the power source and until the blades

completely stop.

Disconnect the device from the power supply (i.e. remove the battery from the machine):

• If you need to leave the machine without supervision

• If you have to leave the machine unsupervised

• Before every inspection, every cleaning or repairs

• If you hit a foreign body when working with it

• If the machine vibrates excessively.

Read carefully the basics of working safely with the machine and the user's manual.

This machine must not be operated by anyone with limited physical, sensory or mental abilities (including

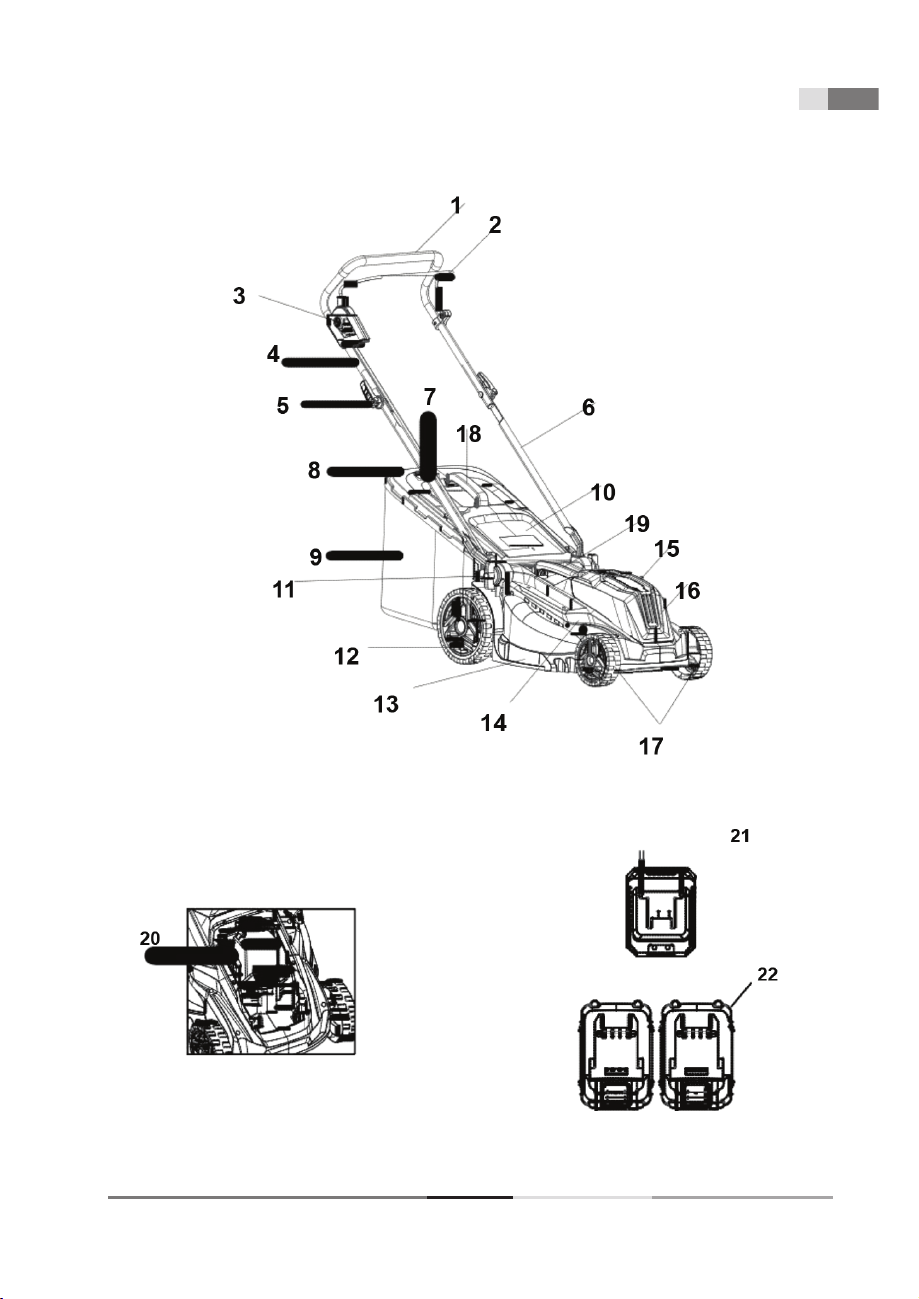

1. Grip handle with foam

2. Start lever

3. Switch box

4. Upper handle

5. Wing nut (x2)

a. Washer (x2)

b. Mounting bolt (x2)

6. Lower handle

7. Grass indicator

8. Grass collector top cover

a. Frame of grass collector

b. Screws (x1)

9. Grass bag

10.Rear ﬂap

11. Handle support assembly

a.Angle adjustment wheel (x2)

b.Screw (x4)

c. Fix wheel (x2)

d. Screw with washer assembly (x4)

12. Rear wheel (x2)

Rear wheel cap (x2)

13. Deck

14. Upper cover

15. Lever for cutting height adjustment

16. Battery cover

17. Front wheel (x2)

Front wheel cap (x2)

18. Grass collector handle

19. Carry handle

20.Safety key

21. Charger (not included)

22.Battery pack (not included)

23.Wire clip

CORDLESS LAWN MOWER 38CM USER’S MANUAL

Basic work safety 11

children). Furthermore, it must not be used by inexperienced people who do not have the technical knowledge to

operate it. These people must be supervised by a competent person or instructed about the basics of work safety.

If children are near the machine, make sure they do not play with it.

Tingling or numb hands are indications of excessive vibrations.

If this happens, shorten the work cycle, take sufﬁciently long breaks, share the work among several people or

if the lawnmower is used for long periods wear special anti-vibration gloves.

An unavoidable consequence of using the lawnmower is the noise when it is running. Therefore, only do noisy

work during dedicated hours, or when this type of activity is normal. Respect quiet times and try to limit the

work to the shortest possible time.

We also recommend that you and persons near the lawnmower wear ear protectors.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

ATTENTION! Danger of injury by electric shock!

ATTENTION! Check the charger, cable and plug before each use. If damage is found, the charger must not

be used.

ATTENTION! Before use, read all instructions and warnings on the charger and battery case.

Do not expose the charger to rain, snow or moisture. The entry of water into the battery charger increases the

danger of injury by electrical shock.

To reduce the risk of damage to the plug and the power cord, always unplug the power cord by pulling on the

plug (never pull the cord).

Make sure that the cable is positioned so that no one is stepping on it, that no one trips over it or is otherwise

damaged.

Never charge the battery in an explosive atmosphere and near ﬂammable substances. in a ﬂammable

environment. Do not operate on lightly ﬂammable surfaces (e.g. paper, textiles, etc.).

Do not disassemble the charger. If it needs to be replaced or repaired, take it to an authorized service centre.

Failure to do so may result in electric shock or ﬁre.

NEVER store or use the charger in places where the temperature may reach or exceed 50° C (such as

porches, cars, etc.).

Check that the mains voltage is within the range required by the charger manufacturer. The circuit must be

adequately current protected.

OTHER RISKS

ATTENTION! In the event of mechanical damage to the battery compartment, avoid contact with

chemicals that may leak from it. In case of contact with chemicals, rinse immediately with clean water. In

case of extensive contact or chemical burn or eye contact, seek medical attention as soon as possible.

Despite our products being designed to meet the valid technical standards and safety directives, there are still

some risks to the user from using the machine:

• Stones and other fragments may ﬂy out of the mowing deck.

• If the machine operator does not use ear protectors, then they risk subsequent deafness.

• Injured ﬁngers during blade maintenance

• Inhaling grass clipping particles
