FilterWater FW-2000 Bedienungsanleitung

1 | P a g e

MODEL FW-2000

OPERATION

MANUAL

2 | P a g e

Table of Contents

Introduction…….……………………………………………………………………………………..pg.3

Receiving………….…………………………………………………………………………………….pg.4

Description Model H2O-

2000…………….……………………………………………………………...pg.5

Operation……………………………….……………………………………………………………pg.6,7

Drain Container Operation……………………………………………………………….……p.g.8

Cup Dispenser Operation……………………………………………………………………….p.g.9

Positioning the Cooler………………….……………………………………………………….pg.10

Water Cooler Connections…………….………………………………………………........pg.11

Feed Water Connection……………….……………………………………………………….pg.12

Drain Connection……………………….…………………………………………………………pg.13

EZ Connections………………………….………………………………………………………….pg.14

Start Up Flush……………………………………………………………………………............pg.15

Tank Flush…………………………………………………………………………………………….pg.16

Cleaning and Maintenance…………….…………………………………………………….pg.17

Sanitization …………………………………………………………………………………........p.g.18

Filter Replacement………………………….……………………………………………….…..pg.19

Reverse Osmosis Membrane Replacement.…………………………………….……pg.20

Troubleshooting……………………………………….………………………………………....pg.21

Specifications………………………………………….………………………………………..….pg.22

Warranty……………………………………………………….……………………………………..pg.22

List of Figures

Figure 1. Assembly Drawing, Model H2O-

2000………………...….…………………………….pg.5

Figure 2. Faucet Operation…………………………….….………..………………………….pg.6

Figure 3. Hot/Cold Power On/Off Switch.……….….……………..……………………pg.6

Figure 4. Water Cooler Connections………………...…………………………………..pg.11

Figure 5. Drain Connections for “RO” Models……………………………….……...pg.13

Figure 6. Filter Configuration Model “F”……………………………………………….pg.15

Figure 7. Back View of Coolers………………………….…………………………………..pg.16

Figure 8. RO Membrane Installation………………….………………………………….pg.20

3 | P a g e

Introduction

Congratulations on your purchase of our revolutionary Bottle-less Water

Cooler! Our coolers are all designed to replace the conventional 5 gallon

water bottle while eliminating the hassles of deliveries, lifting bottles

and eliminating plastic bottles from landfills. Our coolers are designed

to produce pure great tasting water for the whole family that is clean

and safe to drink.

Our coolers are connected to your city or well water supply to efficiently

filter out tastes and odor, and to remove microscopic contaminants by

using reverse osmosis purification technology. We manufacture a wide

range of models to fit any home or office application.

The H2O-2000 Model has 3 temperature faucets; cold water is chilled

around 44ºF, hot water is heated at 180ºF and ambient.

All International H2O models are manufactured and marked as “RO” or

“F” assemblies. The “RO” assembly utilizes CSM Reverse Osmosis water

purification technology which produces pure safe water from city or

well water. The “RO” assembly is comprised of a 5-micron sediment

filter, a carbon (GAC) 10-micron filter, CSM RO membrane and a post

carbon filter to improve taste. The “RO” filter assembly requires a drain

line connection to be installed which removes rejected water to the

sewer.

The “F” assembly is comprised of sediment and carbon filter system, but

not the RO membrane; therefore, it does not require a drain line

connection.

4 | P a g e

CAUTION: The filter version “F” must be used only with softened

water or water that has less than 3.5-grains of hardness to prevent

scaling and premature burnout of the heating elements.

Receiving the Cooler

Unpacking

International H2O products are shipped completely assembled and

ready to operate. Remove the top of the box and slide the water cooler

out and save the box and packing materials.

Inspection

Inspect the cooler for shipping damage. Look at the exterior panels to

see if they have been dented or damaged. Check the dispensing spigots

in the front. Open the bottom panel to assure that the filter system is

intact. Look at the back of the cooler to see if the compressor is secure

and has not broken from the mounting. Inspect filter system to see that

nothing is damaged or dislodged from shipping.

Description Model H2O-2000

The H2O-2000 Model provides water at 3 different temperatures,

dispensed from three spigots, “hot”, “cold” and ambient. The assembly

drawing is shown in Figure 1. Water flows from the filter system into the

ambient tank and the cold water tank simultaneously. The cold tank

then feeds the hot tank which is heated by internal heaters. The level in

the cold water tank is controlled by a float valve mechanism which

controls a 4 way auto-shut off valve on the water feed line to maintain a

5 | P a g e

constant level of filtered water. Both models are available with reverse

osmosis (RO) or standard filter (F) versions.

Description Model H2O-2000

6 | P a g e

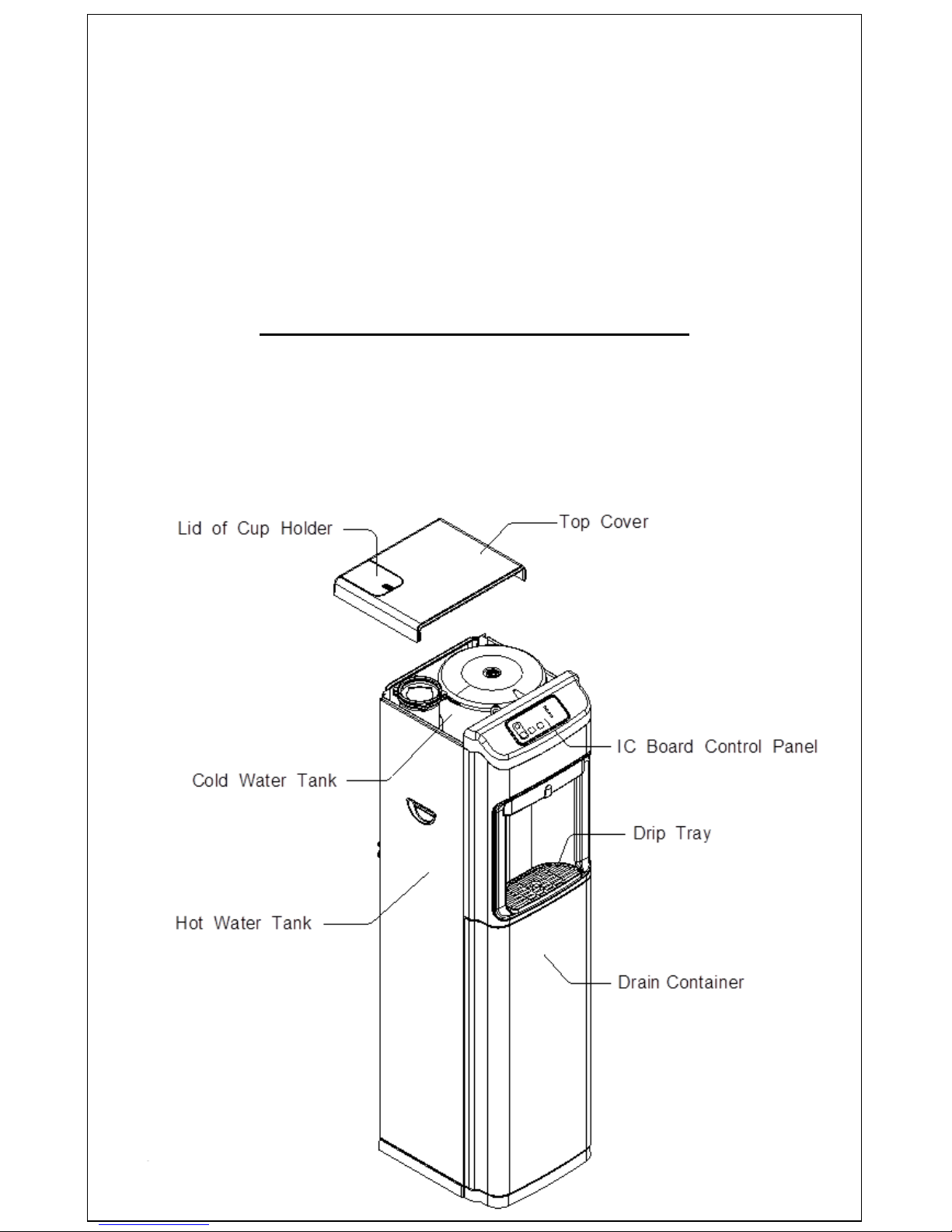

Figure 1. Assembly Drawing Model H2O-2000

Operation

When installation is complete,

the unit will fill up with water

and shut off when the tanks are

full. Plug the unit in to an outlet

and press the cold/hot faucets

until a steady stream of water

comes out.

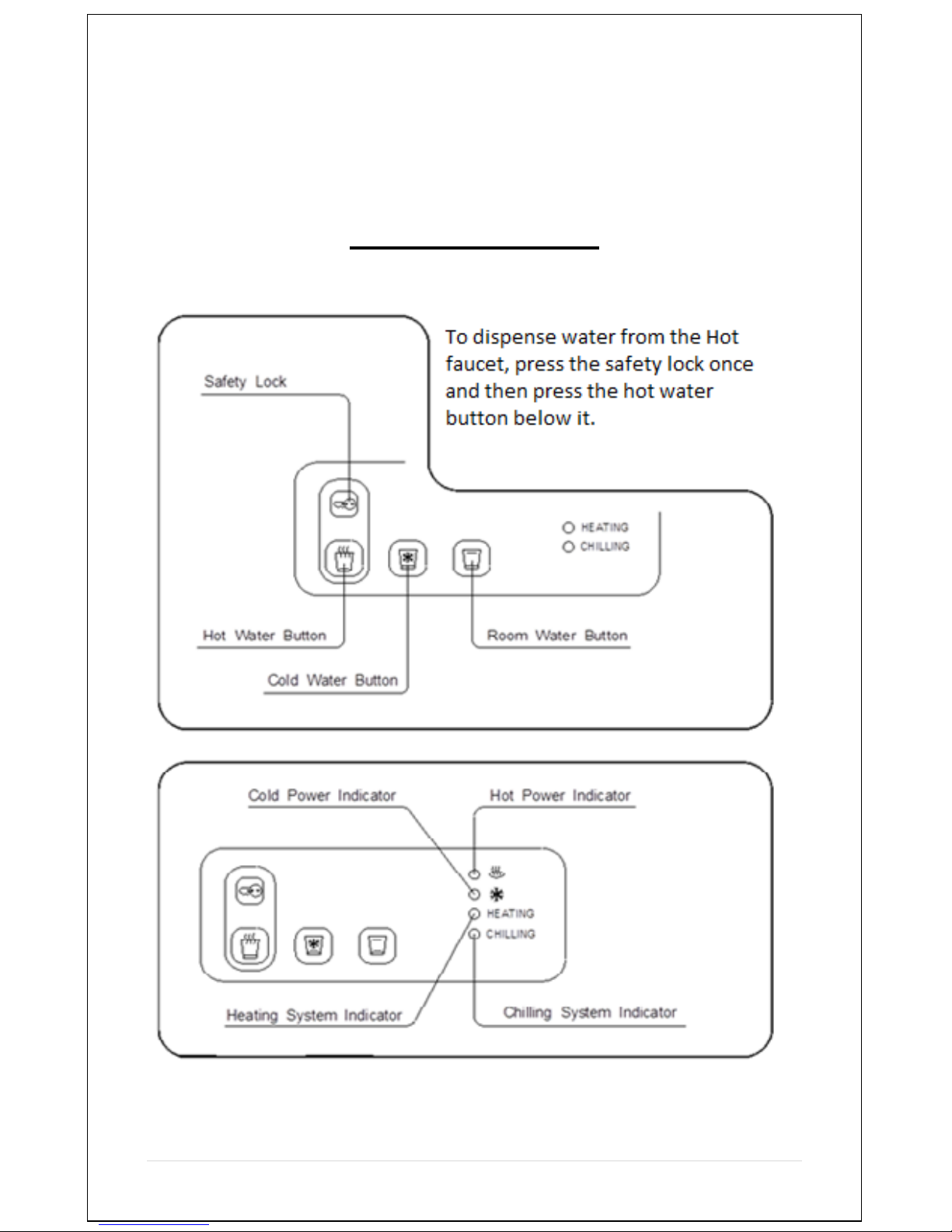

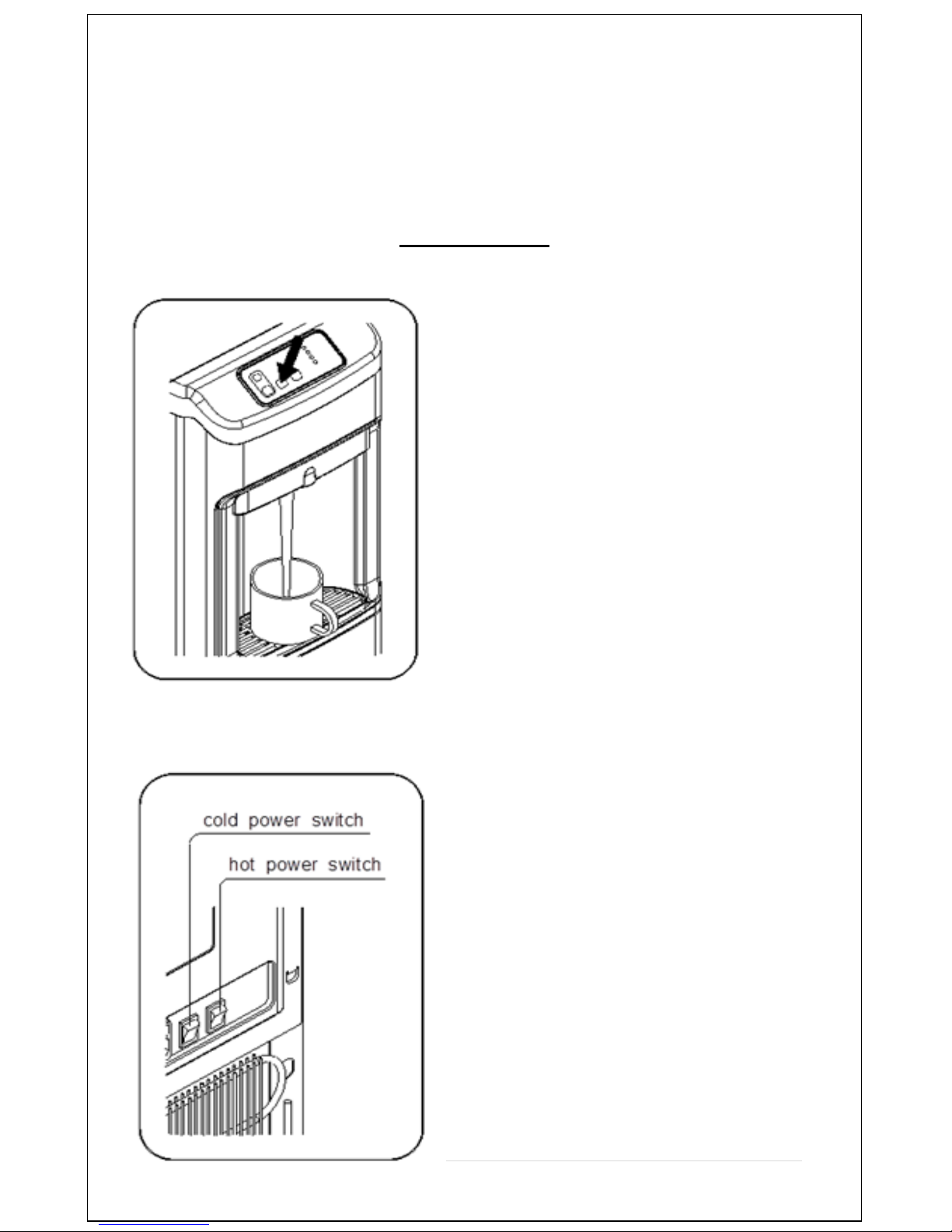

Figure 2. Faucet operation

*Make sure the tanks are filled

with water before continuing to

the next step.

Turn on the hot/cold switches

located on the back of the cooler.

Both hot/cold elements will begin

chilling and heating the water

inside the unit. Indicator lights will

also illuminate of the front of the

cooler.

7 | P a g e

Figure 2. Hot and cold power on/off switch

Operation Cont…

8 | P a g e

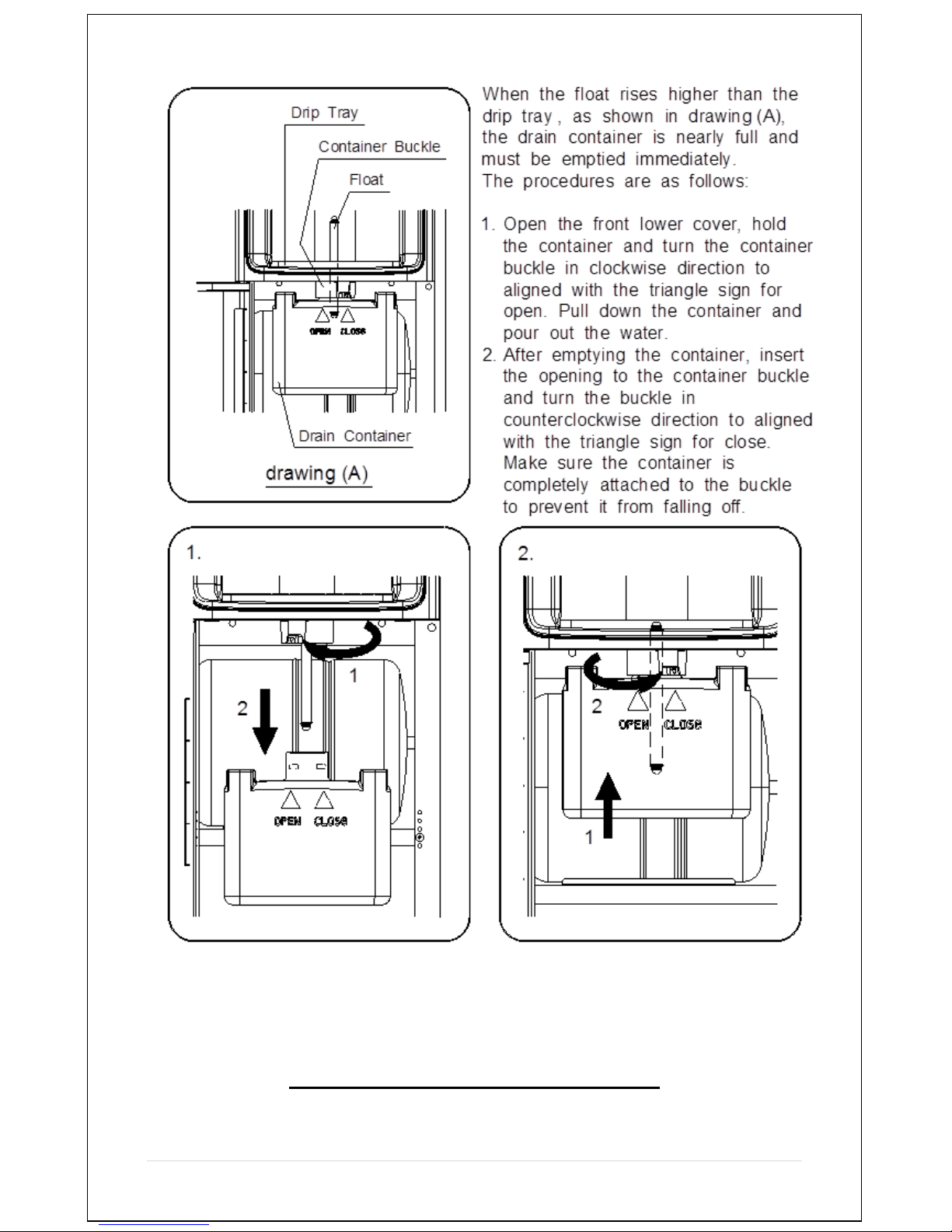

Drain Container Operation

9 | P a g e

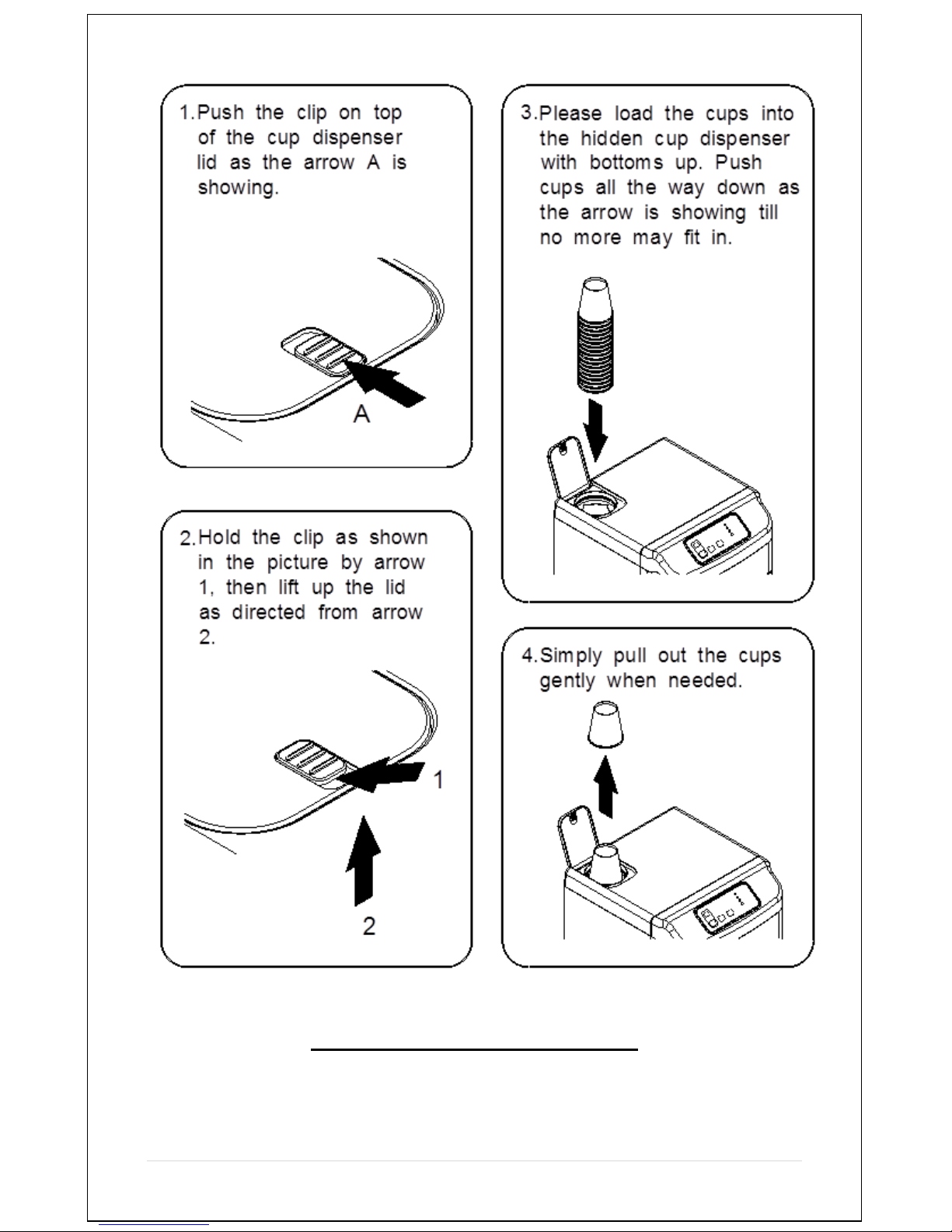

Cup Dispenser Operation

10 | P a g e

Positioning the Cooler

1) It is not recommended to install this cooler in an area were water

may cause severe or costly damage.
