Firesense 60950 Bedienungsanleitung

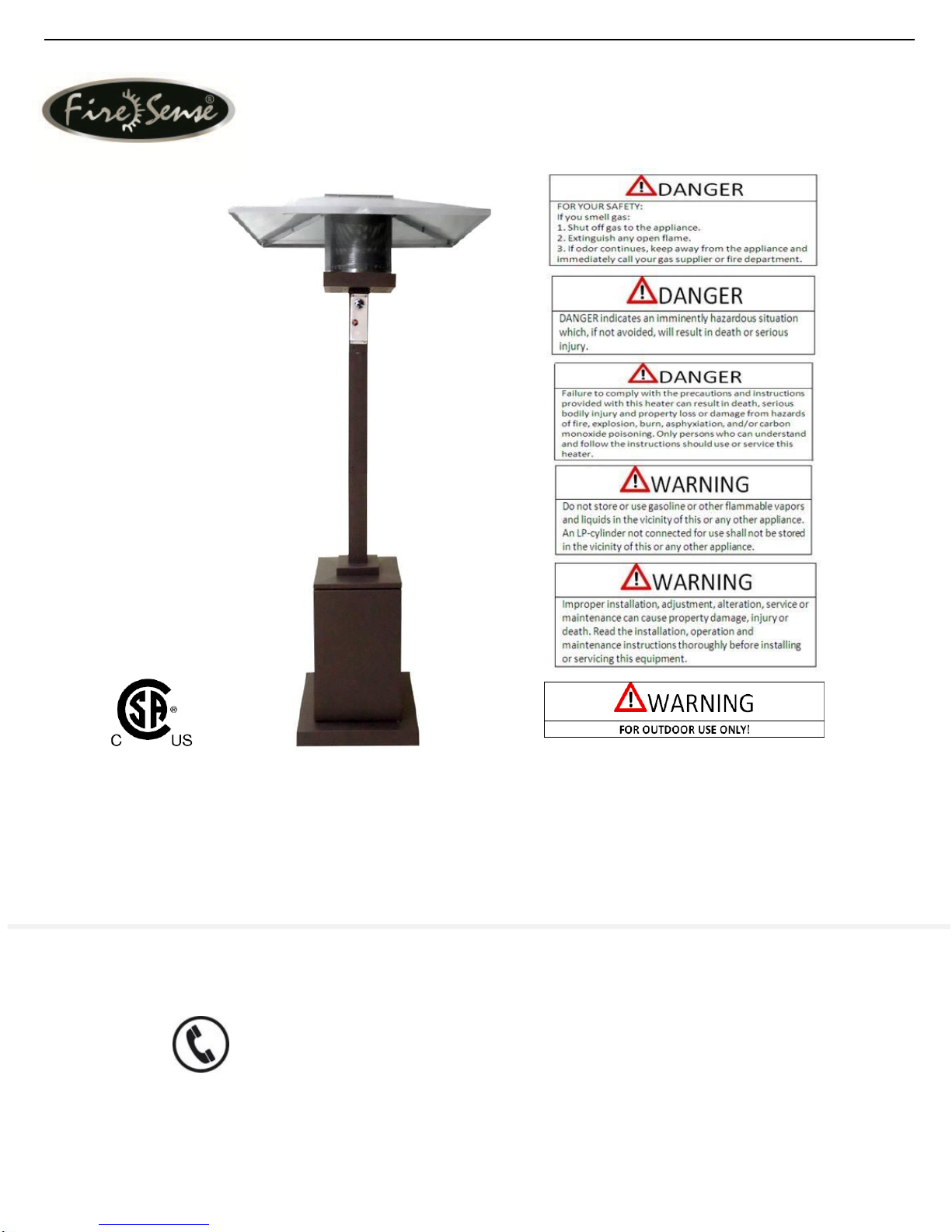

Outdoor Patio Heater

INFRARED BURNER

Model # LIP-10A-TGG

Item # 60950

ATTACH YOUR RECEIPT HERE

Serial Number ___________ Purchase Date ______

Manufacturer: Changzhou Wellife Furnace Co., Ltd.

Questions, problems, missing parts? Before returning to your

retailer, call our customer service hotline at 1-866-985-7877,

9 a.m. –6 p.m., EST, Monday –Friday or email at

cservice@welltraveled.net.

Table of Contents………………………………….....................Page 2

Before You Begin............................................................Page 2

Safety Information.........................................................Page 3-4

Package Contents………………………………….....................Page 5

Hardware Contents..........................................................Page 6

Assembly.........................................................................Page 6-10

Operating Instructions……………......................................Page 11-14

Care and Maintenance……………………..............................Page 14

Troubleshooting……………………………………......................Page 15

Replacement Parts List.....................................................Page 16

Warranty Information…………….....................................…Page 17

BEFORE YOU BEGIN

Please read and understand this entire manual before attempting to assemble, operate or install this appliance.

If you have any questions regarding the product, please call customer service 1-866-985-7877, 9 a.m. –

6 p.m., EST, Monday –Friday.

This manual contains important information about the assembly, operation and maintenance of this patio

heater. General safety information is presented in the first few pages and is also located throughout this manual.

Keep this manual for future reference and to educate new users of this appliance. This manual should be read

in conjunction with the labeling on the appliance. Safety precautions are essential when any mechanical or

propane fueled equipment is involved. These precautions are necessary when using, storing, and servicing.

Using this appliance with the respect and caution demanded will reduce the possibilities of personal injury or

property damage. The following symbols shown below are used extensively throughout this manual. Always

heed these precautions, as they are essential when using any mechanical or propane fueled equipment.

TABLE OF CONTENTS

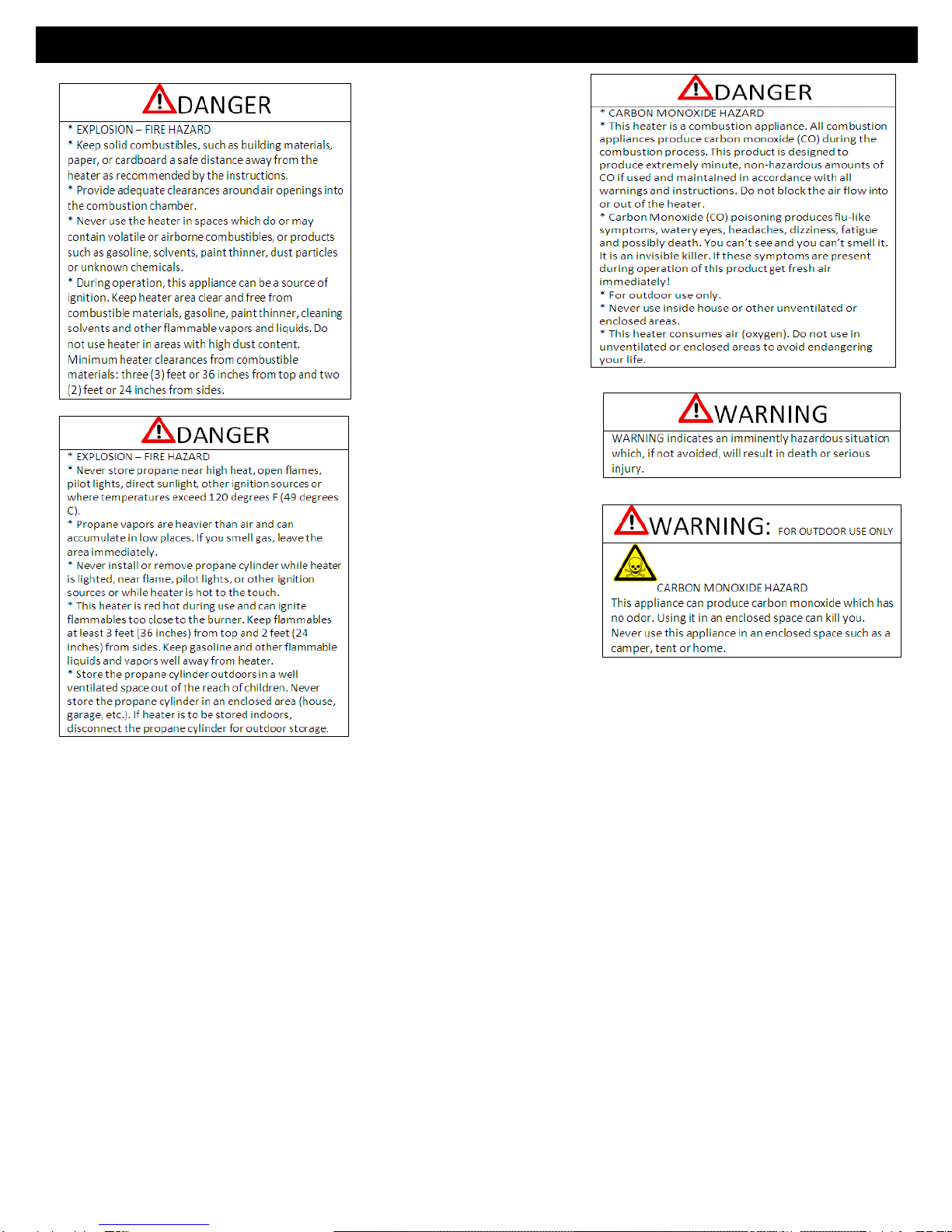

SAFETY INFORMATION

PACKAGE CONTENTS

ASSEMBLY

PART

DESCRIPTION

QTY

Reflector Panel and

Center Cap

5 pcs (packed in 2

inner ctns)

Head and Upper

Post Assembly

Gas Hose

1 (attached to

Head Assembly)

Regulator

Lower Post

Post Support Plate

1 (packed under

Tank Housing

Assembly)

Tank Housing

Assembly

Tank Housing

Support Bar

1 (contains 2 –

M4x10

countersunk

screws)

Tank Housing Door

PREPARATION

Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package

contents list and hardware contents as listed on pages 5 and 6 of this manual. If any part is missing or damaged,

do not attempt to assemble this product. Contact customer service for replacement parts.

ESTIMATED ASSEMBLY TIME: 60 minutes

Tools Required for Assembly (NOT included):

Phillips screwdriver w/medium blade

Leak Test Solution

Adjustable wrench (2) (Note: 10mm wrench or socket should fit M6 bolt; 13mm wrench or socket should fit M8

bolt.)

HARDWARE CONTENTS

ASSEMBLY

1. Locate Tank Housing Assembly (G) and Tank Housing

Support Bar (H). Attach Tank Housing Support Bar (H) to

the top front edge of the Tank Housing Assembly (G)

with 2 M4x10 (GG) Countersunk Head Screws (screws come

pre-assembled in the Tank Housing Support Bar.)

Hardware Used: 2 x GG, Countersunk Head Screw M4x10

2. Attach the Lower Post (E) to the Post Support Plate (F) using

4 M8x16 (AA) Bolts and 4 M8 (GG) Washers.

(Note: Turn the post and support plate upside down to secure the bolts.)

Align the Post Support Plate (F) with the holes in the Lower Post (E),

and insert 1 M8x16 (AA) Bolt through 1 M8 (FF) Washer and through the

aligned holes. Tighten with a wrench.

Hardware Used: 4 x AA, Bolt M8x16

4 x FF, Washer M8

ASSEMBLY

3. Attach the Post Support Plate (F)/Lower Post (E) to the Tank

Housing Assembly (G/H). (NOTE: Make sure Firesense®logo is facing

forward directly over the Tank Housing Support Bar.)

Align the holes in the Post Support Plate (F) With the holes in the top of

the Tank Housing Assembly (G/H) and insert a total of 12 M4x10 (CC)

bolts into the holes and loosely tighten.

Once all bolts have been inserted, tighten with a wrench.

Hardware Used: 12 x CC, Bolt M4x10

4. Attach Tank Housing Door (I) to the Tank Housing Assembly (G)

by sliding the pins on the side of the door into the hinges located on

the right side of the Tank Housing Assembly (G). (NOTE: Make sure

you hold door to the SIDE of the Tank Housing Assembly before

trying to align pins. If you hold door to the FRONT of the Tank

Housing Assembly, you will NOT be able to align pins correctly.)

ASSEMBLY

5. Carefully route the Gas Hose (C) that comes attached to

Head and Upper Post Assembly (B) completely through the

Lower Post/Post Support Plate Assembly (E/F).

(Hint: Control knob on Head Assembly should be located over the Tank

Housing Door.)

6. Attach Head Assembly and Upper Post Assembly (B) to the

Lower Post (E) by aligning the 4 small holes located on

the Upper Post with the 4 small holes located on the

Lower Post (E). Insert 4 M6x12 (EE) bolts through

4 M6 lock washers and into holes and tighten with a wrench.

Hardware Used: 4 x EE, Bolt M6x12 and Lock Washer M6

7. Assemble Reflector Panels and Center Cap (A). Reflector

Panels and Center Cap (A) come packaged in two brown boxes with

two panels in each box. Hardware for assembly is already affixed to

each panel. Place two panels side by side and remove the two cap

nuts and washers that are affixed to one panel. Insert the affixed

bolts into the open holes on the adjacent panel. Place the washer

over the bolt and screw on cap nut. Repeat these steps until all four

panels are assembled. Then locate the Center Cap. You will need to

remove the cap nuts and washers located at the top of each Reflector

Panel to allow assembly of the Center Cap on each panel. Align the

holes in the Center Cap with the bolts on each panel and affix washer

and cap nut to complete assembly. (Note: It is easiest to assemble

reflector panels if you turn panels upside down. Once 4 panels are

assembled, turn reflector right side up and then attach the cap.)

ASSEMBLY

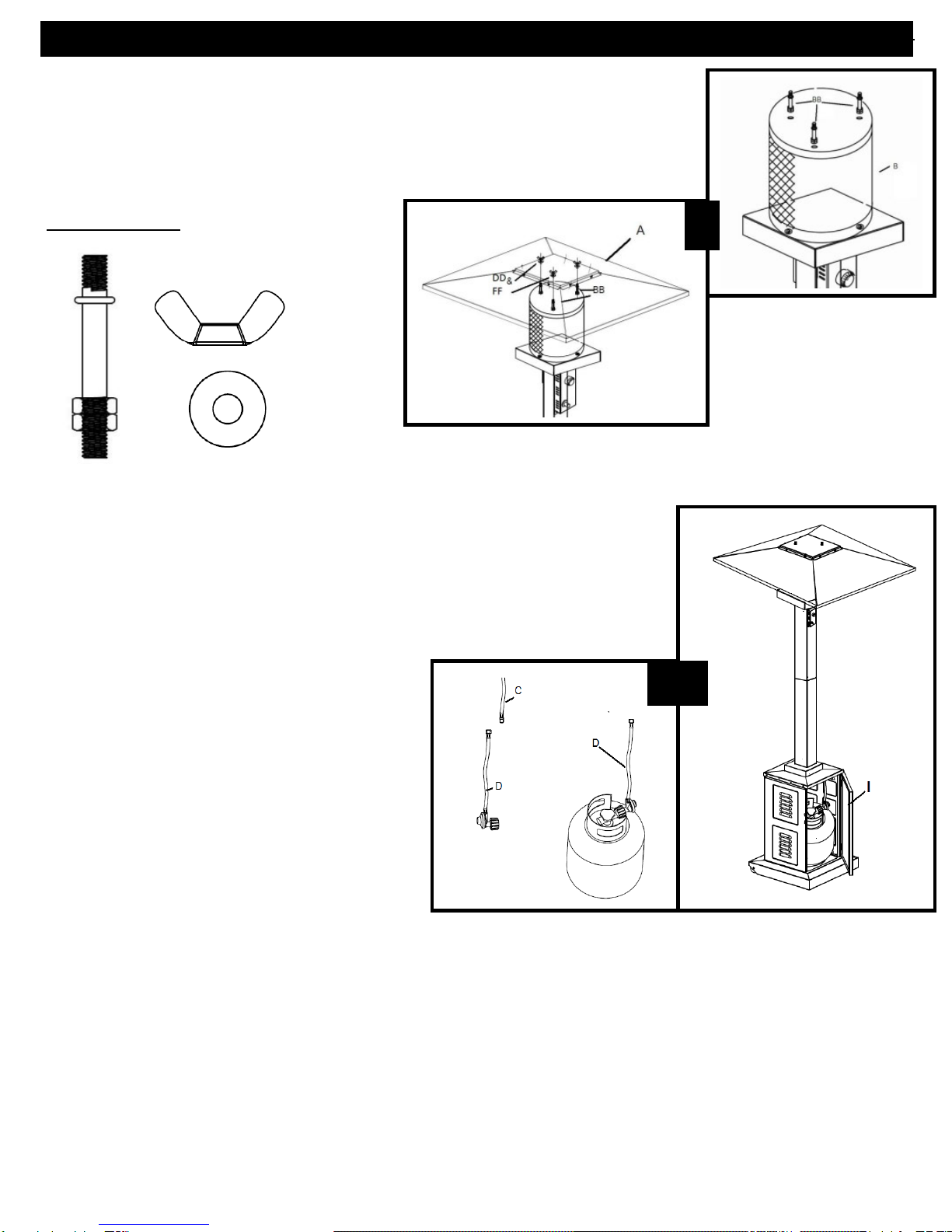

8. While supporting heater, tilt the Head and Upper Post Assembly (B) and

screw in the 3 M8x66 Stud Bolts (BB) into the holes on top of the Head

Assembly. Slide the assembled Reflector over the 3 bolts that now extend from

the Head Assembly. Use the 3 M8 Wing Nuts (DD) and 3 M8 Washers (FF) to

secure the assembled Reflector to the Head Assembly of the heater. Once you

have tightened the Wing Nuts, return the heater to an upright position.

Hardware Used: 3 x BB, Stud Bolt with Nut

3 x DD, Wing Nut M8

3 x FF, Washer M8

9. Connect the hose and regulator to the LP cylinder. The LP cylinder is

sold separately. Use a standard 20 lb. propane cylinder only. Screw

Regulator (D) onto Gas Hose (C). Do not cross thread. Hand tighten securely.

Attach Regulator (D) to valve on LP cylinder and hand tighten securely.

Place LP tank onto base of heater and close Tank Housing Door (I).

NOTE: Use this heater only with a propane

vapor withdrawal supply system. See chapter 5 of

the standard for storage and handling of liquefied

petroleum gas, ANSI/NFPA 58. Your local library or

fire department should have this book.

ASSEMBLY
