Firstcom FR-488 Bedienungsanleitung

488

FM MOB ILE TRANS CEIVER

200 Programmed Channel

CTCSS/DCS/2TONE/5TONE

DTMF-ANI/5TONE-ANI

Compander

Three Colors LCD Display

USER’S MANUAL

We only do best radio!

Nice Housing, Stoutness & Stability, Advanced and Reliable functions, Perfect

& Valuable. Approval. FR-488 mobile radio especially designs for

drivers and it pursues company philosophy of innovation and practicality.

NOTE

When programming the transceiver, read the factory initial data rstly, then rewrite the frequency and signaling etc.,

otherwise errors may occur because of different frequency band etc..

Models Apply To This Manual:

FIRSTCOM-488

Mobile radio

FIRSTCOM-488 Mobile Radio Applicable Software: FR488

Thank you for choosing this vehicle transceiver,

always provides high quality products, And this transceiver is no

exception. As you learn how to use this transceiver, you will find that

is pursuing "user friendliness". For example, each time you

change the menu no. in Menu mode, you will see a text message on the

display that lets you know what you are conguring.

Though friendly design for user, this transceiver is technically

complicated and some features may be new to you. Consider this

manual to be a personal tutorial from the designers,allow the manual to

guide you through the learning process now, then act as a reference in

the coming years.

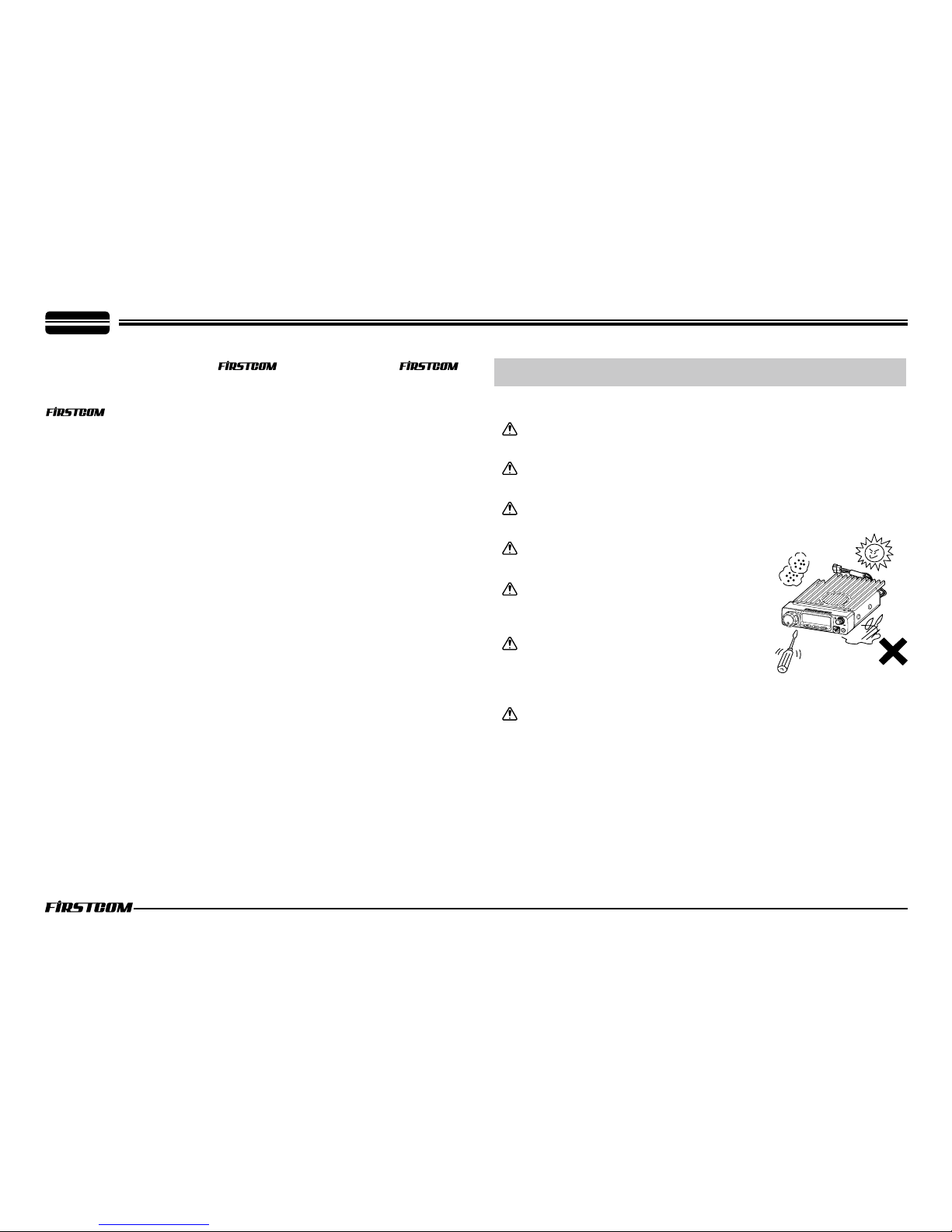

Do not attempt to configure your transceiver while driving,it is

dangerous.

This transceiver is designed for a 13.8V DC power supply. Don't use

a 24V battery to power on the transceiver.

Do not place the transceiver in excessively dusty, humid or wet

areas, nor unstable surfaces.

Please keep it away from interferential

devices (such as TV, generator etc.)

Do not expose the transceiver to long

periods of direct sunlight nor place it close

to heating appliances.

If an abnormal odor or smoke is detected

coming from the transceiver, turn OFF the

power immediately. Contact an Anytone

service station or your dealer.

Do not transmit with high output power for extended periods; the

transceiver may overheat.

Please observe the following precautions to prevent fire, personal

injury, or transceiver damage:

Precautions

CONTENTS

New and Innovative Features..............................................1

Supplied Accessories/Optional Accessories.....................2

Supplied Accessories....................................................................... 2

Optional Accessories .......................................................................2

Initial Installation ..................................................................3

Mobile Installation ............................................................................3

DC Power Cable Connection ...........................................................4

Power Supply Voltage Display ......................................................... 6

Antenna Connection ........................................................................6

Accessories Connections.................................................................7

Getting Acquainted ..............................................................8

Front panel....................................................................................... 8

Rear panel .......................................................................................9

Display .............................................................................................9

Microphone ......................................................................................10

Working Mode(Amateur Transceiver or Professional

Transceiver)

........................................................................11

Basic Operations .................................................................12

Switching the Power On/Off ............................................................ 12

Adjusting the Volume ...................................................................... 12

Switch between VFO and Channel mode .......................................12

Adjusting Frequency/Channel Through Selector Knob.................... 12

Receiving .........................................................................................12

Transmitting .....................................................................................12

Transmitting Tone-Pulse ..................................................................13

Transmitting Optional Signaling ......................................................13

Channel Edit ....................................................................................13

Channel Delete ................................................................................13

Shortcut Operations.............................................................14

Squelch Off/Squelch Off Momentary................................................14

Squelch Level Setup ........................................................................14

Frequency/Channel Scan ................................................................14

Channel Scan ..................................................................................14

CTCSS/DCS Encode and Decode Setup ........................................14

CTCSS Scan....................................................................................15

DCS Scan ........................................................................................15

High/Mid/Low Power Switch ............................................................ 15

Compander (Decrease the background noise and enhance audio

clarity ..................................................................................................15

Offset Direction and Offset Frequency Setup .................................. 16

Keypad Lockout ...............................................................................16

Current Voltage Enquiry...................................................................16

Auto-Dialer Setup.............................................................................16

Transmitting Edited DTMF Tones in the Auto-dialer Memory........... 17

General Setting.....................................................................18

Frequency Channel Step Setup....................................................... 18

DTMF, DTMF ANI, 2Tone or 5Tone Signaling .................................. 18

Sending 2-Tone Call......................................................................... 19

Sending 5-Tone Call......................................................................... 19

Sending DTMF call ..........................................................................19

Signaling Combination Setup...........................................................19

CONTENTS

HIGH/MID/LOW Power Selection .................................................... 20

Band-width Selection .......................................................................20

TX OFF Setup.................................................................................. 21

Busy Channel Lockout .....................................................................21

Editing Channel Name .....................................................................21

Reverse TX/RX ................................................................................ 21

Talk Around ......................................................................................22

Voice Compander ...........................................................................22

Scrambler Setup (Encryption).......................................................... 22

Radio's DTMF SELF ID ENQUIRY .................................................22

Radio's 5TONE SELF ID ENQUIRY ............................................... 23

Voice Prompt....................................................................................23

TOT (Time-out timer) .......................................................................23

APO (Auto power off)....................................................................... 23

DTMF Transmitting Time..................................................................24

Squelch Level Setup ........................................................................24

Scan Dwell Time Setup....................................................................24

LCD Backlight Colors....................................................................... 24

LCD Backlight ..................................................................................25

Pilot Frequency ................................................................................ 25

Display Mode Setup......................................................................... 25

PIN Setup ........................................................................................25

Address List ....................................................................................26

Factory Default.................................................................................26

Microphone Operation .........................................................27

Function Setup By Microphone Keypad...........................................27

Squelch Level ..................................................................................27

Optional Signaling ........................................................................... 27

Scan Skip ........................................................................................ 28

Frequency/Channel Scan ...............................................................28

Busy Channel Lockout .....................................................................28

Reverse TX/RX ................................................................................ 28

TOT (Time-out timer)........................................................................29

CTCSS/DCS Encode and Decode...................................................29

Talk Around ..................................................................................... 29

Voice Prompt....................................................................................29

HIGH/MID/LOW Power Selection .................................................... 29

LCD Backlight .................................................................................30

Long-distance Anti-theft Alarm ..........................................31

Cable Clone ..........................................................................32

Programming Software Installing and Starting (in windows

XP system) ............................................................................33

Maintenance..........................................................................34

Default Setting after Resetting(VHF) ...............................................34

Default Setting after Resetting(UHF) ...............................................34

Trouble Shooting..............................................................................34

Specications .......................................................................35

Attached Chart......................................................................36

50 groups CTCSS Tone Frequency(Hz) ..........................................36

1024 groups DCS Code................................................................... 36

New and Innovative Features

FR-488 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially

designs for drivers and it pursues company philosophy of innovation and practicality. More functions as follows:

Display on a large LCD with adjustable brightness, convenient for nighttime use.

There are Amateur operation mode and Professional

operation mode for option.

Distribute buttons reasonably, convenient for operation. Adopt superior quality material, better technology and high quality radiator to ensure



stable and durable operation.

200 programmable memorized channels, identied by editing name.



Programming different CTCSS, DCS, 2Tone, 5Tone in per channel, rejecting extra calling from other radios.



Various scan functions including CTCSS/DCS Scan function.



Using

5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.

Automatic

calling Identication function by DTMF--ANI or 5Tone--ANI .

Scramble function (Optional).



Compander function for decrease the background noise and

enhance audio clarity, it can set compander ON/OFF per channel.

Different band width per channel,

25K for wide band, 20K for middle band ,or 12.5K for narrow band.

Theft alarm provides extra safety.



2Supplied Accessories/Optional Accessories

Supplied Accessories

Optional Accessories

After carefully unpacking the transceiver, identify the items listed in the table below. We suggest you keep the box and packaging.

Transceiver

Spare Fuses

[QF-01](15A)

Cloning Cable (CP50)

Desktop

Microphone

(QDM-01)

Alarm Cable A

[QL-01(A)]

Alarm Cable B (Extension line)

[QL-01(B)]

Car Antenna

(QCA-01)

USB Programming

Cable (PC50)

Cigar-Plug Connection

Line (QCC-01)

Programming Software

(FR488)

Regulated Power

Supply (QRP-01)

External Speaker

(SP-01)

User Manual

Microphone (QHM-03)

(with DTMF keyboard)

Mobile Mounting

Bracket (QMB-01)

DC Power Cable with

Fuse Holder(QPL-01)

Hardware Kit for Bracket

Black screws

(M4X8mm)

4PCS(QSS-01A)

Tapping screws

(M5X8mm)

4PCS(QSS-01B)

S-Washer

4PCS(QSS-01D)

To install the transceiver, select a safe, convenient location inside your

vehicle that minimizes danger to your passengers and yourself while the

vehicle is in motion. Consider installing the unit at an appropriate position

so that knees or legs will not strike it during sudden braking of your

vehicle. Try to pick a well ventilated location that is shielded from direct

sunlight.

Install the mounting bracket in the vehicle using the supplied self-

tapping screws (4pcs) and at washers (4pcs).

Position the transceiver, then insert and tighten the supplied

hexagon SEMS screws.

Double check that all screws are tightened to prevent vehicle



vibration from loosening the bracket or transceiver.

Car body

Washer (M5)

Tapping screw

(M5x20mm)

Mounting bracket

Initial Installation

Mobile installation Determine the appropriate angle of the transceiver, using the 3 screw



hole positions on the side of the mounting bracket.

Connect the DC power cable to the transceiver's power supply

connector.

Press

the connectors rmly together until the locking tab clicks.

If the ignition-key on/off feature is desired(optional feature),use the

Red

Black

Ext. Power jack

DC power cable

Initial Installation

DC Power Cable Connection

Mobile Operation

In many cars,the cigar-lighter plug is always powered. If this is the case, you

cannot use it for the ignition key on/off function.

The vehicle battery must have a nominal rating of 12V. Never

connect the transceiver to a 24V battery. Be sure to use a 12V

vehicle battery that has sufficient current capacity. If the current

to the transceiver is insufficient, the display may darken during

transmission, or transmitting output power may drop excessively.

When the ignition key is turned to ACC or ON(Start) position with

the radio turned off, the power switch illuminates. The illumination

will be turned off when the ignition key is turned to the off position.

Route the DC power cable supplied with the transceiver directly

to the vehicle's battery terminals using the shortest path from the

transceiver.

We recommend you do not use the cigarette lighter socket as

some

cigarette lighter sockets introduce an unacceptable voltage drop.

The entire length of the cable must be dressed so it is isolated from



heat, moisture, and the engine secondary (high voltage) ignition

system/ cables.

After installing cable, in order to avoid the risk of damp, please

use heat-resistant tap to tie together with fuse box. Don't forget to

reinforce whole cable.

In order to avoid the risk of short circuit, please cut down

connection with negative (-) of battery, then connect with radio.

Confirm the correct polarity of the connections, then attach the

power cable to the battery terminals; red connects to the positive (+)

terminal and black connects to the negative (-) terminal.

Use the full length of the cable without cutting off excess even if

the

cable is longer than required. In particular, never remove the fuse

holders from the cable.

Reconnect any wiring removed from the negative terminal.

optional QCC-01(For Cigar-Plug connection) cable. Connect one of

the cables between the ACC terminal or a Cigar-Plug that operates

with the vehicle ignition or ACC switch on the vehicle and EXT

POWER jack on the rear side of the unit.

Locate the power input connector as close to the transceiver as possible.

Inhaltsverzeichnis

Andere Firstcom Transceiver Handbücher

Firstcom

Firstcom FC-136 Bedienungsanleitung

Beliebte Transceiver Handbücher anderer Marken

Yaesu

Yaesu FT-7B Bedienungsanleitung

Kenwood

Kenwood ProTalk TK-3201 Bedienungsanleitung

Texas Instruments

Texas Instruments TLK10232 Bedienungsanleitung

Mizuho

Mizuho MX-2 Produkthandbuch

Kenwood

Kenwood TK-3180 Bedienungs- und Wartungshandbuch

Blitz

Blitz MJ-398U Bedienungsanleitung

Utilicom

Utilicom LongRanger 2050 Bedienungsanleitung

Standart

Standart HX290UKA Bedienungsanleitung

Altronix

Altronix Pace1PTM Bedienungsanleitung

Kirisun

Kirisun PT2208 Bedienungsanleitung

ELECRAFT

ELECRAFT KX2 Bedienungsanleitung

Zodiac

Zodiac K3 Bedienungsanleitung

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Bedienungsanleitung

Kenwood

Kenwood TK-2217 Bedienungsanleitung

Siemens

Siemens PSO 4000 Bedienungsanleitung

Kenwood

Kenwood TS-590SG Bedienungsanleitung

Midland

Midland G8E-BT Handbuch

ComNav

ComNav Mariner X2 Bedienungsanleitung
