MODELS:

DD124P5

DD224P5

DishDrawer®

Use and Care Guide

Contents

Safety and warnings

Controls

Operation

Wash program chart

Caring for your dinnerware

Dishwasher standards test

Accessories

Detergent dispenser

Rinse agent dispenser

Option adjustments

User maintenance instructions

Troubleshooting

Fault codes

Warranty and service

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets

and are subject to change at any time. For current details about model and

specification availability in your country, please go to our website www.

dcsappliances.com or contact your local DCS by Fisher & Paykel dealer.

US CA

Safety and warnings

Your DishDrawer has been carefully designed to operate safely during normal dishwashing

procedures. Please keep the following guidelines in mind when you are using your

DishDrawer®. Please read all instructions before operating the DishDrawer®.

Important safety precautions

The information in this manual must be followed to minimize the risk of fire or explosion or to

prevent property damage, personal injury or loss of life.

Use the DishDrawer® only for its intended function as described in this User Guide.

Use only detergents or rinse agent recommended for use in a domestic Dishwasher and keep

them out of reach of children. Check that the detergent dispenser is empty after the completion

of each wash program.

When loading items to be washed, locate sharp items so that they are not likely to damage the

lid seal and load sharp knives with the handles up to reduce the risk of cut type injuries.

Do not touch the heater plate during or immediately after use.

Do not operate your DishDrawer® unless all the enclosure panels are properly in place.

Do not tamper with the controls.

Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer®.

The cup racks are designed to support cups, glasses and kitchen utensils. When the cup racks

are in the DishDrawer® do not lean on or use the cup racks to support your body weight.

To reduce the risk of injury, do not allow children to play in or on the DishDrawer®.

Under certain conditions hydrogen gas may be produced in a hot water heater system that has

not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system

has not been used for such a period, before using the dishwasher, turn on all hot water taps and

let the water flow from each for several minutes. This will release any accumulated hydrogen

gas. As gas is flammable, do not smoke or use an open flame during this time.

Remove the door to the washing compartment when removing an old dishwasher from service

or discarding it.

Dishwasher detergents are alkaline. They can be dangerous if swallowed. Avoid contact with

skin and eyes, keep children and infirm person(s) away from the dishwasher when the drawer is

opened.

US CA

4Safety and warnings

Important safety precautions

Installation

This DishDrawer® must be installed and located in accordance with the Installation Instructions

before it is used. If you did not receive Installation Instruction sheets with your DishDrawer®, you

can order them by calling your Authorized Service Agent or from the DCS by Fisher & Paykel

website, www.dcsappliances.com.

Installation and service must be performed by a qualified technician.

If the power supply cord is damaged, it must be replaced by a dealer or Authorized Service Center

or a similar qualified trades person in order to avoid a hazard.

Ensure the DishDrawer® is secured to adjacent cabinetry using the brackets provided. Failure to

do so may result in an unstable product, which may cause damage or injury.

Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has

missing or broken parts, including a damaged power supply cord or plug.

Do not store or use gas, or other flammable vapors and liquids in the vicinity of the DishDrawer®.

Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.

Make sure that the power supply cord is located so that it will not be stepped on, tripped over or

otherwise subject to damage or stress.

Do not install or store the DishDrawer® where it will be exposed to temperatures below freezing

or exposed to weather.

Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket outlet box)

to connect the DishDrawer® to the power supply.

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will

reduce the risk of electric shock by providing a path of least resistance for electric current. This

appliance is equipped with a cord having an equipment-grounding conductor and a grounding

plug. The plug must be plugged into an appropriate outlet that is installed and grounded

in accordance with all local codes and ordinances. Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or

service representative if you are in doubt as to whether the appliance is properly grounded.

Maintenance

Do not repair or replace any part of the appliance or attempt any servicing unless specifically

recommended in this User Guide. We recommend that you call an Authorized Service Agent.

Keep the floor around your appliance clean and dry to reduce the possibility of slipping.

Keep the area around/underneath your appliance free from the accumulation of combustible

materials, such as lint, paper, rags and chemicals.

When cleaning the underside of the filter plate, care must be taken on the sharp outer edge to

avoid the risk of cut type injuries.

US CA

Safety and warnings

Important safety precautions

Important!

Under no circumstances should you open the drawer while the DishDrawer® is in operation.

Operational

Always press the button to pause and wait until you hear the three additional beeps before

opening the drawer.

The DishDrawer® must be used with the motor assembly, filter plate, drain filter and spray arm in

place.

When disconnecting the appliance grasp the plug rather than the power supply cord or junction

of cord to avoid damage.

Take care when loading the DishDrawer® not to load dishware items so they prevent the lid from

properly sealing with the drawer. Items should be placed so they do not protrude above and/or

forced into the drawer, otherwise a service call may result.

Household appliances are not intended to be played with by children. Children or persons with a

disability which limits their ability to use the appliance, should have a responsible person instruct

them in its use. The instructor should be satisfied that they can then use the appliance without

danger to themselves or their surroundings.

Close supervision is necessary if this appliance is used by or near children. Do not allow children

to play inside, on or with this appliance or any discarded appliance.

If a Dishwasher cleaner is used, we would strongly recommend a wash program with detergent

should be run immediately afterward, to prevent any damage to the DishDrawer®.

The DishDrawer® is designed for washing normal household utensils. Items that are

contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not

to be washed in the DishDrawer®.

If the DishDrawer® is not being used for long periods of time, turn the electricity and water supply

to the DishDrawer® off.

US CA

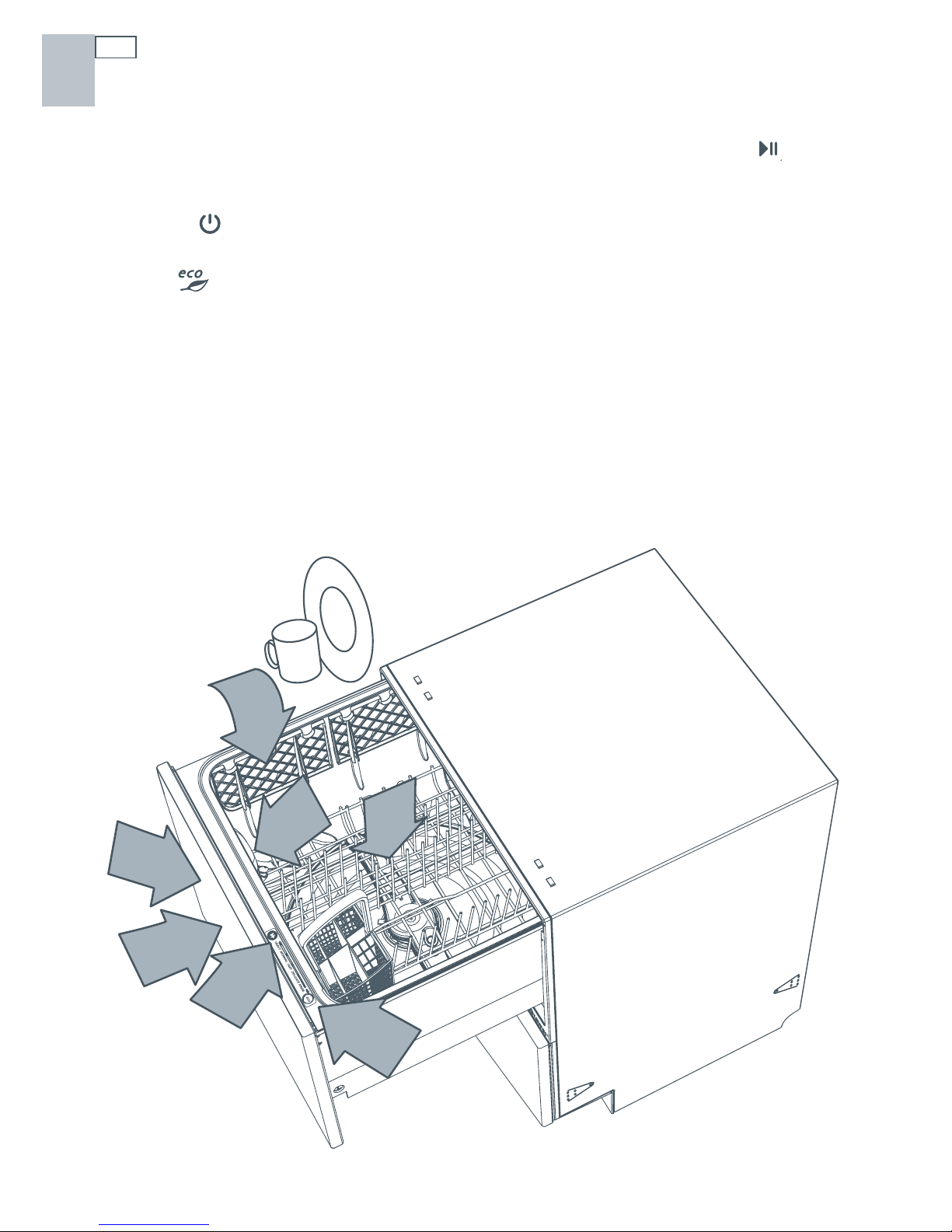

6Controls

If you have a double DishDrawer®, each drawer has its own controls and can run independently

of the other.

Power button

The button turns the DishDrawer® on or off. Opening

the drawer will automatically turn the DishDrawer® on for

30 seconds. To end a wash program in mid cycle, press

the button. Any water in the DishDrawer® will be

pumped out.

Start/Pause button

The button starts a wash program. Press the button to pause or restart the DishDrawer®

during a wash program. When paused, wait for three beeps before opening the drawer. Forcing

the drawer open while in mid cycle may cause damage or injury.

Delay Start

The button also sets the Delay Start feature which can delay the start of a wash program

from 1 to 12 hours.

To activate Delay Start

Press and hold the button until the light above the button turns purple.

Continue holding the button down until the desired delay time has been reached. The

DishDrawer® will emit audible ‘beeps’ as you hold the button down, each beep indicates

another hour delay.

The DishDrawer® will start once the drawer is closed and the delay time has elapsed.

To cancel Delay Start

Press the button.

Lock button (optional)

The button activates/deactivates the Keylock or the Childlock functions.

Keylock

The Keylock feature disables all the buttons on the DishDrawer®.

To activate, press and hold the button until you hear one beep (3 seconds). The light above

the button is lit when Keylock is activated.

To cancel the Keylock feature, press and hold the button until the light above the button

disappears.

US CA

Controls

Childlock

The Childlock feature locks the drawer and disables all the buttons on the badge.

To activate, press and hold the button until you hear two beeps (5 seconds). The light above

the button is lit when Childlock is activated.

To cancel the Childlock feature, press and hold the button until the light above the button

disappears.

Wash program selector

Press the button inside the drawer to select a wash program. The DishDrawer® will

remember the last program used.

Eco button (optional)

Press the button if you would like the wash program to use less energy and water. The red

ECO light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced

dry performance, we do not recommend ECO programs.

Power failure

If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be

unable to be opened during this time. When the power supply is resumed, the DishDrawer® will

restart in the same part of the wash program.

US CA

8Operation

Load dishes

Remove all food scraps and load the dishes.

Add detergent

Check rinse agent

Press the button

Select a wash program

Select (optional)

Check

Ensure there is nothing obstructing the

spray arm. The drain filter must be level with

the filter plate.

Start

Close the drawer and press the button.

Finish

The DishDrawer® will beep six times to

indicate the end of the wash program. At

the end of the wash program the drying fan

will continue to run for a set time or until the

drawer is opened. The fan assists with drying

and uses negligible amounts of energy. It

is normal for some water to remain in the

drain filter area after the wash program is

complete.

DD224 only: At the end of a wash program,

you may find both drawers draining

simultaneously. This is normal.

2,3

US CA
