Refrigerator
RB60V18 model
Installation instructions
and User guide
Declaration of Conformity
The manufacturer of the product/s described herein, to which this description refers, declares
on its sole responsibility that the product/s meet the relevant fundamental safety, health and
protection requirements of the relevant EU guidelines and that the corresponding test reports
are available for examination by the relevant authorities and can be requested from the seller of
the appliance, especially with regard to CE Declaration of Conformity issued by the manufacturer
or with the manufacturer’s approval. Moreover, the manufacturer declares that the parts of the
appliance described in this User Guide, which come into contact with fresh food, do not contain
any toxic substances.
1
Safety and warnings 2
Installation instructions 6
Moving or storing your refrigerator 22
Operating instructions 23
Interior features 29
Maintenance 31
Cleaning care – interior/exterior 32
Storing food in your refrigerator 33
Storing food in your refrigerator compartment and variable-temperature drawer 34
Storing food in your freezer and variable-temperature drawer 36
Problem solving checklist 38
Wiring diagram 40
Manufacturer's Warranty (NZ AU GB IE HK IN SG) 41
Customer Care (NZ AU GB IE HK IN SG) 43
Warranty and service (CN) 45
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover or
contact your local Fisher & Paykel dealer.
Note that the word “refrigerator” throughout this User Guide, refers to combination
refrigerator/freezer products.
2Safety and warnings
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined
in this User Guide before operating this appliance.
Failure to do so can result in death, electric shock, fire or
injury to persons.
Use this appliance only for its intended purpose as described in
this User Guide.
Important safety instructions
Warning
Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
To avoid a hazard due to instability of the appliance it must be
fixed in accordance with the installation instructions provided
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
When using this appliance always exercise basic safety precautions
including the following:
Danger
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
3
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Young children should be supervised to ensure they do not play
with the appliance.
Risk of child entrapment. Before you throw away your old
refrigerator:
– Take off the doors
– Leave the shelves in place so that children may not easily climb
inside.
R600a
This refrigerator may contain the flammable
refrigerant isobutane.
().
It is hazardous for anyone other than an authorised service
person to service this appliance. In Queensland the authorised
service person must hold a gas work licence or authorisation for
hydrocarbon refrigerants to carry our service or repairs which
involve removal of covers.
Disposal
Extreme care must be taken when disposing of your old appliance
to avoid hazards. The refrigerant gas must be safely removed and
for the safety of young children, remove doors.
Your Fisher & Paykel Authorised Service Centre will be able to give
advice on environmentally friendly methods of disposing of your
old refrigerator or freezer.
Safety and warnings
4Safety and warnings
Electrical
Your new appliance must be properly installed in accordance with
the installation instructions before it is used.
Never unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull straight out from the outlet.
Do not plug in any other appliance at the same power point as your
refrigerator or use extension cords or double adapters.
Repair or replace immediately all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion along its length or at either the plug or
appliance end.
If the power supply cord is damaged, it must only be replaced by
your Fisher & Paykel Authorised Service Centre because special
purpose tools are required.
When moving your appliance away from the wall, be careful not to
roll over or damage the powercord.
Storing food and drinks
Never store volatile or flammable materials in your refrigerator as
they may explode.
Never freeze liquids in glass containers. Liquid expands during
freezing, which may cause the container to explode.
Never freeze carbonated drinks. They may explode.
Do not consume food if it is too cold. Food removed from the
freezer compartment may be cold enough to cause damage when
brought into contact with bare skin, eg frozen ice cubes.
5
Safety and warnings
Power failure – food safety
Do not refreeze frozen foods that have thawed completely. Follow
the recommendations below if you discover food in your freezer
has thawed:
1) Ice crystals still visible – food may be refrozen but should be
stored for a shorter period than recommended.
2) Thawed but refrigerator cold – refreezing generally not
recommended. Fruits and some cooked food can be refrozen but
use as soon as possible. Meat, fish, poultry – use immediately or
cook then refreeze. Vegetables – discard as they usually go limp
and soggy.
3) Thawed but warmer than 5°C – discard all food.
Do not refreeze frozen foods that have thawed completely. The
food may be dangerous to eat.
Cleaning
Many commercially available cleaning products contain solvents
which may attack plastic components of your refrigerator and
cause them to crack. Please refer to the cleaning care section of this
booklet for further advice.
SAVE THESE INSTRUCTIONS
6Installation instructions
Please follow the steps for installation to ensure your appliance operates correctly.
Location
Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
Power
To ensure that the appliance is not accidentally switched off, connect your refrigerator to its own
power point. Do not plug in any other appliance at this power point or use extension cords and
double adaptors, as the combined weight of both power cords can pull the double adaptor from
a wall outlet socket.
For power requirements, refer to the information on the serial plate located inside the
refrigerator compartment.
It is essential that the appliance be properly grounded (earthed).

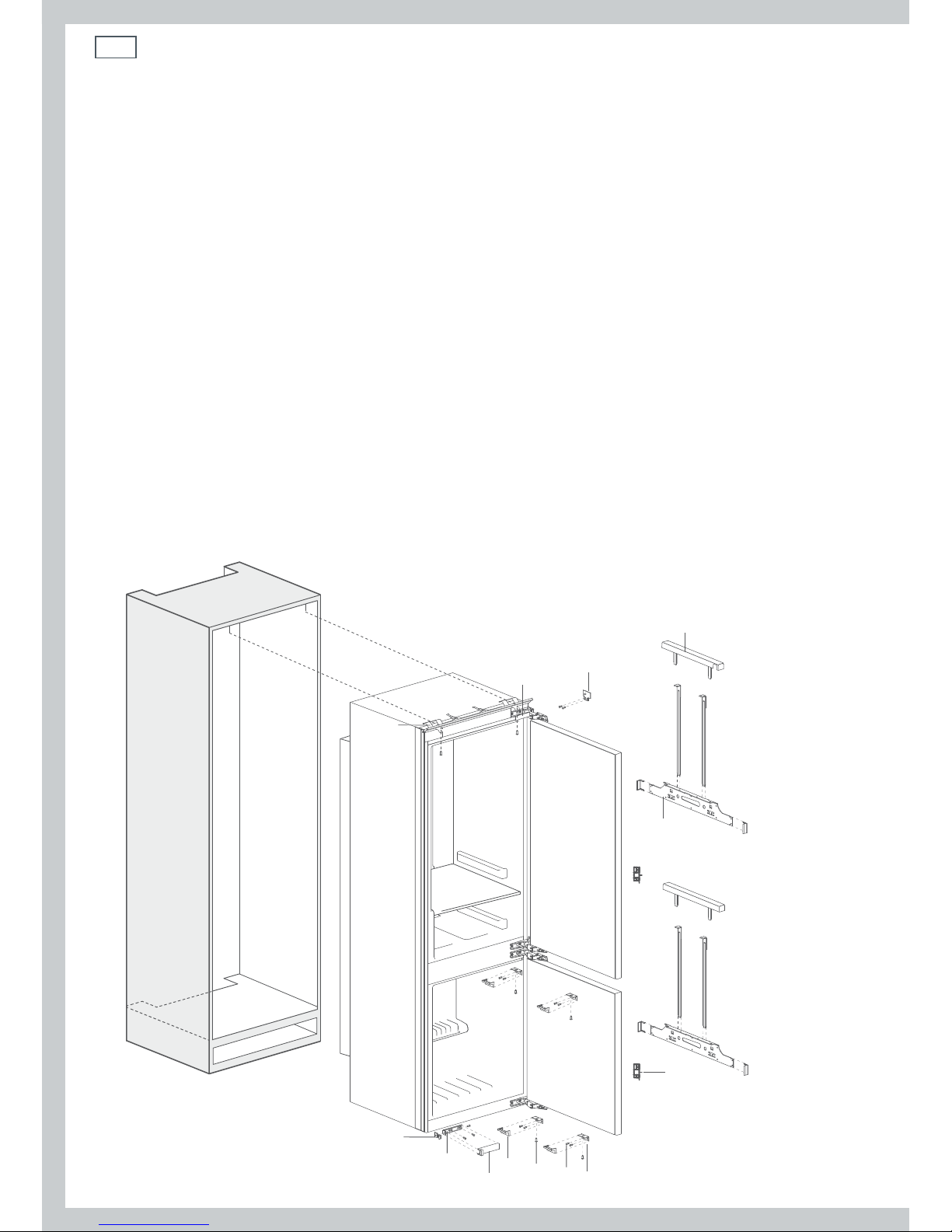

Exploded view
11
3
12
13
6
8
9
10
7
51
4
2
7
Installation instructions

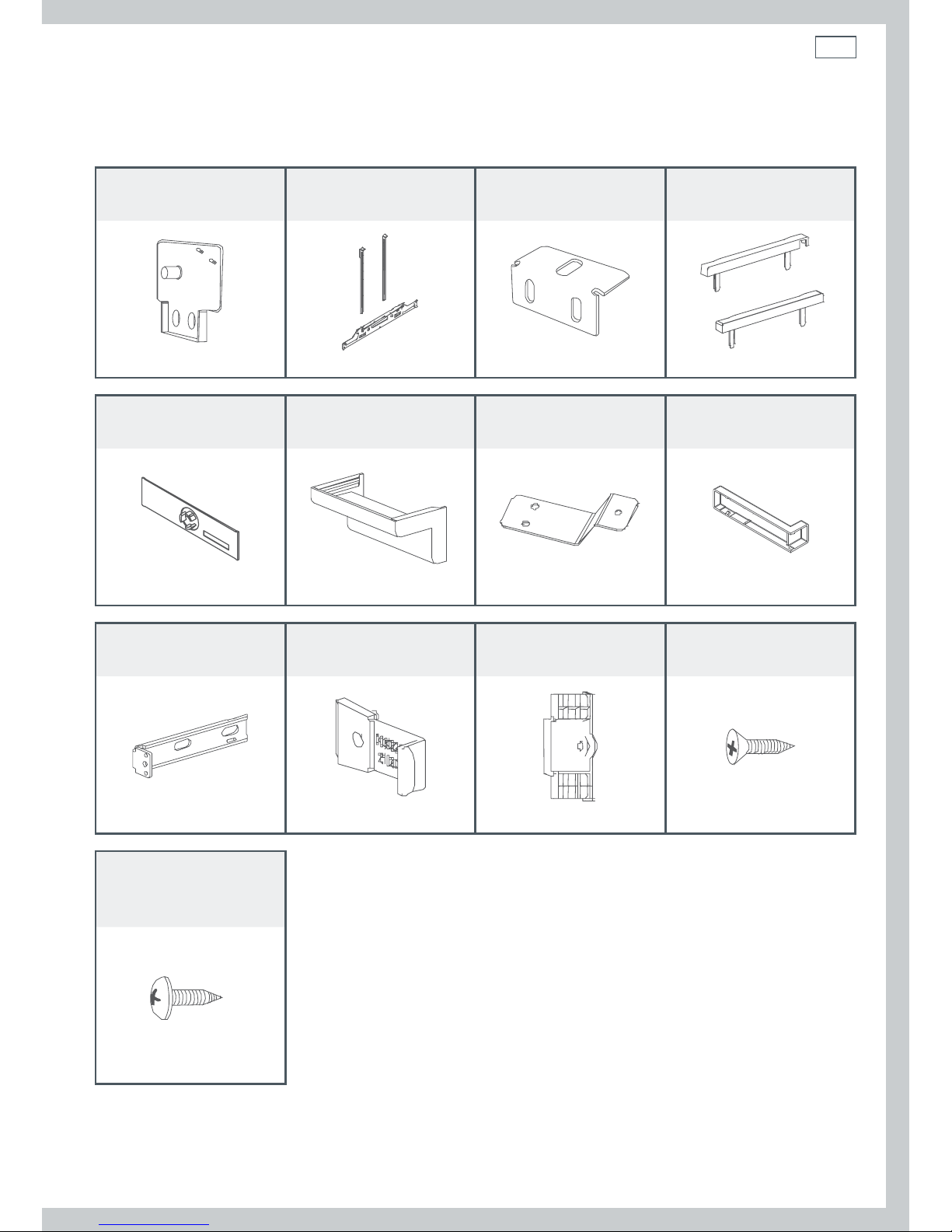

Components list
1. Clearance
adjustment plate
2. Top attachment
bracket and ruler
3. Bottom attachment
bracket
4. Top attachment
bracket cover
4 pieces 2 pieces (installed) 4 pieces 2 pieces (installed)
5. Hinge cover 6. Bottom attachment
bracket cover
7. Upper fastenings 8. Cabinet attachment
bracket cover
4 pieces (installed) 4 pieces 2 pieces 1 piece
9. Cabinet attachment
bracket
10. Position
adjustment plate
11. Door gasket
baffle
12. Wood screw
1 piece 1 piece 2 pieces 32 pieces
13. Bottom
attachment bracket
screw
4 pieces
15 mm to 18 mm kitchen cabinet thickness can be used.
8
1. Basic dimensions
Product dimensions (mm) RB60V18
A
total height 1773
B
total width 555
C
total depth 540
D
top door height 1066
E
hinge gap height 12
F
bottom door height 692
Cabinetry dimensions (mm) (including minimum clearances)
G
inside height 1782 – 1786
H
inside width 564 – 570
I
total depth min 550
Minimum clearances
J
minimum inlet vent area 200 cm sq
K
minimum outlet vent area 280 cm sq
Installation instructions
G
I
H
J
J
KB
C
D
F
A
E
Fig.1 Exploded view of refrigerator cabinetry
