Fishman PRESYS ONBOARD PREAMP Bedienungsanleitung

USER GUIDE

PRESYS ONBOARD PREAMP

2

Presys Quick Start

1. Set the controls • Set volume off. Set the bass, middle, and treble

controls to center.

2. Plug in • Connect the Presys to an ampliﬁer or PA with a ¼-inch instrument

cable. The battery light (batt) will ﬂash once quickly to indicate it has switched

on.

3. Turn up • Raise the volume and adjust the bass, middle, and treble

controls to your liking.

3

4

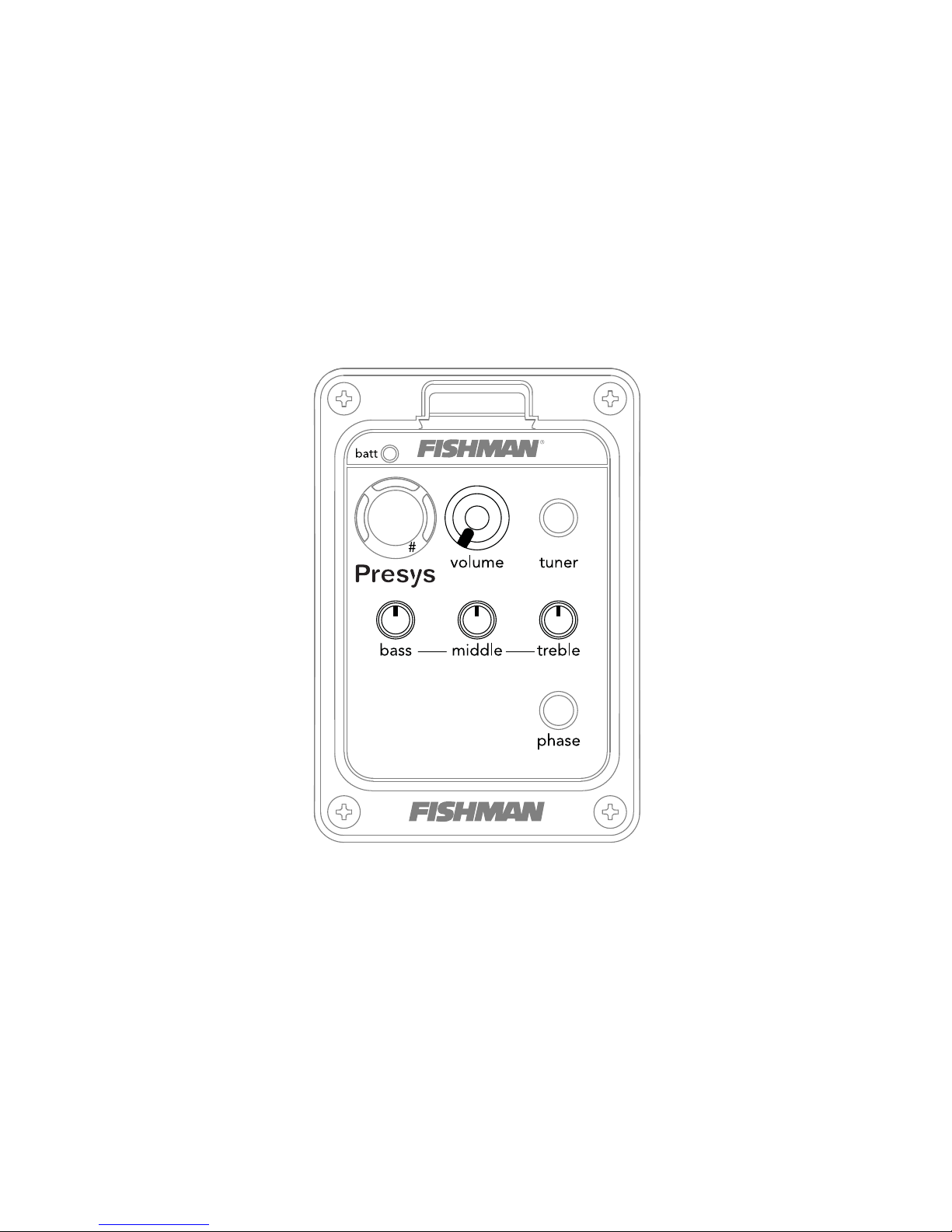

Presys Controls

Volume • For the cleanest signal, set the volume knob as high as possible,

without causing distortion or feedback.

Bass • Boost here to add depth and weight to the sound of the guitar.

Middle • Turn the middle knob all the way left for a smooth “scooped out”

tone at high volume levels. Raise the middle knob to the right of center to add

midrange “bite” to the sound.

Treble • Boost to cut through the mix. Cut to mellow and subdue the sound.

Phase • Use the phase switch to improve bass response at low volume and

suppress feedback at high volume.

5

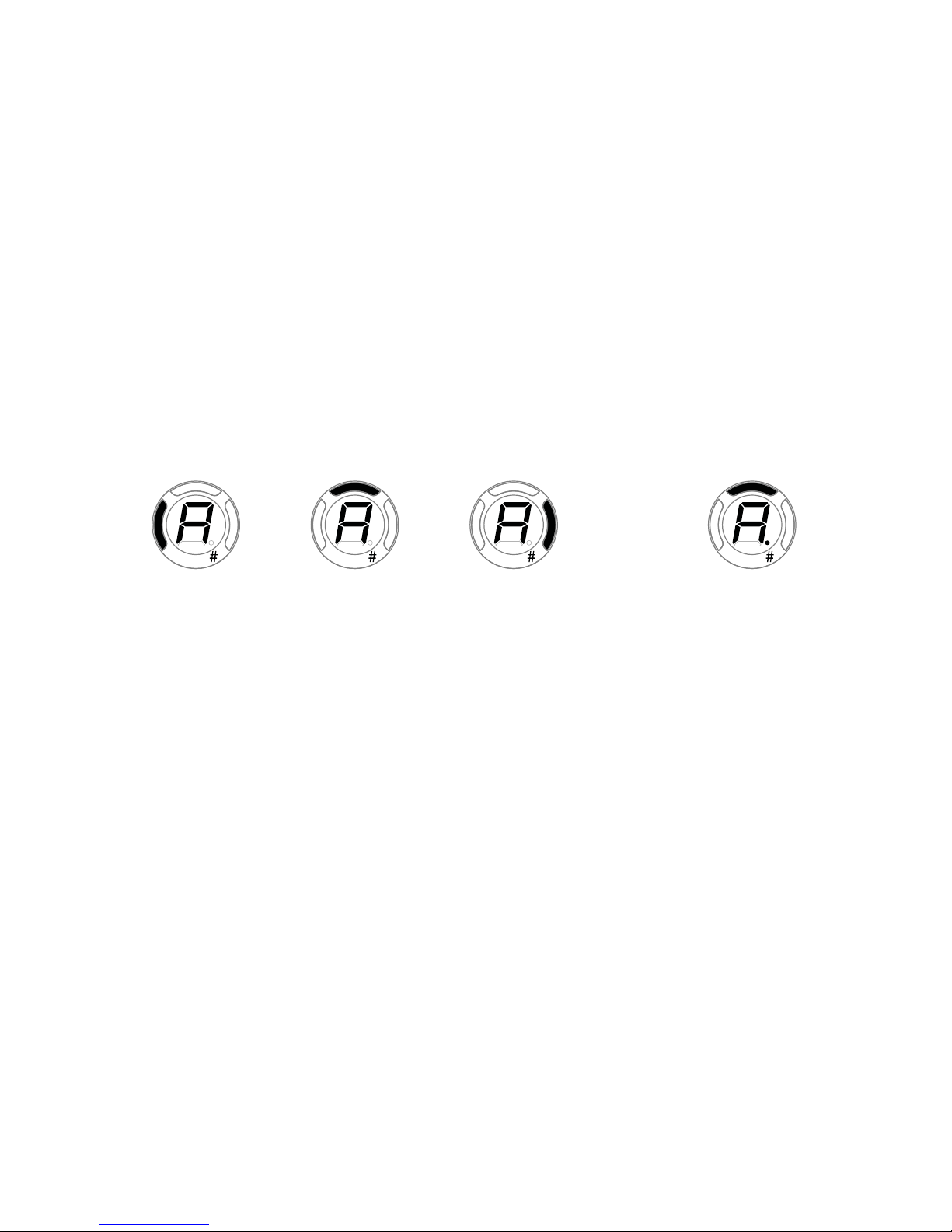

Tuner • Use the tuner lights as shown below to tune your instrument.

Battery • When the batt indicator lights steadily it is time to change the bat-

tery. To conserve power, unplug the instrument and turn off the tuner when not

in use. Replace the battery by ﬂipping open the preamp body using the latch

located above the Fishman logo. Be sure to observe the correct polarity during

this installation.

“A” note

below pitch

“A” note

in tune

“A” note

above pitch

“A#” note

in tune

6

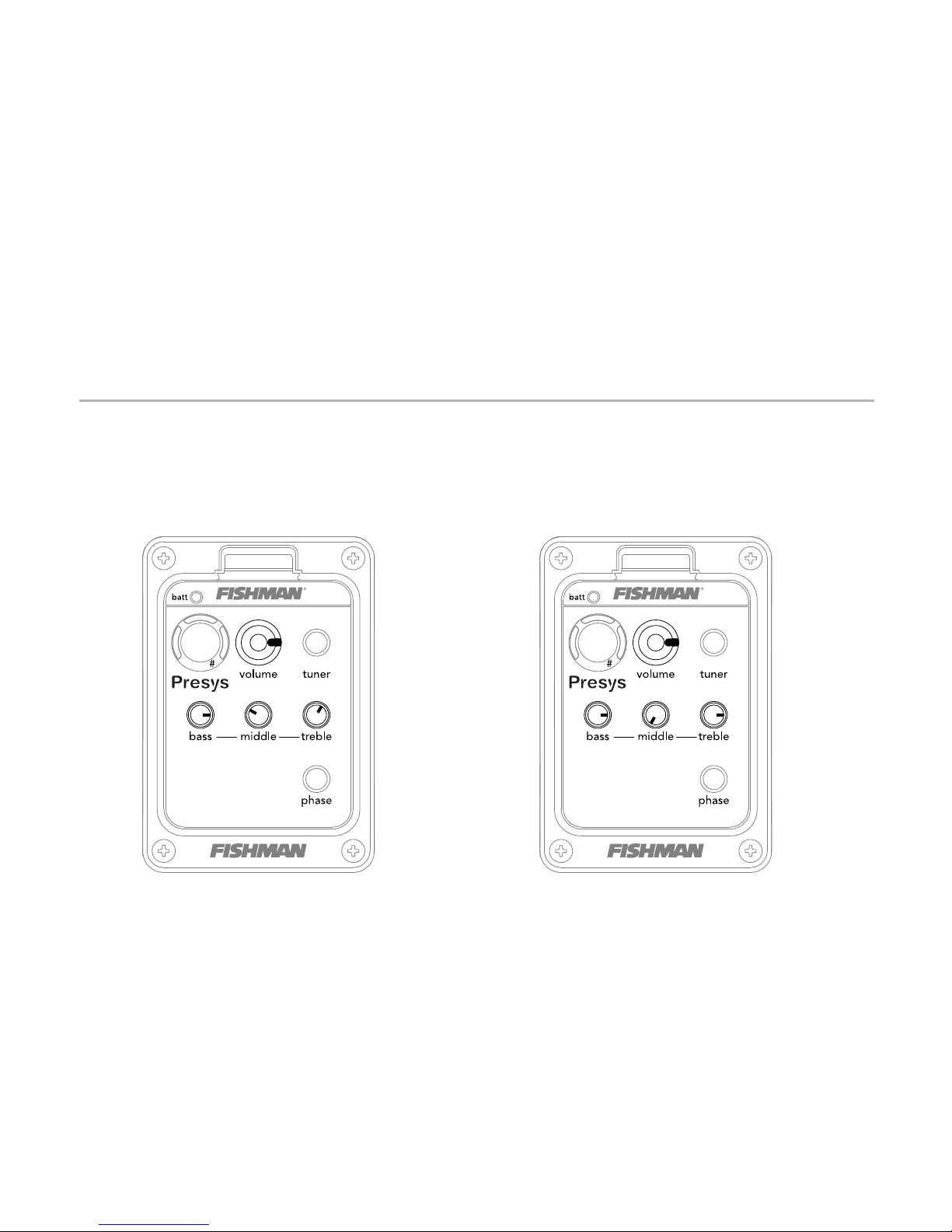

Sample EQ Settings

Fingerstyle “Scooped” Mid

This will add fullness to the bass This setting emphasizes extreme bass

and deﬁnition to the treble. and treble

7

Strummer Cut Through the Mix

A good setting for strumming chords. When you need to be heard through a

loud band.

www.ﬁshman.com

513-300-143 Rev B 7-09
