Flashforge Guider II Bedienungsanleitung

This guide is only applicable to FLASHFORGE Guider II 3D printer

The User Guide is in the USB stick.

1. Hot! Avoid touching the heating nozzle in operation.

2. Moving parts in printer may cause injury. Do not wear gloves

or other sources of entanglement in operation.

WARNING

USERGUIDE

GUIDER II

Quick Start Guide

SZ11-EN-A02

Kit Contents

3D Printer Filament Spool Quick Start Guide After-sales Service Card

USB Stick

Lid Power Cable USB Cable

Filament Guide Tube Screwdriver

Unclogging Pin Tool Wrench

Allen Wrench

Solid Glue

Spool Holder

GREASE

Grease

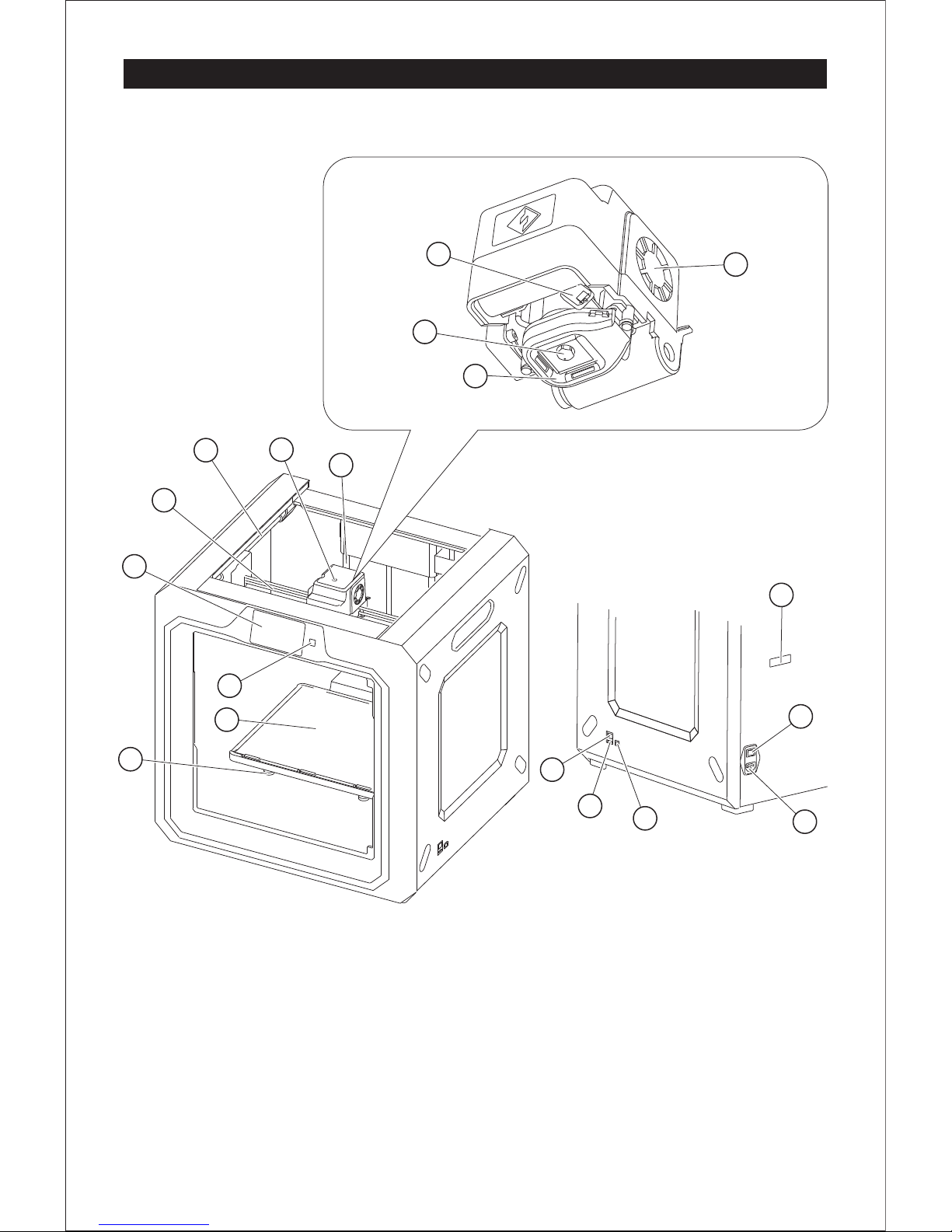

Getting to Know Your Guider II

910

1. Z-Axis Guide Rod

17. Power Switch

15. USB Cable Input

8. Leveling Knob

3. Y-Axis Guide Rod

7. Build Plate

5. Touch Screen

9. Servo 10. Turbo Fan 12. Turbo Fan Baffle

18. Power Input

2. Filament Inlet 4. X-Axis Guide Rod

6. Touch Screen Button

13. Network Interface

11. Nozzle

16. Spool Holder Slot

14. USB Stick Input

Unpacking

1. Open the box and remove both top foam

sheets.

2. Take your Guider II out of the box and remove

the bubble wrap.

3. The bottom PE foam should contain: filament,

spool holder, solid glue, USB cable, grease

and accessories bag.

4. Remove bubble wrap.

5. Remove the top PE foam piece,which

 contains a power cable, a Quick start guide

and a After-sales service card.

6. Use scissors to cut the buckles that hold the

 rods in the place.

Print Preheat Tool

HOME

Filament Level Home Manual

Setting Status About

X: 87.00

Y: 70.50

Z: 140.00

X+X-

Y+

Y-

Z-

Z+

7. Open the door and take out the lid. 8. Take out power cable and plug the power

 cable into the input on the back and turn

 on the power switch.

9. Press the touch screen button and tap [Tools] .10. Tap [Manual].

11. Tap [Z-] to partially elevate the build plate. 12. Remove both bottom foam pieces.

Congratulations! You've unpacked

your Guider II.

Hardware Assembly

1. Locate the spool holders.Install the spool

holders in the two quadrangular openings on

the back.To install a spool holder, level it and

insert the end into one of the openings.

2. Turn down the spool holder to make the holder

bottom cleave to the printer back.

3. Squeeze the spool holder top and mount the

filament spool to the holder.

4. Secure the filament guide tube with R-shaped

buckles and thread the filament through the

tube. The filament spool must be oriented

correctly (see above), and should feed

filament from bottom to top.

Leveling Build Platform

Print Preheat Tools

English

繁體中文

日本語

HOME

Filament Level Home Manual

Setting Status About

简体中文

Language

Resume Print

WiFi

WLan hotspot

English

How to change language

Raise the build plate to reduce the distance between the nozzle and build plate.

Rotate the knob clockwise

Rotate the knob Anticlockwise

Lower the build plate to increase the distance between the nozzle and build plate.

How to use the leveling knobs

Yes No

Confirm

Are you sure you can’t finger

tighten these three knobs any

more?

Wait

Verifying the distance between nozzle

and plate...

Distance Too Big

Unscrew corresponding knob under

platform clockwise until hearing

a steady beep.

2. Tap [Yes] if you can't tighten all the nuts any more, or tap [No] to continue tightening. After

selecting [Yes], the extruder will move towards the first point and the plate will move up and

down to verify the distance between nozzle and plate.

3. If the distance between the nozzle and plate is too large, rotate the knob underneath the

platform clockwise until you hear a steady beep. If the distance is too small, rotate the knob

anticlockwise until you hear a steady beep.

Wait

Please tap [Verify] button to

check whether the distance

is appropriate now.

Verify OK

Congrats

Tap [OK] button

to next point leveling.

4. Then tap the [Verify] button to check whether the distance is appropriate this time.

If the distance is appropriate now, tap [OK] to second leveling point. If still not, please follow

the prompts to adjust again till you see [OK] button.

Repeat steps 3 and 4 to level the second and third points. Then tap [Finish] to exit.

1. Tap [Tools]-[Level] on your Guider II's touch screen. Please wait while the extruder and platform

complete initial movements. Then, rotate all three knobs under the platform anticlockwise

until you can't tighten them anymore. Then tap [Ok].

Screw three knobs under the platform

anticlockwise until you can’t tighten them any

more, then tap [OK] button.

Please wait while the extruder and platform

finish initial movement...

Distance Too Small

Screw corresponding knob under

platform anticlockwise until hearing

a steady beep.

Loading / Changing Filament

HOME

220℃ / 220℃

100%

220℃

Build Preheat Tools

Filament Level Home Manual

Setting Status About

Load Unload

Cancel

Extruder

I’m heating up...

Changing Filament Do not pull out the filament with force as it will damage the gears. If the melted

filament has cooled down in the extruder, please repeat the steps above.

Build Preheat Tools

Extruder

Start

1. Tap [Tools] and then tap [Filament] and [Load] to load filament.

2. The extruder will automatically heat up. Once heated, filament will be drawn through the

extruder. Continue extruding until the extruder provides a steady flow of filament.

1. Tap [Preheat]--[Start] to the heat up the extruder.

2. Once preheated, hold down the spring presser and pull out the filament.

3. Tap the return button, insert the new filament into the filament intake, tap [Tools]-[Filament]-

[Load]. The filament will be drawn through the extruder once heated. Wait for the extruder to

provide a steady flow of filament.

100℃

Platform

First Print

Build Preheat Tools

1. Please insert the USB stick into Finder. In the print interface, tap [Print]-[USB Stick].

Suggestions

Ensure that the build plate has been leveled before printing.

Ensure that the filament has been loaded in an appropriate approach.

Load the filament for a while to extrude all the melted filament you printed last time out of the extruder.

Do not leave the Guider II unattended during operation.

Build Copy

Delete

Total: 0 hr 54 min

Extruder 50℃/220℃

Time left 0 hr 54 min

40mm_Box-PLA.gx

40mm_Box-ABS.gx

System Volume Information

flashprint切片软件 40mm_Box-ABS.gx

Platform 50℃/105℃

40mm_Box-ABS.gx

25%

2. Select one file to print according to the

filament type used, tap [Build].

4. Once heated, the printer will start printing.

3. Tap [Build].
