50-55 Auxiliary Electra-Fan

Installation Instructions

(55 with out TEMP Control)

The Auxiliary Electra-Fan should be installed in accordance with

the following instructions.

Improper installation may result in premature failure and void the

Limited One-Year Warranty.

MOUNT FAN TO RADIATOR OR A/C CONDENSER-All

Installations:

INSTALLING THESE FANS IN FRONT OF THE RADIATOR

WILL RESULT IN A PUSHER FAN;

INSTALLING IT BEHIND THE RADIATOR WILL RESULT

IN A PULLER FAN. REGARDLESS, IN ALL INSTALLA-

TIONS, THE SIDE OF THE UNIT WITH THE FAN BLADES

EXPOSED SHOULD ALWAYS FACE THE FRONT OF THE

VEHICLE.

1) Determine whether the fan will be installed in FRONT of

the radiator or condenser (pusher) or BEHIND radiator or

condenser (puller).

2) Position fan on the radiator or A/C condenser where it

will have at least 3/4” clearance to any other object. Using a

small Phillips screwdriver, carefully spread the radiator fins

to allow the mounting bolts to pass through the radiator. Be

careful not to damage the radiator tubes.

3) Fit 4 nylon bolts through the fan, and slip a rubber washer

over each bolt. See FIG. 1.

4) Fit the fan to the radiator, feeding all four screws through the radiator, and add a plastic washer to each bolt.

5) Push a nylon push-nut up each nylon bolt until snug.

6) Turn push nut clockwise until tight, then trim off excess bolt, leaving 1/4” exposed.

Adjustable Temperature Control Kit

Assembly & Installation Instructions

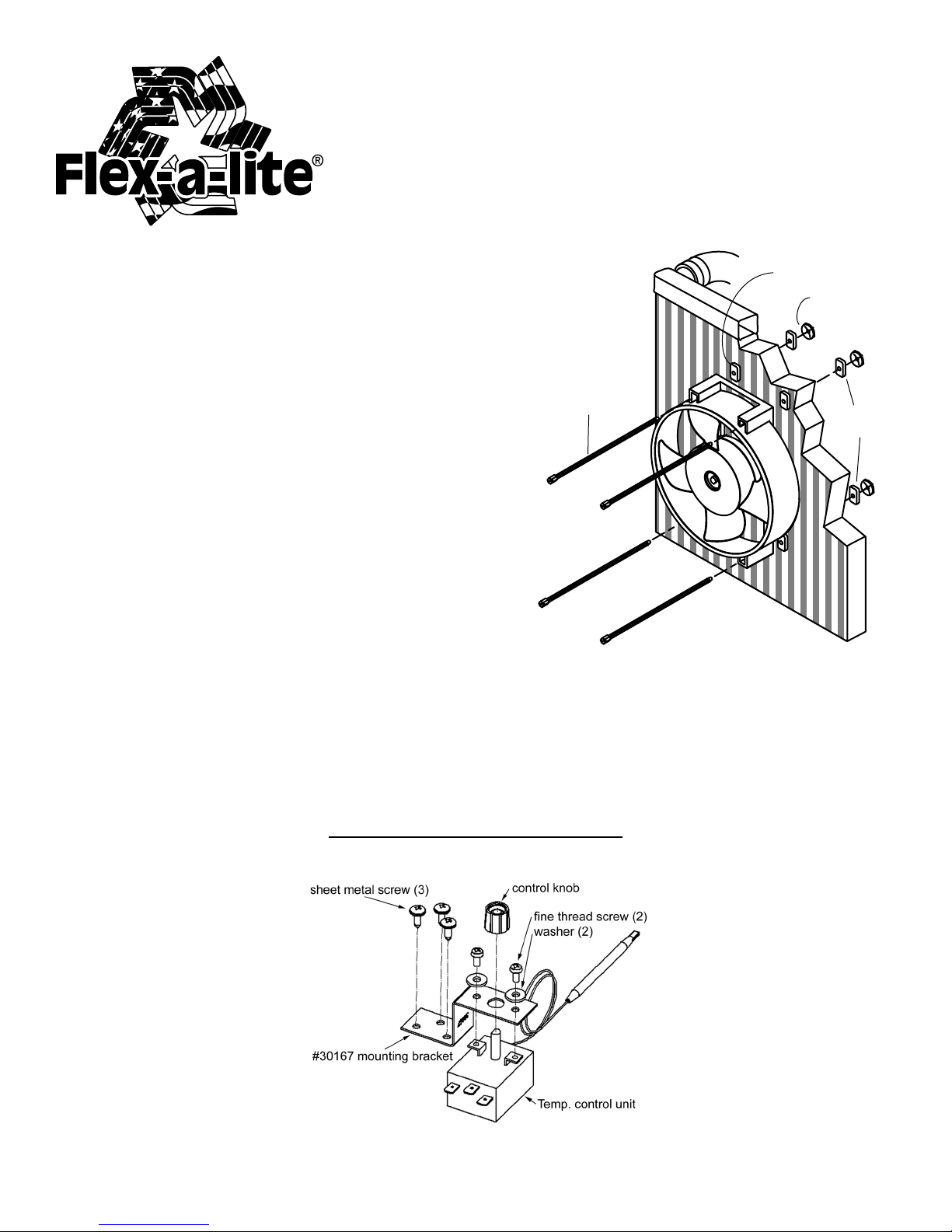

FIGURE 1

Pusher Mode (in FRONT of radiator)

RUBBER WASHER

PUSH NUT

NYLON BOLT

FIGURE 2

Auxiliary Fan Wiring Diagram

FAN

MOTOR

GROUND (-)

Manual Switch

(not included)

20A

FUSE HOLDER

BUTT

CONNECTOR

BLUE

BLACK

RING

CONNECTOR

POWER SOURCE (+)

(BATTERY*, STARTER

SOLENOID, ETC.)

* only when fan is wired with a manual switch or thermostatic controls

PLASTIC

WASHER

Assembly & Installation Instructions pg 2

1. Attach the temp. control unit to the mounting bracket using the hardware provided, then push the knob onto

the control shaft.

2. The control can be mounted to any ﬂat surface in the engine compartment that is within 18” of the radiator

inlet hose. Use the 3 mounting screws provided.

3. Insert the temp. sensor as close to the inlet hose as possible, then push the rubber insulator cap over the

end of the sensor as shown.

4. Connect the “C” terminal on the control unit to the positive (+) lead on electric fan unit. For automatic opera-

tion, connect the “2” terminal on the control unit to a fused positive (+) source that is capable of powering the

electric fan unit (refer to wiring diagram below). Use the female connectors provided.

5. If manual control is desired, use Flex-a-lite P/N 31148. Refer to wiring diagram below. NOTE: If not using

a Flex-a-lite manual switch, DO NOT connect the ground (-) wire to the switch!

Wiring Diagram

Insert the temp. sensor near the inlet hose...

Then push the insulator cap over the end of the

sensor.

rev. 99965 9-21-05

The Flex-a-lite Limited Warranty

Flex-a-lite Consolidated, 7213-45th St. Ct. E. Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite products to be free of defects in material

and workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchase may be returned to the factory through the

point of purchase, transportation charges prepaid. If, on inspection, cause of failure is determined to be defective material or workmanship and not by misuse, accidental or improper installation,

Flex-a-lite will replace the fan free of charge, transportation prepaid. Flex-a-lite will not be liable for incidental, progressive or consequential damages. Some states do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you speciﬁc legal rights and you may have other rights, which

vary from state to state. The Flex-a-lite warranty is in compliance with the Magnuson-Moss Warranty Act of 1975.
