Fleximounts WB107B Bedienungsanleitung

96" x 48"

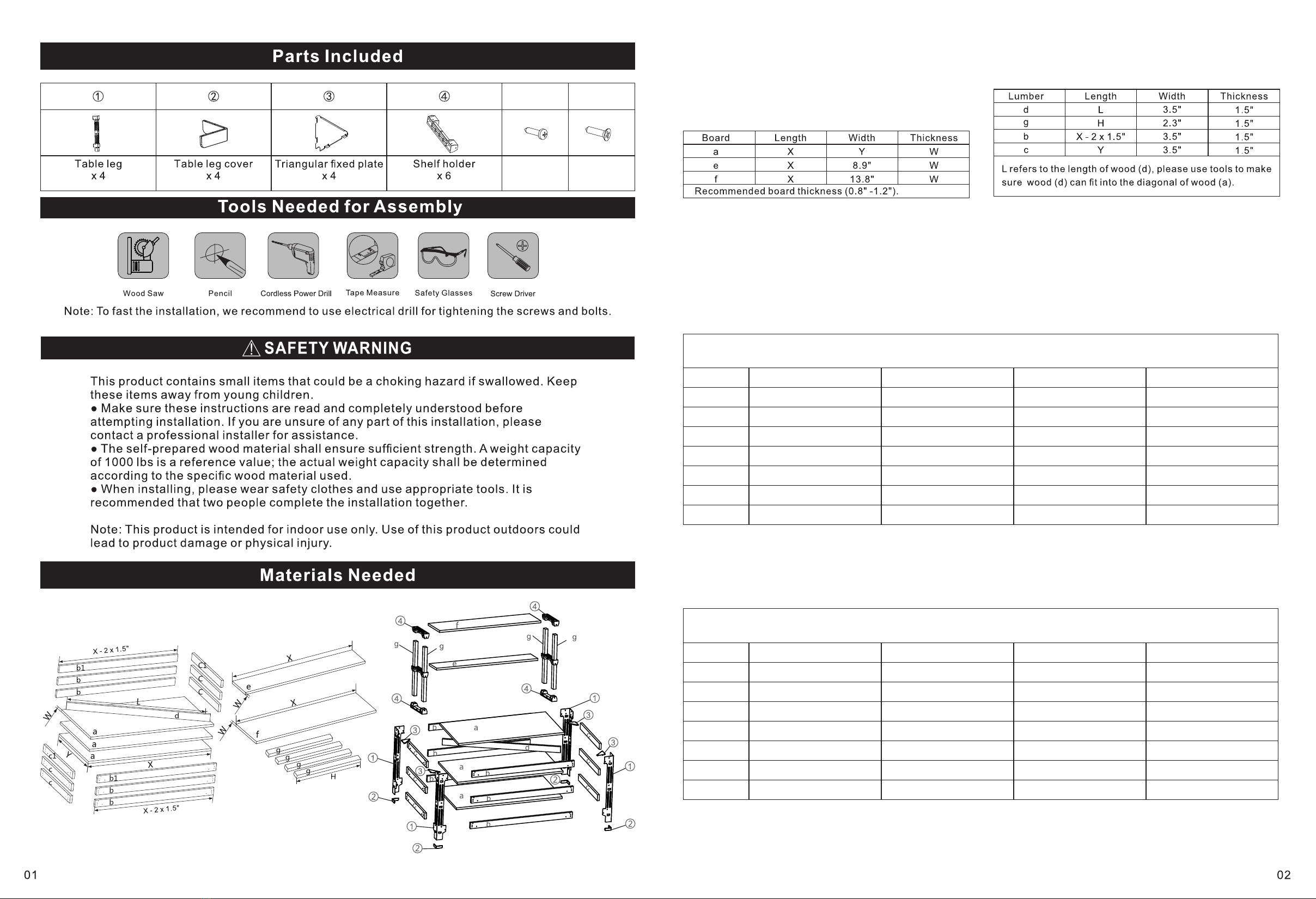

1. To build a 3'x6' workbench, we recommend using:

Length

72"

69"

36"

74.5"

Qty (pcs)

Width

36"

8.9"

13.8"

3.5"

2.3"

Thickness

0.8"-1.2"

1.5"

Board (a)

Board (e)

Board (f)

Lumber (b)

Lumber (c)

Lumber (d)

Lumber (g)

2. To build a 2'x4' workbench, we recommend using:

Length

48"

45"

24"

47.7"

Width

24"

8.9"

13.8"

3.5"

2.3"

Thickness

0.8"-1.2"

1.5"

Board (a)

Board (e)

Board (f)

Lumber (b)

Lumber (c)

Lumber (d)

Lumber (g)

Qty (pcs)

PL EA SE N O T E:

This sheet only provides recommendations for the most popular workbench dimensions.

Additional size conﬁgurations are available if desired.

St4.2 x 19

Tapping Screw

x 76

St5 x 70

Tapping Screw

x 18

Use cordless power drill to ﬁx lumber (c) x 6 to the installed table leg x 4 with screw (a) x 24.

2 table leg sets in total.

Use cordless power drill to ﬁx lumber (b) x 6 to the installed table leg set x 1with screw

(a) x 12.

Place board (a) x 2 on the middle and lower beam of the table. Use cordless power drill

to ﬁx table legs with screw (a) x 12.

Bx18

Note: The number of screws can be

reduced according to the size of the

workbench.

Place lumber (d) on the triangle ﬁxed plates ③, and place board (a) on the top of table

to complete the installation of workbench.

Then, ﬁx the top, middle and lower layers of boards and lumbers with screw (b) (the

position of the screws should be at the equal-division points).

Insert shelf holder ④ to lumber (g) as direction shown below.

Use cordless power drill to ﬁx them with screw (a) x 12.

4 sets in total.

Place board (e) and board (f) on the shelf holder set as shown below.

Use cordless power drill to ﬁx them with screw (a) x 8.

Place shelf on workbench as shown below.

Use cordless power drill to ﬁx them with screw (a) x 8.

Note: The position of middle shelf

holder can be adjusted according to

demand, but the two sets must be

horizontal.
