VisiFault

Visual Fault Locator

Instruction Sheet

The VisiFault Visual Fault Locator (VFL) is a visible light source

that helps you trace optical fibers, check fiber continuity, and

find faults such as breaks, bad splices, and tight bends in fiber

optic cable.

Safety Information

W*Warning: Class 2 Laser

To avoid possible eye damage caused by hazardous

radiation

•Never look directly into the VFL’s output (item Ain

Figure 1). Momentary exposure to the VFL’s output will

not damage your eyes; however, direct, long-term

exposure is potentially hazardous.

•Cover the VFL’s output with the dust cap when the VFL

is not in use.

•Do not open the case (except to open the battery cover

to change the batteries); no user-serviceable parts are

inside.

•Do not modify the VFL.

•Do not magnify or otherwise modify the laser output.

Use only approved connectors and adapters.

•Do not use controls, adjustments, or procedures not

documented or approved by Fluke Networks.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

FT25/35 Instruction Sheet 8/16/2004

English Page

2 of 6

Panel Size: 4-1/8" x 7"

Using the Visual Fault Locator

To use the VFL, refer to Figure 1 and do the following:

1Remove the VFL’s dust cap; then clean the VFL’s output

adapter and the connector on the fiber to be tested.

2Plug the fiber optic connector into the VFL’s output (A).

The VFL’s universal fiber adapter accepts connectors with

2.5 mm ferrules (SC, ST, or FC). For 1.25 mm ferrules, use the

optional 1.25 mm universal adapter.

3Press the key (B) to turn on the VFL.

4To toggle between continuous and flashing modes, press

the FLASH key (C). The status LED (D) indicates the VFL’s

output status.

5Turn off the VFL before disconnecting it from the fiber.

Replace the dust cap.

Tips: View the VFL’s light indirectly by holding a white card or

paper in front of the VFL output or the fiber connector

emitting the light.

The VFL’s light may not be visible through thick or dark-

colored cable sheaths or connector dust caps.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

FT25/35 Instruction Sheet 8/16/2004

English Page

3 of 6

Panel Size: 4-1/8" x 7"

Continuity check/

tracing fibers

Microbend or

broken fiber

Bad splice

Sharp

bend

Broken fiber

in connector

VISUAL FAULT LOCATOR

ISI

AULT

CLASS II LASER

FLASH

awx01f.eps

Figure 1. Using the Visual Fault Locator

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

FT25/35 Instruction Sheet 8/16/2004

English Page

4 of 6

Panel Size: 4-1/8" x 7"

Accessory

Description

Fluke Networks

Model Number

2.5 mm to 1.25 mm universal adapter NF-380

Maintenance

Clean the case with a soft cloth dampened with water or water

and a mild soap. Do not use abrasives, solvents, or alcohol.

If the VFL’s light is dim or does not turn on, replace the batteries

as shown in Figure 2.

awx03f.eps

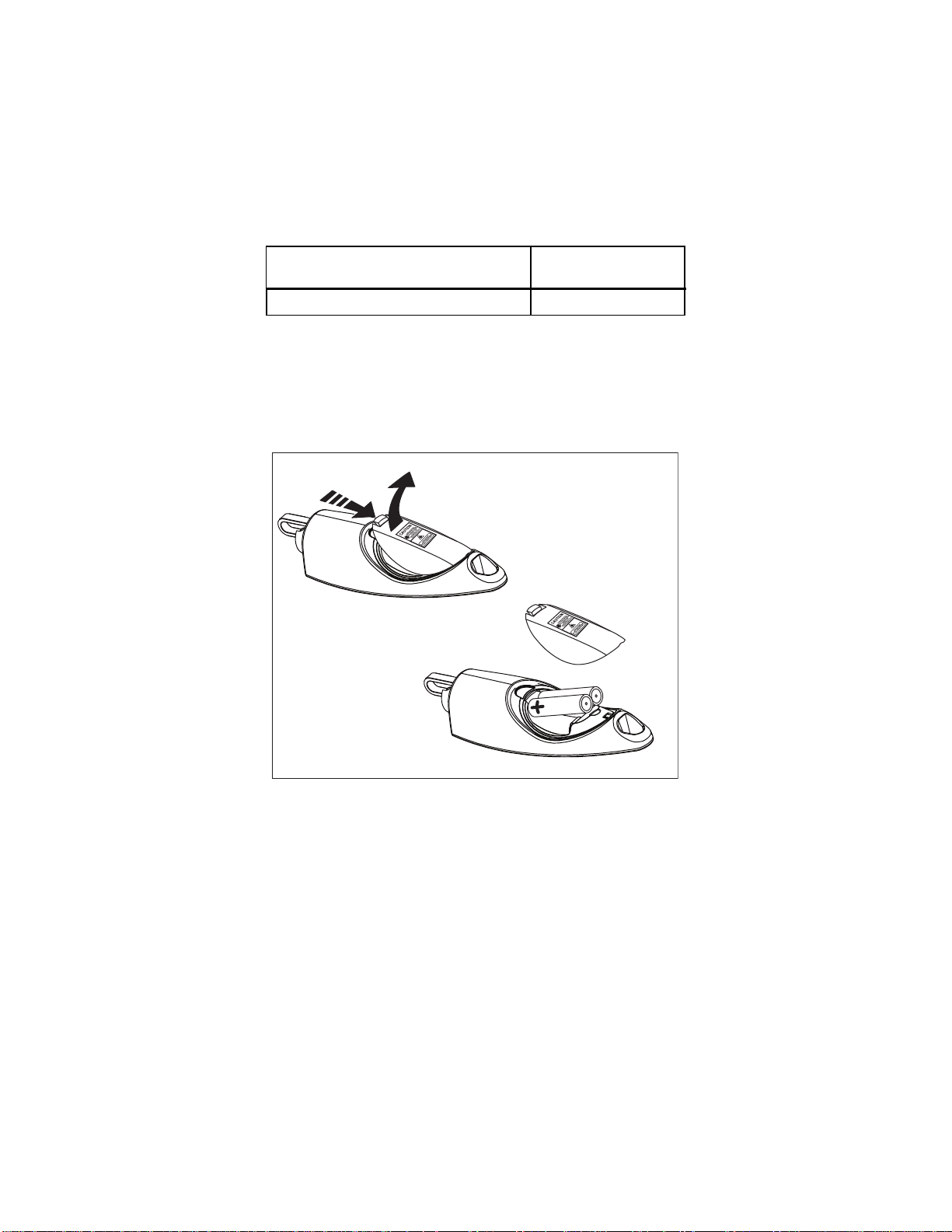

Figure 2. Replacing the Batteries

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

FT25/35 Instruction Sheet 8/16/2004

English Page

5 of 6

Panel Size: 4-1/8" x 7"

Specifications

Laser type and

classification

635 nm (nominal) laser diode, Class 2

Fiber compatibility Multimode and singlemode

Output port Universal adapter for connectors with 2.5 mm

ferrules

Output Continuous or flashing (2 Hz)

Output power < 1.3 mW

Range 3 km on multimode fiber

4 km on singlemode fiber

Operating: 0 °C to 40 °C

RH 95% (10 °C to 35 °C)

Temperature and

humidity ranges

Storage: -20 °C to +60 °C

RH 95% (10 °C to 35 °C)

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

FT25/35 Instruction Sheet 8/16/2004

English Page

6 of 6

Panel Size: 4-1/8" x 7"

Vibration and shock 2 g, 5 Hz-500 Hz; 1 m drop

Altitude 3000 m

Battery type and life 2 AA alkaline; 80 hours typical

in continuous mode

Dimensions and weight 6.2 in x 2 in 1.3 in

(157 mm x 52 mm x 33 mm)

5.7 oz (162 g)

Safety CSA C22.2 No. 1010.1: 1992,

EN 61010-1, CE

Laser safety label is on the

back of the VFL.

Complies with 21 CFR

1040.10 and 1040.11 except

for deviations pursuant to

Laser Notice No. 50, dated

July 26, 2001

LIMITED WARRANTY & LIMITATION OF LIABILITY

Fluke Networks products will be free from defects in material and

workmanship for one year from the date of purchase. Parts, accessories,

product repairs and services are warranted for 90 days. This warranty

does not cover disposable batteries, cable connector tabs, cable

insulation-displacement connectors, or damage from accident, neglect,

misuse, alteration, contamination, or abnormal conditions of operation or

handling. Resellers are not authorized to extend any other warranty on

Fluke Networks’ behalf. To obtain service during the warranty period,

contact your nearest Fluke Networks authorized service center to obtain

return authorization information, then send your defective product to

that Service Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES,

SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR

IMPLIED. FLUKE NETWORKS IS NOT LIABLE FOR ANY SPECIAL, INDIRECT,

INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM

ANY CAUSE OR THEORY. Since some states or countries do not allow the

exclusion or limitation of an implied warranty or of incidental or

consequential damages, this limitation of liability may not apply to you.

6/01
