USER MANUAL
Model KLR –28LA Water Dispenser
Atmospheric Water Generator
It is highly recommended to read this manual before use.
Please keep this manual for future reference.
SHENZHEN FND AIR AND WATER TECHNOLOGY DEVELOPMENT CO. LTD
Revision : F20EA01
HYDROLOGIC-AWG.COM
INTRODUCTION
Dear User.
Congratulations on your purchase of our Atmospheric Water Generator. Our
commitment is to provide you with healthy sustainable drinking water that is
good for you and the environment.
Water is an essential resource to all biological life. Without water there would
be no life. 70.8% of the earth’s surface is covered by water. Just 3% of the
water is fresh water. Most of the fresh water is locked in icecaps and glaciers.
All the lakes, rivers and swamps only account for 0.3% of available fresh water.
There is an estimated 12 Quintillion litres of water in the earth’s atmosphere;
that’s 10 times more than all the rivers, lakes and swamps combined.
With global warming, rise in population, industrial growth and agricultural
demand. Recent scientific research estimates that by 2050 the entire globe will
be under severe water stress. At present 1.2 billion people do not have access
to safe drinking water.
Water pollution has also become a serious threat to personal health. Harmful
chemicals have been found in numerous water supplies including leaching
harmful chemicals from the containers that the water has been stored in.
The use of Atmospheric Water Generators is beneficial to personal health and
the environment by producing pure chemical and bacteria free water and
eliminating the risks of contamination from storage containers. This in turn
reduces the demand on ground water and the production of plastic bottles.
ATTENTION:
Read this manual before connecting the machine to electricity.
Please keep this manual for future reference.
Production date and serial number refer to barcode on the machine.
HYDROLOGIC-AWG.COM
1
CONTENTS
Contents Page 1
Product Introduction Page 2
Product Features Page 2
Safety Instructions Page 3-4
Product Map Page 5
Installation Guide Page 6
How it Works Page 7
Additional Benefits Page 7
Display Introduction Page 8-11
Operating Instructions Page 12-17
Care & Maintenance Page 18
Air Filter Replacement Page 19
Water Filter Replacement Page 20
External Water Connection Page 21
Trouble Shooting Page 22
Technical Specifications Page 23
Packing List Page 24
Replacement Filters Page 24
Circuit Diagram Page 25
Warranty Page 26
HYDROLOGIC-AWG.COM
1. Product Introduction
The Atmospheric Water Generator is a high-tech water supply
machine that provides the highest quality drinking water by
harvesting water from the humidity in the air. This process in turn
dehumidifies and purifies the air in the room.
The Atmospheric Water Generator is designed for multiple
applications. Residential, commercial, industrial, hospitality,
medical and marine use.
2. Product Features
Multiple filtration system.
Manufactured from high quality food grade materials.
Advanced over current UV lamp sterilization and cold storage
technology to eliminate and maintain bacteria free water.
Microcomputer control technology for automatic operation.
Multiple Alarm system to monitor water quality.
Internal cold water circulation system to maintain water quality.
Advanced heating system to produce hot water.
Option to connect to external water supply.
HYDROLOGIC-AWG.COM
3
3. Safety Instructions
Do not attempt to repair the machine or power cable. Contact
your local dealer for service support.
Only connect the machine to an appropriate power supply.
Do not pull or damage the power cable.
Do not connect the power supply with wet hands.
Keep the power cable out or reach of children.
To prevent damage to the machine, disconnect power supply
during thunderstorms.
Disconnect the power supply before cleaning or maintenance.
Do not use multiple connections on the machines power supply
connection.
Do not place or use the machine in volatile, corrosive or
flammable chemical environments.
Should abnormal sounds, smell, temperature or leakage occur,
disconnect from power supply and contact your local dealer for
service support.
HYDROLOGIC-AWG.COM
Do not place any objects on top of the unit.
Always keep the unit in an upright position.
Do not place any flammable objects within 40 cm of the back of
the machine because of hot exhaust air.
When moving the machine, the water tank must be drained to
avoid water spillage within the machine.
To prolong the air filter lifespan, place machine in the best
possible location.
The machine should be operated in temperatures above zero.
Do not remove the back cover of the machine.
Children should be supervised when operating the machine.
HYDROLOGIC-AWG.COM
5

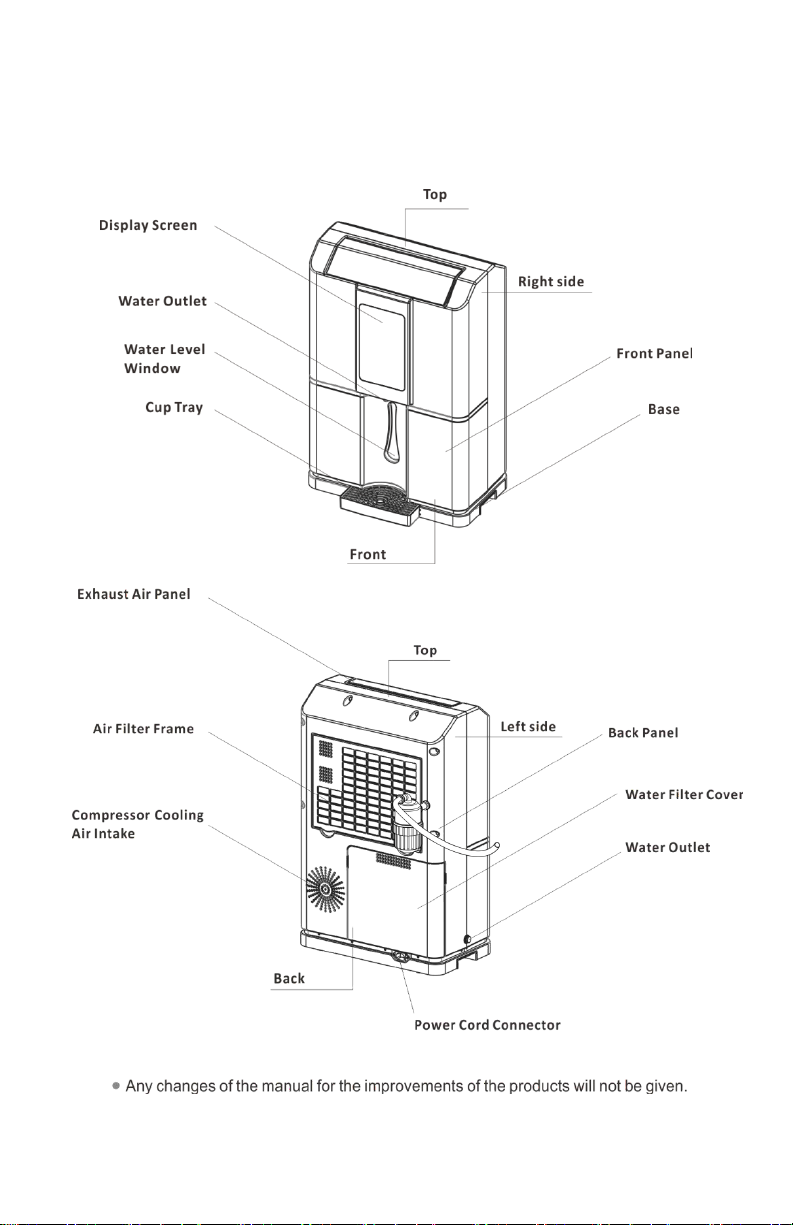

4. Product Map
HYDROLOGIC-AWG.COM

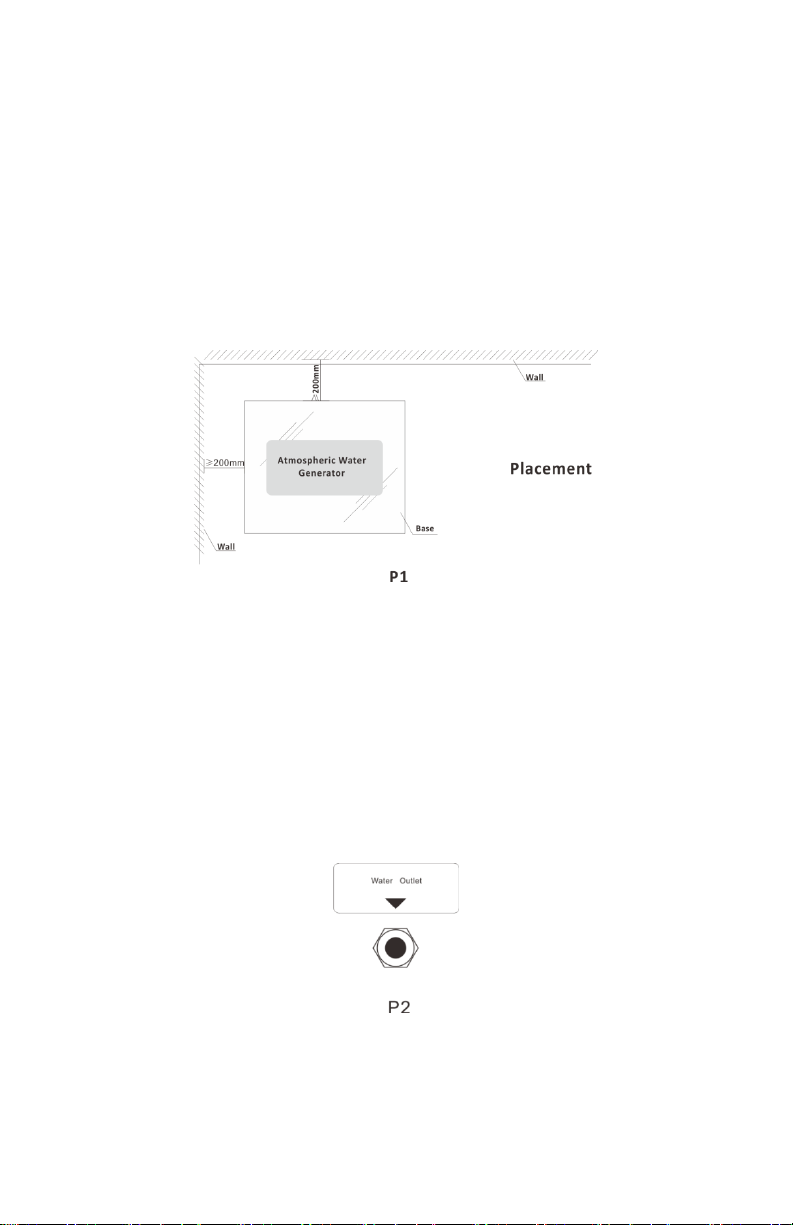

5. Installation Guide
The machine must be placed on a firm horizontal surface.
Avoid placing the machine at any angles or may result in
excessive noise during operation.
Ensure a minimum gap of 200 mm between machine and walls to
allow sufficient cooling and ventilation.
Leave the machine in its final position for 4 hours before turning the
power on. This will allow for optimum operation.
The time required to produce a full tank of water is dependent on the
relative humidity of the room. At 60% relative humidity, it will take 4-5
hours to fill the collection tank within the machine.
It is recommended to then drain the collection tank for first time use or if
the machine has been switched off for more than 2 days.
Ensure the machine is positioned with enough ventilation.
HYDROLOGIC-AWG.COM
7

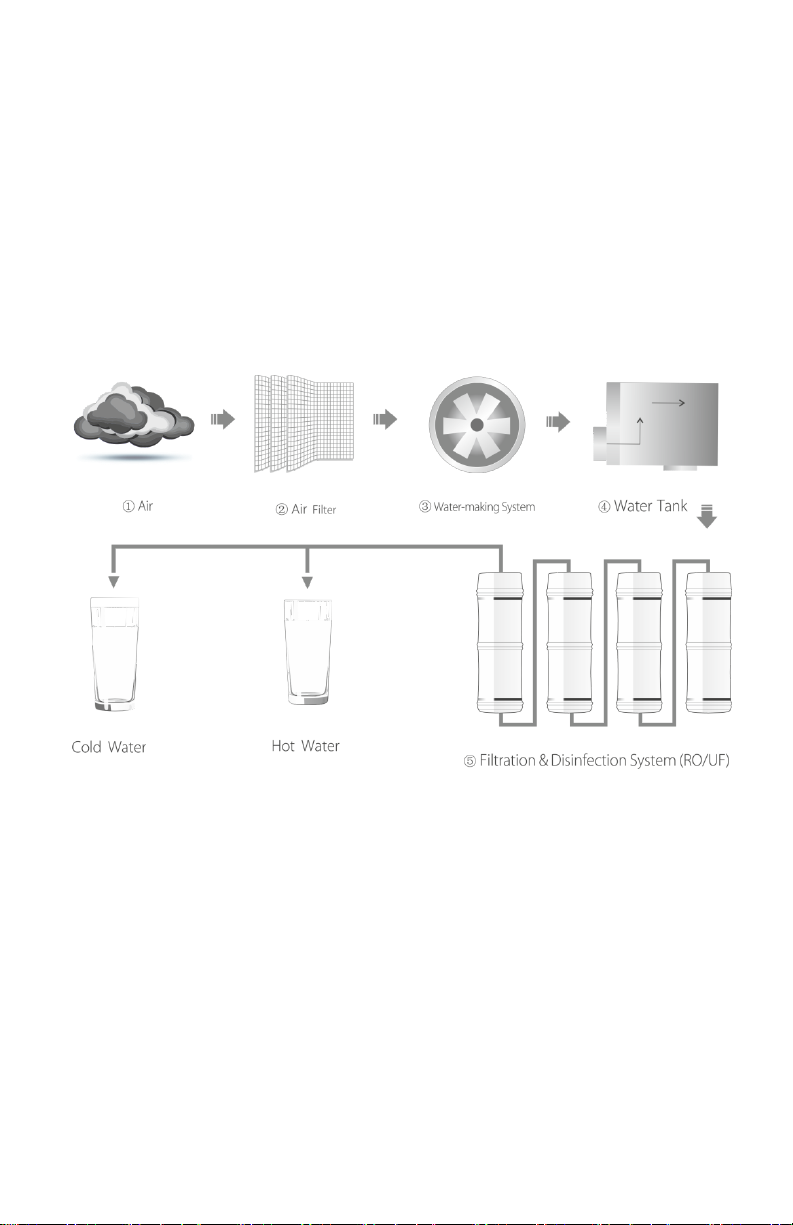

6. How It Works
Water is produced by harvesting moisture from the air. Humid air is
drawn into the machine and passed through a multistage air filter and
then cooled to dew point. The cooled air condensates. The
condensate drips into a collection tank. The water is then pumped
through a multistage Ultra filtration system and stored in a storage
tank. Water purity in the storage tank is maintained by keeping the
water cool, circulated and under intermittent UV light sterilization to
ensure the highest quality water.
7. Additional Benefits
Unlimited sustainable pure drinking water.
Water produced is significantly lower in cost than bottled water.
No added chemicals.
99.9999% bacteria elimination.
No heavy lifting or storage of bulky water containers.
No plastic waste.
Dehumidifies the room.
Purifies the air in the room.
Reduces allergen particles in the air.
HYDROLOGIC-AWG.COM

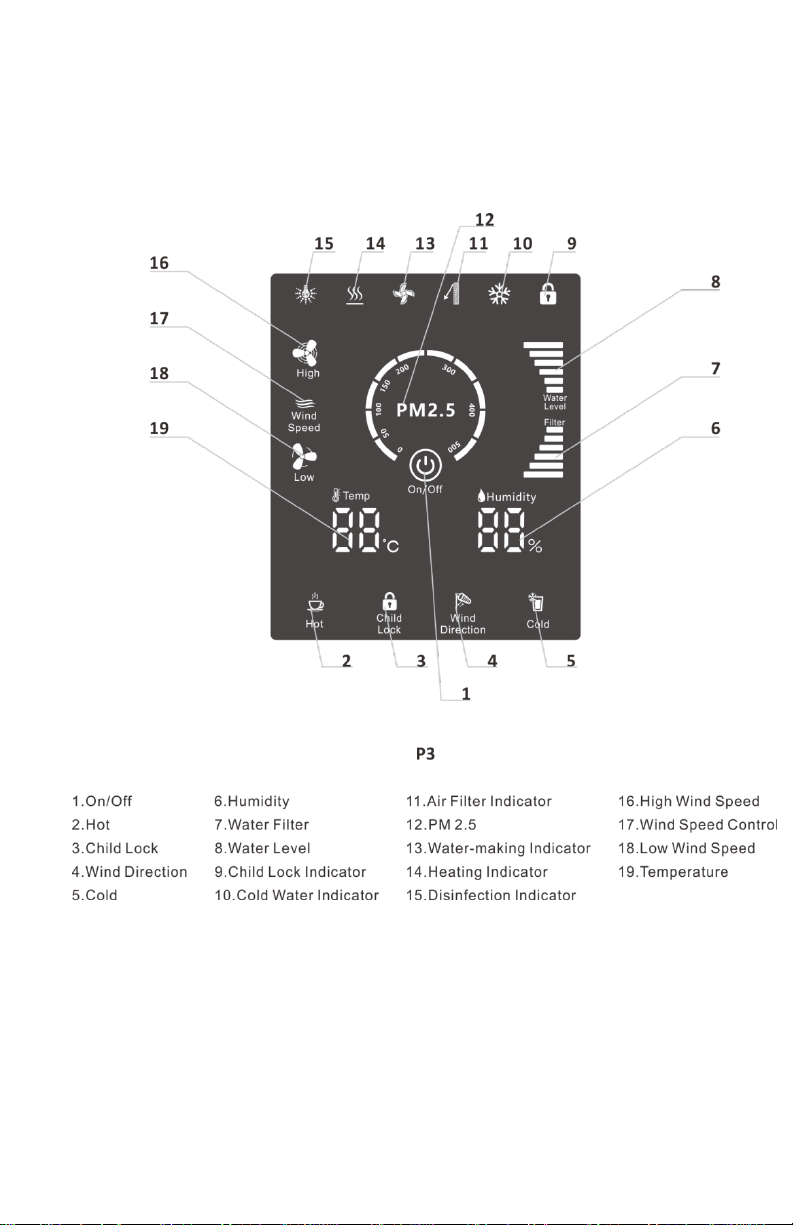

8. Display Introduction
Atmospheric Water Generator Display (P3)
