Installation Instructions
Installing Maestro Plus™ P425, EP425A/W or CP425A/W
Ice Machine Module into Symphony™
FB, CT, and CI Dispensers
Technical Support
If you experience any problems during the installation, please call Follett Technical Service toll-free at
(877) 612-5086 for assistance.
Description
Follow these instructions to install the Maestro Plus ice machine module into your Symphony FB, CT, and CI
dispenser.
CAUTION!
Only qualied technicians should attempt to service or maintain this equipment.
Parts
Common
POWER CORD (1) 01075589
BIN SIGNAL RELAY ASSEMBLY
(1) 01069772
(1) 1/4" X 1/4"PUSH IN VALVE 01035526
(1) CLAMP, ICE TRANSPORT TUBE 202011
(2) SANI-SPONGE 00131524
(2.5') 1/4" TUBING 205835
2 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers
FB Dispensers
(1) GUIDE PLATE RIGHT
01015759
(1) GUIDE PLATE LEFT 25/50
01015767
(1) GUIDE PLATE LEFT 110
01042654
SCREW
204139
CT Dispensers
(1) TOP MOUNT SPACER
01048578
(2) DRAIN ELBOW BARB FITTING
205624
(4) SCREW
208568
Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 3
CI Dispensers
(1) DRAIN TUBE, CI
01062306
(1) FUNNEL, HOPPER DRAIN
00906255
(1) ELECTRICAL BOX BRACKET
01012186
Water-cooled Parts
BRAIDED HOSE
00187211
(2) HOLE BUSHING
00105486
(2) 3/8" FLARE X 3/8" MNPT BRASS FITTING
00129486
(2) 3/8" FNPT X 3/8" COMPRESSION TUBE BRASS FITTING
01064567
(2) 1/4" NPT X 3/8" COMPRESSION TUBE BRASS FITTING
01027291
(2) 3/8" FLARE X 1/4" FNPT BRASS FITTING
00181388
Tubes
25/50 FB/CT Drain tube
01055185
110 FB/CT Drain tube
01055540
25/50/110CT Ice transport tube
01055540
4 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers
FB Units - 25/50/110FB425A
Remove Ice Machine Module
1. Disconnect power from unit and turn off
water supply.
2. Remove existing module.
3. On new ice machine, remove the
top bearing insulation (Fig. 1.1) and
compression nozzle insulation (Fig. 1.2).
Note: Retain ice transport tube and hose
clamp.
Fig. 1
1
4
2
4. On new ice machine, remove the ice
machine electrical box cover and set DIP
switches (Fig. 2).
5. Reinstall ice machine electrical box cover.
Fig. 2
Sleep cycle dispense duration
OFF ON
12345678
4 5 4 5
4 5 4 5
35 s
15 s
5 s
60 s
OFF POSITION ON POSITION
Sleep cycle
enabled
Not used
Sleep cycle
dispense duration
60 min. time delay
Flush enabled
Maint. timer OFF
OFF ON
Sleep cycle
disabled
Not used
Sleep cycle
dispense duration
20 min. time delay
Flush disabled
Maint. timer ON
12345678
Replacement P425A/W installed in Symphony dispenser
Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 5

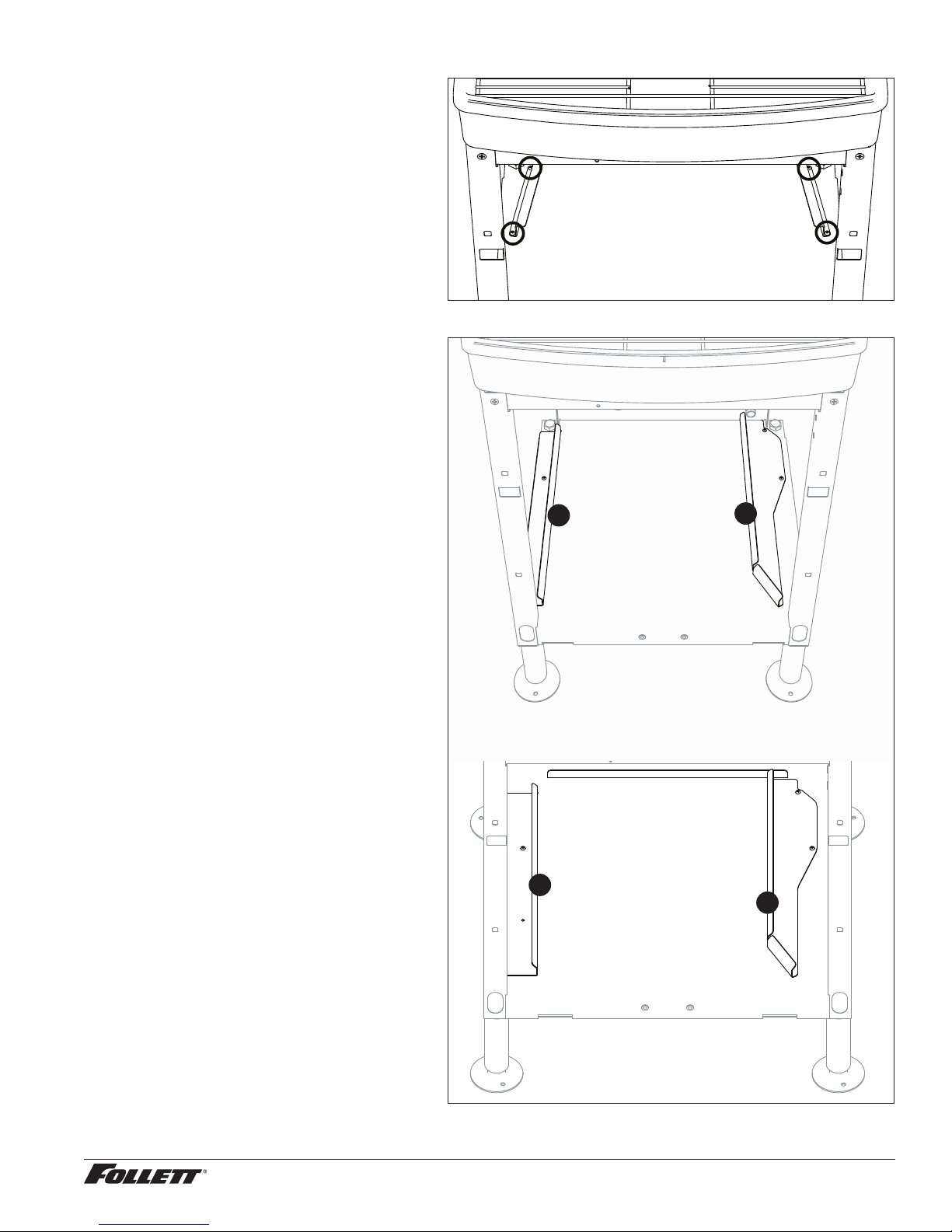

6. Remove right and left rear module
positioning bracket (Fig. 3).
Note: Do not discard the 4 screws, they will
be reused.
Fig. 3
7. Using the hardware specic for your
application, install supplied Left (Fig.4.1)
and Right (Fig.4.2) locating brackets
using screws from previous step.
Note: Left side only uses 1 screw.
Fig. 4
110 Units
1
2
12
25/50 Units
01015759
01015767
01015759
01042654
6 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers

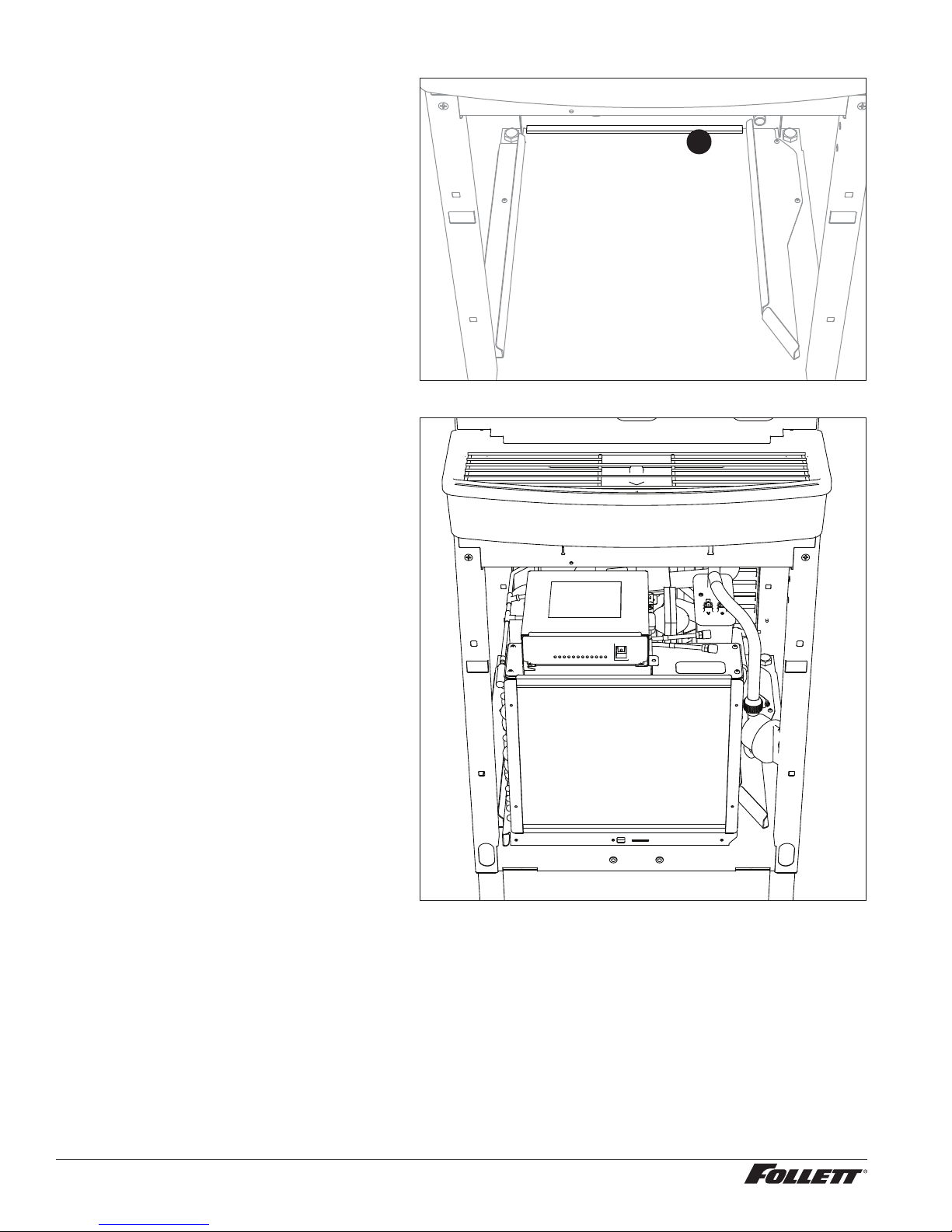

8. 25/50 Units Only: Install gray plastic
spacer (Fig.5.1) against rear of cabinet.
Fig. 5
1
01069764
9. Slide supplied module into position
(Fig.6).
Fig. 6
Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 7

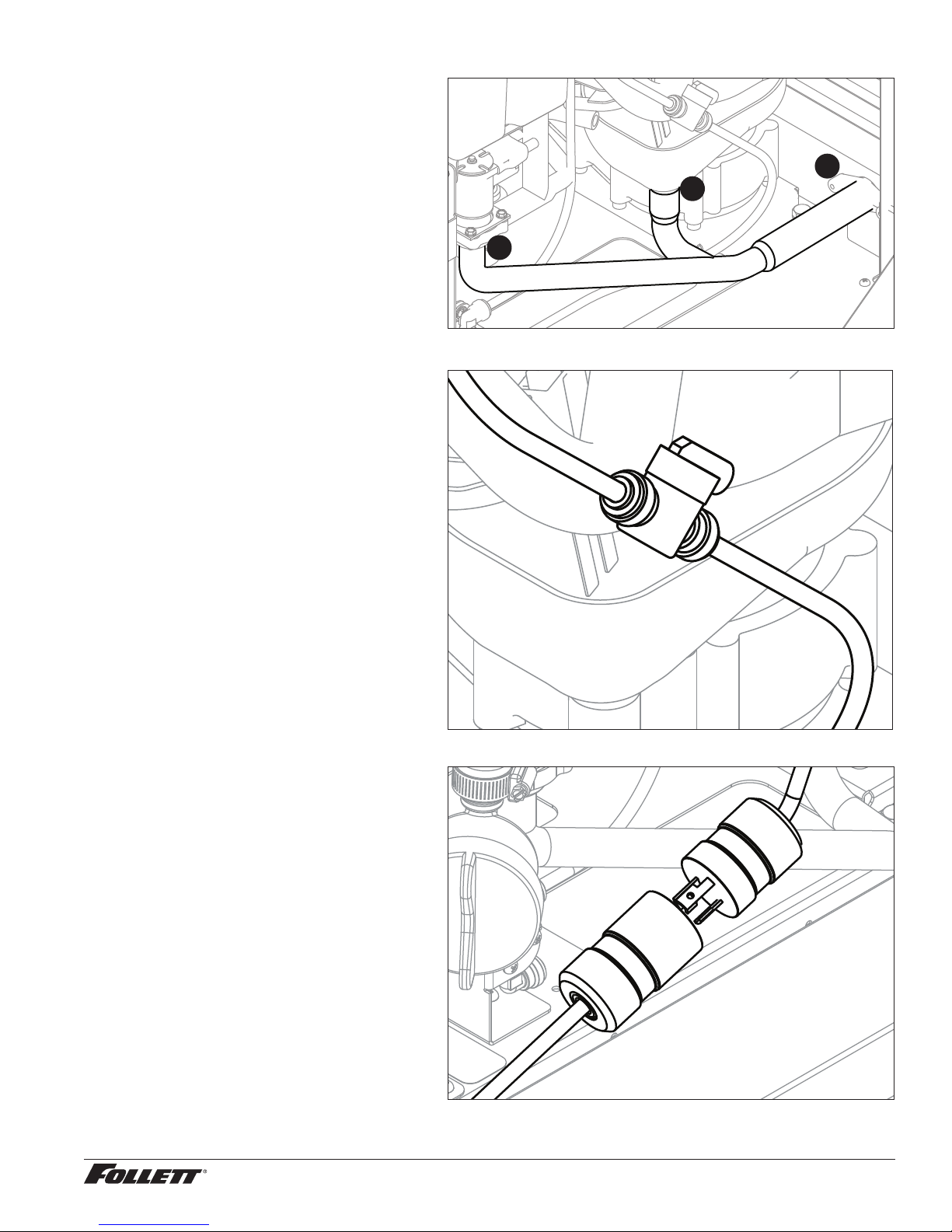

10. Install supplied drain tube onto drain
solenoid (Fig.7.1), evaporator drain pan
(Fig.7.2), and rear drain tting (Fig.7.3).
Tube may need to be cut to t onto
existing rear drain tting.
§25/50 Drain tube: 01055185
§110 Drain tube: 01055540
Fig. 7
1
2
3
11. Cut compression tting from end of
existing water tube. Connect existing
water supply tube to attached solenoid
water tube with supplied ¼” shut off
valve (Fig.8).
Fig. 8
01035526
12. Install supplied internal power cord
adapter (Twist-Lock) (Fig.9).
Fig. 9
01069772
8 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers
13. Plug other end (Mate N Lock) into
electrical box (Fig.10).
Fig. 10
14. Install supplied internal bin signal cord
adapter (Twist-Lock) (Fig.11).
Fig. 11
01069772
15. Plug other end (Mate N Lock) into
electrical box (Fig.12).
Fig. 12
Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 9
16. Heat end of existing ice transport tube
in cup of 160F (71C) hot water to
soften (Fig.13.1) and spread with pliers
(Fig.13.2).
Fig. 13
2
1
1 7. Attach end of ice transport tube to
compression nozzle (Fig.14).
Fig. 14
10 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers
18. Secure with clamp (Fig.15.1).
Note: Clamp must be oriented as shown
in order for the insulation to be placed
properly.
19. Install compression nozzle insulation
(Fig.15.2).
20. Install top bearing insulation (Fig.15.3).
Fig. 15
3
1
2
