READ THE INSTRUCTIONS CAREFULLY

Familiarize yourself with all the parts as shown in the exploded

view. The exploded view will also provide a helpful reference

when relating to the location of the various parts and how

they are mounted.

Please visit us on YouTube and view our shower door installation videos.

One may be available for your installation. www.youtube.com/foremostgroups.

- 1 -

1 1/2” Pan Head Screw

3/8” Pan Head Screw

PART LIST

WARNING: Safety glass should alway be worn

when working with tempered glass.

- 2 -

RECOMMENDED TOOLS

1 1/2”PAN HEAD SCREW (6pcs) 3/8”PAN HEAD SCREW (2pcs)

1/4" (6mm)

1/8" (3mm)

- 3 -

INSTALLATION PROCEDURE / STEP 1

1Attach rollers to hanger clips on both panels. Rollers should be mounted so that the head of the

mounting screw is on the same side of the panel as the screw head set into the hanger clip

(see inset drawing).

NOTE: The various holes in the hanger clip are used to ﬁne tune the adjustment of the panel to make

up for walls that are slightly out of square or plumb. For best results start with all rollers in the second

hole from the top and then make adjustments as needed.

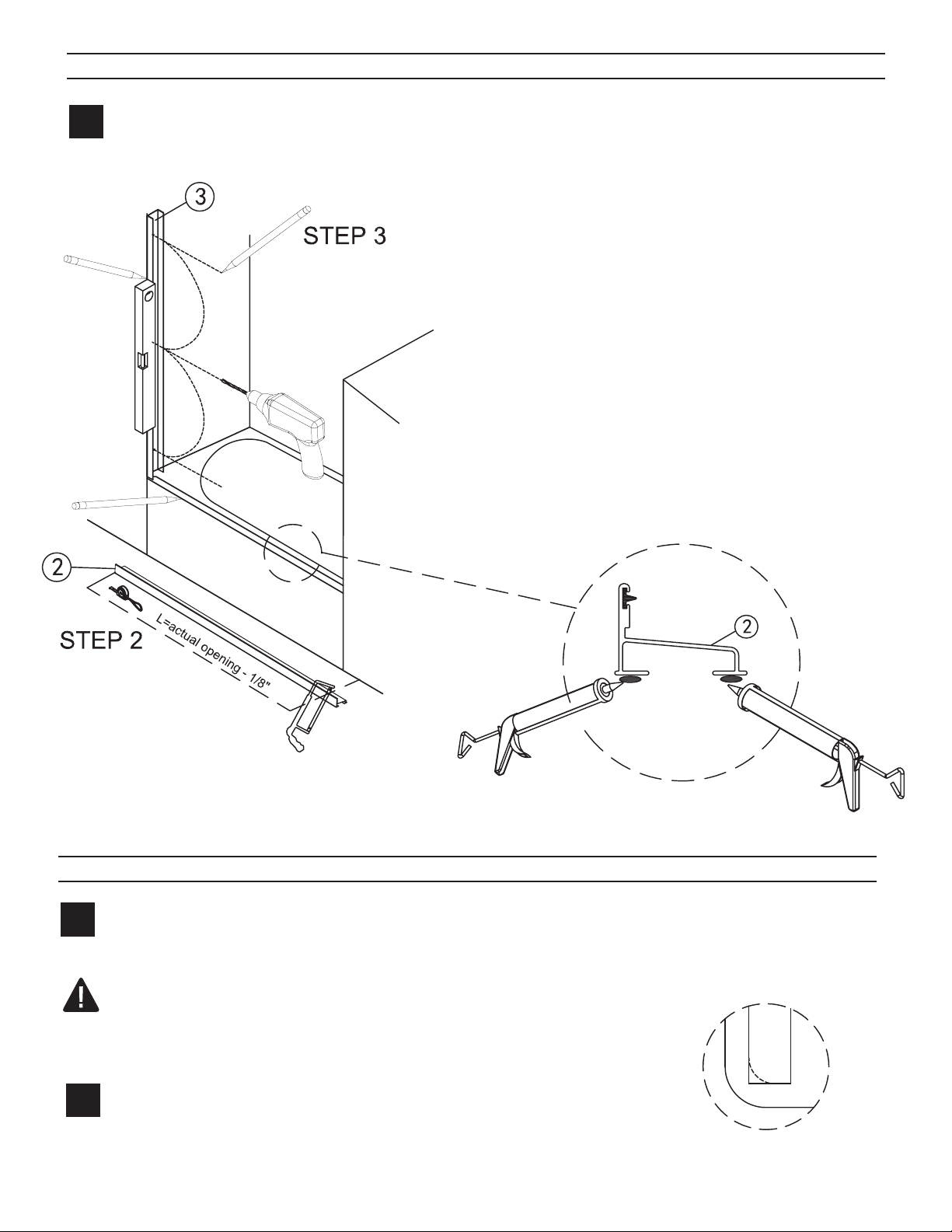

INSTALLATION PROCEDURE / STEP 2

2Measure opening on bottom and cut bottom track (2) 1/8" shorter than opening.

- 4 -

INSTALLATION PROCEDURE / STEP 3 & STEP 4

3Place wall jamb down over bottom track so that the back of the jamb is between the bottom track

and the wall. Using a level to ensure jamb is plumb, mark hole locations. Remove jamb and drill

holes about 1 1/2" deep at each of the marked locations.

NOTE: When drilling into ceramic, glass or stone use a 1/4" (6mm) MASONRY drill bit.

NOTE: When installing on ﬁberglass or acrylic use a 1/8" (3 mm) drill bit

and discard the wall plugs.When installing on ﬁberglass or acrylic the side

jambs may need to be ﬁled at the bottom to ﬁt the contour of the unit.

Repeat Step 3 on the other side.

INSTALLATION PROCEDURE / STEP 5

- 5 -

5Run a thin bead of silicone caulk down the entire length of both bottom ledges on the bottom track.

Place the bottom track into position and press down ﬁrmly along the length of the track.

INSTALLATION PROCEDURE / STEP 6 / STEP 7

6 Push wall plugs into holes drilled in Step 3 and tap them in with a rubber mallet.

NOTE: If you are installing on ﬁberglass or acrylic, skip this step and discard the wall plugs.

7 Dab silicone into all 3 holes on each side. Run 1 1/2" pan head screws through wall bumper and use

to attach wall jamb to wall in top and bottom holes only on both sides.

1 1/2"PAN HEAD SCREW

INSTALLATION PROCEDURE / STEP 8 / STEP 9 / STEP 10

- 6 -

8Use 1 1/2" pan head screws to anchor

wall bumper and bumper guide into

center hole on each side.

INSTALLATION PROCEDURE / STEP 11

11 Install outer door panel by lifting up & into top track (1)

(Do not lift by towel bar, be careful not to bump

panel against metal track.)

9Measure opening at top of wall jamb,

cut top track (1) 1/16" shorter than opening.

10 Place top track down over wall jambs as

shown.

1 1/2"PAN HEAD SCREW

- 7 -

INSTALLATION PROCEDURE / STEP 12

12 Install inner door panel by lifting up & into top track (Do not lift by towel bar).

Install towel bars (5).

INSTALLATION PROCEDURE / STEP 13 / STEP 14

- 8 -

Position panel guide in center of bottom track. Drill two 1/8" holes through screw holes in guide

and into bottom track. Position panels in guide as shown in inset drawing and attach guide to

bottom track using 3/8" pan head screws.

3/8"PAN HEAD SCREW

- 9 -

INSTALLATION PROCEDURE / STEP 15

Install safe slider clip (9).

To install safe slide clip, put install bar into clip and lift onto clip hanger

pull down leaving clip in place.

FINAL STEP:

Caulk both sides of the shower door frame to seal.

Keep the entire area dry for a minimum of 24 hours.
