Forging Mount HY9441-B Bedienungsanleitung
Full Motion TV Wall Mount
Instruction Manual
www.forgingmount.com
Model: HY9441-B
VESA: 200X200mm(Max)
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? If you have any questions, please feel
free contact us.
Email: [email protected]
We’re ready to help!
V1.0
35kg
35kg
3/8 in.
(10 mm)
P1
WARNING: This product contains small items that could be a choking hazard if swallowed.Before starting
assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the
damaged item to your dealer; please contact our customer service team.Never use damaged parts!
NOTE: Not all parts and hardware included will be used.
TV Washers
M5 M8 Spacers
L 5mm
D
x4 F
x4 H
x4
E
x4
J
x4 x4 K
x8
Spacers
L 10mm Philips Screws
M4x12mm
M4x30mm
Philips Screws
M6x15mm
M6x35mm
Philips Screws
M8x15mm
M8x30mm
M8x50mm
L
x8 G
x4 I
x4 X
x4
TV Screws / Washers (For TV Mounting)
Level
03 x1
Arm and Wall Plate
01 x1
TV Plate
02 x1
VELCRO TIE
04 x4
Washers
M8
B
x4
Washers
M5
N
x2
Lock Screw
M5 x 12mm
M
x2
Wall Anchor
C
x4
These anchors are for
concrete or brick walls
only. DO NOT use them
in drywall or wood studs.
CAUTION!
Hardware (For Wall Mounting)
Lag Bolts
ST7.3x57mm
A
x4
P2
Too Short Too Long Correct Correct
Only one bolt size fits your TV.
Select TV Bolts
M6 M8
M4
Note: If necessary, the spacers can be used in multi-layer. If the installation fails after trying
CAUTION: Ensure the TV Plate [02]
are EQUALLY CENTERED on your TV
AND securely fastened in place.
Step 1-1 Select TV Screw Diameter and Length
Step 1-2 Attach the TV Bracket
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.
We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
D/F/H
J
UP
02
P3
Alternate Spacer Setups
Alternate Spacer Setups
Alternate Spacer Setups
K L
D/F/H
J
E/G/I/X
K/L
J
E/G/I/X
K/L
J
E/G/I/X
J
K/L
P4
Position the wall plate at your
desire height .Level the wall plate
and mark the pilot hole
locations.
Drill pilot holes using a 3/8 in(10mm)
masonry drill bit.
IMPORTANT: Pilot holes must
be drilled to a depth of 3 in(75mm).
Don’t drill into the gap between
blocks
01
01
A
01
CAUTION: Avoid potential personal injury or property damage! All lag bolts
MUST BE firmly tightened to prevent unwanted movement of the wall plate
CAUTION: Ensure the wall plate is securely fastened to the wall before continuing
on to the next step.
03
01
P5
Locate your studs. Verify and
mark the center of the studs by
finding the stud edges using an
awl, a thin nail, or an edge-to-edge
stud finder.
Insert the anchor into the holes
and make sure they are flat with the
wall. Then install the wall plate
using lag bolts and washer .
Tighten the lag bolts until they are
completely pulled against the wall
plate.
AB
C
01
STEP 2B Wall Plate Installation (Wood Stud)
A
01
CAUTION: Avoid potential personal injury or property damage! All lag bolts
MUST BE firmly tightened to prevent unwanted movement of the wall plate
CAUTION: Ensure the wall plate is securely fastened to the wall before continuing
on to the next step.
CAUTION:
Drywall covering the wall must not exceed 5/8 in. (16mm)
Wood stud size: nominal 2 x 4 in. (51 x 102mm) minimum1 x 3 in. (38 x 89 mm)
03
01
ABC
Max 16 in. (406mm)
P6
Position the wall plate at your
desire height .Level the wall plate
and mark the pilot hole
locations.
01
01
03
2B-2
2B-4
Drill 4 pilot holes using a 7/32 in.
(5.5mm) diameter drill bit.
Make sure the depth is not less
than 3 in.(75mm).
2B-3
A
B
Install the wall plate using lag screws
and washer . Tighten the
lag screws only until the washers
are pulled firmly against the
wall plate .
A
B
01
01
03
01
AB
P7
CAUTION:
DO NOT over-loosen these two
nuts when adjusting the level
angle to prevent the TV from
falling off.

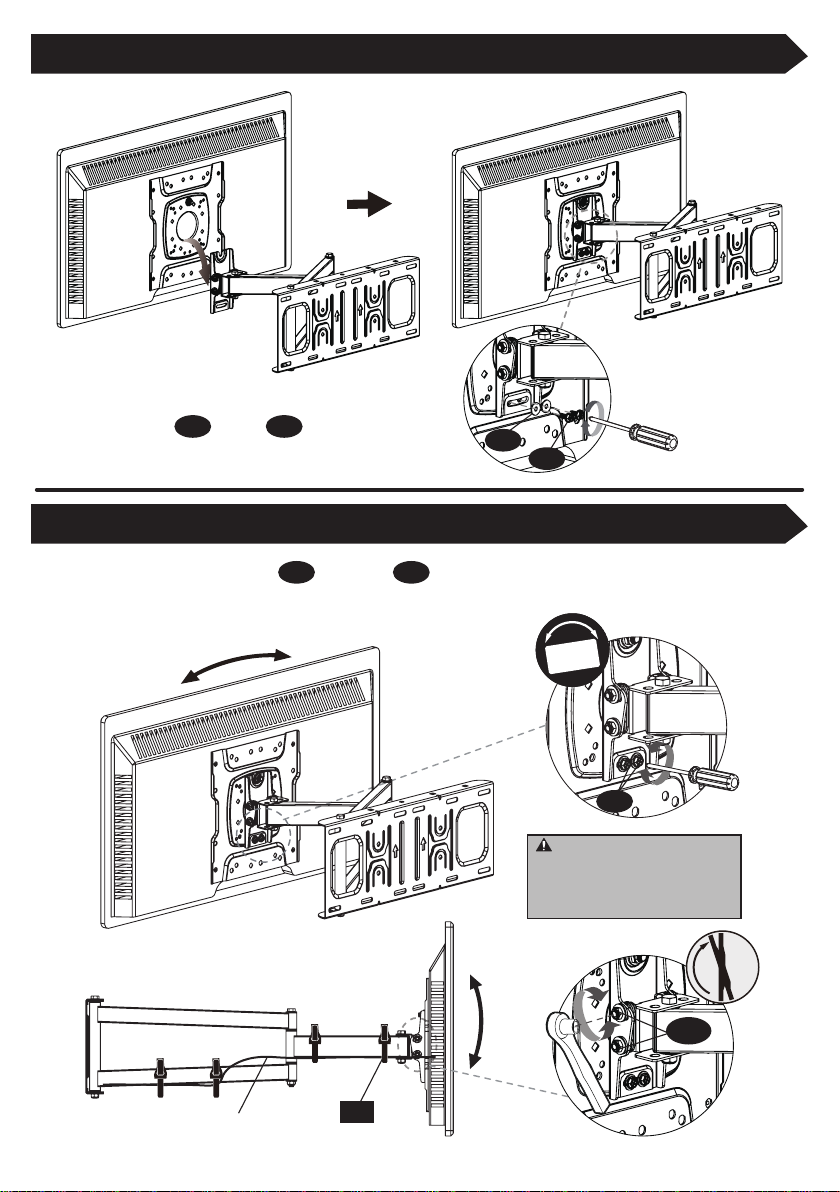

STEP 3 Hang the TV onto the Arm Assembly
STEP 4 Adjustment
N
04
±10°
±3°
N1
M
N1M
NM
Level
M
P8
