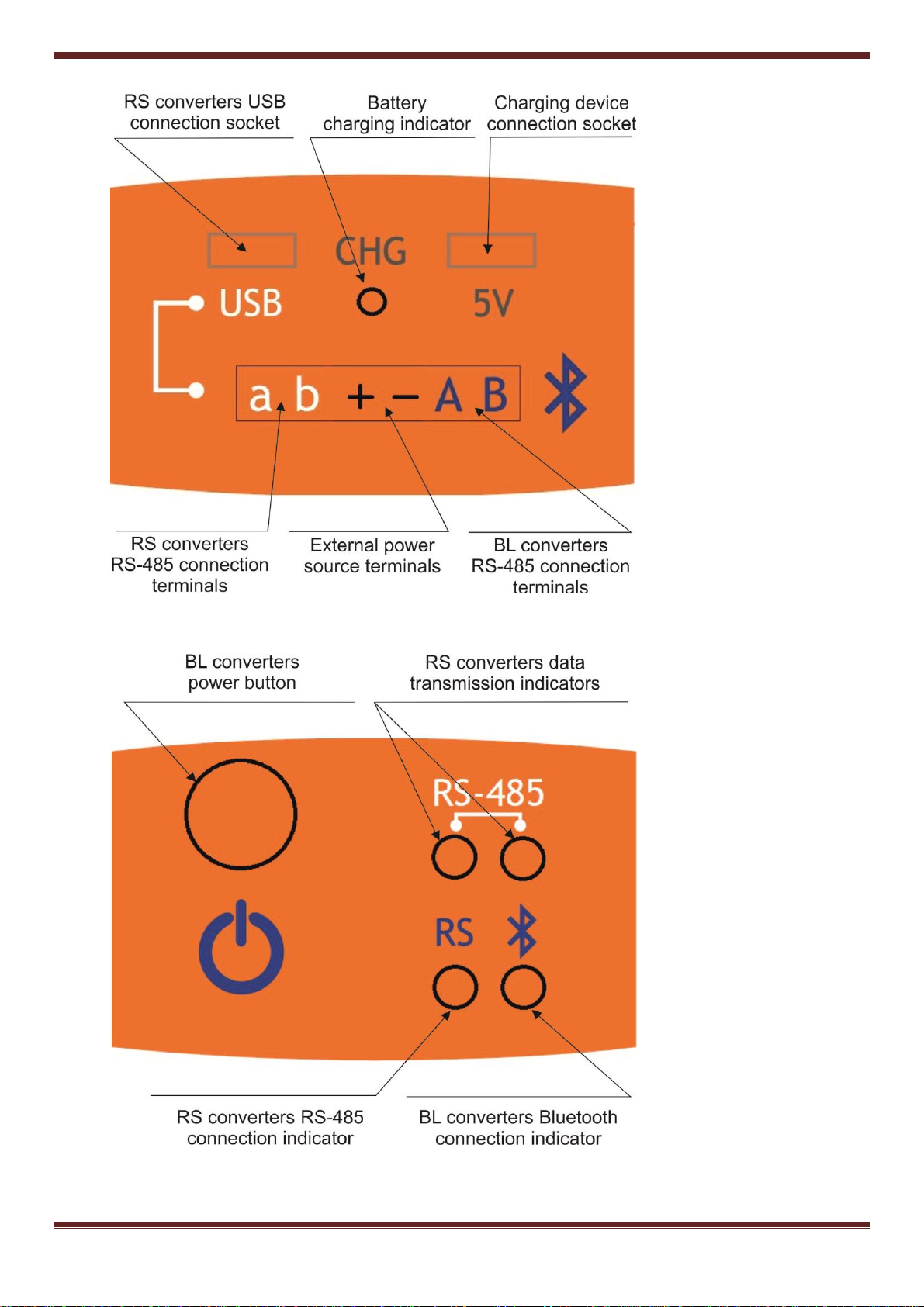

2.1.3. The RS converter’s light indicators show the following information:
- The connection of the RS to the PC is indicated by triple synchronous flashes of both
indicators;
- The rare flashes of both indicators show the receipt and transmission of data along the line
of interface RS-485.
2.1.4. The light indicators of converter RS-BL show the following information:
–RS –shows the exchange of data along the line of interface RS-485 (rare flashing
indicates the absence of connection to the RS-485, constant lighting means the proper
connection to the RS-485):
–BL - shows the exchange of data along the Bluetooth line interface (rare flashing
indicates the absence of connection to Bluetooth, constant lighting means the proper
connection to Bluetooth).
The proper power supply to BL is indicated by periodic synchronous flashings of
both indicators (in case of absence of exchange along the respective lines).
During the battery’s discharge the RS and BL indicators are lighted in succession.
2.1.5. The CHG light indicator of the charging device (the red indicator) reflects
the state of the battery during the charging (if the light is constantly on –the battery is under
charging, if the light turns off –the charging is completed).
2.2. The converter’s operation
2.2.1. For wireless connection of the Android control panel to the detector it is
necessary to do the following:
- Connect the FMC –RS cable (it is applied in a set) to the “А-В” terminals of the BL
converter (a red wire –A, black –B);
- Connect the plug of the FMC –RS cable to the signalling device’s RS-485 socket:
- Power up the converter by pushing the power button;
- Turn on the Android application, search for the RS 485-BL*** (serial number on the
product case) device and establish the connection.
The BL indicator must turn on.
