Fortinet FortiGate Rugged 60F Series Bedienungsanleitung

QuickStart Guide

FortiGate Rugged 60F Series

FGR-60F and FGR-60F-3G4G

Before you begin

Please register your device to access fortiguard updates, cloud management,

firmware upgrades, technical support, and warranty coverage.

For technical documentation such as administration guides, reference manuals,

and release notes, please visit:

http://support.fortinet.com

http://docs.fortinet.com

Thank you for choosing Fortinet.

August 16, 2022

of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All

other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal

lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions

may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or

implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that

the identiﬁed product will perform according to certain expressly-identiﬁed performance metrics and, in such event, only the speciﬁc performance metrics

expressly identiﬁed in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance

in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or

development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full any covenants,

representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this

publication without notice, and the most current version of the publication shall be applicable.

2For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

BYPASS

STATUS

POWER

FortiGate Rugged 60F

CONSOLE 1 2

SFP1

SFP2

SFP2WAN1

BYPASS

WAN2

3 4CONSOLE 1 2

SFP1

SFP2

SFP2WAN1

BYPASS

Shared

WAN2

3 4

BYPASS

STATUS

POWER

FortiGate Rugged 60F

CONSOLE 1 2

SFP1

SFP2

SFP2WAN1

BYPASS

WAN2

3 4CONSOLE 1 2

SFP1

SFP2

SFP2WAN1

BYPASS

Shared

WAN2

3 4

1x QuickStart Guide 2x Ferrite Cores

4x Extended Rubber Feet

FortiGate Rugged 60F

Box Includes- FGR-60F

1x CAT5e Ethernet Cable

1x Wall Mount Bracket

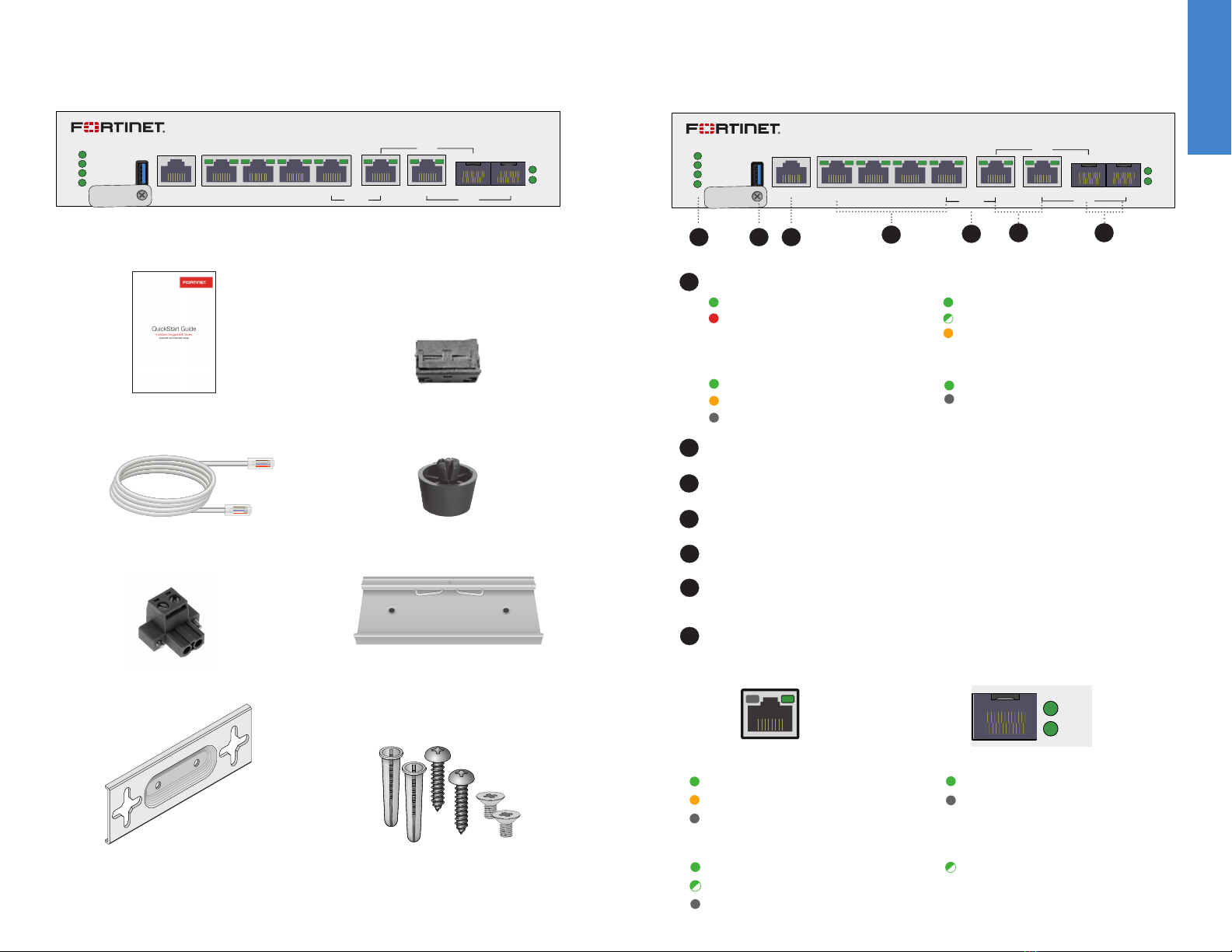

Front Panel - FGR-60F

Console (RJ-45) CLI management computer connection

Ethernet Ports 1 to 4 (RJ-45) 1 Gbps Ethernet connections

56 7

USB (USB A) USB 2.0 server port

2x DC Power Connectors 1x DIN Rail Bracket

BYPASS

POWER

STATUS

Green: PHY mode

Green: Device is on

Green: Operating normally

Green: HA enabled (normal)

Red: Bypass mode

Off: Device is off

Amber: Device error

Amber: HA enabled (failover)

Off: HA disabled

Flashing Green: Device startup

FGR-60F

BYPASS

STATUS

POWER

FortiGate Rugged 60F

USB

CONSOLE 1 2 SFP1

SFP1

SFP2

SFP2WAN1

BYPASS

WAN2

3 4

Shared WAN1 & WAN2 Ports (RJ-45) 1 Gbps Ethernet connections

Shared SFP1 & SFP2 Ports (SFP) 1 Gbps Ethernet connections

LAN/WAN Bypass (RJ-45) 1 Gbps Ethernet connections

Speed

Link/Act

Ethernet & WAN Link/Act

Green: Connected

Flashing Green: Data activity

Off: No link established

Ethernet & WAN Speed

Green: Connected at 1000Mbps

Amber: Connected at 100Mbps

Off: 10Mbpps or no link established

Green: Connected at 1000Mbps

Off: No link established

Flashing Green: 1000Mbps activity

SFP Speed

SFP LED Indicators

Ethernet LED Indicators

SFP Activity

NOTE: WAN1/WAN2 and SFP1/SFP2 are shared interfaces

Wall Mount & Bracket Scews

(1 set of Bracket Screws for the DIN or Wall Bracket)

SERIAL

RESET

+ - + -

DC2 12-125V DC1 12-125V

DC1

DC2

Rear Panel - FGR-60F

2 3 4 6

RESET button

Ground Screw (#12 AWG) optional ground connection

Earth Ground (Lug Plate) ground connection

SERIAL Port (DB9) RS232 connection

Power Supply Indicators (DC1 & DC2) By default, Alarm is enabled in the OS*

Power Terminals (2 Pin Male) Redundant failover, 12V to 125V DC, 2A Max, see pg12

FGR-60F

Green: Power supply is on

Red: Alarm is on*; power supply not providing power or not connected

Off: Power supply is off

Green: Power supply is on

Red: Alarm is on*; power supply not providing power or not connected

Off: Power supply is off

DC1

DC2

BYPASS

STATUS

LTE

DIV MAINGPS

SIM1

SIM2

POWER

FortiGate Rugged 60F 3G4G

CONSOLE 1 2

SFP1

Shared

SFP1

SFP2

SFP2WAN1

BYPASS

WAN2

3 4

1x QuickStart Guide 3x Antennae

4x Extended Rubber Feet

BYPASS

STATUS

LTE

DIV MAINGPS

SIM1

SIM2

POWER

FortiGate Rugged 60F 3G4G

CONSOLE 1 2

SFP1

Shared

SFP1

SFP2

SFP2WAN1

BYPASS

WAN2

3 4

FortiGate Rugged 60F 3G4G

Box Includes - FGR-60F-3G4G Front - FGR-60F-3G4G

1x CAT5e Ethernet Cable

Wall Mount & Bracket Scews

(1 set of Bracket Screws for the DIN or Wall Bracket)

1x Wall Mount Bracket

2x DC Power Connectors,

2x Ferrite Cores

1x DIN Rail Bracket

Console (RJ-45) CLI management computer connection

Ethernet Ports 1 to 4 (RJ-45) 1 Gbps Ethernet connections

56 7 8

USB (USB A) USB 2.0 server port

BYPASS

POWER

SIM1

SIM2

STATUS

LTE

Green: PHY mode

Green: Device is on

Green: SIM1 is detected

Green: SIM2 is detected

Green: Operating normally

Green: HA enabled (normal)

Green: 4G service is on

Red: Bypass mode

Off: Device is off

Off: SIM1 is not detected

Off: SIM2 is not detected

Amber: Device error

Amber: HA enabled (failover)

Amber: 3G service is on

Off: HA disabled

Off: 3G/4G service is off

Flashing Green: Device startup

Shared WAN1 & WAN2 Ports (RJ-45) 1 Gbps Ethernet connections

Shared SFP1 & SFP2 Ports (SFP) 1 Gbps Ethernet connections

LAN/WAN Bypass (RJ-45) 1 Gbps Ethernet connections

Ethernet & WAN Link/Act

Green: Connected

Flashing Green: Data activity

Off: No link established

Ethernet & WAN Speed

Green: Connected at 1000Mbps

Amber: Connected at 100Mbps

Off: 10Mbpps or no link established

Green: Connected at 1000Mbps

Off: No link established

Flashing Green: 1000Mbps activity

SFP Speed

SFP Activity

NOTE: WAN1/WAN2 and SFP1/SFP2 are shared interfaces

Antenna Connection (3x SMA) WWAN antenna connections

FGR-60F-3G4G

1110

Rear - FGR-60F-3G4G SIM Slots - FGR-60F-3G4G

FGR-60F-3G4G

231

2 SIM 1

231

2 SIM 1

231

2 SIM 1

231

2 SIM 1

SIM1

Primary(1)

SIM2

Secondary(2)

SERIAL

RESET

+ - + -

DC2 12-125V DC1 12-125V

DC1

DC2

SIM1

SIM2

SERIAL

RESET

+ - + -

DC2 12-125V DC1 12-125V

DC1

DC2

SIM1

SIM2

SERIAL

RESET

+ -

DC 12-125V

SIM1

SIM2

SERIAL

RESET

+ -

DC 12-125V

SIM1

SIM2

SERIAL

RESET

+ -

DC 12-125V

SIM1

SIM2

SERIAL

RESET

+ -

DC 12-125V

SIM1

SIM2

1 2 3 4

NOTE: For more information on Wireless WAN Conﬁguration, please

refer to the FortiOS Handbook at docs.fortinet.com

5SIM Slots (2x Micro SIM) SIM card slots

231

2 SIM 1

2 3 4 7

RESET button

Ground Screw (#12 AWG) optional ground connection

Earth Ground (Lug Plate) ground connection

SERIAL Port (DB9) RS232 connection

Power Supply Indicators (DC1 & DC2) By default, Alarm is enabled in the OS*

Power Terminals (2 Pin Male) Redundant failover, 12V to 125V DC, 2A Max, see pg12

Green: Power supply is on

Red: Alarm is on*; power supply not providing power or not connected

Off: Power supply is off

Green: Power supply is on

Red: Alarm is on*; power supply not providing power or not connected

Off: Power supply is off

DC1

DC2

1312

Installation

Power Connections

Warnings

• The DC input supports negative ground (+12V to +125V DC) and

positive ground (-12V to -125V DC) power sources

• Terminal +(A) is the high voltage potential pin and Terminal -(B) is

the lower voltage potential pin

• Do not connect +(A) to a lower voltage potential than -(B)

• The voltage between +(A) and -(B) must be +12V to +125V DC

• Consult a professional electrician to install the device and

determine a suitable wire gauge and length

• The DC terminal block wire gauge maximum is 12 AWG; the

minimum is 30 AWG

• Connect earth ground using the lug plate or grounding screw

• Install the supplied ferrite cores, see pg14

1. Connect +(A) of the device terminal block to the DC power source,

then connect the negative -(B) of the terminal block

2. Secure the earth ground terminal of the device to chassis

ground or earth ground

SERIAL

RESET

+ - + -

DC2 12-125V DC1 12-125V

DC1

DC2

SIM1

SIM2

GND

3. Insert the wired terminal block into the power connector on the device

SERIAL

RESET

+ - + -

DC2 12-125V DC1 12-125V

DC1

DC2

+(A)

+(A) -(B)

-(B)

DC Input Power +(A) Terminal -(B) Terminal

Negative Ground +12V to +125V DC Ground

Positive Ground Ground -12V to -125V DC

OPTIONAL: The FGR-60F Series have optional dual DC inputs for failover

redundancy. If a DC input fails, the second input will supply power.

1514

Installation

Internet

Ethernet Cable

WAN port

1. Connect the WAN port to an Internet connection using the provided

Ethernet cable

SFP Ports

To install the SFP transceivers:

1. Slide the SFP into the cage socket until it clicks into place

2. Lift the latch to lock the SFP

To install the supplied ferrite cores:

1. Open a ferrite core and loop the power cables around

2. Ensure there is 100mm(3.9in) to 150mm(5.9in) distance between the

ferrite core and power connector, then close the ferrite core

Cage Socket

Looped Ferrite Core

Power Cable Distance

100mm(3.9in)  150mm(5.9in)

Cage Socket

Latch

SFP

To remove the SFP transceivers:

1. Lower the latch to unlock the SFP

2. Carefully pull the SFP out of the cage socket

Internet Connections

Ferrite Core Installation

1716

Installation

Wall Mount Option

To attach the unit to a wall:

1. Mark the location on the wall where the anchors will be located

2. Drill holes into the wall, then insert the provided anchors into the holes

3. Screw the two screws provided into the two anchors, leaving enough of

the screw exposed to ensure that the unit can be mounted

4. Connect the wall mount bracket to the bottom of the device using the

provided bracket screws

5. Mount the device onto the screws and ensure that it is mounted

securely

Wall Mount Bracket

Bracket Screw

FortiGate

Wall

Wall Mount Bracket

Wall Mount

Screw

Wall

Mount Anchor

FortiGate

WARNING: To ensure adequate air ﬂow,

the minimum radiating

distance between mounted devices is 100mm(3.9in)

The FortiRugged-60F supports DIN rails with

35mm(1.4in) x 15mm(0.6in)

and 35mm(1.4in) x 7.5mm(0.3in) sizes

. The minimum radiating distance

between DIN rail devices is 100mm(3.9in).

1. Connect the DIN rail bracket to the bottom of the device using the

provided bracket screws. Note there are 4 available bracket positions.

2. Position the bottom of the device directly in front of the DIN rail, ensuring

that the top of the DIN rail bracket hooks over the top of the DIN rail

3. Rotate the device until the bottom of the DIN rail bracket sits against the

bottom of the DIN rail

DIN Rail Option

DIN Rail Bracket

Bracket Screw

FortiGate

DIN Rail Bracket

DIN Rail

FortiGate

DIN Rail Bracket

DIN Rail

FortiGate

Multiple DIN Bracket Positions

1918

Installation

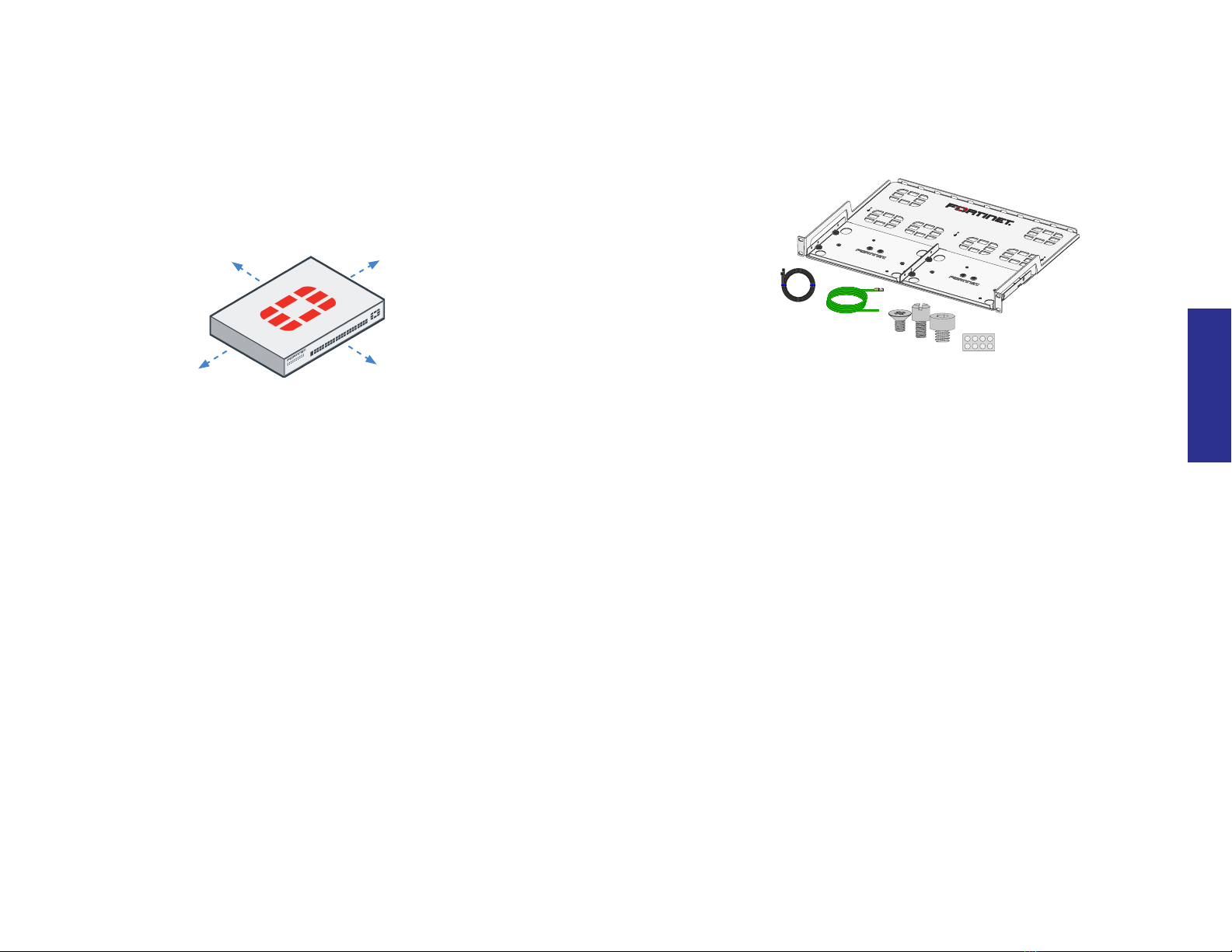

Desktop / Extended Feet Option

1. Place the unit on a ﬂat, clean and stable surface

2. Ensure there is at least 38mm(1.5in) of clearance for adequate airﬂow

3. Plug the provided power cable into the rear of the unit and then into a

grounded electrical outlet or separate power source

38mm(1.5in)

Your device is already equipped with feet for a ﬂat surface. You can

optionally install the extended grey feet for more surface clearance.

38mm(1.5in)

Rack/Rail Mount Option

Fortinet carries a variety of standard and custom rack and rail mount

accessories, including a rack mount tray kit, SP-RACKTRAY-02.

SP-RACKTRAY-02

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Fortinet Netzwerk-Hardware Handbücher

Fortinet

Fortinet FortiSIEM FSM-500G Bedienungsanleitung

Fortinet

Fortinet FortiGate-7000F Series Stücklistenhandbuch

Fortinet

Fortinet FortiManager 1000C Bedienungsanleitung

Fortinet

Fortinet FortiDB FortiDB-2000B Bedienungsanleitung

Fortinet

Fortinet FortiGate 400F Series Bedienungsanleitung

Fortinet

Fortinet FortiGate FortiGate-1000A Bedienungsanleitung

Fortinet

Fortinet FortiWAN 1000E Bedienungsanleitung

Fortinet

Fortinet Wireless Starter Kit Bedienungsanleitung

Fortinet

Fortinet FortiGate ASM-S08 Bedienungsanleitung

Fortinet

Fortinet FortiRecorder 7.0.0 Bedienungsanleitung

Fortinet

Fortinet Rugged 70F Series Bedienungsanleitung

Fortinet

Fortinet FortiManager 3700G Bedienungsanleitung

Fortinet

Fortinet FortiAP 234G Bedienungsanleitung

Fortinet

Fortinet FortiGate 94D PoE Bedienungsanleitung

Fortinet

Fortinet FortiController FortiController-5208 Stücklistenhandbuch

Fortinet

Fortinet 3000B Bedienungsanleitung

Fortinet

Fortinet FortiDeceptor Rugged 100G Bedienungsanleitung

Fortinet

Fortinet FortiMonitor 100F Bedienungsanleitung

Fortinet

Fortinet FortiDDoS 2000F Bedienungsanleitung

Fortinet

Fortinet FortiSIEM 2000G Bedienungsanleitung

Fortinet

Fortinet FortiADC 2200F Bedienungsanleitung

Fortinet

Fortinet FortiAnalyzer-4000B Bedienungsanleitung

Fortinet

Fortinet FortiAP 431F Bedienungsanleitung

Fortinet

Fortinet FortiManager 200D Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
