Foscam FI8910W Bedienungsanleitung

V46.01

Model: FI8910W

Quick Installation Guide

Indoor Pan/Tilt Wireless IP Camera

Black White

For Windows OS ------- Page 1

For MAC OS ------- Page 11

ShenZhen Foscam Intelligent Technology Co., Ltd

FI8910W Quick Installation Guide

www.foscam.com - 1 -

Quick Installation Guide - For Windows OS

zIP Camera FI8910W with IR-Cut .x 1

zDC Power Adapter (5V-2.0A) .x 1

zNetwork Cable x1

zWi-Fi Antenna .x 1

zMountingBracket .x 1

zQuick Installation Guide x1

zCD-ROM with Setup Software .x 1

zWarrantyCard x1

QuickInstallationGuideFlowChart

P.12

Quick Installation Dia

ram

Packa

e Contents

Wireless Connection Setup

Remote Access Setup

Software Installation

Other Settings

Hardware Installation

FI8910W Quick Installation Guide

www.foscam.com - 2 -

1) Open the package. Take out the camera out of the box carefully.

2) Mount the antenna. Then take the Wi-Fi antenna, mount it on the SMA connector on the back

of the camera, screw the antenna to the bottom, and make the antenna stand vertically.

Figure 1.1 Mount the antenna Figure 1.2 Plug the network cable

3) Get the camera connected to the router, and get it powered.

Use the network cable to connect the camera to the router or the switch in the LAN network at your

home or your office. Plug in the power. The green network light at the rear of the camera will blink

and the camera will automatically pan/tilt. The red power light will also turn on.

Insert the CD into the CD drive of your computer and find the folder “For Windows OS”. Select the IP

Camera Tool folder. Double click IPCamSetup.exe to install, it pops up a window as below (Fig.1.3).

Just click button “Next” to finish the installation.

Figure 1.3 Click Next, next to continue the installation

1. Hardware Installation

Start Installation

2. Software Installation

FI8910W Quick Installation Guide

www.foscam.com - 3 -

Figure 1.4 Click Close to finish installation, and get computer restarted

A shortcut icon will appear on your desktop after the IP Camera Tool software installation is

successfully completed.

Figure 1.5 Shortcut icon

Double click the IP Camera Tool icon and the following screen should appear.

Figure 1.6 IP Camera Tool Windows

The IP camera tool should find the camera’s IP automatically after you plug in the network cable. If

not, please make sure that DHCP is enabled on your router and that MAC address filtering, firewalls

and anti-virus are disabled temporarily until the camera is set up.

Double click the LAN IP address of the camera, it pops up a login window.

3. Lo

in the Camera

FI8910W Quick Installation Guide

www.foscam.com - 4 -

Figure 1.7 Enter user name: admin, no password, and click login

There are two login methods. One is IE ActiveX Mode, the other is Server Push

Mode for Safari, Firefox, Google Chrome. Please choose IE ActiveX Mode if you are using IE

browser now.

Figure 1.8 Surveillance Windows

Enter user name: admin, no password, and click Submit. Congratulations! You have succeeded in

accessing in the camera by wired connection. Just leave all the menus alone before you finish the

quick installation.

The default user name is admin with no password.

Note

Default user is admin

No password

If you use IE browser, select this login

If you use Firefox,Google Chrome, Safari ,

select this lo

FI8910W Quick Installation Guide

www.foscam.com - 5 -

If you are unable to see a live video, please make sure to allow ActiveX to run when prompted. (For

more details, see the User Manual).

If you only see a black screen with a red cross in the center, please try another port number instead

of the default “port 80” .You may want to try port 85, 8005, etc.

If you are still unable to see a live video, try shutting down any firewall or anti-virus software on your

computer.

Step 01)Please choose “For Administrator” and click “Wireless LAN Settings”. Then enable

“Using Wireless LAN”.

Click the Scan button and the camera will detect all WIFI devices around the area. It should also

display your router in the list. (Figure 1.9)

If the camera is not able to detect any WIFI device, please click the Scan button again. Make sure to

wait 1 to 2 minutes before selecting the Scan button again.

Figure 1.9 Wireless LAN Settings

Step 02)Click the SSID of your router in the list, the corresponding information (SSID & Encryption)

will be filled in the following boxes automatically.

You will only need to fill in the share key. Make sure that SSID, Encryption and share key you filled in

for the camera are exactly the same for your router.

4. Wireless Connection Settin

FI8910W Quick Installation Guide

www.foscam.com - 6 -

Figure 2.0 Wireless LAN Settings

Step 03) Please click on the Submit button after all settings have been entered. The camera will

reboot after the camera has completed the reboot process, wait 10 seconds and disconnect the

network cable.

The LAN IP address will disappear on the window of IP Camera Tool when the camera gets restarted.

Just wait for around 1 minute, the camera will get wireless connection, and the LAN IP of the camera

will be showed again on the window of the IP Cam Tool. You have done wireless connection of the

camera successfully.If the camera has a dynamic IP, after the wireless settings ,the IP will be

changed.

If fail to make WiFi connection, please refer to seller or us for help.

We have been able to access the camera within the LAN network, but how to access the camera via

WAN or via internet? We have to do Remote Access Settings before we want to access the

camera outside the LAN network.

5.1 Static IP user

Static IP users do not need to set DDNS service settings for remote access. When you have finished

connecting the camera using LAN and port forwarding, you can access the camera directly from the

Internet by the WAN IP and port number.

zHow to Obtain the WAN IP from a public website

To obtain your WAN IP address, enter the following URL in your browser:

http://www.whatismyip.com.The webpage at this address will show you the current WAN IP.

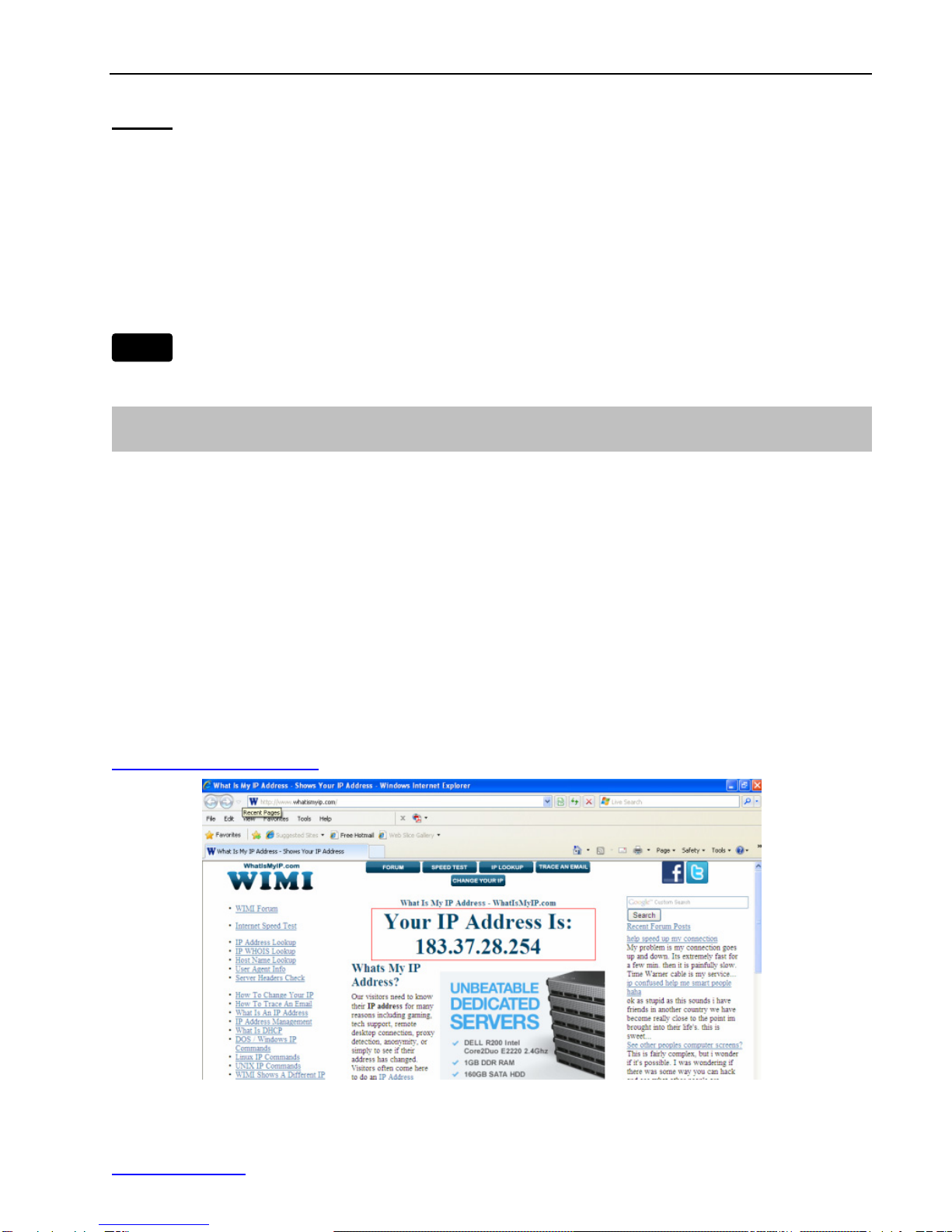

Figure 2.1 Get to know the WAN IP address of the router

Note

5. Remote Access Settin

FI8910W Quick Installation Guide

www.foscam.com - 7 -

Access the IP Camera from the Internet

You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and

port number in IE browser or other browsers you use. For example, Http:// 183.37.28.254:85

Make sure port mapping (or also known as port forwarding) is successful. You can do port

mapping in two ways.

1) Enter the setting page of the router to enable UPNP function. Then login the camera as

administrator, choose UPnP Settings to enable UPNP and make sure the state is “UPnP success”.

2) Do port forwarding manually. (details: Fig.2.5)

If your router has a Virtual Server, it will do port mapping. Please add the camera’s LAN IP and port

which you set in basic network settings to the Virtual map list.

Note: If you plug the camera in a router, it will have dynamic IP address and you need to set DDNS

service settings to view it remotely.

5.2 How to configure Remote Access Settings (For dynamic IP user)

①Step 1 Go to the website www.no-ip.com to create a free hostname

Firstly: Login on www.no-ip.com and click No-IP Free to register.

Figure 2.2 Register a user name on www.no-ip.com

Please register an account step by step according to instructions on www.no-ip.com

Note

Click here to register

FI8910W Quick Installation Guide

www.foscam.com - 8 -

After registration, please login your email which used to register. You will receive an email from

website, please click the link to activate your ACCOUNT as indicated in email.

Secondly: Login the link with the registered username and password to create your domain

name.

Figure 2.3 Login the link to create a domain name

Figure 2.4 Create a domain name

Please create the domain name step by step according to instructions on www.no-ip.com

FI8910W Quick Installation Guide

www.foscam.com - 9 -

②Step 2, DO DDNS Service Settings within the Camera

Please set DDNS Service Settings within the camera by hostname, a user name and password

you’ve got from www.no-ip.com

Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly, goes to option of DDNS Service Settings on the administrator panel.

Secondly, select No-Ip as a server.

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill

ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The camera

will restart and to take the DDNS settings effective.

Fourthly, after the restart, login the camera, and go to option of Device Info on the administrator

panel, and check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name,

and password, and try to redo the settings.

③Step 3,Make Port Forwarding of the HTTP Port of the camera

What is port forwarding?

If you have no concept of Port Forwarding, please open the webpage

http://portforward.com/help/portforwarding.htm to learn some knowledge of Port Forwarding.

Or Use Google to check out what is port forwarding.

How to do port forwarding within the router

Example: The camera’s LAN IP address is http://192.168.1.35:88 ,

Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue

Server on some brands of router). Take Linksys brand router as an example, Login the router,

and goes to Applications & Gaming->Single Port Forwarding.

Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router

showed as below.

Note
