Foscam FI9801W Bedienungsanleitung

V2.01

Model: FI9801W

Quick Installation Guide

Outdoor HD Wireless IP Camera

For Windows OS ------- Page 1

For MAC OS ------- Page 16

ShenZhen Foscam Intelligent Technology Co., Ltd

FI9801W Quick Installation Guide

www.foscam.com

- 1 -

Quick Installation Guide For Windows OS

HD IP Camera FI9801W x 1

DC Power Adapter (12V-2.0A) x 1

Network Cable x 1

Wi-Fi Antenna .x 1

Mounting Bracket .x 1

Quick Installation Guide x 1

CD-ROM with Setup Software .x 1

Warranty Card x 1

Package Contents

Quick Installation Diagram

Wireless Connection Setup

Remote Access Setup

Software Installation

Hardware Installation

FI9801W Quick Installation Guide

www.foscam.com

- 2 -

1) Open the package. Take the camera out of the box carefully.

2) Mount the antenna. Then take the Wi-Fi antenna, mount it on the SMA connector on the

back of the camera, screw the antenna into the port, and make the antenna stand vertically.

Figure 1.1 - Mount the antenna Figure 1.2 –Plug in the network cable

3) Get the camera connected to the router, and insert the power adapter.

Use the network cable to connect the camera to the router or the switch in the LAN network at your

home or your office. Plug in the power. The small green light on RJ45 will turn on.

Insert the CD into the CD drive of your computer and find the folder“FI9801W”, then go to the folder

“For Windows OS”. Copy the IP camera tool to your computer and start the program.

Figure 1.3 –IP Camera Tool icon

1. Hardware Installation

Start Installation

2. Software Installation

FI9801W Quick Installation Guide

www.foscam.com

- 3 -

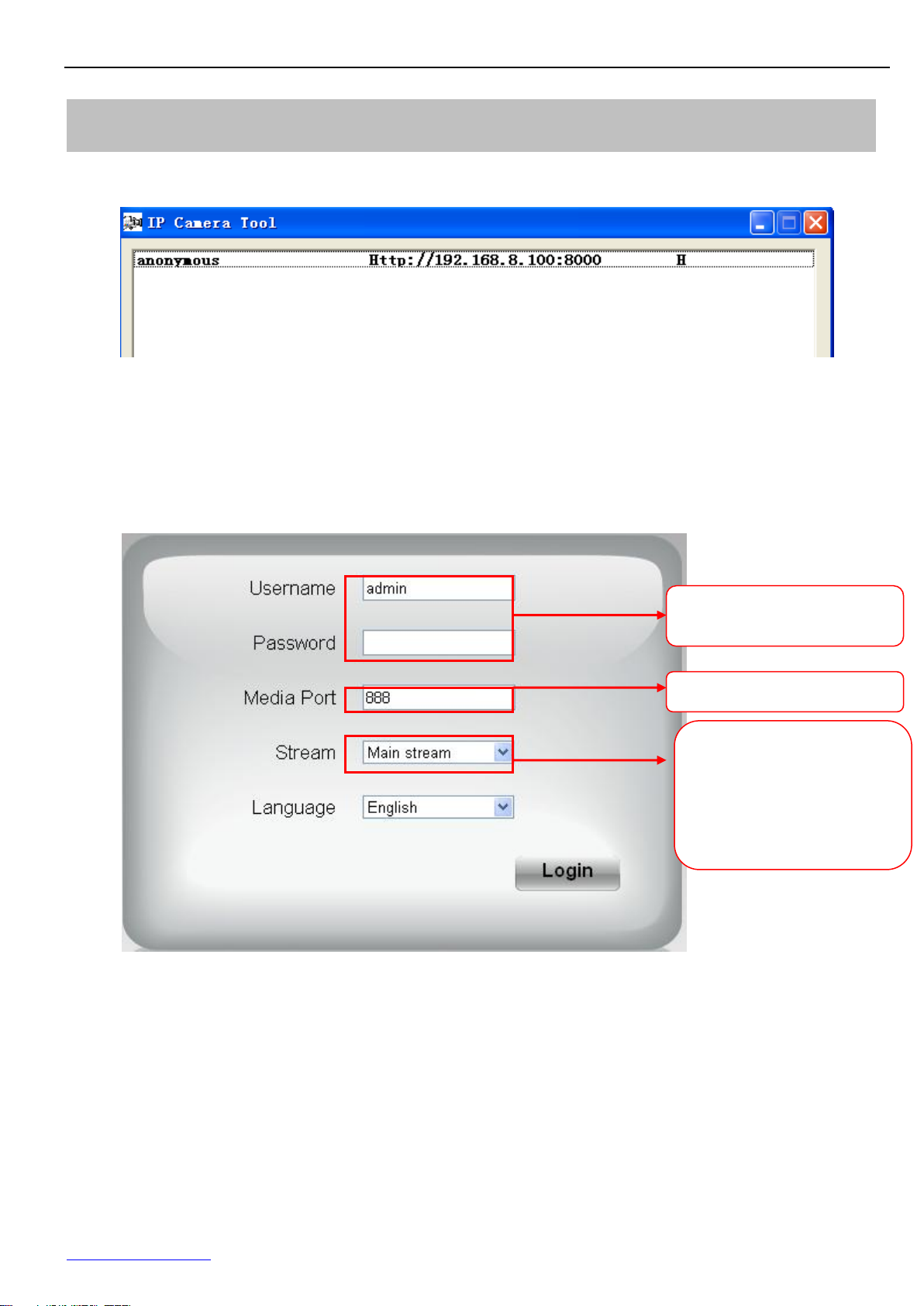

Double click the IP Camera Tool icon and the following screen should appear.

Figure 1.4 - IP Camera Tool for Windows

The IP camera tool should find the camera’s IP address automatically after you plug in the network

cable. If not, please make sure that DHCP is enabled on your router and that MAC address filtering,

firewalls and anti-virus are disabled temporarily until the camera is set up.

Double click the IP address of the camera; your default browser will open to the camera login page.

Figure 1.5 - The Login window

If it is your first time logging into the camera, it will prompt you to download the ActiveX plugin.

For Internet Explorer, please go to Chapter 3.1.

For Firefox, please go to Chapter 3.2.

For Google Chrome, please go to Chapter 3.3.

3. Login to the Camera

If you want to access the

camera form LAN, please

select Main stream, or

else select Sub stream to

get more fluent video.

Default Media port is 888

Default user is admin with

a blank password

FI9801W Quick Installation Guide

www.foscam.com

- 4 -

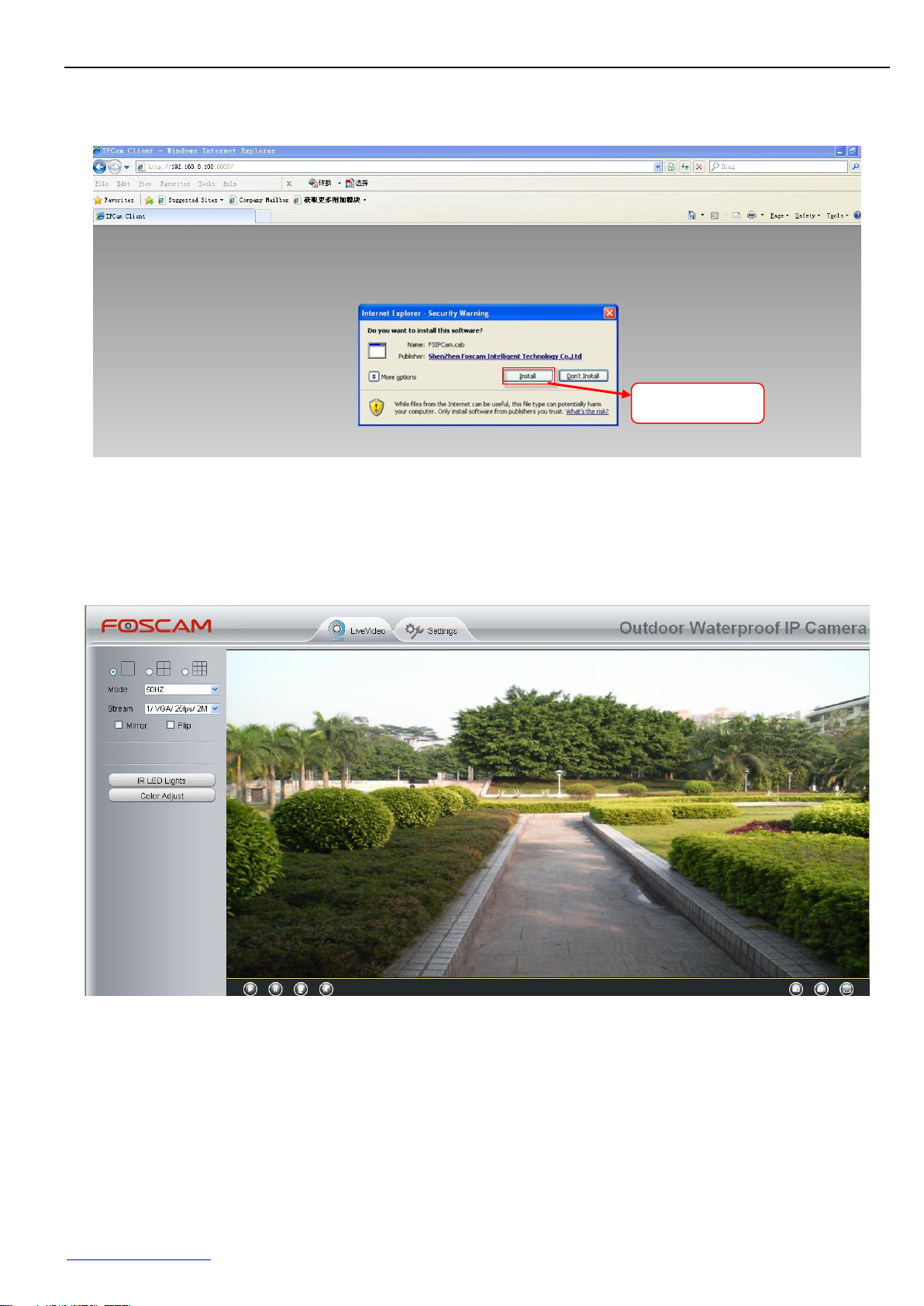

Figure 1.6 - Install the ActiveX plugin (Internet Explorer)

After installing the plugin, refresh the browser and you will be able to see the live video screen.

Figure 1.7 –The Live Video Page

Click Install

FI9801W Quick Installation Guide

www.foscam.com

- 5 -

If this is your first time logging in on Firefox, it may prompt you to download the plugin.

Figure 1.8 - Download the plugin (Firefox)

Drag the download file into Firefox web page and it will prompt you to install it.

Figure 1.9 - Installing the Firefox plugin

Refresh or reopen Firefox after the plugin installation is successful, then login to the camera again,

you will be able to see the live video page (Figure 1.7).

Click here to download

the plugin

Click Install Now

FI9801W Quick Installation Guide

www.foscam.com

- 6 -

3.3 For Google Chrome

If this is your first time logging in to the camera with Google Chrome, it will prompt you to download

the plugin as in Figure 1.8.

Download the plugin and drag it to the Extensions page of Google Chrome.

Figure 2.0 –The Extensions page in Google Chrome

Click the “Add”button to install the Plugin.

Figure 2.1 –Installing the plugin on Google Chrome

Reboot the browser and login to the camera again; you will see the live video screen (Figure 1.7).

Go to Extensions page

Click Add button to

install the plugin

FI9801W Quick Installation Guide

www.foscam.com

- 7 -

Congratulations! You have succeeded in accessing the camera by a wired connection. Be sure to

leave all other menu options alone until finishing the rest of the installation.

If you only see a black screen with a red cross in the center, please try another port number instead

of the default “port 88” .You may want to try port 8005, etc.

If you are still unable to see live video, try shutting down any firewall or anti-virus software on your

computer.

Step 1: Choose “Settings”on the top of the camera interface, and go to the “Network”panel on the

left side of the screen, then click “Wireless Settings.”

Click the Scan button and the camera will detect all wireless networks around the area. It should

also display your router in the list (Figure 2.2).

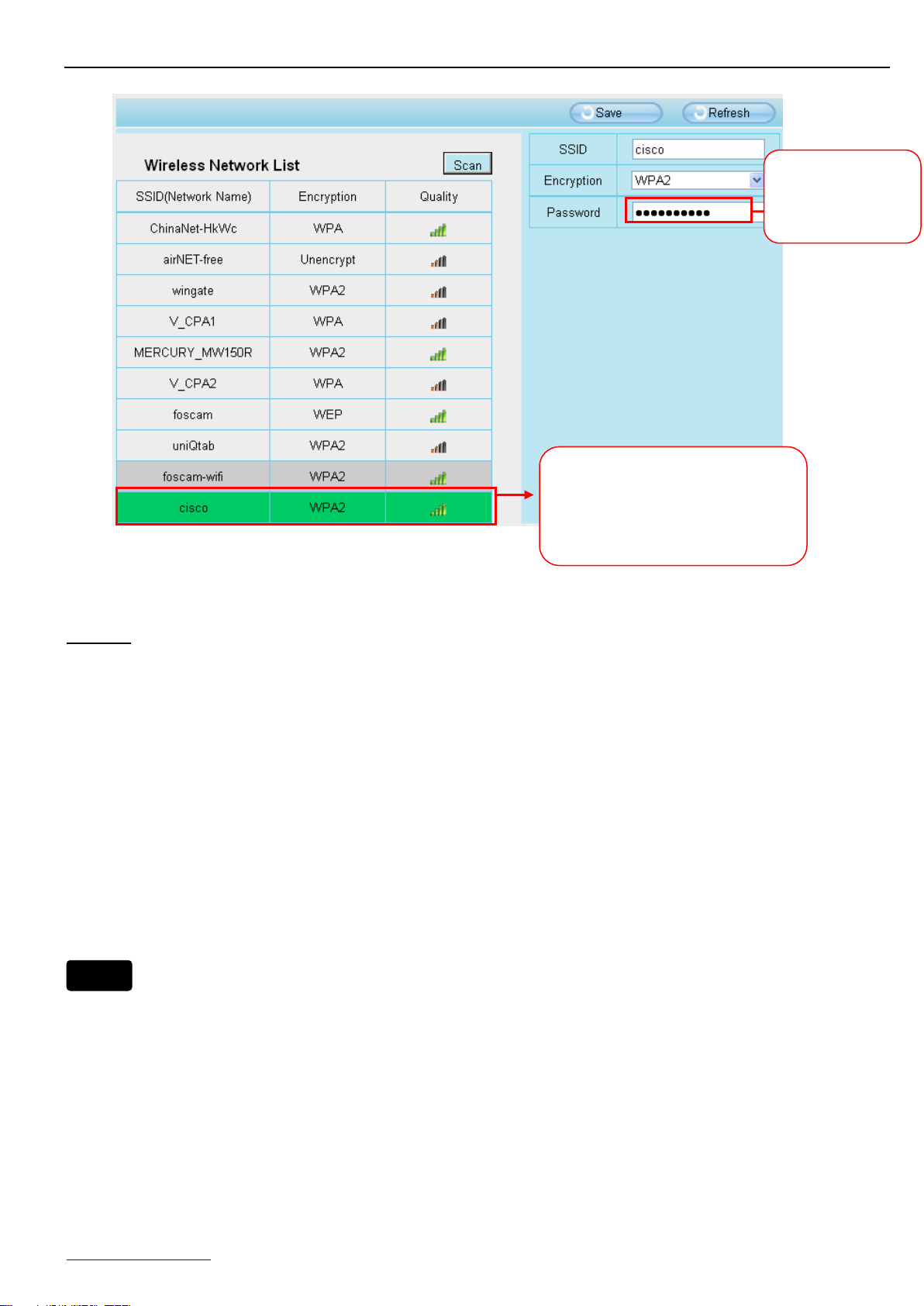

Figure 2.2 - Wireless Settings

Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your

network, such as the name and the encryption, will be filled into the relevant fields automatically.

You will only need to fill in the password of your network. Make sure that the SSID, Encryption and

the password you filled in are exactly the same for your router.

4. Wireless Connection Setup

Click the Page number to see other wireless

networks devices if there are more than 10.

Click the Scan button

to search for wireless

networks.

FI9801W Quick Installation Guide

www.foscam.com

- 8 -

Figure 2.3 - Wireless Settings

Step 3: Please click on the Save button after all settings have been entered and disconnect the

network cable. Never shut down the power of the camera until the IP camera is able to connect to

the wireless network.

The LAN IP address will disappear on the window of IP Camera Tool when the camera is configuring

a wireless connection. Wait about 1 minute, the camera should obtain a wireless connection, and the

LAN IP of the camera will show again on the window of the IP Camera Tool. The IP address may

have changed after the camera receives a wireless connection; we recommend setting a static local

IP address if this IP address changes by right clicking the camera in IP Camera Tools, setting a

static IP, and pushing OK (see Page 9).

Congratulations! You have set up the wireless connection of the camera successfully.

If you fail to make a wireless connection, please refer to your seller or

Note

1 Click the SSID of your router

and the relevant information

will be filled in the fields

automatically.

2 Enter the

password of

your router

FI9801W Quick Installation Guide

www.foscam.com

- 9 -

We have been able to access the camera within the LAN network, and have set up a wireless

connection, but how do we access the camera via WAN or from outside networks through the

internet?

We have to set up Remote Access via Port Forwarding before we can access the camera

outside of our own local area network.

What is the HTTP Port and Media Port, how do we change them?

This camera supports HTTP Port and Media Port. The Media port is used to view the camera’s video

stream, HTTP Port is used to access the camera remotely. If you want to access the camera and

view the video, the Media Port and the HTTP Port must both be configured correctly.

1) Default HTTP Port is 88 / Default Media Port is 888

HTTP Port: All cameras have the default HTTP port of 88. For example, if the LAN IP link of the

camera is http://192.168.8.102:88, this means that the camera’s HTTP port is 88. You can change

port 88 to another port if you’d like such as 2000 or 8090, which will not be conflict with other existing

ports like 25, 21.Here you can set the port no. between 1 and 65535.

Media Port: When you login to the camera, you can see the Media Port number on the login

screen. The default Media Port number is 888. Like HTTP Port, you can change this to anything

between 1 and 65535.

Note: The HTTP Port and Media Port must be different; you won’t be able to access the camera

otherwise.

2) How do we assign a different HTTP port and a static LAN IP address?

Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click

on the IP address, and click on ”Network Configuration”, this brings up the network configuration box

as shown in Figure 2.4 and 2.5.

5. Remote Access Setup
