FOXTECH SEEKER-18 HD 18X
OPTICAL ZOOM CAMERA WITH
3-AXIS GIMBAL
USER MANUAL
No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China
Telephone: +862227989688
Email: [email protected]
URL: https://www.foxtechfpv.com
BRIEF INTRODUCTION
FOXTECH SEEKER-18 is a professional 3-Axis Gimbal with 18x Optical Zoom
Camera that designed for small multicopters. This 18x zoom gimbal can be applied in
the fields like military reconnaissance, police investigation, police surveillance and
evidence collection, power line inspection, disaster prevention and mitigation,
emergency monitoring, and rescue etc.
FEATURES
All in one design, the 18x zoom optical camera included.
With a compact structure yet easy to install.
Plug and play with new intelligent solutions.
The built-in magnetic encoder accurately senses the change of motor motions.
The seamless shaft rotating technology brings a smooth operation.
Secured built-in motor ensures an orderly rotation to avoid the possible stranding.
GIMBAL SPECIFICATIONS
Dimensions: 156 x 156 x 145mm
Input voltage: 4S～6S
Operating temperature: -10℃～45℃
Augmentation axis: 3 axis
Angle motion range: -30°～30° (Rolling angle);
120°～30° (Pitching angle);
175°～175°(Horizontal Direction)
Controlling precision: 0.03°
Supported Receiver : Conventional Receivers
Weight: 600g
Material: Aviation aluminum alloy, nylon
FEATURES OF 18X ZOOM CAMERA
1/4 inch 3 million pixels CMOS SENSOR
Video Resolution: 1920 x 1080P/30 frame
18X zoom optical camera
Support wide dynamic, dynamic range up to 105dB
AV analog output, HDMI HD 720P 60 frame output, 1080P video streaming
locally stored.
Real-time fast focus function, focus time<1S
Automatic white balance, automatic gain, automatic color correction

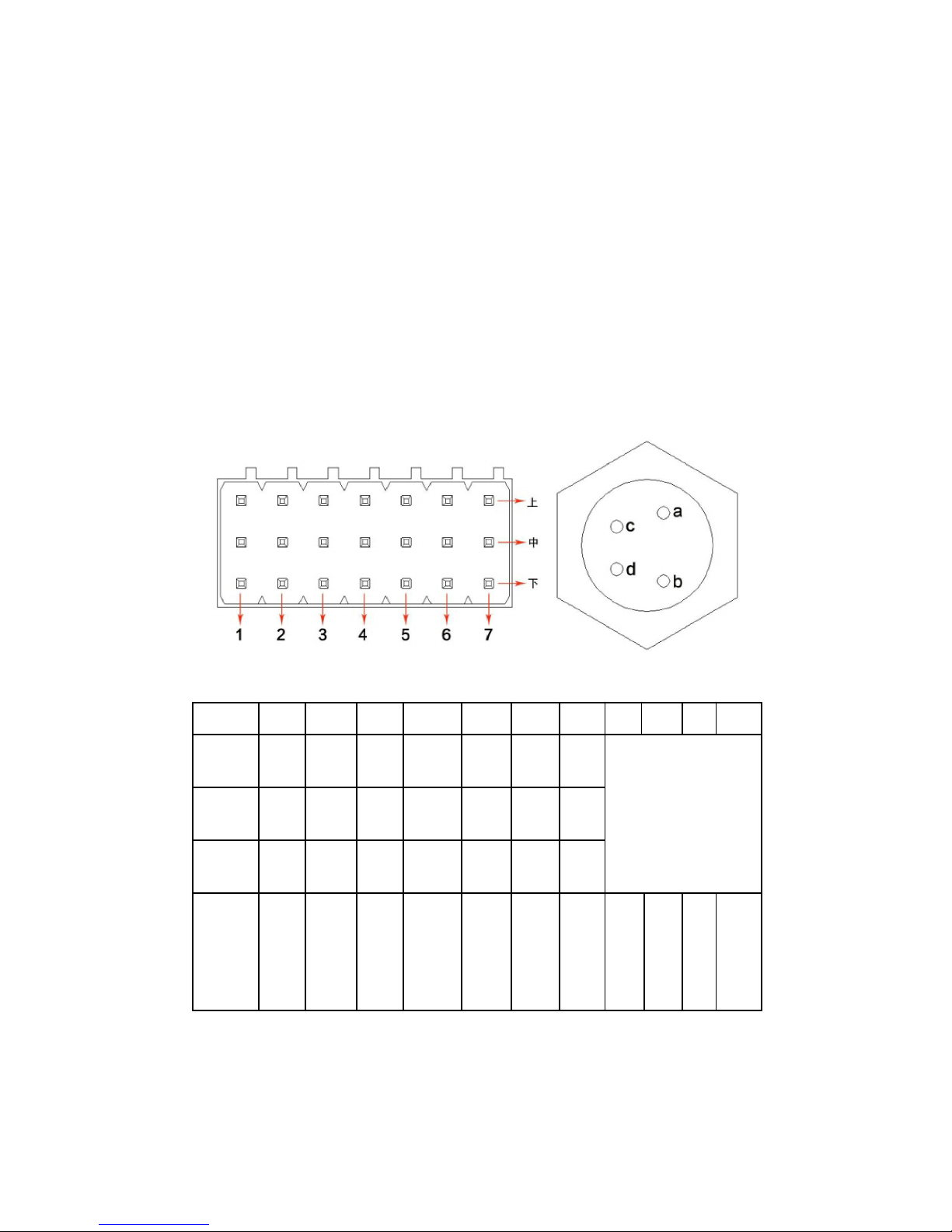

INTERFACE DEFINITIONS:
1
2
3
4
5
6
7
a
b
c
d
UP
PWM1
PWM2
PWM3
PWM4
PWM5
PWM6
PWM7
MID
＋
5V
＋
5V
＋
5V
＋
5V
＋
5V
＋
5V
＋5V
DOWN
GND
GND
GND
GND
GND
GND
GND
Definition
Rolling
Pitching
Zoom
Direction
Mode
Video
Blank
Vide
o
Video
GND
Power
Switch
outpu
Control
Control
Control
Control
Control
Control
t
GND
Supply
CONNECTING LINE DEFINITIONS
White
Black
Blue
Brown
Power
GND
Video
Video
supply
output
GND

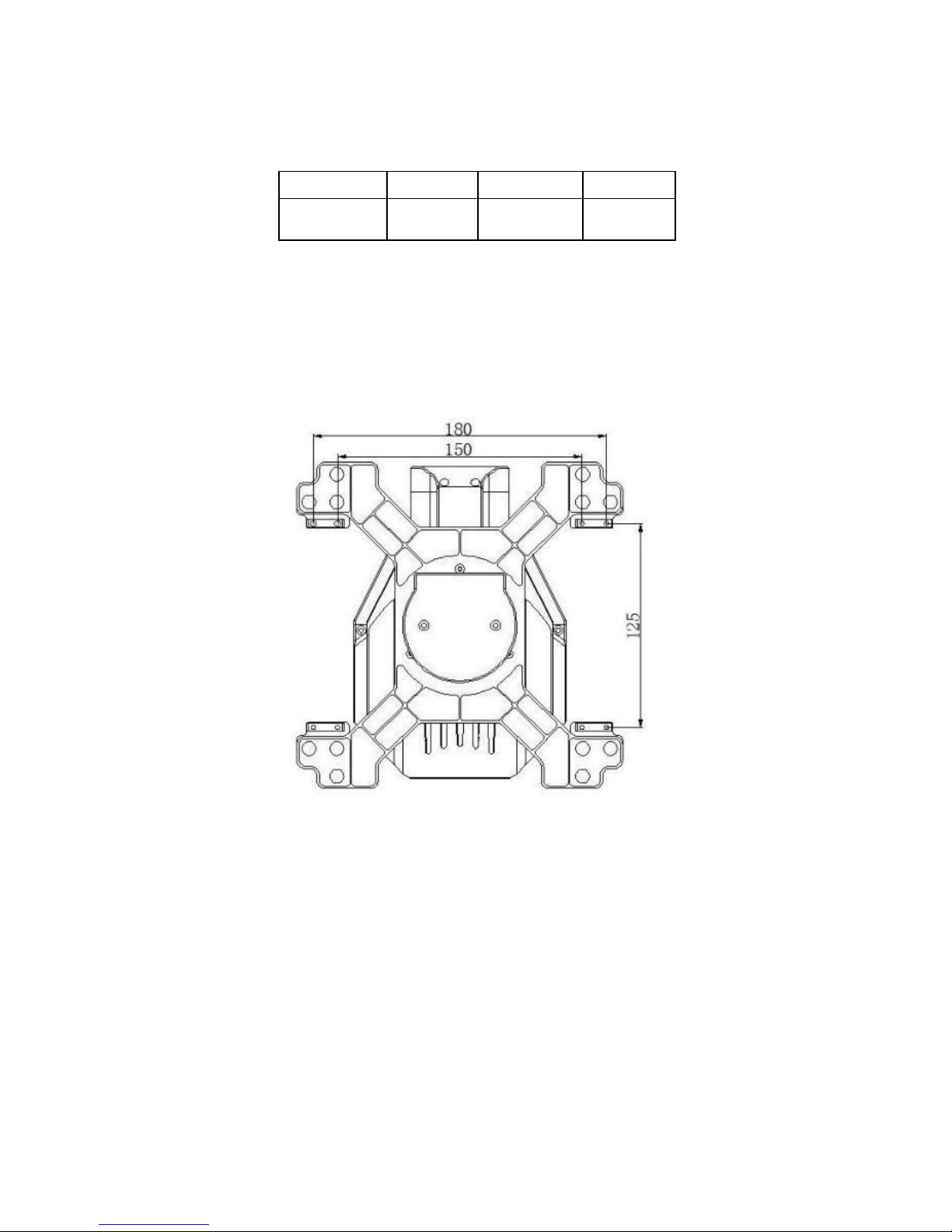

INSTALLATION DIMENSIONS
PACKAGE INCLUDED
1.Foxtech SEEKER-18 HD 18x Optical Zoom Camera
2.Foxtech SEEKER-18 3-axis gimbal
3.Damping Components
4.User Manual
CAUTIONS
1. Input voltage: Supports 4-6s only.
2. Please allow 2 seconds for the self-checking of gimbal after powering on. The self-
checking is done once a reminder tone is heard. Please do not shake the gimbal during
the self-checking. If there’s no reminder tone for a long time and the gimbal failed to
self-check, please re-connect to the power.
3. Recommend 3 modes of switch control to record and take pictures. Stop at low
mode, record at middle mode and non-stop recording at high mode.
4. Make sure to stop recording before powering off so as to avoid the possible damage
to the recorded videos.
5. Three modes of the gimbal: Lock Mode (low-grade), Follow Mode (Mid-grade),
Camera Down Mode (High-grade). The gimbal will return to middle after switching
to Lock Mode from other modes.
6. Any removal and modifications of the gimbal are prohibited. Or you can not enjoy
the after-sales service. And as for the loss caused by, we don’t undertake any
responsibility.
7. We reserve the rights for information modification in terms of
product specifications and performance without prior notification.
