VS300 Videoscope User’s Guide - English Version_V1.00
1
Trademarks
FOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective holders.
Copyright Information
©2022 Shenzhen Foxwell Technology Co., Ltd. All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the latest
information available at the time of printing.
Foxwell reserves the right to make changes at any time without notice.
Visit our website at:
www.foxwelltech.us
For Technical Assistance, send us email at
support@foxwelltech.com
Safety Information
For your own safety and the safety of others, and to prevent damage to the
equipment and vehicles, read this manual thoroughly before operating your tester.
The safety messages presented below and throughout this user’s manual are
reminders to the operator to exercise extreme care when using this device. Always
follow all BCI (Battery Council International) safety recommendations. Read,
understand and follow all safety messages and instructions in this manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment
damage. Below are signal words we used to indicate the hazard level in a
condition.
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in
moderate or minor injury to the operator or to bystanders.
Important Safety Instructions
And always use your tester as described in the user’s manual, and follow all safety
messages.
FOXWELL
VS300 Videoscope User’s Guide - English Version_V1.00
2
Battery posts, terminals, and related accessories contain lead and lead compounds,
chemicals know to the state of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
Production Introduction
The Foxwell VS300 videoscope / borescope is designed to work with automotive
diagnostic platform. The camera-tipped probe allows you to get that camera lens
around corners, inside or behind walls. The probe and camera lens are waterproof
and featured with built-in LED, and can be used to inspect any dark, fluid soaked
and hard to reach areas. Mechanics can inspect engine cylinder walls by simply
removing a spark plug and inserting the probe. It gets a clear view inside cylinder
heads, behind wallboards and other hard to reach areas normally hidden from sight
and turns your tablet scanner into a video inspection scope. It can record both
images and videos, which offers you a cost-effective way to inspect any vehicle,
machine or infrastructure.
NOTE: The power of this videoscope is directly supplied by the USB port, and no
external power source is needed
Technical Specification
Operations
For Android system Foxwell Tablet
1. Getting Started
Step 1
Connect the videoscope to Android system Tablet with the USB cable. And take out the
lens shell in another side.
Step 2
Power up the Foxwell Tablet, and select the “Videoscope” application on the main Menu.

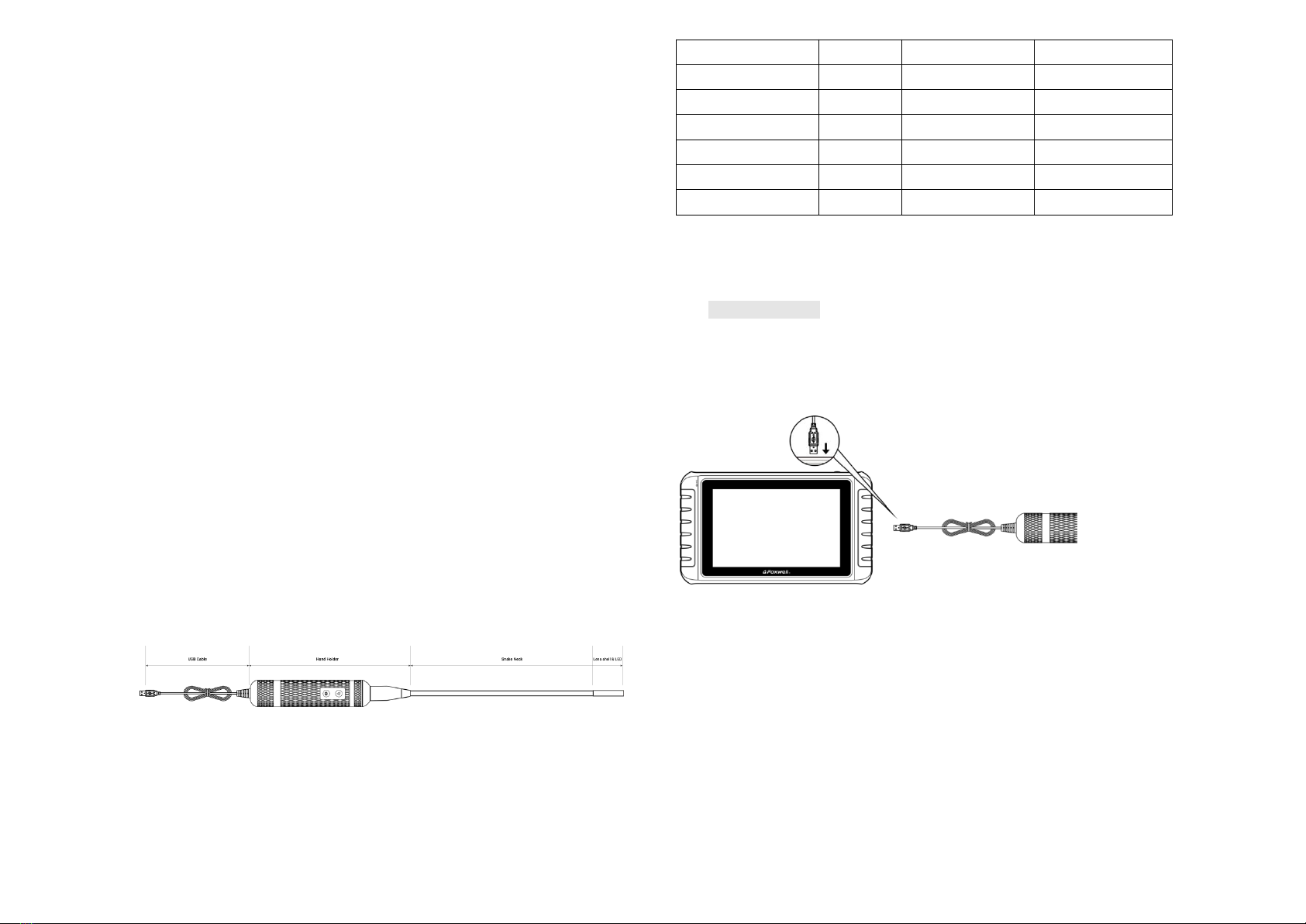

Product Length
1000mm
Diameter of Camera
5.5 mm
USB Interface
2.0
Resolution
1280* 720 pixels
Lens Shell
30 mm
Focal Length
3~ 8 cm
Flexible Probe
900mm
Field of View
54 degree
Handle
180mm
Frame Rate
30fps
USB Cable length
1200mm
Water Proof Level
IP67
Built-in LED light
6 pc
Net Weight
0.26kg
FOXWELL
VS300 Videoscope User’s Guide - English Version_V1.00
3
.

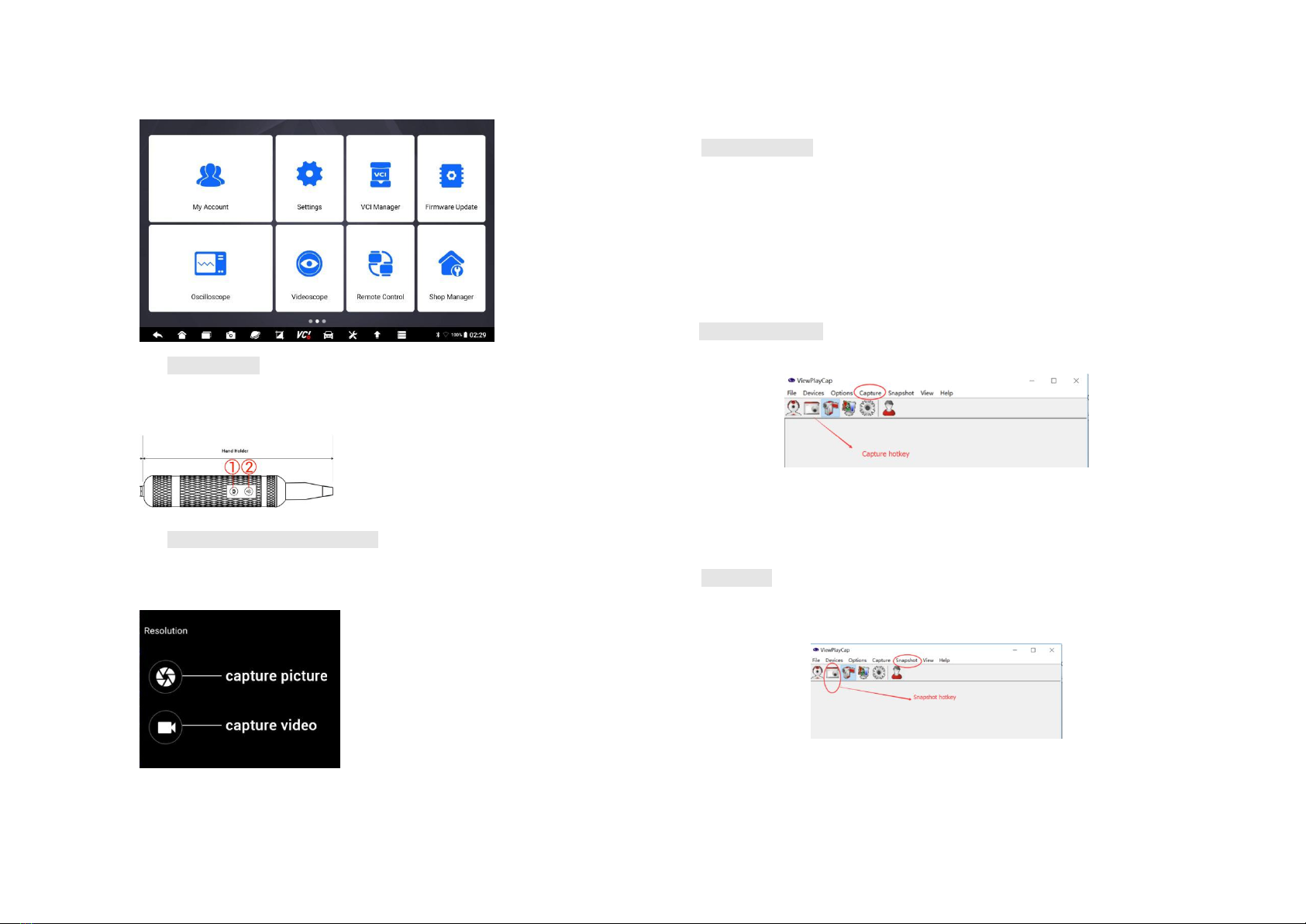

2. Hand Holder
The hand holder can help adjust brightness of built-in LED lights to suit different
environment and save any real-time image the videoscope captured.
①Save pictures.②Adjust brightness.
3. Capture Pictures and Videos
There are 2 button to help capture pictures and videos. The images and videos would be
saved in JPG.format to the appointed path.
For Windows system Foxwell Tablet
1. Getting Started
Step 1
Power up the Windows system Tablet, and select the “Videoscope” application on the
main Menu.
Step 2
Connect the videoscope to Windows system Tablet with the USB cable. Make sure USB
PC CAM 2.0 is selected in the dropdown menu of Device.
2. Capture Pictures
1. Select Capture from the videoscope application.
2. Rotate the knob on the handle to adjust brightness of built-in LED lights to suit
different environment.
3. Click Stop Capture from the dropdown menu of Options if you want to stop
capturing. The video would be saved in AVI form automatically.
3. Snapshot
Press the Snapshot button on the handle to save any real-time image the videoscope
captured. The images would be saved in jpg form on your desktop.
