Fracarro EDFA 4 WDM Bedienungsanleitung
287554 EDFA 4 WDM, 287553 EDFA 8 WDM
Multi-port EYFA Amplier user manual
Contents pages
Product Features 3
Installation 3
Set and Operation 4 to 12
Main Parameters 4
Diagram 4
Front Panel 5 to 6
Rear Panel 6
Operation Flow Chart 6 to 12
Web Server 12 to 18
Notes 19
Solution to ordinary problems 19
Warranty Terms 20
Product Features
1. Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
2. Maintenance function of one-time downward attenuation of 6dBm by buttons in the front
panel or web SNMP, to facilitate the optical ber hot-plug operation without turn off the device
3. Multi- ports output, can built in 1310/1490/1550WDM.
4. Standard RJ 45 port for remote control, we can provide output contract and web manager for
choice, and also plug-in SNMP hardware can be reserved for update.
5. With laser key to turn on/off the laser.
6. With RF test function.
7. Adopts JDSU or Oclaro Pump laser
8. Led displays the working condition of the machine
9. Dual power hot plug power supply for choice, 90V～250V AC or -48V DC
Installation
Before installation
1. Please be sure there is no visible damage outside the machine.
2. Please check the spare parts is complete or not, if not complete, please contact the seller.
Installation
1. Please keep at least 4.5cm (1.75inches) space for cooling if the machine is installed with
other machines.
2. Please check the power supply socket and the grounding of the power supply, the
grounding impedance should be ≤4Ω, 220V power supply should be with three cables and
the grounding cable should be in the middle, Untted grounding will damage the device or
influence the signal quality.
3. Please make sure the power supply switch is off in the rear panel
4. Please conrm the ber port is clean before connection the ber.
MAIN PARAMETERS
Item Parameters
EDFA 4 WDM EDFA 8 WDM
Total output power (dBm) 29 31
Total output power (mW) 800 1250
Each port power (dBm) 22 20
Each port power (mW) 160 100
Input(dBm) -5 ~+10 -8 ~+10
Range of output
adjustment dBm) Down 4
one-time downward
attenuation (dBm)
Wavelength (nm)
Down 6
1540~1565
Output stability (dB) <±0.3
Optical Return Loss (dB) ≥45
Fiber Connector SC/APC, SC/UPC
Noise Figure (dB) <6.0(input 0dBm)
Web port RJ45(SNMP)
Power Consumption (W) ≥80
Voltage (V) 220VAC(90~265), -48VDC
Working Temp (°C) -0 ~ 55
Size (mm) 370(L)×486(W)×88(H)
NW (Kg) 8
2
Product Features

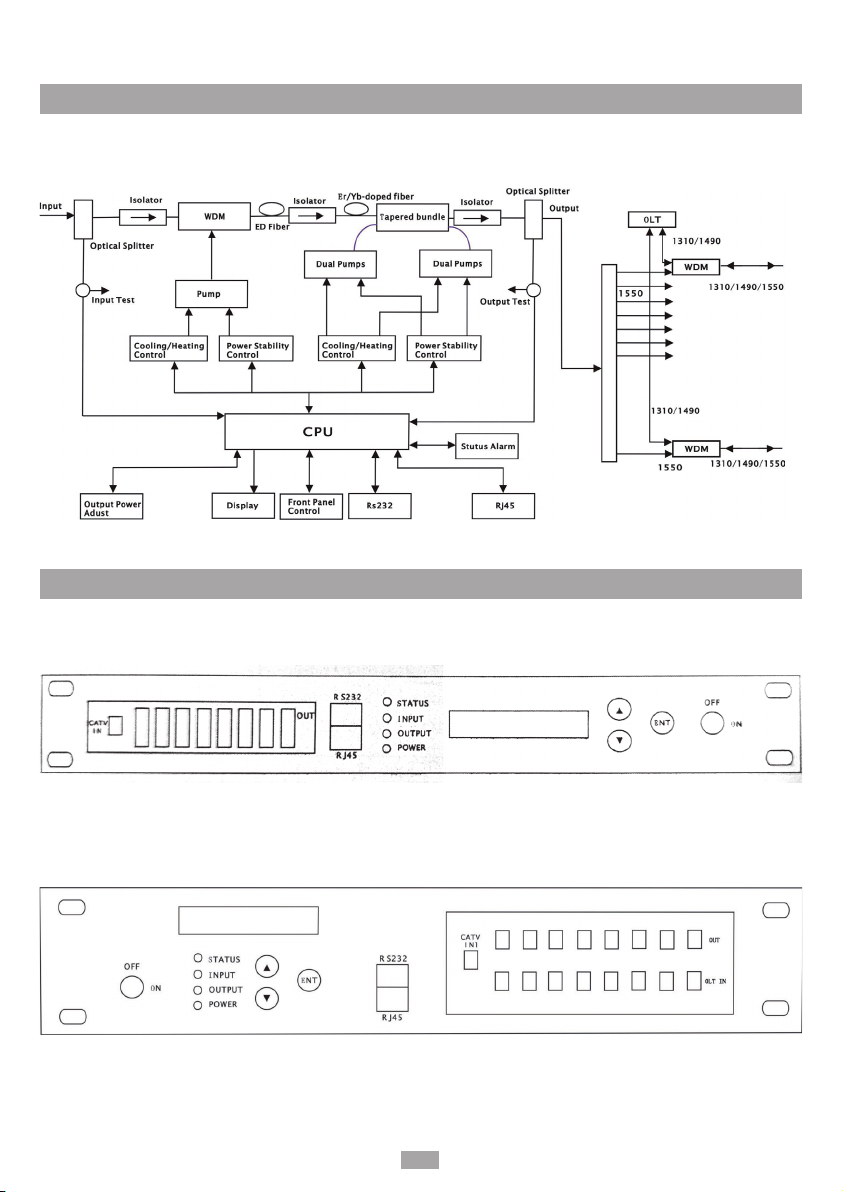

DIAGRAM
Single input, standard Model
LED - DISPLAY
Single input
4 Ports With WDM
Dual inputs
8 Ports～With WDM
3
LED - DISPLAY
LED Display
Displays the working parameter of the machine
STATUS Indication light
Green: Normal Condition
Red: No input or abnormal condition
INPUT Indication Light
Green: Normal
OUTPUT Indication Light
Green: Normal
POWER Indication Light
Green: Power Connected
Key
ON: Turn on the laser
OFF: Turn off the laser
RS232
Network management for local computers
RJ45
SNMP, for remote computer network management
Rear Panel
Power Switch（220V（
ON: Turn on the power
OFF: Turn off the power
Power Socket
AC220V and DC-48V
4
5

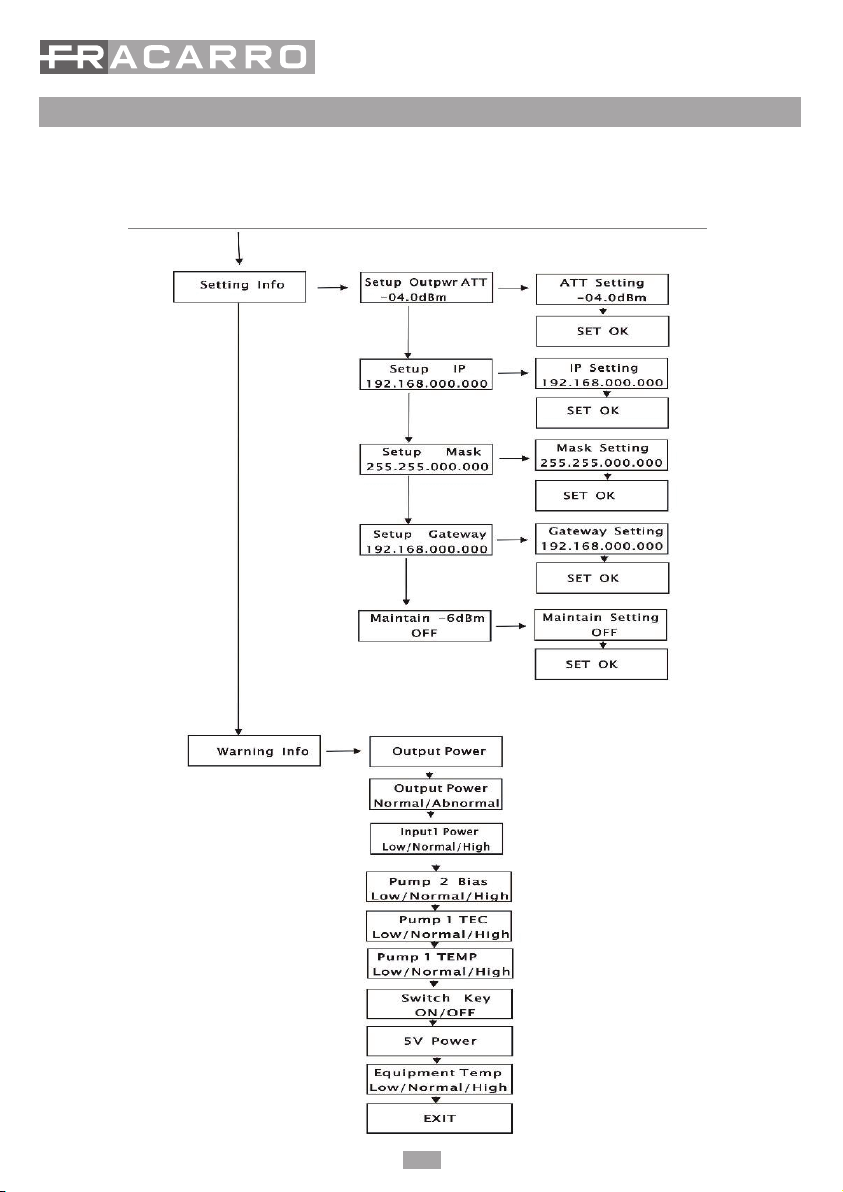

OPERATION FLOW CHART
The following menu displays with “～” button, Use the “～” button to do the reverse loop, “ESC” as the return
button.
Single input operation flow chart:
6
Operating instructions
WEB SERVER
The user can use web browser to check the working condition and basic parameters of the amplier, it
supports IE, Chrome, Firefox ,opera and other main web browser. The following example are based on Opera
browser.
1.Please nd the IP add in the machine, normally it is 192.168.0.XXX, set the IP add of the PC in the same
range as following steps:
7
8
Operating instructions
9

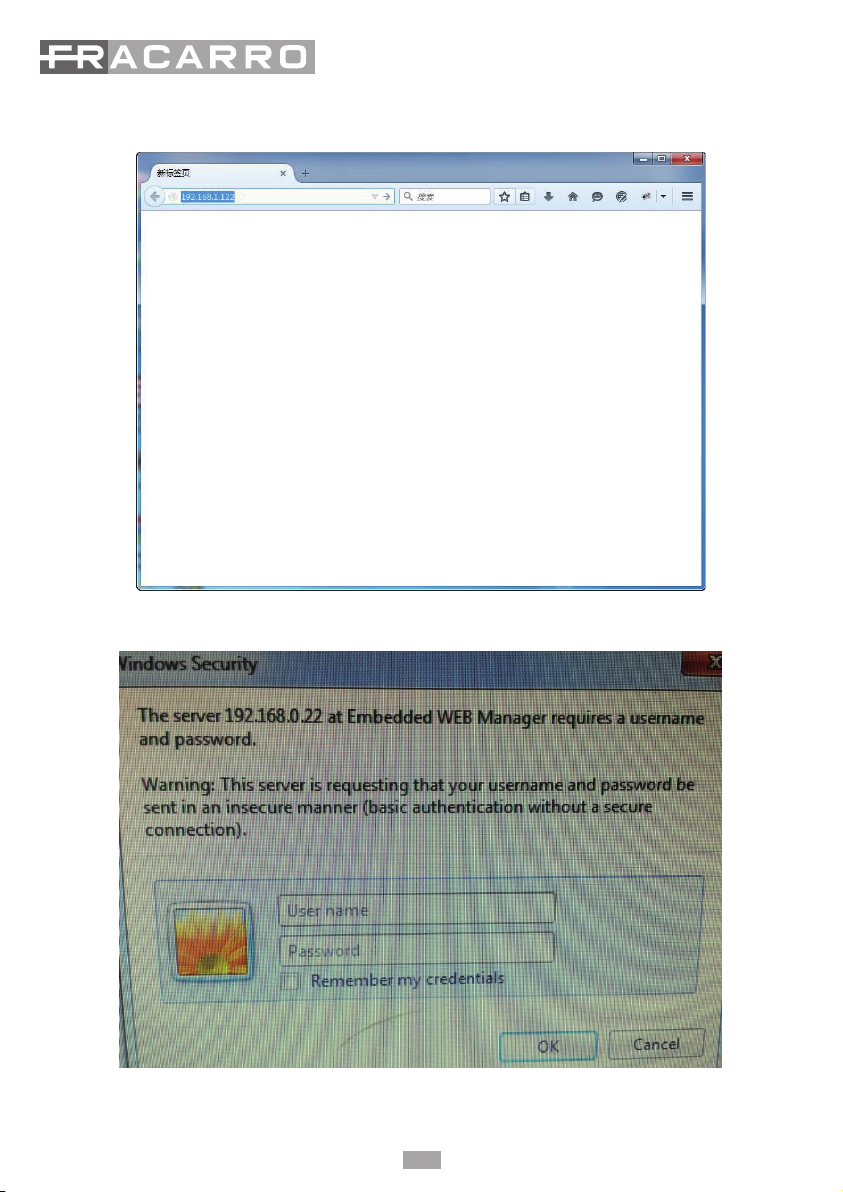

2 .Open web browser, input the IP add～For example: 192.168.0.22
Then login version
User Name: admin
Password: 123456
10
Operating instructions

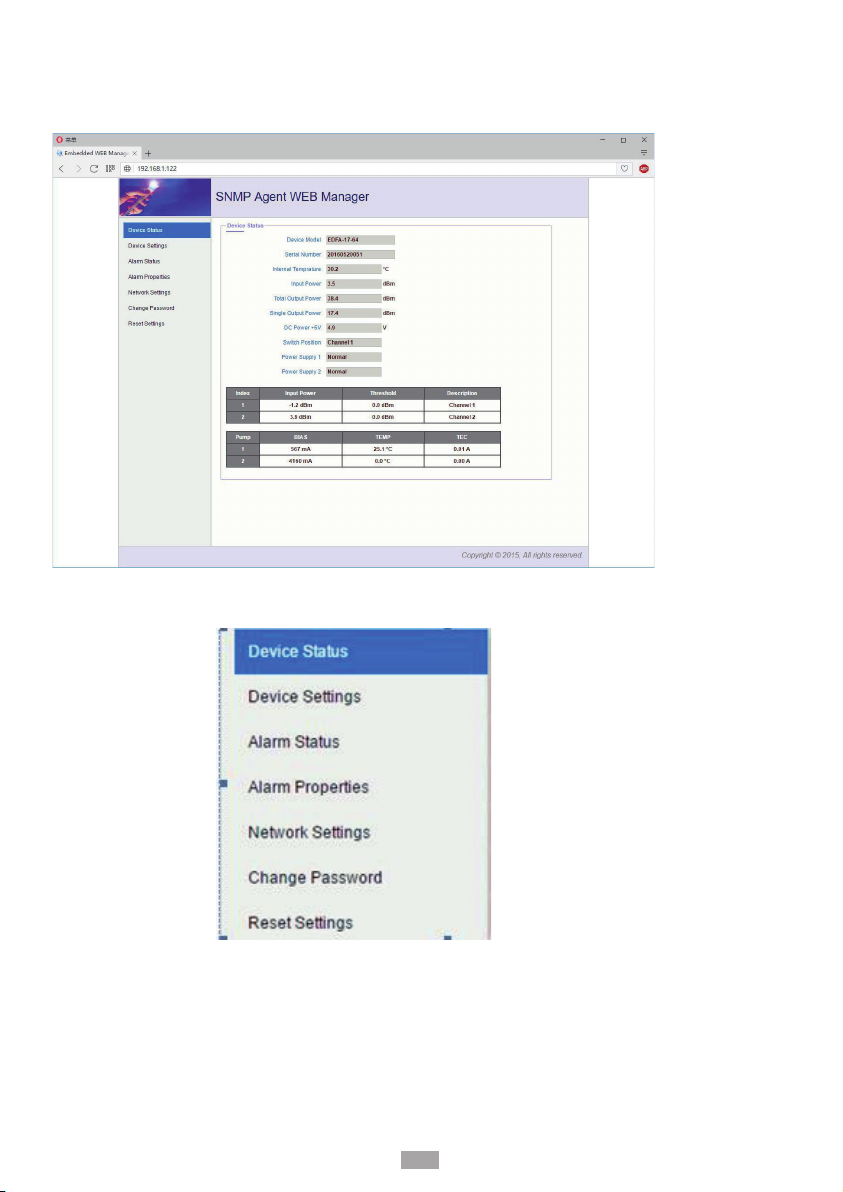

3. The working condition version:
4.4 Items guide on the left, click to enter:
