Freecom Mobile Drive Secure Bedienungsanleitung

USER MANUAL

HARD DRIVE SECURE

EXTERNAL HARD DRIVE /3.5" /USB 2.0 /RFID

Rev. 924

Freecom Hard Drive Secure

Dear user!

Thank you for selecting the Freecom Hard Drive Secure as your external hard drive.

The Freecom Hard Drive Secure provides a new definition of data security. Your data is

protected by using a keycard (in credit card format) to unlock the drive. For optimal use and

performance we advise you to read this manual carefully before using this product.

Freecom Technologies • Germany

www.freecom.com

Contents of the box

Please check the contents of the box; the following items should be included:

•Freecom Hard Drive Secure (external hard drive)

• Power adapter

• Connection cable (USB 2.0)

• 2 keycards (credit card size) using RFID technology

• 2 rubber footstands for positioning the drive upright

•Manual, safety manual and application software pre-installed on the hard drive

•Quick Install Guide

Need assistance? Have questions?

In case you have a question about the use of this product, need information about other

Freecomproductsorneedtechnical assistance,please contact theFreecomServiceCenter

for your country. See www.freecom.com for details.

Freecom offers free unlimited helpdesk support.

Warning !

purposes and may be trademarks or registered trademarks of the respective companies.

This device was designed for home or office use.

Warning! This device is equipment complying with EN55022 class A. This equipment

can cause radio disturbances in a residential area. If this is the case, the user has to take

appropriate measures and assume all responsibility and costs for. It may not be used near

or with any life-sustaining systems.

Freecom cannot be made liable for any damages, loss of data or damage following

thereof -whatsoever (including, without limitation, damages for loss of business profits,

business interruption, loss of business information, or other pecuniary loss) arising out

of the use of or inability to use this Freecom product, even if Freecom has been advised

of the possibility of such damages.

We reserve the right to upgrade our products in keeping with technological advances.

User manual

General Information ...........................................................................................................page 4

Precautionary measures....................................................................................................page 5

Freecom Hard Drive Secure ............................................................................................page 6

Chapter 1:

Hardware Installation.........................................................................................................page 7

Chapter 2:

Driver Installation ................................................................................................................page 10

Chapter 3:

Installation of the application software ......................................................................page 11

Chapter 4:

Enabling data protection by keycard –

using the Freecom Hard Drive Keycard Protection software tool.....................page 13

Chapter 5:

Using Freecom Turbo USB 2.0 (only PC) .....................................................................page 25

Chapter 6:

Partitioning your Freecom Hard Drive Secure .........................................................page 26

Table of Contents

Freecom Hard Drive Secure

* To achieve optimal performance from the Freecom Hard Drive Secure your computer should be equipped

with an USB 2.0 port.

General Information

The following hardware and software requirements must be fulfilled to ensure trouble-

free operation.

System requirements

In order to use the Freecom Hard Drive Secure, following components are needed:

PC:

• Intel Pentium III / AMD Duron 900 MHz or higher

• 256 MB RAM (Vista: 512 MB RAM) or higher

• Available USB 2.0 or USB 1.1 port*

• Internet connection for online warranty registration, software updates and downloads

• Operating system: Windows XP, Windows Vista

Mac:

• PowerPC G3/G4/G5, Mac Book Pro or Intel Mac

• 256 MB RAM or higher

• Available USB 2.0 or USB 1.1 port*

• Internet connection for online warranty registration, software updates and downloads

• Operating system: Mac OS X v10.4 or higher

General Information

Precautionary measures

To ensure that your Freecom Hard Drive Secure functions properly, please take note of

the following precautions. If these are not followed, you may void your warranty and

damage the Freecom Hard Drive Secure.

• Safely remove the Freecom Hard Drive Secure via your operating system (the "unplug

or eject hardware" option in the Windows taskbar) before disconnecting the USB cable

or power cable and before switching off the device. Failing to do so may result in data

loss.

•Do not drop the Freecom Hard Drive Secure or expose it to other kinds of sudden

mechanical shocks as this may result in data loss and damage to the Freecom Hard

Drive Secure.

•Do not use the Freecom Hard Drive Secure when the ambient temperature is below

10°C or above 35°C.

•If the Freecom Hard Drive Secure is moved from a cool environment to a warmer

environment, please allow the drive to acclimatize to the ambient temperature

before operating the device. Failing to do so may lead to condensation within the

drive enclosure, which in turn may cause the drive to malfunction.

•Do not place liquids or drinks on the Freecom Hard Drive Secure. When liquids are

spilled and get in contact withtheelectronicswithinthedriveenclosure,it will damage

the drive and will cause the drive to malfunction.

•Do not use the Freecom Hard Drive Secure in a dusty environment. Dust inside the

enclosure may damage the internal electronics and result in drive malfunction.

•Opening the Freecom Hard Drive Secure will void the warranty.

• Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Hard Drive Secure

can be connected to all USB ports. When connected to a USB 1.1 port, however, the

performance (data transfer rate) of the Freecom Hard Drive Secure will be much lower

than when the drive is connected to a USB 2.0 port.

•Only use the power adapter that was supplied with the Freecom Hard Drive Secure.

Freecom Hard Drive Secure

The hi-speed data transfer through the USB 2.0 interface makes it ideally suitable for

data-storage, file sharing, backup, archiving, audio playback and all applications that

need fast file access.

Foryourconvenience,theFreecomHardDriveSecurehasbeenpartitioned(1partition)and

pre-formatted (FAT32 file system). The FAT32 format ensures maximum interchangeability

of the Freecom Hard Drive Secure between different computers. Should you choose to

format the Freecom Hard Drive Secure in another file system (e.g. NTFS), please be aware of

possible problems when connecting the Freecom Hard Drive Secure to another computer

than the one you used for formatting.

Hardware Installation

Chapter 1: Hardware Installation

Remove the plastic protective cover sheets from the front and rear of the drive. Before

connecting the cables make sure the Freecom Hard Drive Secure is switched off.

1. Connect the interface cable (USB) to the Freecom Hard Drive

Secure.

2. Connect the cable of the power supply to the Freecom

Hard Drive Secure and the power supply itself to the mains

socket.

3. Connect the interface cable (USB) to the interface port (USB)

of your computer.

4. Switch on the Freecom Hard Drive Secure.

Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Hard Drive

Secure can be connected to all USB ports. When connected to a USB 1.1 port,

however,theperformance(datatransferrate)oftheFreecomHardDriveSecure

will be much lower than when the drive is connected to a USB 2.0 port.

For optimum performance the Freecom Hard Drive Secure should always be

connected to a USB 2.0 interface.

Freecom Hard Drive Secure

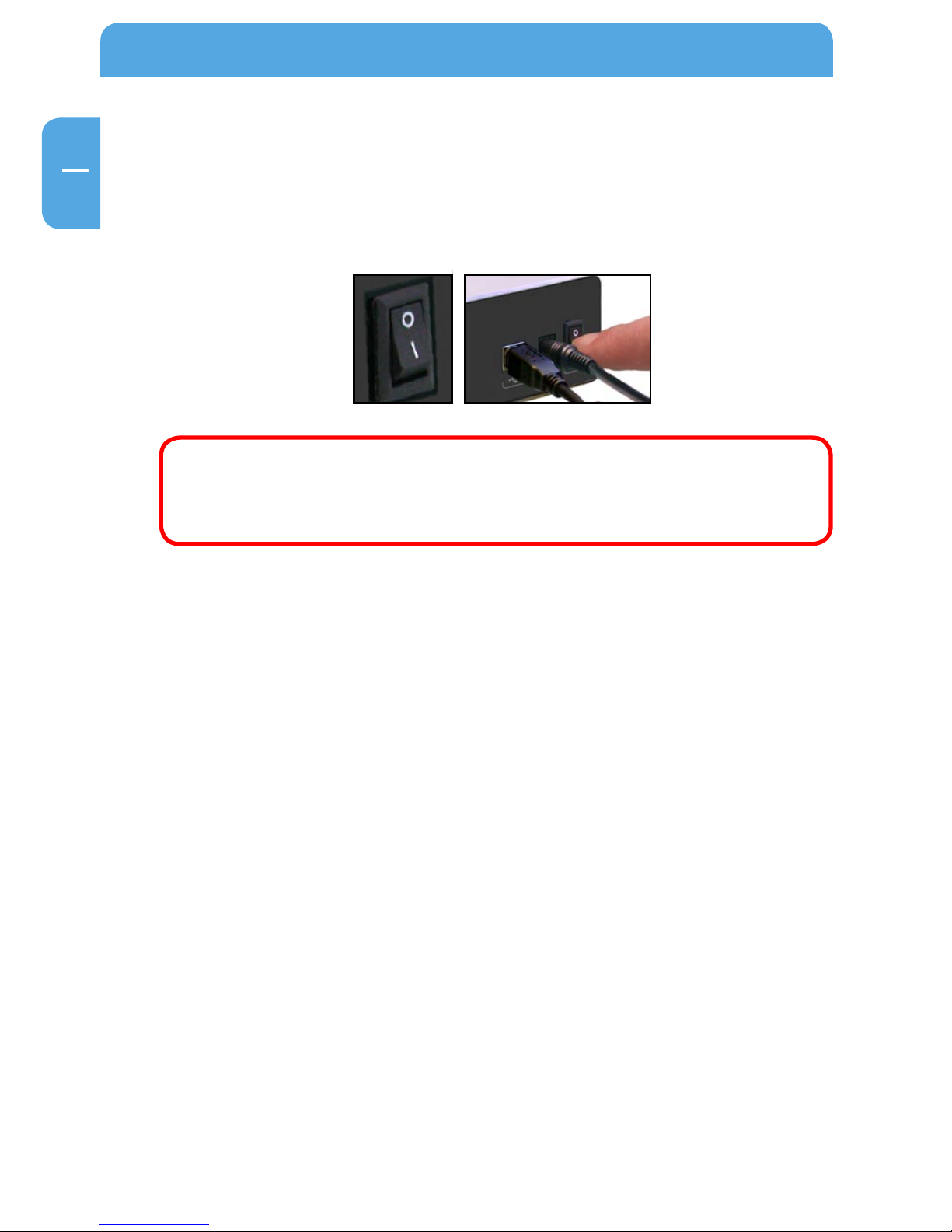

1.1 Power Switch

The hard drive inside the Freecom Hard Drive Secure is always powered, even if the cable

is disconnected from your computer. Therefore, please turn off the Freecom Hard Drive

Secure if it is not used. This saves power and increases the lifetime of the hard drive. The

power switch is on the rear of the Freecom Hard Drive Secure.

Attention! Before switching off the Freecom Hard Drive Secure

manually, make sure to safely remove the Freecom Hard Drive Secure

via your operating system (the "unplug or eject hardware" option in the

Windows taskbar). Failing to do so may result in loss of data.

1.2 Data protection by keycard (using RFID technology)

The data on the Hard Drive Secure can be protected from unwanted access by using a

keycard to unlock the drive. This keycard is placed over a sensor inside the Hard Drive

Secure, when the Hard Drive Secure recognizes the keycard it will unlock the drive for

use.

The technology inside the keycard and the Hard Drive Secure is called RFID. RFID stands

for Radio Frequency Identification. The same technology can be found for example

in office buildings, where people need to present a keycard if they want access to the

building or to a certain floor / department / room.

Your Hard Drive Secure comes with 2 Keycards, in credit card size. This card fits easily

in your wallet so you always will carry it with you. The default setting of the drive is "no

protection". When starting to use the Hard Drive Secure for the first time, you need to

configure the 2 supplied keycards with the drive. The Hard Drive Secure can identify

maximum 2 keycards. We suggest that – after configuring – you use one keycard (labeled

"Security Key") and store the other keycard (labeled "Master Key") in a safe place, in case

your Security Key gets lost.

Of course you can also use the drive without the keycards. In that case you do not need

to run the configuration wizard – you can immediately start using your Hard Drive after

unpacking it from the box. Please note that your data is not protected against unwanted

access then.

You can also decide to use the keycard protection at a later stage, however please note

that the drive needs to be reformatted then and all data on the drive will be lost. See

chapter 4.

Hardware Installation

How the keycard protection works:

Hard Drive

Secure locked

unlock Hard Drive

Secure with keycard

over the sensor in the

front side of the drive

Hard Drive Secure

unlocked

Move keycard over

the sensor

Hard Drive Secure

locked

To configure the 2 keycards using the "Freecom Hard Drive Keycard Protection" software

assistant, see chapter 4.

1.3 Front view

1. RFID sensor (invisible, is placed behind the black front bezel)

2. Left LED (green/red)

3. Right LED (white)

1. RFID sensor

This is the position where the keycard needs to be held to unlock the drive.

2. Left LED (green/red)

LED off: keycard protection not configured

LED red, flashing quickly: waiting for initial recognition of the first

Keycard

1. 2. 3.

Freecom Hard Drive Secure

LED green, flashing quickly: waiting for initial recognition of the second

Keycard

LED red, flashing slowly (1 second gap): delay of error detection

LED red, bright: hard drive locked, can not be accessed

LED green, bright: hard drive unlocked, ready for use (read data

from / write data to the hard drive)

LED red, flashing quickly: erasing data on the hard drive

3. Right LED (white)

LED white: device on

LED white blinking: data transfer

Chapter 2: Driver Installation

Under Windows XP / Vista and Mac OS X a separate Freecom driver is not required. The

drivers will be installed automatically by the operating system after plugging in the

Freecom Hard Drive Secure into the USB port of the computer.

Andere Handbücher für Mobile Drive Secure

Inhaltsverzeichnis

Andere Freecom Lagerung Handbücher

Freecom

Freecom LTO 448 Bedienungsanleitung

Freecom

Freecom TapeWare LTO 460i Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

Freecom

Freecom 3.5 " / USB 2.0 / ESATA Bedienungsanleitung

Freecom

Freecom Mobile Drive Secure Bedienungsanleitung

Freecom

Freecom Hard Drive Bedienungsanleitung

Freecom

Freecom SUPERLOADER3 LTO2HH Bedienungsanleitung

Freecom

Freecom NETWORK DRIVE - Bedienungsanleitung

Freecom

Freecom FC TapeWare AIT-260i Bedienungsanleitung

Freecom

Freecom FC TapeWare AIT-250i FC Bedienungsanleitung

Freecom

Freecom FHD-XS Bedienungsanleitung

Freecom

Freecom Desktop Hard Drives Bedienungsanleitung

Freecom

Freecom FC TapeWare AIT-250i FC Bedienungsanleitung

Freecom

Freecom NETWORK MEDIAPLAYER 45 Bedienungsanleitung

Freecom

Freecom HARD DRIVE QUATTRO - Bedienungsanleitung

Freecom

Freecom HARD DRIVE CLASSIC II Bedienungsanleitung

Freecom

Freecom 3.5 " / USB 2.0 / ESATA Bedienungsanleitung

Freecom

Freecom Mobile Drive Secure Installationsanleitung

Freecom

Freecom Mobile Drive Secure Bedienungsanleitung

Freecom

Freecom FC TapeWare AIT-250i FC Bedienungsanleitung

Freecom

Freecom external hard drives Safety Benutzerhandbuch

Freecom

Freecom MOBILE DRIVE CLASSIC 3.0 Bedienungsanleitung

Freecom

Freecom DUAL DRIVE NETWORK CENTER Bedienungsanleitung

Freecom

Freecom DAT-160 Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung

Dell

Dell PowerVault MD3600f Series Bedienungsanleitung
