MOBILE DRIVE SECURE

EXTERNAL MOBILE DRIVE /2.5" /USB 2.0 /RFID

Rev. 912

USER MANUAL

Freecom Mobile Drive Secure

Dear user!

Thank you for selecting the Freecom Mobile Drive Secure as your external hard drive.

The Freecom Mobile Drive Secure provides a new definition of data security. Your data is

protected by using a keycard (in credit card format) to unlock the drive. For optimal use and

performance we advise you to read this manual carefully before using this product.

Freecom Technologies • Germany

www.freecom.com

Contents of the box

Please check the contents of the box; the following items should be included:

• Freecom Mobile Drive Secure (external hard drive)*

• Connection cable (USB 2.0)

• 2 keycards (credit card size) using RFID technology

•Manual, safety manual and application software pre-installed on the hard drive

•Quick Install Guide

* When the power provided by the USB port is not sufficient, visit www.freecom.com/support for an optional

AC adapter.

Need assistance? Have questions?

In case you have a question about the use of this product, need information about other

Freecomproductsorneedtechnical assistance,please contacttheFreecomServiceCenter

for your country. See www.freecom.com for details.

Freecom offers free unlimited helpdesk support.

Warning !

purposes and may be trademarks or registered trademarks of the respective companies.

This device was designed for home or office use.

Warning! This device is equipment complying with EN55022 class A. This equipment

can cause radio disturbances in a residential area. If this is the case, the user has to take

appropriate measures and assume all responsibility and costs for. It may not be used near

or with any life-sustaining systems.

Freecom cannot be made liable for any damages, loss of data or damage following

thereof -whatsoever (including, without limitation, damages for loss of business profits,

business interruption, loss of business information, or other pecuniary loss) arising out

of the use of or inability to use this Freecom product, even if Freecom has been advised

of the possibility of such damages.

We reserve the right to upgrade our products in keeping with technological advances.

User manual

General Information ...........................................................................................................page 4

Precautionary measures....................................................................................................page 5

Freecom Mobile Drive Secure ........................................................................................page 6

Chapter 1:

Hardware Installation.........................................................................................................page 7

Chapter 2:

Driver Installation ................................................................................................................page 10

Chapter 3:

Installation of the application software ......................................................................page 11

Chapter 4:

Enabling data protection by keycard –

using the Freecom Hard Drive Keycard Protection software tool.....................page 13

Chapter 5:

Using Freecom Turbo USB 2.0 (only PC) .....................................................................page 25

Chapter 6:

Partitioning your Freecom Mobile Drive Secure .....................................................page 26

Table of Contents

Freecom Mobile Drive Secure

* To achieve optimal performance from the Freecom Mobile Drive Secure your computer should be equipped

with an USB 2.0 port.

General Information

The following hardware and software requirements must be fulfilled to ensure trouble-

free operation.

System requirements

In order to use the Freecom Mobile Drive Secure, following components are needed:

PC:

• Intel Pentium III / AMD Duron 900 MHz or higher

• 256 MB RAM (Vista: 512 MB RAM) or higher

• Available USB 2.0 or USB 1.1 port*

• Internet connection for online warranty registration, software updates and downloads

• Operating system: Windows XP, Windows Vista

Mac:

• PowerPC G3/G4/G5, Mac Book Pro or Intel Mac

• 256 MB RAM or higher

• Available USB 2.0 or USB 1.1 port*

• Internet connection for online warranty registration, software updates and downloads

• Operating system: Mac OS X v10.4 or higher

General Information

Precautionary measures

To ensure that your Freecom Mobile Drive Secure functions properly, please take note

of the following precautions. If these are not followed, you may void your warranty and

damage the Freecom Mobile Drive Secure.

• SafelyremovetheFreecomMobileDriveSecureviayouroperatingsystem(the"unplug

or eject hardware" option in the Windows taskbar) before disconnecting the USB cable

or power cable and before switching off the device. Failing to do so may result in data

loss.

• Do not drop the Freecom Mobile Drive Secure or expose it to other kinds of sudden

mechanical shocks as this may result in data loss and damage to the Freecom Mobile

Drive Secure.

• Do not use the Freecom Mobile Drive Secure when the ambient temperature is below

10°C or above 35°C.

• If the Freecom Mobile Drive Secure is moved from a cool environment to a warmer

environment, please allow the drive to acclimatize to the ambient temperature

before operating the device. Failing to do so may lead to condensation within the

drive enclosure, which in turn may cause the drive to malfunction.

• Do not place liquids or drinks on the Freecom Mobile Drive Secure. When liquids are

spilled andgetin contact with theelectronicswithinthedrive enclosure, it willdamage

the drive and will cause the drive to malfunction.

• Do not use the Freecom Mobile Drive Secure in a dusty environment. Dust inside the

enclosure may damage the internal electronics and result in drive malfunction.

• Opening the Freecom Mobile Drive Secure will void the warranty.

• Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Mobile Drive Secure

can be connected to all USB ports. When connected to a USB 1.1 port, however, the

performance (data transfer rate) of the Freecom Mobile Drive Secure will be much

lower than when the drive is connected to a USB 2.0 port.

On some computers it might occur that the USB port does not deliver enough

power to the Mobile Drive Secure. In that case, you need to use an external

power supply.

For safety reasons you must only use Freecom’s Power Supply Part.No. 30003.

Don’t use any other other power supply!

Freecom Mobile Drive Secure

The hi-speed data transfer through the USB 2.0 interface makes it ideally suitable for

data-storage, file sharing, backup, archiving, audio playback and all applications that

need fast file access.

Foryourconvenience,theFreecomMobileDriveSecurehasbeenpartitioned(1partition)and

pre-formatted (FAT32 file system). The FAT32 format ensures maximum interchangeability

of the Freecom Mobile Drive Secure between different computers. Should you choose

to format the Freecom Mobile Drive Secure in another file system (e.g. NTFS), please be

aware of possible problems when connecting the Freecom Mobile Drive Secure to another

computer than the one you used for formatting.

Hardware Installation

Chapter 1: Hardware Installation

Before connecting the cables make sure the Freecom Mobile Drive Secure is switched

off.

1. Connect the interface cable (USB) to the Freecom Mobile

Drive Secure.

2. Connect the interface cable (USB) to the interface port (USB)

of your computer.

Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Mobile

Drive Secure can be connected to all USB ports. When connected to a USB 1.1

port, however, the performance (data transfer rate) of the Freecom Mobile

Drive Secure will be much lower than when the drive is connected to a USB

2.0 port.

For optimum performance the Freecom Mobile Drive Secure should always

be connected to a USB 2.0 interface.

Freecom Mobile Drive Secure

1.1 Data protection by keycard (using RFID technology)

The data on the Mobile Drive Secure can be protected from unwanted access by using

a keycard to unlock the drive. This keycard is placed over a sensor inside the Mobile

Drive Secure, when the Mobile Drive Secure recognizes the keycard it will unlock the

drive for use.

The technology inside the keycard and the Mobile Drive Secure is called RFID. RFID stands

for Radio Frequency Identification. The same technology can be found for example in

office buildings, where people need to present a keycard if they want access to the

building or to a certain floor / department / room.

Your Mobile Drive Secure comes with 2 Keycards, in credit card size. This card fits easily

in your wallet so you always will carry it with you. The default setting of the drive is "no

protection". When starting to use the Mobile Drive Secure for the first time, you need to

configure the 2 supplied keycards with the drive. The Mobile Drive Secure can identify

maximum 2 keycards. We suggest that – after configuring – you use one keycard (labeled

"Security Key") and store the other keycard (labeled "Master Key") in a safe place, in case

your Security Key gets lost.

Of course you can also use the drive without the keycards. In that case you do not need

to run the configuration wizard – you can immediately start using your hard drive after

unpacking it from the box. Please note that your data is not protected against unwanted

access then.

You can also decide to use the keycard protection at a later stage, however please note

that the drive needs to be reformatted then and all data on the drive will be lost. See

chapter 4.

How the keycard protection works:

Mobile Drive

Secure locked

unlock Mobile Drive

Secure with keycard

over the sensor

Mobile Drive

Secure

unlocked

Move keycard over

the sensor

Mobile Drive Secure

locked

To configure the 2 keycards using the "Freecom Hard Drive Keycard Protection" software

assistant, see chapter 4.

Hardware Installation

1.2 RFID sensor and LEDs

1. RFID sensor

This is the position where the keycard needs to be held to unlock the drive.

2. LED (green/red)

LED off: keycard protection not configured

LED red, flashing quickly: waiting for initial recognition of the first

Keycard

LED green, flashing quickly: waiting for initial recognition of the second

Keycard

LED red, flashing slowly (1 second gap): delay of error detection

LED red, bright: hard drive locked, can not be accessed

LED green, bright: hard drive unlocked, ready for use (read data

from / write data to the hard drive)

LED red, flashing quickly: erasing data on the hard drive

3. LED (blue)

LED blue: device on

LED blue blinking: data transfer

2. LED (green/red)

3. LED (blue)

1. RFID sensor

Freecom Mobile Drive Secure

4. Acoustic signals

Red LED: Mobile Drive Secure is locked, one short beep

when drive is connected to PC/Mac

Green LED: MobileDriveSecureisunlocked,twoshortbeeps

when keycard is moved over sensor to unlock

or to lock the drive

While configuring the keycards:

No card: LED is blinking red, four beeps when ready for

the first keycard

After first card: LED is blinking green, two short beeps when

first keycard was accepted

After second card: LED is constantly green, two short beeps when

second keycard was accepted

Chapter 2: Driver Installation

Under Windows XP / Vista and Mac OS X a separate Freecom driver is not required. The

drivers will be installed automatically by the operating system after plugging in the

Freecom Mobile Drive Secure into the USB port of the computer.

Andere Handbücher für Mobile Drive Secure

Inhaltsverzeichnis

Andere Freecom Lagerung Handbücher

Freecom

Freecom Mobile Drive Secure Bedienungsanleitung

Freecom

Freecom USB-CARD Bedienungsanleitung

Freecom

Freecom 3.5 " / USB 2.0 / ESATA Bedienungsanleitung

Freecom

Freecom FHD-2 Bedienungsanleitung

Freecom

Freecom LTO-1840 Bedienungsanleitung

Freecom

Freecom VALUELOADER DLT Bedienungsanleitung

Freecom

Freecom NETWORK DRIVE - Bedienungsanleitung

Freecom

Freecom USB Card Betriebsanleitung

Freecom

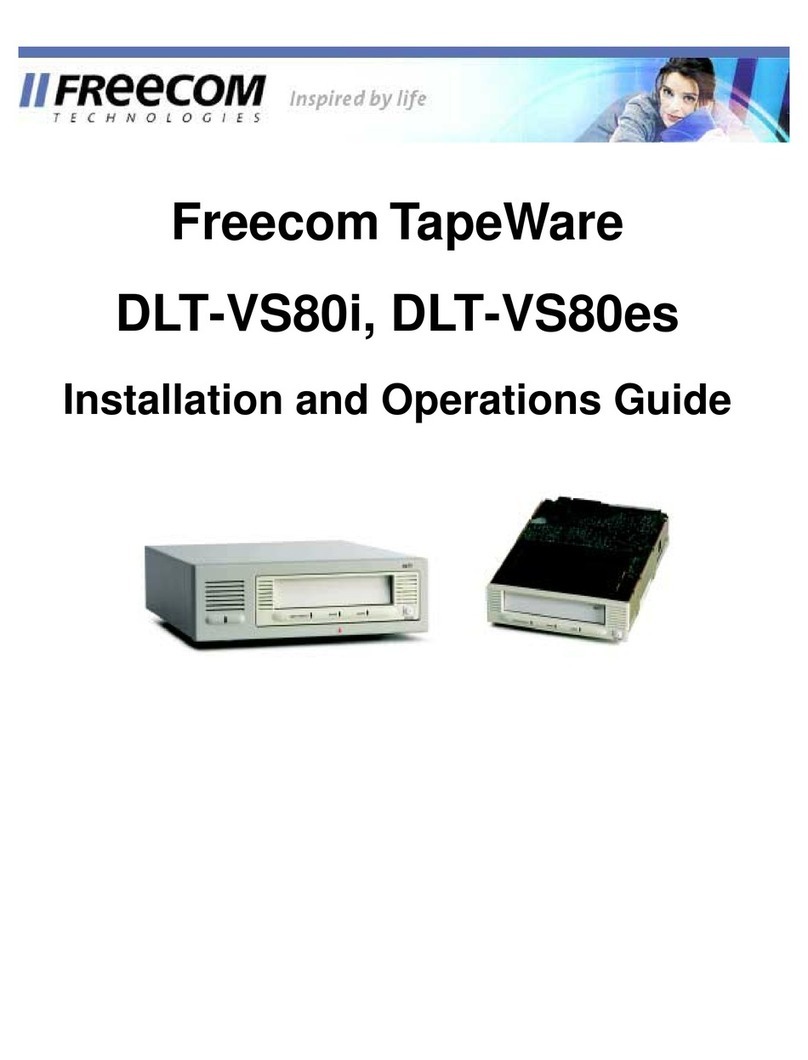

Freecom ValueLoader DLT VS80 Betriebsanleitung

Freecom

Freecom DLT-V4 EZ-Kit Series Bedienungsanleitung

Freecom

Freecom FC TapeWare AIT-260i Bedienungsanleitung

Freecom

Freecom Mobile Drive II Bedienungsanleitung

Freecom

Freecom SDLT-600i Bedienungsanleitung

Freecom

Freecom HARD DRIVE XS 3.0 - Bedienungsanleitung

Freecom

Freecom DLT-VS-160 Bedienungsanleitung

Freecom

Freecom HARD DRIVE QUATTRO - Bedienungsanleitung

Freecom

Freecom Hard Drive Bedienungsanleitung

Freecom

Freecom Mobile Drive Secure Installationsanleitung

Freecom

Freecom MOBILE DRIVE CLASSIC 3.0 Installationsanleitung

Freecom

Freecom MOBILE DRIVE XXS Bedienungsanleitung

Freecom

Freecom TOUGH DRIVE LEATHER - Bedienungsanleitung

Freecom

Freecom ToughDrive Pro UF Bedienungsanleitung

Freecom

Freecom LTO SUPERLOADER Bedienungsanleitung

Freecom

Freecom LTO 960 FH Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung

Dell

Dell PowerVault MD3600f Series Bedienungsanleitung
