Freescale Semiconductor

User Guide

MCUSLK_CSM12C32

Rev. 0, 6/2005

Getting Started with the Microcontroller

Student Learning Kit (MCUSLK)

Using the MC9S12C32 MCU Application Module (CSM-12C32)

By Eduardo Montañez

Applications Engineering

Austin, Texas

By Spencer Ruggles

Axiom Manufacturing

Garland, Texas

Overview

This document will guide you through all the steps necessary to begin development on an HCS12 Family

microcontroller unit (MCU) using your MCUSLK. The software setup section will assist you install the

Metrowerks’ CodeWarrior software and necessary software to support your MCU Project Board – 2. The

hardware setup section will walk you through configuring the MCU Project Board – 2 for use with the

MC9S12C32 MCU application module (Axiom’s CSM12C32). The development section will show you

how to create, build, and debug your application. Refer to the MCU Project Board – 2 user guide,

MC9S12C32 MCU application module user guide and Metrowerks’ CodeWarrior documentation for

details.

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

2Freescale Semiconductor

Software Setup

The following software installation is a one-time, required procedure per host PC that you intend to use

with the MCU Project Board – 2. After completing the software setup section on your host PC, you can

then skip the software section on subsequent uses of your project board and begin with the hardware

setup or development sections.

1. To install and register CodeWarrior development tools for HC(S)12 MCUs onto a host PC, follow

the instructions outlined in sections A, B, and C of the CodeWarrior Development Studio for

Freescale 68HC(S)12 Microcontrollers quick start pamphlet found inside the supplied 3-cd case

labeled CodeWarrior Development Studio for HC(S)08 Special Edition and HC(S)12 Special

Edition. Make sure to request the special edition license when registering.1The special edition

license version of CodeWarrior is necessary for developing applications for the MC9S12C32 MCU

application module board.

2. Install a CodeWarrior service patch labeled “CW12_V3_1_ICD12_USB2_0_Sim_patch.exe”

located in the Service Pack CD found inside the supplied 3-cd case labeled CodeWarrior

Development Studio for HC(S)08 Special Edition and HC(S)12 Special Edition. The patch is

located under the E:\HC(S)12\CW12_V3_1\ directory in the Service Pack CD. Install by double-

clicking on the file and by following the on-screen instructions.

NOTE

The CW12_V3_1_ICD12_USB2_0_Sim_patch.exe is REQUIRED for the

USB multilink pod on the MCU Project Board – 2 to function with the

Metrowerks CodeWarrior development tools and must be installed prior to

the hardware setup section. Other patches included on the Service Pack

CD are recommended if developing an application on a HC(S)12

microcontroller other than the MC9S12C32.

NOTE

Periodically check the corresponding development tool product page for

patches and updates. For questions on CodeWarrior development tools,

contact [email protected]

1. Registering will email you instructions for how to acquire the special

edition license. After you acquire the special edition license, place it in the

root CodeWarrior directory. If you encounter problems with registration, you

can acquire your special edition license online at

http://www.metrowerks.com/MW/Develop/Embedded/HC12/Downloads.

Hardware Setup

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

Freescale Semiconductor 3

Hardware Setup

Unpack

1. Open the shipping carton and remove the contents. Verify that all packing list items have been

received.

2. Inspect both the MCU Project Board – 2 and the MC9S12C32 MCU application module for any

damage that may have occurred during shipping. If damage is found, contact the manufacturer at

[email protected] for assistance.

Configuring the MCU Project Board – 2

1. To begin, place the MCU Project Board – 2 on a flat sturdy surface. Ensure sufficient space is

available around the project board to safely construct and test prototyped circuits.

2. Verify that all the factory default jumper settings are configured properly on the MCU Project

Board – 2 as shown by Figure 1. Highlighted blocks indicate the “on” or “installed” position of

jumpers. Circles indicate the location on the project board where the jumpers are located. Table 1

summarizes the default state for the jumper settings. Please refer to MCU Project Board – 2 User

Guide for more details and alternative configurations.

Figure 1. MCU Project Board – 2 Default Jumper Settings

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

4Freescale Semiconductor

Hardware Setup

Table 1. Summary of Default Jumper Settings (Sheet 1 of 2)

Jumper Position Jumper ID Description

PWR_SEL

J1 VIN

JP1 Selects VIn (wall power transformer) as the default power

source for the project board.

+5V_SEL

USB JP1

JP2

Selects USB (power via USB cable from host PC) as the

default power source for the project board. This jumper

overrides PSEL_A in USB position.

VDD_SEL

+5V +3.3V

JP3 Sets VDD to +5 V for project board.

PS1_EN

JP11 Enables PS1 output (±15 V supply from dc-dc converter) to

the project board.

J301

HIGH FULL

USB-ML

-MCUSLK

Selects USB high-speed communications for the BDM

Multilink pod on the project board. If the user encounters a

communication failure, USB communication speed may be

reduced by setting this option jumper to FULL.

MODULE

POWER

JP4A

JP4B

Routes VDD to MCU_1 and GND to MCU_3 to power a

plugged in application module board on MCU PORT

connector.

SS_SEL

SS* GPIO

JP5 Selects dedicated SS input source to MCU_23 on MCU

PORT connector to transfer data to LCD panel.

VDD

GND

Hardware Setup

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

Freescale Semiconductor 5

CONTRAST

ADJ

FIX

JP12 Selects fixed LCD contrast voltage.

COM_SEL

MON08 COM

JP8 Selects RS-232 communications for project board COM port.

COM_EN

JP9 Enables all RS-232 communication signals individually for

project board COM port.

AMPL

JP7 Oscillator output at reduced amplitude – 3.3 Vpp.

LED_EN

JP6 Enables all LED outputs on project board.

UFEA

JP10

Enables access to direct connect features for buzzer, four

push buttons, four LEDs, and potentiometer to MCU PORT

connector to simplify circuit connections and emphasize

software development.

Table 1. Summary of Default Jumper Settings (Sheet 2 of 2)

Jumper Position Jumper ID Description

CTS

RTS

RXD

TXD

LED

POT

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

6Freescale Semiconductor

Hardware Setup

3. Configure the MC9S12C32 MCU application module (CSM12C32) PWR_SEL option header.

Install jumpers as shown.

PWR_SEL

4. Configure the MC9S12C32 MCU application module (CSM12C32) USER option header. Install

jumpers as shown below.

USER

5. Install the MC9S12C32 MCU application module in the MCU PORT connector (J5) on the project

board. Align pin 1 on the application module with pin 1 of the MCU PORT connector on the project

board as marked by Figure 2.

Figure 2. Installation of MC9S12C32 MCU Application Module

6. Power up your host PC and connect the supplied USB cable to an available USB port on your host

PC.

NOTE

Prior to executing the following steps, all CodeWarrior development tools

for the HC(S)12 and USB 2.0 service patch software included in the

CodeWarrior Development Studio for HC(S)08 Special Edition and

HC(S)12 Special Edition 3-cd case must be installed per the instructions in

the software setup section.

PIN 1

Hardware Setup

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

Freescale Semiconductor 7

7. Connect the other end of the USB cable to the USB connector on the MCU Project Board – 2.

Figure 3 illustrates the USB connector on the project board for the BDM Multilink pod interface to

power, program, erase, and debug the MC9S12C32 MCU on the application module board.

Figure 3. Installation of USB Cable

NOTE

Steps 8 through 11 are a one-time, required procedure per host PC that you

intend to use with the MCU Project Board – 2 and can be skipped on

subsequent uses of your project board.

8. Allow your host PC to detect your new hardware. You will see a popup message in the task bar

stating, “Found New Hardware.” Without any user action, the Found New Hardware Wizard will

appear as illustrated by Figure 4 and prompt you to install software for USB Multilink 2.0.

Figure 4. Found New Hardware Wizard (Screen 1)

PLUG-IN

USB

CABLE

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

8Freescale Semiconductor

Hardware Setup

9. Select “Install the software automatically (recommended)” from the Found New Hardware Wizard

(Screen 1) and click “Next” button to continue with installation.

10. Installation will begin with the Found New Hardware Wizard (Screen 2) illustrated by Figure 5. No

user action necessary until software is completed installing.

Figure 5. Found New Hardware Wizard (Screen 2)

Hardware Setup

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

Freescale Semiconductor 9

11. Successful installation is verified by Found New Hardware (Screen 3) illustrated by Figure 6. Click

on “Finish” button to complete installation and close wizard.

Figure 6. Found New Hardware Wizard (Screen 3)

12. Verify that the +3.3 V LED, +5 V LED, and both green and yellow USB LEDs on the MCU Project

Board – 2 are lit.

13. Verify that the VDD LED on the MC9S12C32 MCU application module board (CSM12C32) is lit.

14. If the LEDs in steps 13 and 14 are not lit, make sure the jumper options are set as described in

steps 2 through 6. Also, see the troubleshooting tips section in the MCU Project Board – 2 user

guide.

15. The MCU Project Board – 2 and the MC9S12C32 MCU application module are now ready for use.

Getting Started with the MCUSLK for MC9S12C32 Application Module, Rev. 0

10 Freescale Semiconductor

Development

Creating and Building a Project in CodeWarrior Environment

After properly installing and registering the CodeWarrior development tools as described in the Software

Setup section, and completing the MCU Project Board – 2 configuration as described in the Hardware

Setup section, you can now begin to develop your application for a target microcontroller. This section will

create and build a project under the CodeWarrior for HC(S)12 development tool platform.

NOTE

The instructions below are slightly different from the steps described in the

quick start pamphlet included in the CodeWarrior for HC(S)12 development

tools CD case. The instructions below are adjusted for the MCUSLK and

MC9S12C32 development module.

1. Launch the CodeWarrior IDE

a. Select:Start>Programs>MetrowerksCodeWarrior>CW12V3.1;amenu

will appear

b. Select: CodeWarrior IDE; IDE will start and a CodeWarrior window will appear

2. Create a new project

a. From IDE main menu bar, select: File> New; a new window will appear (see Figure 7)

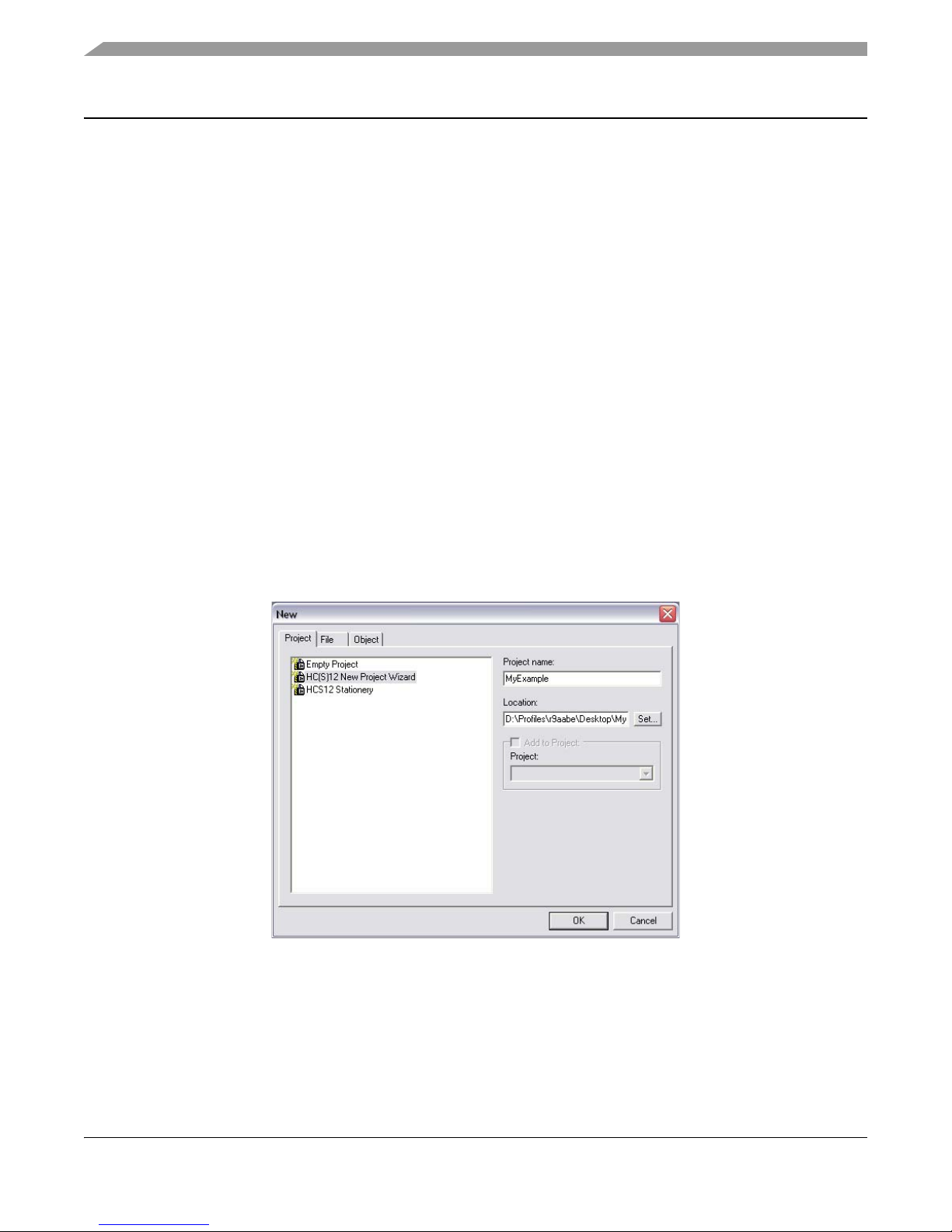

Figure 7. New Window

b. Select: “HC(S)12 New Project Wizard”

c. In the “Project name” text box, type the name you want to give the project (IDE automatically

adds .mcp extension when it creates project)

d. In the “Location” text box, set location where you want the project to be created

e. Click “OK” — the first page of the new project wizard will appear (see Figure 8a)

Inhaltsverzeichnis

Andere Freescale Semiconductor Mikrocontroller Handbücher

Freescale Semiconductor

Freescale Semiconductor TWR-KV58F220M Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC9S12XE Series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-K21F120M Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDM-MC-LVBLDC Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor RS08 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor ColdFire MCF5213 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MCF52230 ColdFire Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC68881 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor HCS12 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor DEMO9S08SE8 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC5604B Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDM-KL02Z Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor PXR4030 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDM-KL82Z Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Flexis Series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor M68HC08 series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor *KE02 Series Gebrauchsanweisung

Freescale Semiconductor

Freescale Semiconductor MPC5517G Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC9S08JS16 Series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC9S12VR Series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MMA7455L Gebrauchsanweisung

Freescale Semiconductor

Freescale Semiconductor MC68332 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Logic Zoom ColdFire LITE Series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor i.MX53 SABRE Bedienungsanleitung

Beliebte Mikrocontroller Handbücher anderer Marken

AMS

AMS AS7261 Demo Kit Bedienungsanleitung

Novatek

Novatek NT6861 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266 SDK Einrichtungshandbuch

Nuvoton

Nuvoton ISD61S00 ChipCorder Leitfaden

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Bedienungsanleitung

Texas Instruments

Texas Instruments Chipcon CC2420DK Bedienungsanleitung

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Bedienungsanleitung

NEC

NEC 78GK0S/K 1+ Series Montage- und Bedienungsanleitung

Mikroe

Mikroe SEMITECH N-PLC Click Montage- und Bedienungsanleitung

Intel

Intel Agilex Bedienungsanleitung

Cypress

Cypress CY4607 HX2VL Bedienungsanleitung

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320F2837 D Series Bedienungsanleitung

CYPRES

CYPRES CY14NVSRAMKIT-001 Bedienungsanleitung

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266EX Betriebsanleitung

Abov

Abov AC33M8128L Bedienungsanleitung

Laird

Laird BL654PA Bedienungsanleitung
