Frico PFW Series Bedienungsanleitung

Fläktradiator PFW

Fan convector PFW

Vifteradiator PFW

Convecteur dynamique PFW

Ventilatorkonvektor PFW

KonwektorywentylatorowePFW

PuhallinlämmitinPFW

...4

...8

...6

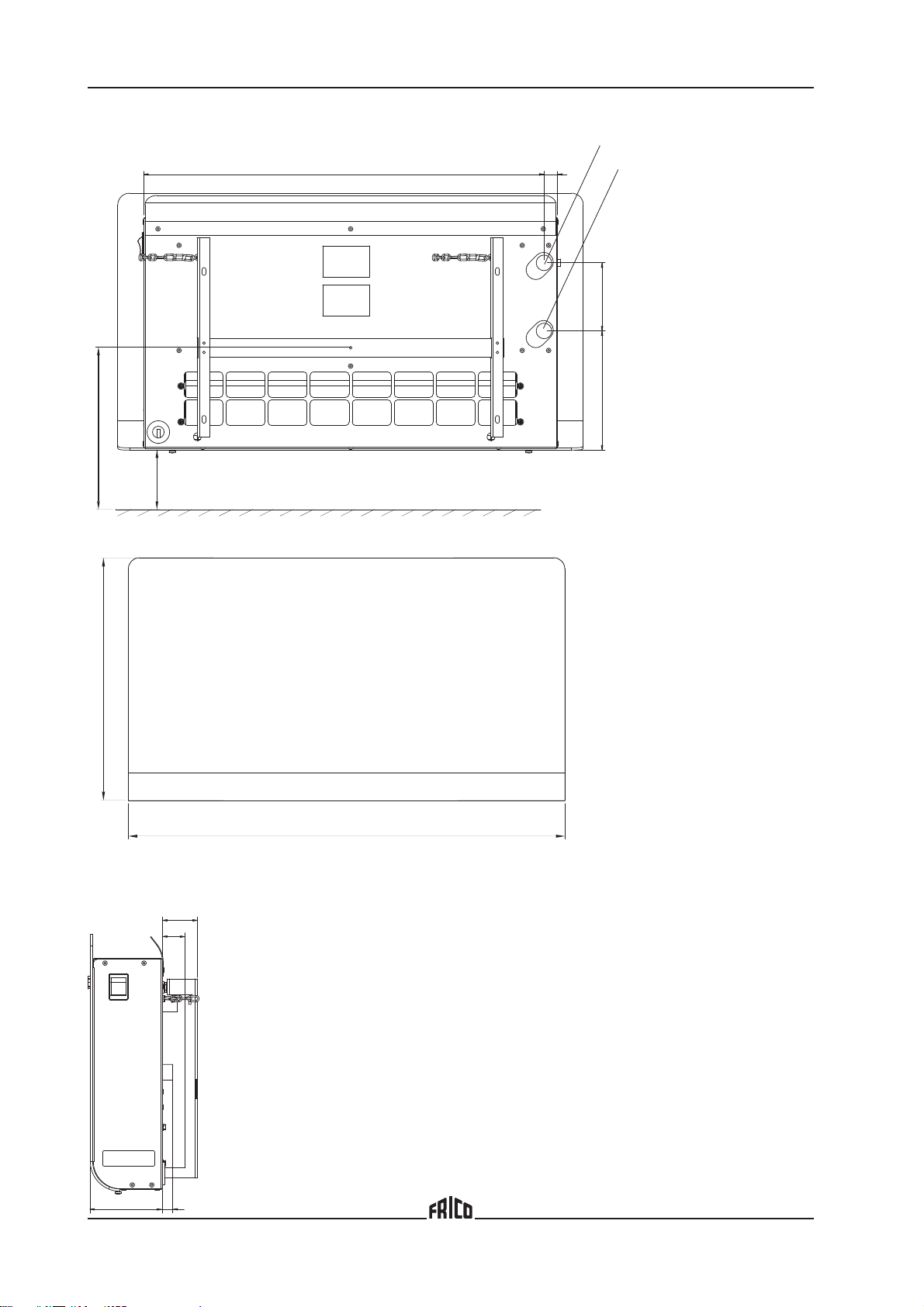

PFW

515 / 975 20

88153

Inlet DN15 ,outside thread (½")

Outlet DN15, outside thread (½")

240

100

990

330

598 / 1058

PFW

min 100 mm

Minimumavstånd runt radiatorn.

Minimum clearance around the radiator.

Минимальные расстояния при установке

RSK-nr Längd/Length Effekt/Output/* Spänning/Voltage/ Vikt/Weight

(SE) [mm] [W] [V] [kg]

PFW10 6727580 598 0-1000W 230V~ 7,3

PFW20 6727581 1058 0-2000W 230V~ 12,8

*Beroende av vattentemp./Depending on the water temp./

IP23

CE-märkning.

CE compliant.

[ ] [ ] [B] [ ]

PFW10 598 0-1000 230B~ 7,3

PFW20 1058 0-2000 230B~ 12,8

*В зависимости от температуры воды

IP23

Сертифицировано ГОСТ, стандарт СЕ

PFW

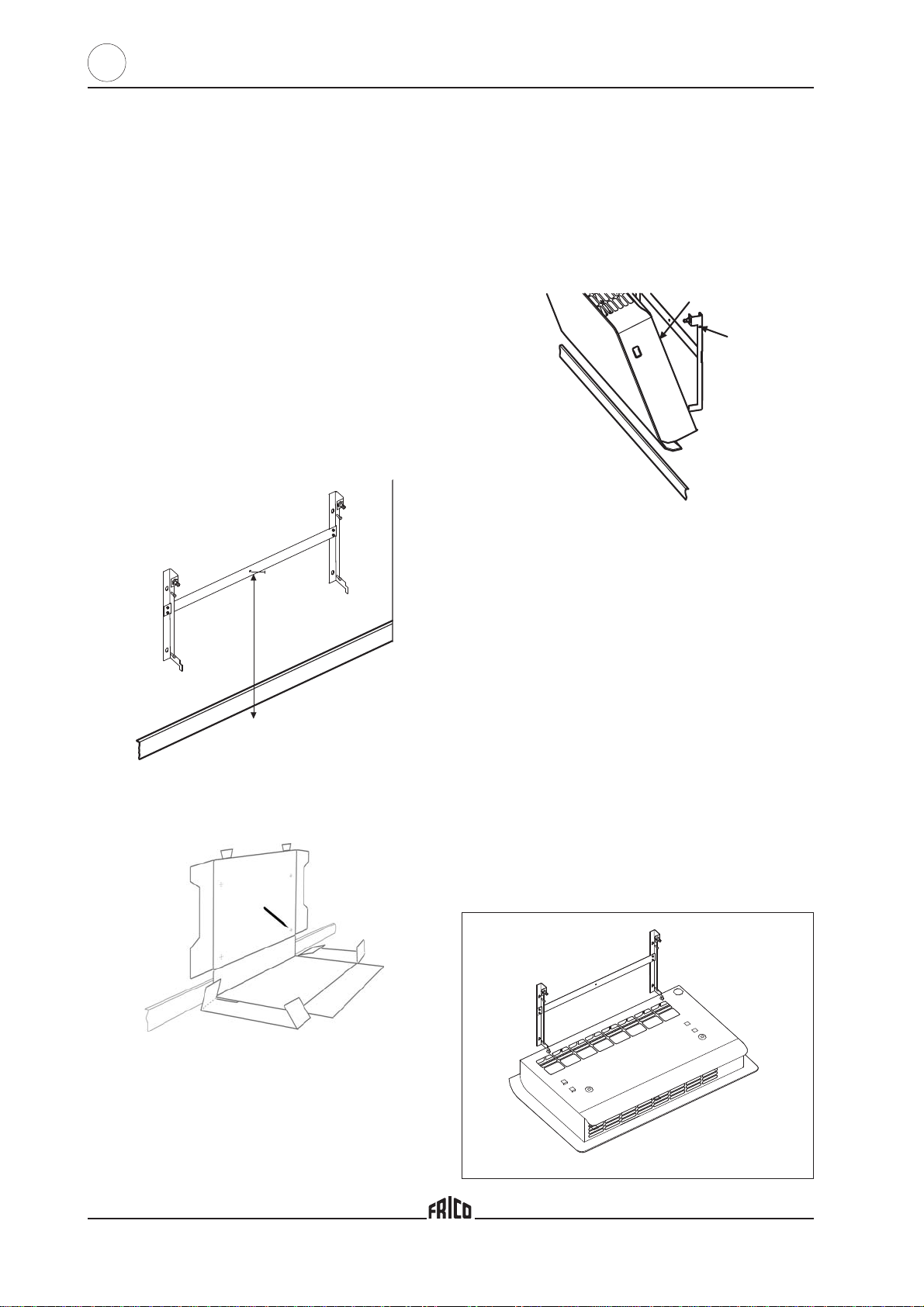

Mounting

1. Please note that the area close to the radiator must

be left free of obstructions, see page 2 for minimum

distance.

2. Mount the wall fixing on the wall. Make sure the

fixing is mounted level. The holes on the wall fixing

can be marked in two ways.

• Hammer a nail in the middle hole on the

fixture and use a spirit level to get it

square. (The distance between the hole in the

middle and the floor should be 240 mm.)

See Fig. 2.

• The holes can also be marked by using the

template on the box. Make sure the template is

flat to the wall surface! See Fig. 3.

Fasten the wall fixing securely on the wall by

screwing the screws in the oval holes (4x).

240 mm

Fig. 2

Using a spirit level to mount the wall fixing.

Fig. 3

Using the packing to mount the wall fixing.

3. Angle the radiator 90ooutwards and slot the

lower part of the wall fixing into the circular holes

furthest down on the back of the radiator. Raise

radiator and fasten the security chains. The top is

then clipped in place with the snap pins on the wall

fixing. Now the radiator will hang on the wall fixing

by the chains even if the pins are loosened for

example for cleaning. See Fig. 4.

Fig. 4

Mounting of security chains.

4. Connect the radiator to an earthed wall socket.

Water connection

The water pipes (DN15, 1/2” BSP-F outside thread)

are connected at the left hand side (when viewed

from inside of the building) on the backside of the

unit, see fig.on page 2.

Flexible hoses type PEX 15x2,5, length 850mm are

supplied with the unit as standard.

Using flexible hoses makes the maintenance and

service much easier.

The installation should be carried out by a certified

installer.

Mounting of fan convector PF.

horizontal

The chain is

fixed here

Fasten the

chain

here

PFW

Check-up

Make sure that the electrical connection is completed

and earth is connected. Put the radiator on and make

sure the fan is running.The fan speed can be

controlled in two steps with the switch on the right

hand side of the unit.

If the heater at first appears noisy, it should be

operated for at least a month before any evaluation

of sound level is done.

To change or remove the front panel

The front panel can easily be relacquered or the

appearance changed by applying a plastic film.

Disconnect the power before removing the front

panel, thereafter the two screws under the radiator

are loosened and the front panel is pulled

downwards. This must be done by a competent

electrician.

Approvals

• Protection class: IP23.

• PFW is approved for mounting with plug 230V~.

Safety

• The radiator must not be positioned immediately

below a permanent socket.

• The radiator must not be mounted outdoors.

• The radiator should be positioned out of reach of

people in showers and bathtubs.

• The radiator should be installed to ensure that

operation and maintenance can be carried out

safely.

• Before service and maintenance is started, the

power must be disconnected and the fan wheel

must have stopped.

Maintenance, service and reparation

The radiator should be cleaned when necessary,

recommended at least four a year to prevent damage

on the bearings (differs depending on the indoor

environment). If the air flow is obstructed it may

affect the operation of the radiator. Lower the

radiator forward. Vacuum the inlet grilles on the back

and underside. High pressure cleaning must not be

used to clean the radiator. Cleaning must be made

carefully and only in exeptional cases must the

radiator be opened. The radiator must only be opened

by a competent electrician. The bearings are

maintenance free and should only be changed when

necessary. Make sure no discordant sounds are

heard from the fan. Make sure that the fan wheel is

not blocked. A damaged mains cable must only be

changed by a competent electrician.

Art: 203643, 20100601 HH

Frico AB Tel: +46 31 336 86 00

Box 102 Fax: +46 31 26 28 25

SE-433 22 Partille [email protected]

Sweden www.frico.se

For your local contact: www.frico.se
