SIRe Advanced Fan Heater Electric

To run the unit

temporarily

without external

control select

mode 0.

Each unit should

have a unique ID on

its SIReB1X card.

Quick guide/start up

Check that all constituent parts are present

(see section Constituent parts).

Advice about location

PC board Base SIReB1X and PC board HUB

SIReA1X are installed close to the unit.

Control unit SIReUA1 has an integrated room

temperature sensor and is installed so that

it is easily accessible to the user. Wiring

between the PC Board Base SIReB1X and

heating fan must be laid for 230V.

RJ12 (6p/6c) modular cables, which are

available in different lengths, are used to con-

nect the PC board and the control unit. Long-

er cables are available as options. Maximum

cable lengths see section Options.

To prevent unauthorised people from acces-

sing the Control unit it can instead be placed

in another area and an external room sensor,

SIReRTX (option), can be installed in the

premises to sense the correct temperature.

Note! Internal sensor SIReIT02 shall be

mounted in the fan exhaust in the fan heater

unit in intended holder.

Connect the system

In control board base SIReB1X the unit is

connected further with RJ12 (6p/6c) modular

cable if several units are to be connected in

parallel.

If an external room temperature sensor SI-

ReRTX (option) is used it is connected using

modular cable RJ11 (4p/4c) on HUB SIReA1X.

Outdoor sensor SIReOTX is connected to

the terminal block on PC board Hub SIReA1X

Control board Base SIReB1X in/at the unit

and control unit SIReUA1 are connected by

PC board HUB SIReA1X with RJ12 (6p/6c)

modular cables, after the other units are po-

wered up.

Power supply for electric heat must be con-

nected separately (check manual for the fan

heater unit).

Wiring diagrams

The wiring diagrams are in a separate section

at the end of this manual.

Enter ID/Operation without control unit

The control system can control one or more

units in parallel (max 9). Each unit must get

a unique ID number (1-9) which is set in the

ID selector of the PC board. E.g. Unit 1: ID=1,

unit 2: ID=3

If the external control for some reason has

not been installed the unit can still be run

temporarily. The ID selector is then set to

mode 0 see the image below.

The function is half speed and half heating

output

When the ID number must be changed the

unit must be disconnected from power.

SIRe Advanced Fan Heater Electric

Start-up wizard

Fan step 1-5

Heating step off-3

Set language

English

Start-up wizard

Set temp. unit

°C

°F

Start-up wizard

Set date

2011-05-28

YYYY-MM-DD

Start-up wizard

Set time

14:07

24h format

Start-up wizard

Function test

Start test

Skip test

Start-up wizard

Function test

Test completed

Restart test

Start-up wizard

Start-up ﬁnished

Proceed

Restart wizard

Start-up wizard

External ﬁlter guard

OFF

Start-up wizard

Mixing cabinet on/off

OFF

Start-up wizard

Eco / Comfort

Comfort mode

Eco mode

Screen function test

Checking system...

Start up

System supplied with power. At the ﬁrst start

up, the start-up wizard is run and the basic

settings are made. Fan and heating steps

are tested through the test program. Then a

status window is displayed.

At the ﬁrst start up alarm and error codes

can occur, these will usually be reset without

actions.

Unit with mixing cabinet

Damper motor PSM01 must be installed on

the throttle spindle to the mixing cabinet.

Electrical connection between the damper

motor and PC board HUB SIReA1X and 230V

power supply (see the wiring diagram at the

end of the manual).

Start up

Select mixing cabinet On in the start-up

wizard.

SIRe Advanced Fan Heater Electric

Quick guide/start up

Advice about location 22

Connect the system 22

Wiring diagrams 22

Enter ID/Operation without control unit 22

Start up 23

Unit with mixing cabinet 23

Start up 23

Constituent parts

SIReFAX (without mixing cabinet) 25

SIReFAEMX (with mixing cabinet) 26

Option 27

Operating modes

Operating modes (without mixing cabinet) 28

Operating modes (with mixing cabinet) 28

Control unit SIReUA1

Overview 29

Statuswindow 29

Main menu

Current settings 30

Temperature settings 30

Fan control 30

System on/off 30

Installer menu 30

Installer menu

Installer status screen 31

Week program 31

Fan settings 32

Heating settings 32

External ﬁlter guard 34

Mixing cabinet 34

Filter guard settings 34

External control (BMS) 35

General settings 37

Service menu 37

Alarm and error codes

Displaying alarm and error codes 38

Reset alarm 38

Power failure 38

Overheat protection 38

Wiring diagrams, see last pages

Contents

SIRe Advanced Fan Heater Electric

Type Description HxWxD

[mm]

[m]

SIReUA1 Control unit Competent and Advanced 120x70x35

SIReB1X External PC Board Base 202x139x50

SIReIT02 Internal temperature sensor 1

SIReA1X PC Board HUB Advanced 202x139x50

SIReOTX Outdoor temperature sensor 70x33x23

SIReCC603 Modular cable RJ12 (6/6) 3

SIReCC605 Modular cable RJ12 (6/6) 5

SIReCC,

modular cable

SIReOTX,

outdoor temperature

sensor

SIReA1X,

PC board HUB

Advanced

Dimensions constituent parts

SIReUA1,

control unit

Competent and

Advanced

Wall unit cover SIReIT02, internal

temperature sensor

2 m

SIReB1X, External

PC board Basic

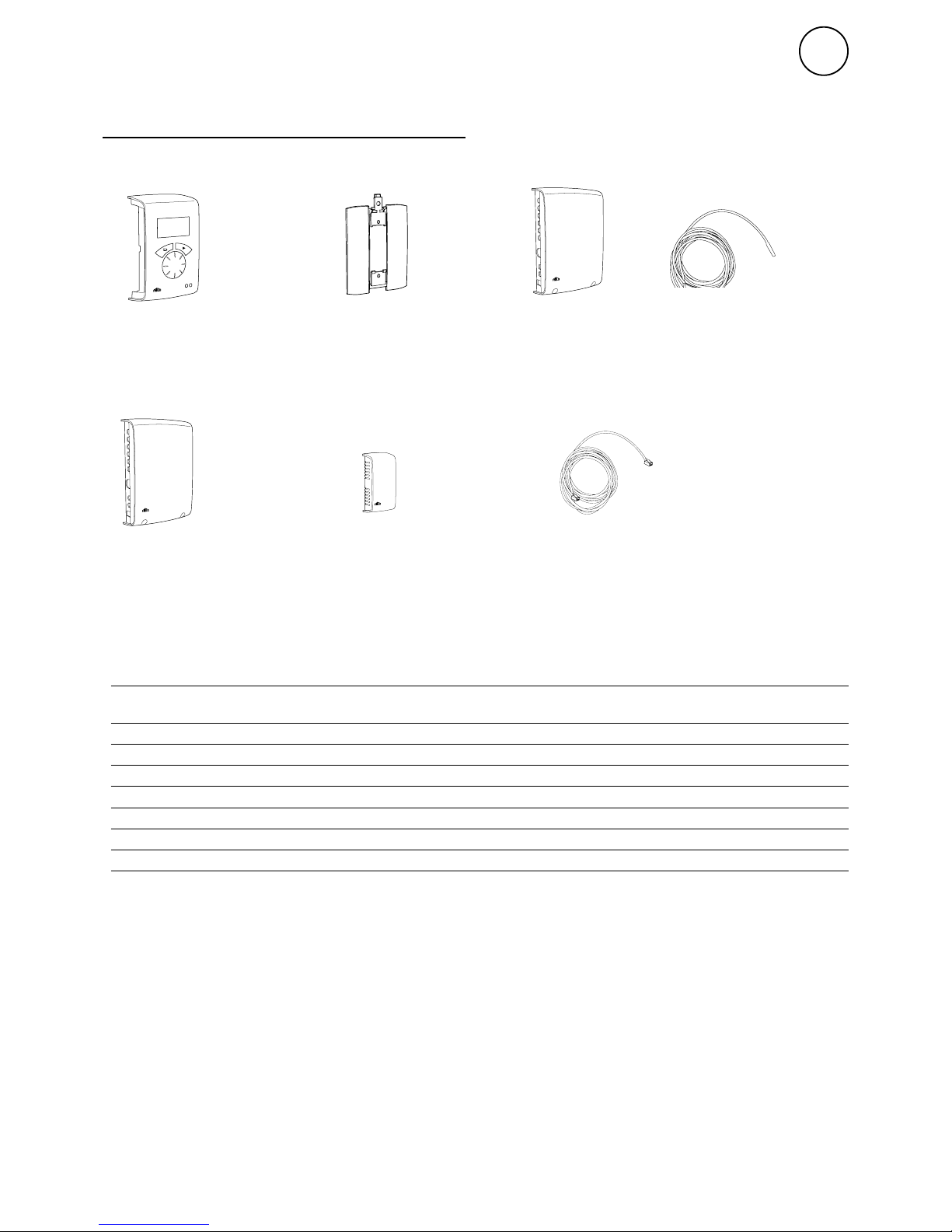

SIReFAX (without mixing cabinet)

Constituent parts

SIRe Advanced Fan Heater Electric

Type Description HxWxD

[mm]

[m]

SIReUA1 Control unit Competent and Advanced 120x70x35

SIReB1X External PC Board Base 202x139x50

SIReIT02 Internal temperature sensor 1

SIReA1X PC Board HUB Advanced 202x139x50

SIReOTX Outdoor temperature sensor 70x33x23

PSM01 Damper motor 230V 241x116x88

SIReCC603 Modular cable RJ12 (6/6) 3

SIReCC605 Modular cable RJ12 (6/6) 5

SIReCC,

modular cable

SIReA1X,

PC board HUB

Advanced

Dimensions constituent parts

SIReOTX,

outdoor

temperature sensor

SIReUA1,

control unit

Competent and

Advanced

Wall unit cover SIReIT02, internal

temperature sensor 2 m

PSM01, damper

motor

SIReB1X, External

PC board Basic

SIReFAEMX (with mixing cabinet)

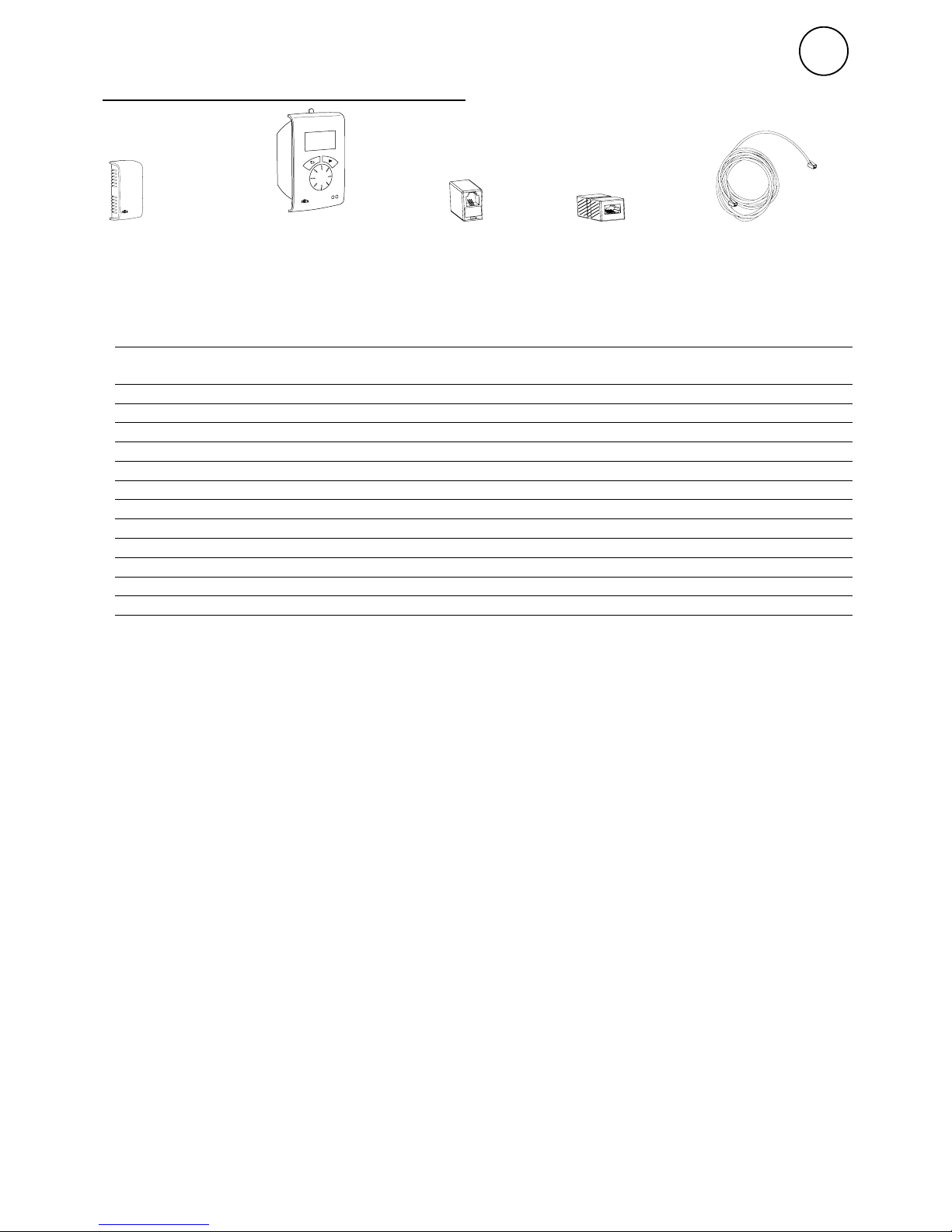

SIRe Advanced Fan Heater Electric

*) See separate manual.

Type RSK-no. E-no. Description HxWxD L

[m]

SIReRTX 673 09 22 87 510 12 External room temperature sensor 70x33x23 10

SIReUR* 673 09 21 87 510 11 Kit for recessed installation 114x70x50

SIReCJ4 Joint piece for two pcs. RJ11 (4/4)

SIReCJ6 Joint piece for two pcs. RJ12 (6/6)

SIReCC603 673 09 23 87 510 13 Modular cable RJ12 (6/6) 3

SIReCC605 673 09 24 87 510 14 Modular cable RJ12 (6/6) 5

SIReCC610 673 09 25 87 510 15 Modular cable RJ12 (6/6) 10

SIReCC615 673 09 26 87 510 16 Modular cable RJ12 (6/6) 15

SIReCC403 673 09 27 87 510 17 Modular cable RJ11 (4/4) 3

SIReCC405 673 09 28 87 510 18 Modular cable RJ11 (4/4) 5

SIReCC410 673 09 29 87 510 19 Modular cable RJ11 (4/4) 10

SIReCC415 673 09 30 87 510 20 Modular cable RJ11 (4/4) 15

SIReCJ6, joint

piece

SIReCJ4, joint

piece

SIReRTX, external

room temperature

sensor

SIReCC,

modular cable

Max. cable lengths

Modular cable RJ12 (6p/6c) between SIReUA1 and SIReA1X: max. 50 m.

Modular cable RJ12 (6p/6c) between SIReA1X and SIReB1(X): max. 10 m.

Modular cable RJ12 (6p/6c) between two SIReB1(X): max. 50 m.

Modular cable RJ11 (4p/4c) to room sensor SIReRTX: max. 20 m.

Cable for outdoor sensor SIReOTX (not modular): max. 50 m.

Total cable length permitted in the system is a maximum of 300 m.

Option

SIReUR, kit

for recessed

installation

SIRe Advanced Fan Heater Electric

Operating modes

Operating modes (without mixing cabinet)

Control is based on the three operating

modes:

•Thermostat/Manualfan

•Thermostat/Automaticfan

•Manual

Thermostat / Manual fan

The thermostat just controls the heating and

the fan runs continually. The fan speed is set

manually. The fan symbol is marked in the

status window, select desired speed with the

rotary dial and conﬁrm. (High speed limit is

step 4 for SE06-15 and step 2 for SE20/30).

When the setpoint value is fallen below by

0.5 K the ﬁrst heating step is engaged , if the

temperature falls further the next heating step

is engaged, etc. (SE06-15, 20 has 2 heating

steps, SE30 has 3 heating steps).

The difference between the set point value

and the room temperature that controls the

engagement of the Heating step is set under

Heating step diff., see Installer menu > Set-

tings heating > Heating step diff.

Thermostat / Automatic fan

The thermostat controls both the heating and

the fan. The fan speed is set manually in the

status window.

Manual

The fan speed and heating is set manually in

the status window. The heating can be set to 2

or 3 steps. Heating is blocked by the outdoor

temperature, see: [Installer menu > Settings

heating > Outdoor temp. limit]

Operating modes (with mixing cabinet)

The control is based on two operating modes:

Thermostat / Manual fan

Manual

Thermostat / Manual fan

The thermostat just controls the heating and

the fan runs continually. The fan speed is set

manually. The fan symbol is marked in the

status window, select desired speed with the

rotary dial and conﬁrm.

Day mode

In day mode or if no week program is

activated, the fan runs continuously at the

ﬁxed fan control and the damper is open

according to the setting under Day damper

pos.. The heating is controlled in steps via the

room temperature. If the inﬂow temperature

drops below the set minimum value, heat

connects even if it is sufﬁciently warm in the

premises.

Night mode

Night time (when the week program is

activated or via external signal for night

reduction) the damper is fully closed or open

according to the setting under Night damper

pos.. The fan is controlled by the room

temperature and the heating is controlled in

steps. When the desired temperature in the

premises has been reached, the fan switches

off and the damper is closed.

Manual

The fan speed and heating is set manually in

the status window. The heating can be set to 2

or 3 steps. Heating is blocked by the outdoor

temperature, see: [Installer menu > Settings

heating > Outdoor temp. limit]

SIRe Advanced Fan Heater Electric

-5.0

OUT °C

19.0

IN °C

OFF

Fan speed step

Forward arrow

Heating step

Week program

Day

Week program

Night

Week program

Out of operation

Rotary dial

Run signal Green led

Explanations

Statuswindow

The display shows prevailing room

temperature, outdoor temperature, fan and

heating step and day, night mode, or Off when

week program is used.

This also displays whether the control is set

to auto mode or manual mode.

Forward arrow

Conﬁrm selection and proceed.

Rotary dial

Scroll between alternatives

Back arrow

Go back.

After three minutes the control unit goes back

to displaying the status window.

Statuswindow

For thermostat/manual control of the fan and

heating the relevant symbol is marked in the

status window with the forward arrow. Steps

can then be set, conﬁrm with the forward

arrow. For description, see section Operating

modes.

Press the forward arrow to access the main

menu.

Statuswindow

Back arrow

Control unit SIReUA1

Overview

Meny

Alarm Red led

SIRe Advanced Fan Heater Electric

Main menu

Fan control

Current settings

Temperature settings

Main menu>Temperature settings

Room temp. day

Room temp. night

Main menu

System on/off

Fan control

Installer menu

Main menu>Installer menu

Enter password

(See manual)

0000

Main menu

Installer menu

Fan control

System on/off

Main menu>System on/off

System on/off

•ON

Main menu

System on/off

Temperature settings

Fan control

Main menu

Fan control

Current settings

Temperature settings

20°C

18°C

Current settings

Room temp. day

Room temp. night

High speed limit

Week program

Step 5

No program

Main menu

Current settings

Displays set room temp, high speed limit and

week program status.

Temperature settings

Set the desired room temperatures to apply

for day respectively night mode (room

temperature night is used for week program/

night reduction).

Factory setting

Room temp. day: 20°C (5 – 35°C)

Room temp. night: 18°C (0 – 20°C)

Fan control

No function. This setting should be done

manually in the status menu.

System on/off

Switch the whole unit off manually. In Off the

display goes out; as soon as a button is pushed

the display lights and shows System on/off. To

activate the unit again select On.

The unit’s safety functions are still active

when the system is switched off, which means

that the fan can continue to run for a moment

after mode Off has been selected.

Installer menu

The installer menu is at the bottom of the

main menu, this is password protected. See

Installer menu in this manual.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Frico Heizung Handbücher

Frico

Frico Thermozone ACC10 Bedienungsanleitung

Frico

Frico Elztrip EZ300 Series Service-Handbuch

Frico

Frico Thermoplus Series Bedienungsanleitung

Frico

Frico AGS5500 Bedienungsanleitung

Frico

Frico INFRAGLAS IHG12 Bedienungsanleitung

Frico

Frico Panther SE 06 Bedienungsanleitung

Frico

Frico SIReAC Bedienungsanleitung

Frico

Frico CIR105 Bedienungsanleitung

Frico

Frico Elektra V Bedienungsanleitung

Frico

Frico Comfortinfra CIR20521 Bedienungsanleitung

Frico

Frico Infragold IHG10W Bedienungsanleitung

Frico

Frico AGS5500 Bedienungsanleitung

Frico

Frico Thermozone AD Corinte W Bedienungsanleitung

Frico

Frico Elektra F Series Bedienungsanleitung

Frico

Frico SWT Series Bedienungsanleitung

Frico

Frico Panther T Series Bedienungsanleitung

Frico

Frico Elektra H Series Bedienungsanleitung

Frico

Frico Arden 3500 Bedienungsanleitung

Frico

Frico IRCF3000 Service-Handbuch

Frico

Frico Thermocassette HP Series Bedienungsanleitung

Frico

Frico Aquaztrip H Bedienungsanleitung

Frico

Frico Thermozone AC 200 Series Stücklistenhandbuch

Frico

Frico Thermozone AG 4000 A Series Bedienungsanleitung

Frico

Frico Thermozone ADR 200 E Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
