Frico Thermozone AR3500 Bedienungsanleitung

Original instructions

Thermozone AR3500

.... 24

.... 52

.... 40

.... 32

NO .... 36

.... 48

.... 28

.... 44

DE .... 60

.... 56

.... 64

ES .... 68

302

638

523

595

AR3500

Mounting

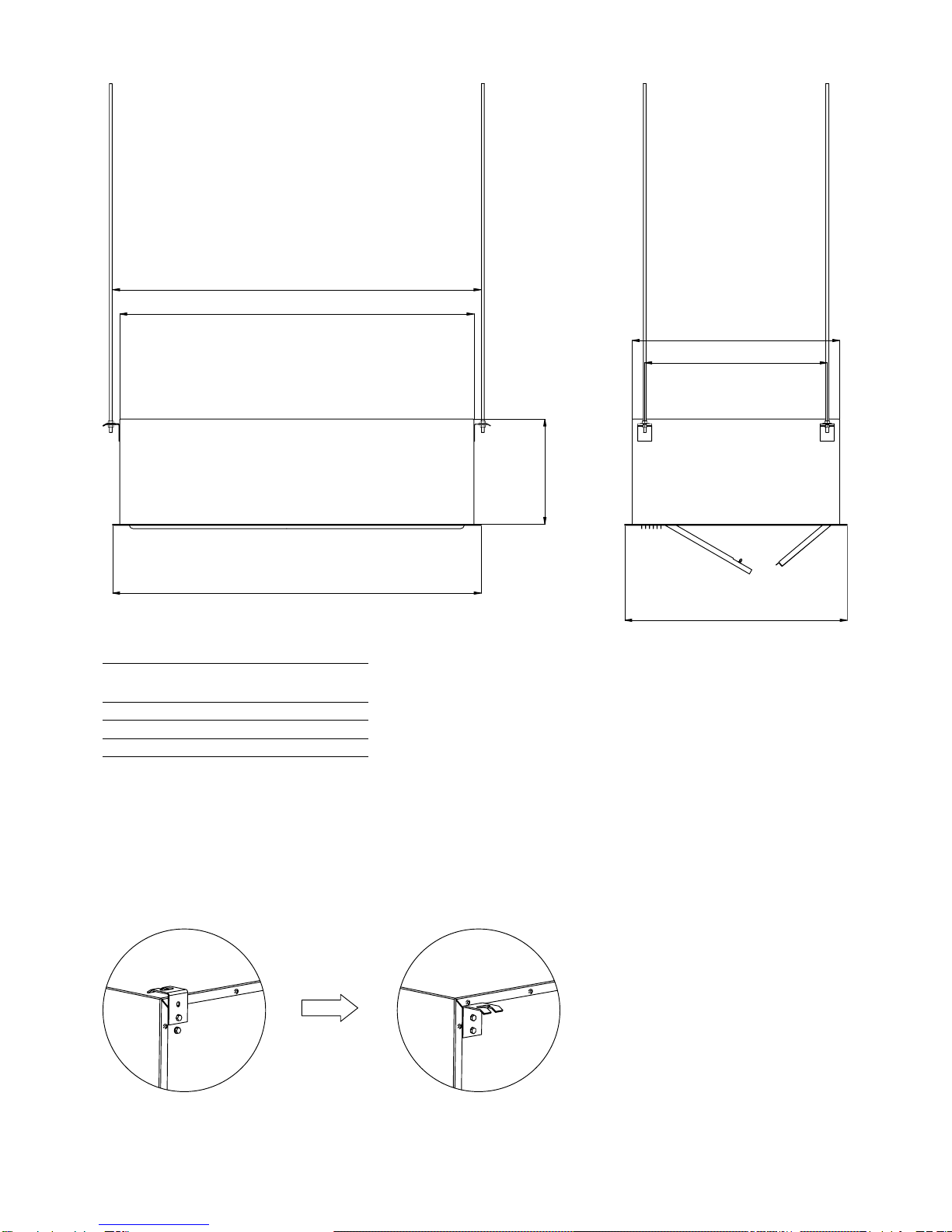

Fig. 1:The mounting brackets on delivery.

Type A

[mm]

AR3510 1057 1016 1067

AR3515 1567 1526 1577

AR3520 2073 2031 2083

AR3500

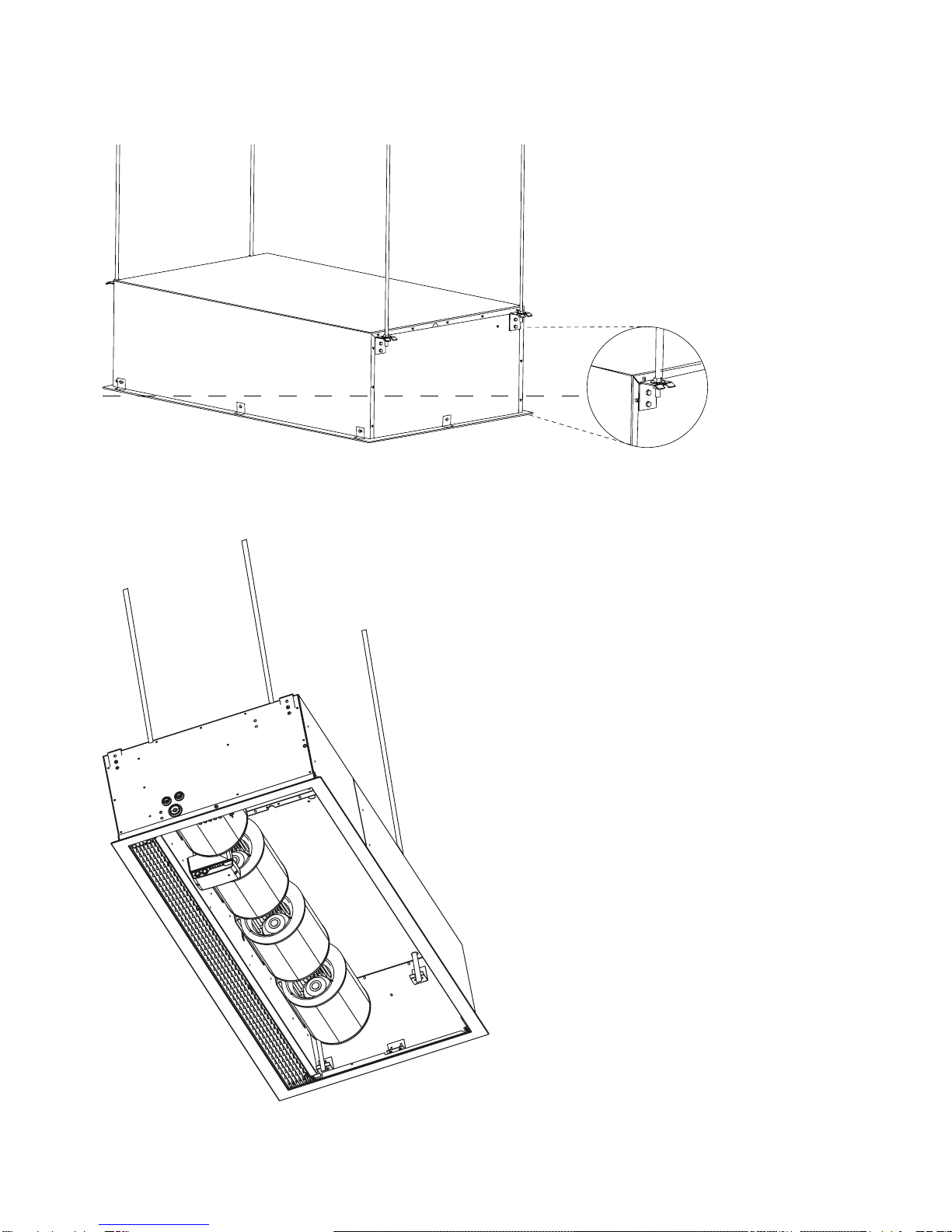

Fig. 2a: Mounting on threaded bars.

Mounting

Fig. 2b: Mounting on threaded bars inside unit.

SIRe

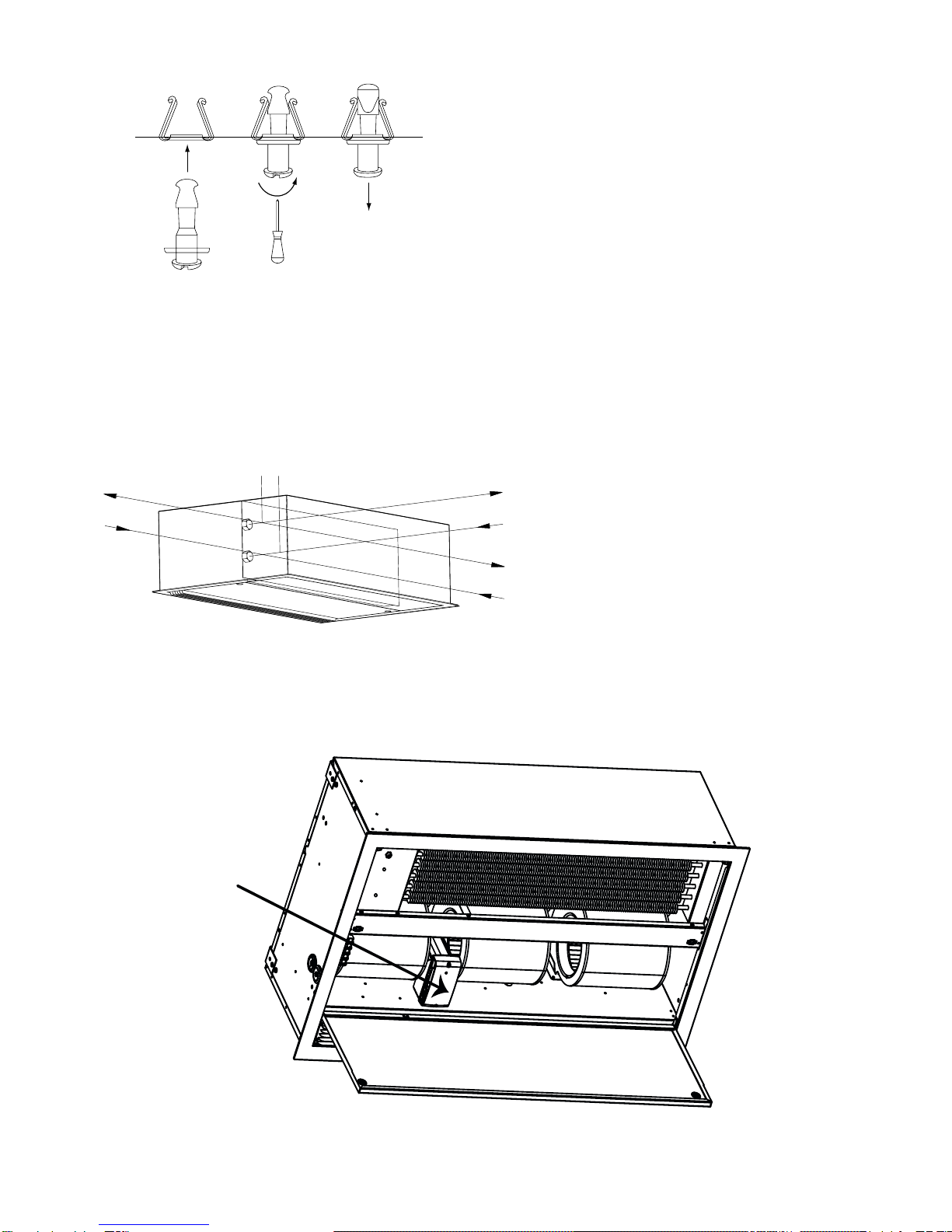

Fig. 3: Function of the snap ﬁxing

90°

Service hatch

Fig. 5: SIRe inside unit.

SIRe

AR3500

Water connections

Fig. 4:The water coil is connected inside the unit through holes which are made (during installation) on the

upper side or through the side of the unit, possible places are marked with punch marks.

Type RSK-nr Description HxWxD

[mm]

[m]

SIReB Control system Basic

SIReAC Control system Competent

SIReAA Control system Advanced

SIReRTX 673 09 22 External room temperature sensor 70x33x23

SIReUR* 673 09 21 Kit for recessed installation 114x70x50

SIReWTA

Clamp-on sensor

SIReCJ4 Joint piece for two pcs. RJ11 (4p/4c)

SIReCJ6 Joint piece for two pcs. RJ11 (6p/6c)

SIReCC603 673 09 23 Modular cable RJ11 (6p/6c) 3

SIReCC605 673 09 24 Modular cable RJ11 (6p/6c) 5

SIReCC610 673 09 25 Modular cable RJ11 (6p/6c) 10

SIReCC615 673 09 26 Modular cable RJ11 (6p/6c) 15

SIReCC403 673 09 27 Modular cable RJ11 (4p/4c) 3

SIReCC405 673 09 28 Modular cable RJ11 (4p/4c) 5

SIReCC410 673 09 29 Modular cable RJ11 (4p/4c) 10

SIReCC415 673 09 30 Modular cable RJ11 (4p/4c) 15

Regulations alternatives

This aircurtain is supplied with an intelligent

and well designed low voltage control

system SIRe which can be customized for

each unique application and environment.

The control system is pre-installed in the

aircurtain with an integrated control card.

Water regulation

SIRe is supplied pre-programmed with quick-

release connections and is very easy to use

and install. There are three different levels

with different functionality to choose from,

Basic, Competent or Advanced.

Type Description Voltage

[V]

Connection

VOS15LF Valve kit on/off 230 V DN15

VOS15NF Valve kit on/off 230 V DN15

VOS20 Valve kit on/off 230 V DN20

VOS25 Valve kit on/off 230 V DN25

VOSP15LF Pressure independent valve kit 230 V DN15

VOSP15NF Pressure independent valve kit 230 V DN15

VOSP20 Pressure independent valve kit 230 V DN20

VOSP25 Pressure independent valve kit 230 V DN25

VMO15LF Modulating valve kit 24 V DN15

VMO15NF Modulating valve kit 24 V DN15

VMO20 Modulating valve kit 24 V DN20

VMO25 Modulating valve kit 24 V DN25

VMOP15LF Pressure independent and modulating valve kit 24 V DN15

VMOP15NF Pressure independent and modulating valve kit 24 V DN15

VMOP20 Pressure independent and modulating valve kit 24 V DN20

VMOP25 Pressure independent and modulating valve kit 24 V DN25

VOT15 Three way valve and actuator on/off 230 V DN15

VOT20 Three way valve and actuator on/off 230 V DN20

VOT25 Three way valve and actuator on/off 230 V DN25

VMT15 Three way valve and modulating actuator 24 V DN15

VMT20 Three way valve and modulating actuator 24 V DN20

VMT25 Three way valve and modulating actuator 24 V DN25

VAT Adjustment tool for valve kit VOS, VOSP, VMO, VMOP

AR3500

Transformer

230V

200V

170V

145V

120V

100V

Blue

Black

AR3520A/W

AR3515A/W

SIReB1

Wiring diagrams AR3500

Internal wiring diagram

AR3500A/W

AR3500

L1 L2LN L3

Black

Grey

Blue

Transformer

230V

200V

170V

145V

120V

100V

Blue

Black

AR3520E18 AR3515E14

AR3520E18

SIReB1

Wiring diagrams AR3500

Internal wiring diagram

AR3500E

AR3500

Wiring diagrams -Without heat

Basic

Basic - parallell

SIReB1

SIReUB1

SIReB1

SIReUB1

SIReB1

AR3500

Competent

Wiring diagrams -Without heat

SIReUA1

EXTERNAL SETBACK TEMP.

ON/OFF (potential free contact)

EXTERNAL ALARM IN

(potential free contact)

EXTERNAL RPM 0-10V DC IN

EXTERNAL ON/OFF, 5-30V AC/DC

ALARM OUT (BMS)

(potential free contact,

max 3A, 230V)

78910 1112 15161718 1920

COM 1 COM 2 ROOM

SIReC1X

X5 C1

X4 ROOM

Pot.

Unit ID

SIReB1

N L

SIReDC

AR3500

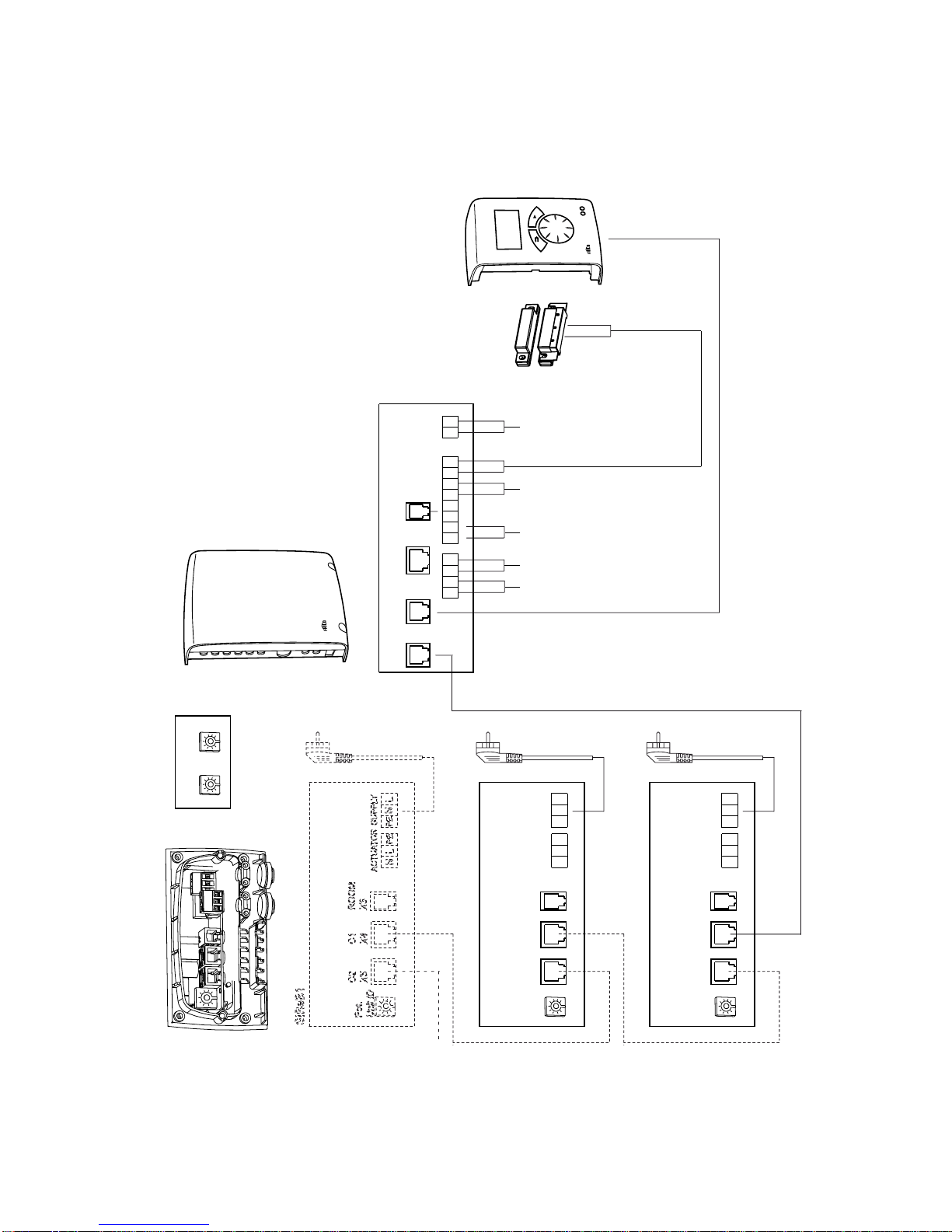

Competent - parallell

Wiring diagrams -Without heat

ROOM

PE N L

SUPPLY 230V

ACTUATOR

230V

SIReB1

X5 C1

X4 ROOM

Pot.

Unit ID

SIReB1

N L

ACTUATOR SUPPLY

X5 C1

X4 ROOM

Pot.

Unit ID

SIReB1

N L

ACTUATOR SUPPLY

Pot.

Unit ID Pot.

Unit ID

≠

SIReUA1

EXTERNAL SETBACK TEMP.

ON/OFF (potential free contact)

EXTERNAL ALARM IN

(potential free contact)

EXTERNAL RPM 0-10V DC IN

EXTERNAL ON/OFF, 5-30V AC/DC

ALARM OUT (BMS)

(potential free contact,

max 3A, 230V)

78910 1112 15161718 1920

COM 1 COM 2 BUS ROOM

SIReC1X

SIReDC

AR3500
