Friedrich CP15F10A Bedienungsanleitung

CP15F10A

e o

ontents

ir Conditioner Safet

......................................................................................................................................................

Insta

on Requ

rement

...............................................................................................................................................

s an

Part

....................................................................................................................................................................

ocation Re

uirements

.......................................................................................................................................................

ectr

Requ

rement

......................................................................................................................................................

stallat

n In

uct

..................................................................................................................................................

Unpackin

...........................................................................................................................................................................

ow Insta

on (on some mo

)

...............................................................................................................................

roug

-t

e-Wa

net Insta

...............................................................................................................................

Com

lete Installatio

........................................................................................................................................................

ditio

Use

.........................................................................................................................................................

Start

ng Your A

r Con

oner—D

Contro

..............................................................................................................

emote Control O

eratio

................................................................................................................................................

orma

Soun

..................................................................................................................................................................

........................................................................................................................................................

Cleaning the Air Filter

......................................................................................................................................................

ean

e Front Pane

...................................................................................................................................................

epa

ng Pa

nt Damage ...................................................................................................................................................

Ann

l M

.........................................................................................................................................................

Trou

oot

...............................................................................................................................................................

Ass

sta

rvi

......................................................................................................................................................1

arrant

...........................................................................................................................................................................

This Installation and Operation Manual has been designed to insure maximum satisfaction in the performance of your unit. For

years of trouble-free service, please follow the installation instructions closely. We cannot overemphasize the importance of

proper installation. We have added new information to the basic instructions to help you achieve success.

General Instructions

WARNING

Please read this manual thoroughly prior to equipment

installation or operation.

It is the installer’s responsibility to properly apply and

install the equipment. Installation must be in

conformance with the NFPA 70-2008 National Electric

Code or current edition, International Mechanic Code

2009 or current edition and any other applicable local

or national codes.

Failure to do so can result in property damage,

personal injury and / or death.

WARNING

Refrigeration system under high pressure.

Do not puncture, heat, expose to flame or incinerate.

Only certified refrigeration technicians should service

this equipment.

R410A systems operate at higher pressures than R22

equipment. Appropriate safe service and handling

practices must be used.

Only use gauge sets designed for use with R410A. Do

not use standard R22 gauge sets.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual

and on your appliance. Always read and obey all safety messages.

This is a safety Alert symbol. This symbol alerts you

to potential hazards that can kill or hurt you and

others.

All safety messages will follow the safety alert

symbol with the word “WARNING” or “CAUTION”.

These words mean:

WARNING

Indicates a hazard which, if not

avoided, can result in severe

personal injury or death and damage

to product or other property.

CAUTION

Indicates a hazard which, if not

avoided, can result in personal injury

All safety messages will tell you what the potential hazard is, tell you

how to reduce the chance of injury, and tell you what will happen if

the instructions are not followed.

and damage to product or other property.

NOTICE

Indicates property damage can

occur if instructions are not

followed.

K. pan-head Phillips screws(2)

Power supply

cord Wiring requirements

■115-volt (103.5 min. - 126.5 max.)

■0-12 amps

■15-amp time-delay fuse or circuit breaker

■Use on single outlet circuit only.

■230-volt (207 min. - 253 max.)

■0-12 amps

■15-amp time-delay fuse or circuit breaker

■Use on single outlet circuit only.

¹⁄₄"

(0.6 cm)

The wall opening measurements should be:

Height (A): 17 ¼" plus twice thickness of wood used to build

frame

Width (B): 26 ¼"

Depth (D): 4" minimum to 8" maximum.

Electrical Requirements

Ground wire must be connected to ground screw located in lower

right corner of air conditioner when air conditioner is in cabinet.

The electrical ratings for your air conditioner are listed on the

model and serial number (nameplate) label. The model and serial

number label is located behind the front panel on the flange below

the control panel area.

Specific electrical requirements are listed in the chart below.

Follow the requirements for the type of plug on the power supply

cord.

Window installation

Window opening measurements:

27"min. to 42" max. (76.2 cm to 101.6 cm) opening width (A).

20" min. (50.8 cm) opening height (B).

Through-the-wall installation

A.27" min.(76.2cm)

B . 20" min. (50.8 cm)

A. 17 ¼"

B. 26 ¼"

C. Wood thickness

D. 4" minimum to

8" maximum.

CP15

CP18 / CP24

Recommended grounding method

This air conditioner must be grounded. This air conditioner is

equipped with a power supply cord having a grounded 3 prong

plug. To minimize possible shock hazard, the cord must be

plugged into a mating, grounded 3 prong outlet, grounded in

accordance with all local cod es and ordinances. If a mating outlet

is not available, it is the customer' s responsibility to have a

properly grounded 3 prong outlet installed by a qualified electrical

component installer.

It is the customer' s responsibility:

To contact a qualified electrical installer, and

To assure that the electrical installation is adequate and in

conformance with National Electrical Code, ANSI/NFPA 70 -

latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

Power Supply Cord

NOTE: Your unit’s device may differ from the ones shown.

This room air conditioner is equipped with a power supply cord

required by UL. This power supply cord contains state-of-the-art

electronics that sense leakage current. If the cord is crushed, the

electronics detect leakage current and pow er will be

disconnected in a fraction of a second.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET.

3. Press TEST (listen for click; Reset button will trip and pop

out).

4. Press and release RESET (listen for click; Reset button will

latch and remain in). The power supply cord is ready for

operation.

NOTES:

The Reset button must be pushed in for proper operation.

The power supply cord must be replaced if it fails to trip when

the test button is pressed or if it fails to reset.

Do not use the power supply cord as an off/on switch. The

power supply cord is designed as a protective device.

A damaged power supply cord must be replaced with a new

power supply cord obtained from the product manufacturer

and must not be repaired.

The power supply cord contains no user serviceable parts.

Opening the tamper-resistant case voids all warranty and

performance claims.

A. Reset button

B. Test button

TEST

RESET

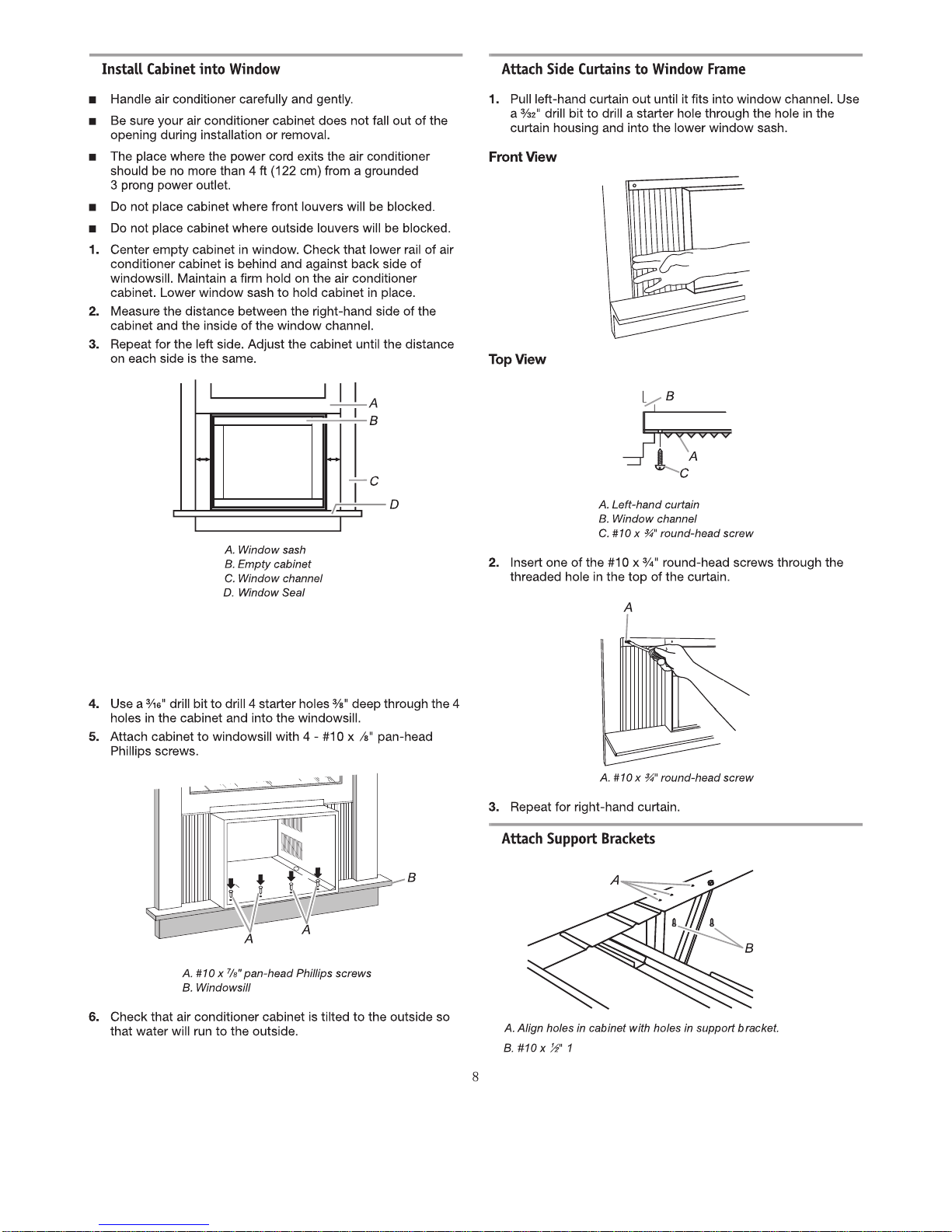

Window Installation (on some models)

NOTES:

■Handle air conditioner carefully and gently.

■Be sure your air conditioner cabinet does not fall out of the

opening during installation or removal.

■The place where the power cord exits the air conditioner

should be no more than 4 ft (122 cm) from a grounded

3prongpower outlet.

■Do not block the louvers on the front panel.

■Do not block the louvers on the outside of the air conditioner.

Attach Top Channel

NOTE: Attach top channel and side curtains to air conditioner

cabinet before placing cabinet in window.

1. Locate provided bag of screws.

2. Place top channel on top of air conditioner cabinet, lining up

the 4 holes in top channel with the 4 holes on top of air

conditioner cabinet.

3. Using 4 - #10 x ³⁄₈" washer-head Phillips thread-cutting

screws, attach top channel to air conditioner cabinet.

Attach Side Curtains

1. Locate provided bag of screws.

2. Insert top and then bottom of right-hand curtain housing in

top and bottom curtain channels on air conditioner.

Top view

Bottom view

3. Extend right-hand curtain outward so you may insert the

first screw through the middle hole of the curtain. Using #10 x

¹⁄₄" pan-head Phillips screw, screw curtain to middle hole in

air conditioner cabinet.

NOTE: This screw is required to correctly attach curtain (top

to bottom) to the air conditioner cabinet.

4. While the right-hand curtain is still extended, insert #10 x ¹⁄₄"

pan-head Phillips screws into the top and bottom slots of

curtain. Screw curtain to the top and bottom holes in the air

conditioner cabinet side.

5. Slide the curtain housing into the curtain channels as far as it

will go.

6. Repeat above steps for the left-hand curtain.

Attach foam adhesive seal

Attach foam adhesive seal along the bottom of the curtain

bottom channel.

A. Top channel

B. #10 x

³⁄₈

" washer-head Phillips thread-cutting screws

A. Curtain housing

B. Curtain top channel on air conditioner

A. Curtain housing

B. Curtain bottom channel on air conditioner

A. Curtain housing

B. Foam adhesive seal
