READ BEFORE INSTALLING UNIT

For Through-the-Wall Air Conditioners

Carefully read the installation manual before beginning.

Follow each step as shown.

Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.

Pay attention to danger and safety notices.

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may

be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install

the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To

prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner wilt be installed. Be sure it wilt support the weight of the unit overan extended

period of time.

Handle air conditioner with care.

Make sure air conditioner does not fall during installation.

Do This First (for existing sleeve)

Note that the air conditioner dimensions are: 24" wide,14" high, and 19" deep (without front). Install Air Conditioner

according to these installation instructions to achieve the best performance. Save these installation instructions for

future reference.

• DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE

Items in Kit

You may not need all parts in the kit. Discard unused parts.

No.

Hardware

Tapered Spacer Blocks (17" Long)

Centering/Support Blocks ( 4_" x 3_" x 1_" )

Plastic Divider ( _" x 4 _" x 14_" )

Stuffer Seal (1" x 1_" x 84" )

seal(l"x l_"x 25")

seal(l"x l_"x 14")

seal ( 1" x 318" x 25" )

seal( l"x 3/8"x 14" )

seal ( l"x 3/4" x 14" )

Qty.

No.

Hardware

Trim Frame (side legs)

Trim Frame (top & bottom legs)

Ground Wire (green)

Toothed washer for grounding screw

Grounding Screw

Grille (plastic)

Grille Aluminum

Nuts (plastic)

Screw w/washer

Qty.

2020213A0940

How to Install

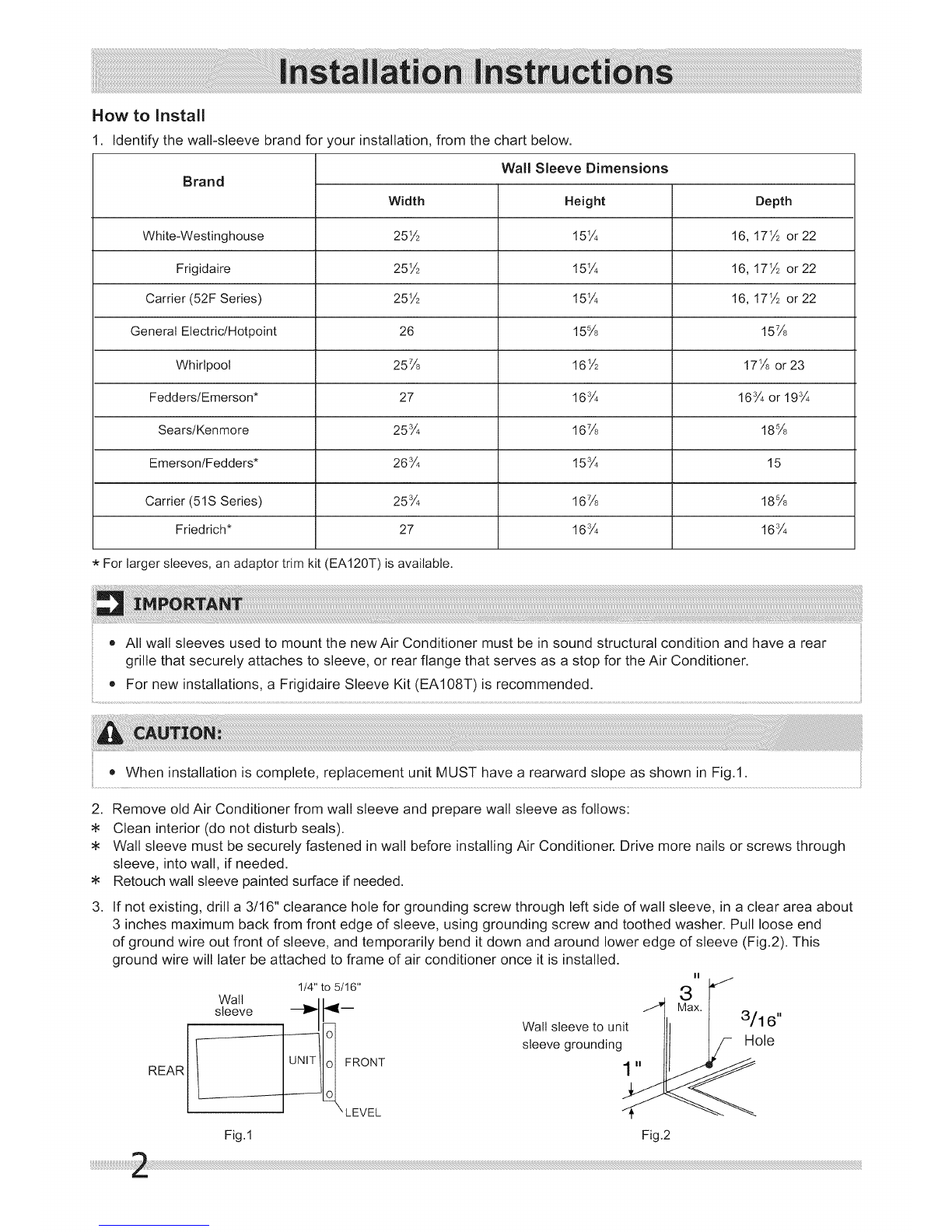

1. Identify the wall-sleeve brand for your installation, from the chart below.

Wall Sleeve Dimensions

Brand

White-Westinghouse

Frigidaire

Carrier (52F Series)

Width Height

251½ 151/4

25½ 15}/4

251½ 151/4

General Electric/Hotpoint 26 15% 157/8

Whirlpool 257/'8 161½ 171/8or 23

Fedders/Emerson* 27 163/4 163/4or 193/4

Sears/Ken more 25 3/4 167/8 18%

Emerson/Fedders* 263/4 153/4 15

Carrier (51S Series) 253/4 167/'8 18%

Fried rich* 27 163/4 163/4

For larger sleeves, an adaptor trim kit (EA120T) is available.

Depth

16, 171½ 0r22

16, 171½ or22

iiiii@;ii@i_¸;_:_;_il¸;(_i,i(,i(,i(,)))))))))))i_i_i!!i{_!i;_;;i_!iii%;ii@ii;¸i;i;ii:i!i!i¸i;i_il;iiiii;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;i@il;iii!_}i¸ili¸I;¸i;!;;i¸i¸I;¸i;!;;i¸i¸I;¸i;!;;i¸i¸I;¸i;!;;i¸i¸I;¸i;!;;i¸i¸I;¸i;!;;i¸i¸I;¸_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_!_!!;!i!_¸i;i_ii!_i¸_!iii_!_;!;;_;;!;!i_!i;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;!!_¸iiii!i¸!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i_!!;(_;i}_;}i@!!i!_i!!i!_i!!i!_i!!i!_i!!i!{¸i_i¸@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i!@i_@i!!_ii!i_!_ii;{_!i@;£i!¸!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i@!!i;!;i!i!!i;!;i_¸¸¸!I¸@!!i;!;i!ii;i_i_¸II(;2_Ii!¸:;I_£_I¸¸¸((ii¸@_!;i!i¸!!i;!;i@!!i{_i!ii_iiii¸!i!!i;!;¸_;_s;_i}_}_

• All wall sleeves used to mount the new Air Conditioner must be in sound structural condition and have a rear

grille that securely attaches to sleeve, or rear flange that serves as a stop for the Air Conditioner.

For new !nstal!at!on si a Fdgida!re sIeeve K!t (EA 108T)i s recQ end ed:..........................................................................................................................................................................

When installation is complete, replacement unit MUST have a rearward slope as shown in Fig.1.

2. Remove old Air Conditioner from wall sleeve and prepare wall sleeve as follows:

Clean interior (do not disturb seals).

Wall sleeve must be securely fastened in wall before installing Air Conditioner. Drive more nails or screws through

sleeve, into wall, if needed.

Retouch wall sleeve painted surface if needed.

3. If not existing, drill a 3/16" clearance hole for grounding screw through left side of wall sleeve, in a clear area about

3 inches maximum back from front edge of sleeve, using grounding screw and toothed washer. Pull loose end

of ground wire out front of sleeve, and temporarily bend it down and around lower edge of sleeve (Fig.2). This

ground wire will later be attached to frame of air conditioner once it is installed.

REAR

1/4" to 5/16"

Wall _ II

sleeve _I_--

_XLEVEL

J_ M3ax 3""

Wallsleeve to unit !h /16

sleeve grounding Ill - Hole

Fig.1 Fig.2

#1 Emerson

#2 Fedders

#3 Fedders or Friedrich

#4 General Electric/Hotpoint

#5 Sears or Carrier(51S Series)

#6 Whirlpool

#7 Whirlpool

#8 White-Westinghouse/Frigidaire/

Carrier(52F Series)

#9 White-Westinghouse/Frigidaire

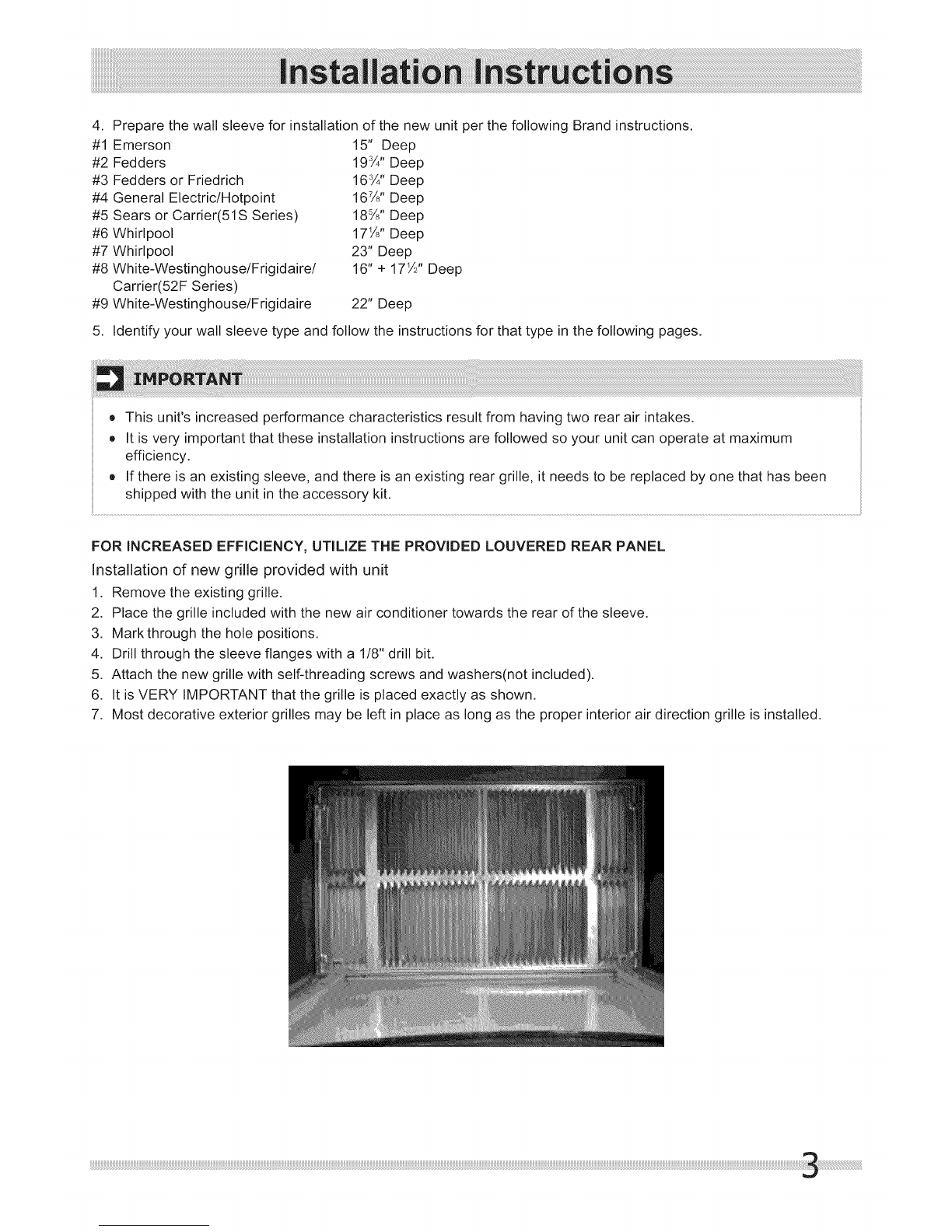

Prepare the wall sleeve for installation of the new unit per the following Brand instructions.

15" Deep

19%" Deep

16¾" Deep

167/8"Deep

18_8" Deep

171/8"Deep

23" Deep

16"+ 17W' Deep

22" Deep

5. Identify your wall sleeve type and follow the instructions for that type in the following pages.

• This unit's increased performance characteristics result from having two rear air intakes.

• It is very important that these installation instructions are followed so your unit can operate at maximum

efficiency.

• Ifthere is an existing sleeve, and there is an existing rear grille, it needs to be replaced by one that has been

shipped with the unit in the accessory kit.

FOR INCREASED EFFiCiENCY, UTILIZE THE PROVIDED LOUVERED REAR PANEL

Installation of new grille provided with unit

1. Remove the existing grille.

2. Place the grille included with the new air conditioner towards the rear of the sleeve.

3. Mark through the hole positions,

4. Drill through the sleeve flanges with a 1/8" drill bit.

5. Attach the new grille with self-threading screws and washers(not included).

6. It is VERY IMPORTANT that the grille is placed exactly as shown.

7. Most decorative exterior grilles may be left in place as long as the proper interior air direction grille is installed.

Wall Sleeve Brands:

#1 Emerson 15" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille 80° \

Rear Louvers

50o

Top View

2. Attach(I)1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

3. Attach(2)1" x 3/8" x 14" seals to the left and right sides of the sleeve.

4. Cut(2)1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

5. Attach (2) 4 ½ "x 3 ½" x 1Y," centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

6. Gently slide unit into sleeve.

7. Before sliding all-the-way back, remove 2nd screw from fron on left

side of unit.

8. Remove the plastic washer from the screw.

9. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

10. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

11. Seal & Frame the unit as described on the last page of these

instructions.

12. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#2 Fedders 19=3/4" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

2. Attach (2) 4 ½ "x 3 ½" x 1Y," centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

3. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

1 7"

1''

3/4"

t/'_'Here I - _ I t

I 4"

Cut '-- protection Paper Backing

80° \

Rear Louvers

500

Top View

.The 4" section is placed in front of the rib on base with the tapered

end facing the back of the sleeve. The remaining portion will be placed

behind the rib again sloping toward the rear of the sleeve. This helps

induce a rearward slope on the unit.

5. Attach (1) l"x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

6. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

8. Gently slide unit into sleeve.

9. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

10. Remove the plastic washer from the screw.

11. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

12. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

13. Seal & Frame the unit as described on the last page of these instructions.

14. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#3 Fedders or Friedrich 16=3/4" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

2. Attach (2) 4½" x 3 ½" x 1Y," centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

.Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

I i 17 _ _ J,

v _ - 1"

3-/4,,I, Tapered Spacer Bilock j

''_'-_pmI-" 12-1/2" \i2 1/2"1"--

uu_Mere. - _ protection Paper Backing

.The 2½" section is placed in front of the rib on base with the tapered

end facing the back of the sleeve. Cut the remaining portion to 12W'

and place behind the rib again sloping toward the rear of the sleeve.

This helps induce a rearward slope on the unit.

5. Attach (1) l"x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

6. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

8. Gently slide unit into sleeve.

9. Before sliding all4he-way back, remove 2nd screw from front on left side

of unit.

10. Remove the plastic washer from the screw.

11. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

12. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

13. Seal & Frame the unit as described on the last page of these instructions.

14. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

80° \

Rear Louvers

4s" "

,,,,,,,,,,,,,,,,,,

50o

Top View

Wall Sleeve Brands:

#4 General Electric/Hotpoint 16=7/8" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille 80°___

Rear Louvers

Top View

2. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

/I-" 'Y

3/4" I TaperedSpacerBlocki_

13" _

1" Cut Here

)rotection Paper Backing

3. Install as shown with the tapered end 1/2" from the back of the sleeve.

This helps induce a rearward slope on the unit.

4. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

5. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) l"x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding aIFthe-way back, remove 2nd screw from front on

left side of unit,

9. Remove the plastic washer from the screw.

10. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

11. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#5 Sears or Carrier 51S Series 18=5/8" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

80°_____

Rear Louvers

\\\\\\\\ IIIIIIIIII \\\\\\\\\\1 IIIII1_

Top View

2. Install (2) tapered spacer blocks to the floor of the sleeve as shown.

This helps induce a rearward slope on the unit.

3. Install as shown with the tapered end 1/2" from the back of the sleeve.

This helps induce a rearward slope on the unit.

4. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position

5. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) l"x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

9. Remove the plastic washer from the screw.

10. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

11. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#6 Whirlpool 17=1/8" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

80° \

Rear Louvers

500

Top View

2. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

17"

3/4. I _aperedSpacerBlock

Cut Here _ 13" \

protection Paper Backing

3. Install to the floor of the sleeve as shown. This helps induce a rearward

slope on the unit.

4. Attach (1) l"x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

5. Attach (2) l"x 3/8"x 14" seals to the left and right sides of the sleeve.

6. Cut (2) 1" x 3/8"x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

9. Remove the plastic washer from the screw.

10. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

11. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#7 Whirlpool 23" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

Because of the increased unit depth, first try dry fitting using

the method described below:

2. Place (2) l"x 1½"x 14" seals against each side.

3. Gently slide unit in and check if amount extending from the sleeve is

sufficient once the trim frame is attached.

80 ° \

Rear Louvers

//H_/_ _ "

Top View

4. If position is okay, remove unit and Proceed to the next step.If not go

to step 9.

5. Attach (1) l"x 1Y," x 25" long seal in the center at the top of the

sleeve. Remove the backing paper and press into position.

6. Attach (2) l"x 1½"x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seal to 14" long each and attach to the

vertical sections of the grille as shown.

8. Attach the tapered spacer blocks to the floor of the sleeve. Now go to

step 15.

Use these next steps if the unit requires extra extension into

the room.

9. Attach l"x Y4"x 14" long seal over the solid vertical portion of the rear

grille.

10. Attach (2) 43/4'' x 3%"x 13/4'' foam blocks with the slot overlapping the

seal above.

11. Install the divider into the slots of the foam blocks. You may need to

trim the length to size.

12. Repeat steps 9-11 for the other vertical shown portion of the grille as

shown in the picture.

13. Attach (2) 1"x 1½"x 14" seals along the sides of the sleeve again

making sure all seals are flush.

14. Cut the 1" x 1½" x 25" seal to fit the top of the sleeve. The pieces must

be fitted flush to the edge of the divider.

15. Center unit & gently slide unit into sleeve.

16. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

17. Remove the plastic washer from the screw.

18. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

19. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

20. Seal & Frame the unit as described on the last page of these instructions.

21. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Frigidaire Klimaanlage Handbücher

Frigidaire

Frigidaire FAC086L7A2 Bedienungsanleitung

Frigidaire

Frigidaire FAH12EM2T1 Bedienungsanleitung

Frigidaire

Frigidaire LRA08PZU111 Betriebsanleitung

Frigidaire

Frigidaire FAK103J1V1 Bedienungsanleitung

Frigidaire

Frigidaire FRA060XT70 Bedienungsanleitung

Frigidaire

Frigidaire FAM156R1A 15,100 Bedienungsanleitung

Frigidaire

Frigidaire FFTA1422U20 Betriebsanleitung

Frigidaire

Frigidaire FRA10EHT2 Bedienungsanleitung

Frigidaire

Frigidaire ELECTRONIC CONTROL AIR CONDITIONER Betriebsanleitung

Frigidaire

Frigidaire FRA126CT1 Bedienungsanleitung

Frigidaire

Frigidaire FRA105CV1 Bedienungsanleitung

Frigidaire

Frigidaire FRS09PYW1 Bedienungsanleitung

Frigidaire

Frigidaire FRA053XT7 Kurzanleitung

Frigidaire

Frigidaire Gallery FGRC1044T1E00 Bedienungsanleitung

Frigidaire

Frigidaire FAK083J7V3 Bedienungsanleitung

Frigidaire

Frigidaire Home ComfortFRA08PZU1 Kurzanleitung

Frigidaire

Frigidaire Room Air Conditioner Bedienungsanleitung

Frigidaire

Frigidaire FRA122BU1 Bedienungsanleitung

Frigidaire

Frigidaire CRA102BT11 Betriebsanleitung

Frigidaire

Frigidaire FAX052P7A - Window Unit Air Conditioner Last One... Bedienungsanleitung

Frigidaire

Frigidaire FAC052K7A10 Bedienungsanleitung

Frigidaire

Frigidaire FAM156R1A2 Bedienungsanleitung

Frigidaire

Frigidaire LRA157MT1 Betriebsanleitung

Frigidaire

Frigidaire FRA084KT7 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Samsung

Samsung AS09HM3N Bedienungsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Bedienungsanleitung
