Frigidaire FAS155P1A1 Bedienungsanleitung

Product No. FAS155P1A1 FAS155P1A2 FAS156P1A1 FAS156P1A2

Series heavy duty heavy duty heavy duty heavy duty

Color N/A N/A N/A N/A

Volts 115 115 115 115

BTU-Cooling 15100 BTU 15100 BTU 15100 BTU 15100 BTU

Wiring Diagram 81902548 81902548 81902548 81902548

Owner's Guide frig819042060en frig819042060en frig819042060en frig819042060en

Installation Instructions 819042102en 819042102en 819042102en 819042102en

Market North America North America North America North America

M40L0004.eps M40C0009.eps M40M0007.eps 81902548.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437299

05/05/20

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAS155P1A /

FAS156P1A

Publication No: 5995437299 FAS155P1A / FAS156P1A

05/05 2

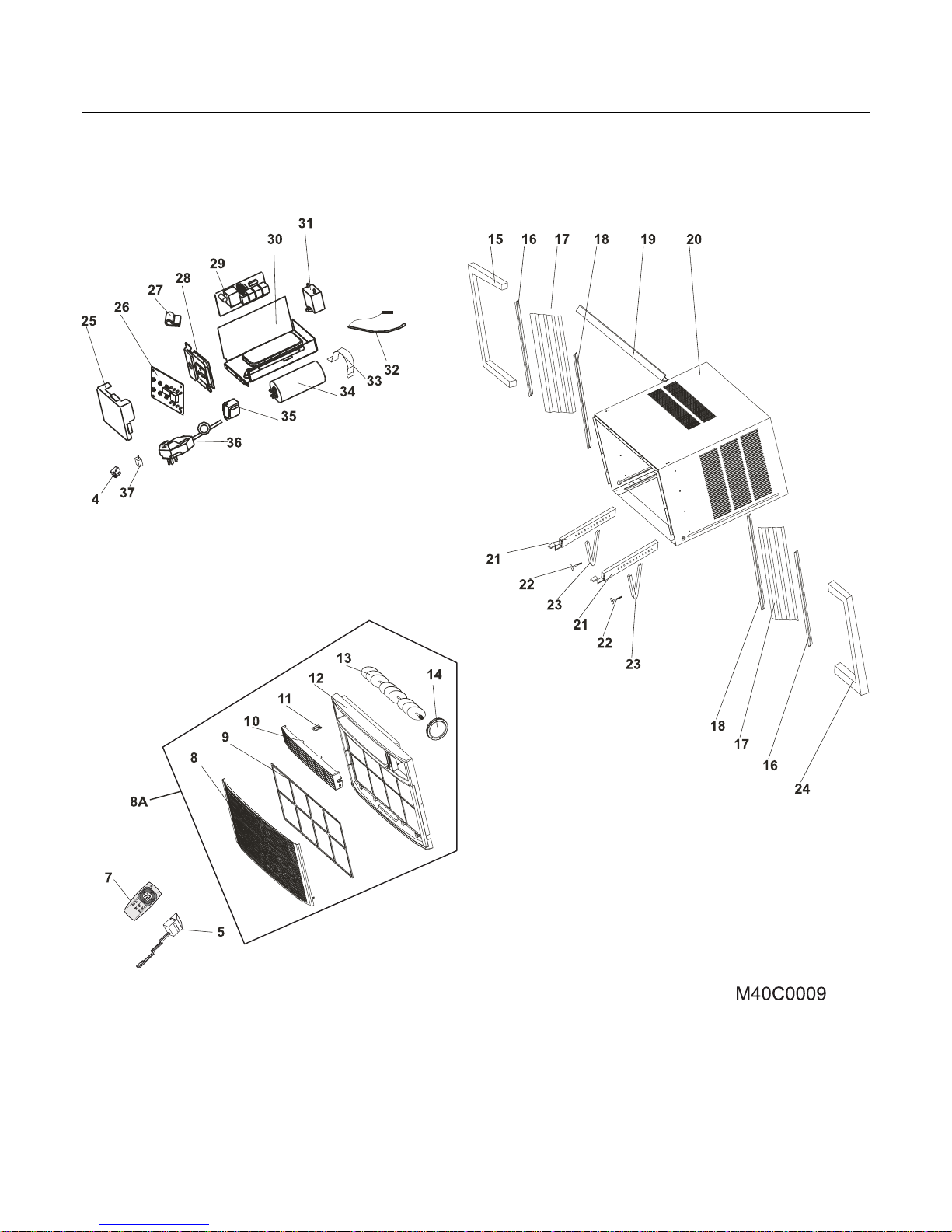

CABINET, FRONT, CONTROLS

FAS155P1A / FAS156P1A Publication No: 5995437299

# Functional Parts 3 05/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAS155P1A (FAS155P1A1)

BFAS155P1A (FAS155P1A2)

CFAS156P1A (FAS156P1A1)

DFAS156P1A (FAS156P1A2)

POS. NO PART NO. DESCRIPTION

4 5304447780 A B C D Cover, ionizer

5 5304447781 A B C D Vent, fresh air, with lever

7 # 5304447782 A B - - Remote Control, transmitter

7 # 5304447883 - - C D Remote Control

8A 5304448484 A B C D Front Assembly, complete panel, includes 8, 9, 10, 11, 12, 13, 14

8 5304447783 A B C D Panel, front grille

9 5304447784 A B C D Filter, air, plastic frame

10 5304447785 A B C D Louver, horizontal

11 5304447786 A B C D Clip, air vent

12 5304447787 A B C D Frame, front assembly

13 5304447788 A B C D Louver, vertical

14 5304447789 A B C D Dial, louver adjuster

15 5304447790 A B C D Frame, shutter panel, LH

16 5304447792 A B C D Retainer, shutter lock

17 5304447793 A B C D Shutter, accordion panel, RH/LH

18 5304447794 A B C D Retainer, shutter mount, cabinet sides

19 5304447795 A B C D Rail, shutter track, top

20 5304447796 A B C D Cabinet, wrapper/sleeve

21 5304447797 A B C D Bracket, cab mounting

22 5304447798 A B C D Screw, cab leveling

23 5304447799 A B C D Bracket, angle, cab support

24 5304447791 A B C D Frame, shutter panel, RH

25 5304447800 A B C D Console, control cover

26 # 5304447801 A B C D PC Board, display/input

27 5304447802 A B C D Clip, cable clamp

28 5304447803 A B C D Cover, front plate, control box

29 # 5304447804 A B C D PC Board, control/power

30 5304447805 A B C D Control Box

31 # 5304447806 A B C D Capacitor, fan motor

32 # 5304447807 A B C D Sensor, temperature, evap/indoor

33 5304447808 A B C D Strap, capacitor mtg.

34 # 5304447809 A - C - Capacitor, run

34 # 5304447878 - B - D Capacitor, run

35 # 5304447810 A B C D Transformer

36 # 5304447811 A B C D Power Cord, LCDI, with test/reset

37 # 5304447812 A B C D Ionizer, clean air

Publication No: 5995437299 FAS155P1A / FAS156P1A

05/05 4

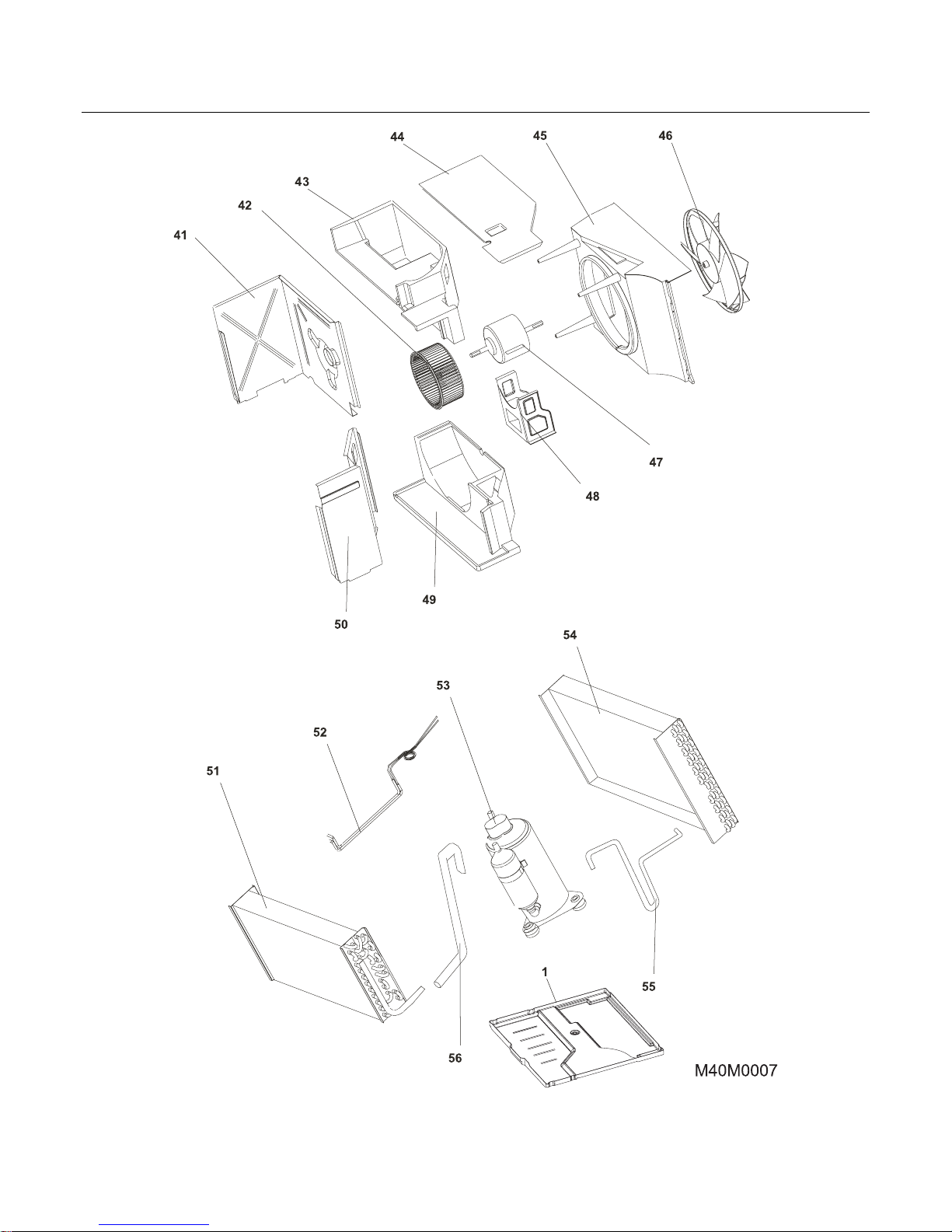

COOLING & AIR FLOW SYSTEMS

FAS155P1A / FAS156P1A Publication No: 5995437299

# Functional Parts 5 05/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAS155P1A (FAS155P1A1)

BFAS155P1A (FAS155P1A2)

CFAS156P1A (FAS156P1A1)

DFAS156P1A (FAS156P1A2)

POS. NO PART NO. DESCRIPTION

1 5304447779 A B C D Base, unit chassis

41 5304447813 A B C D Bulkhead, panel, left side

42 # 5304447814 A B C D Blower Wheel, centrifugal fan

43 5304447815 A B C D Scroll, blower housing, top

44 5304447816 A B C D Cover, blower scroll, top plate

45 # 5304447817 A B C D Shroud, fan housing

46 # 5304447818 A B C D Fan Blade, axial flow

47 # 5304447819 A B C D Motor, fan

48 5304447820 A B C D Bracket, fan motor mount

49 5304447821 A B C D Scroll, blower housing, bottom

50 5304447822 A B C D Bulkhead, panel, right side

51 # 5304447823 A B C D Evaporator

52 # 5304447824 A - C - Capillary Tube

52 # 5304447879 - B - D Capillary Tube

53 # 5304447825 A - C - Compressor Assembly, w/electricals, & mtg grommets

53 # 5304447880 - B - D Compressor Assembly, w/electricals, & mtg grommets

54 # 5304447826 A B C D Condenser

55 # 5304447827 A - C - Discharge Tube

55 # 5304447881 - B - D Discharge Tube

56 # 5304447828 A - C - Suction Tube

56 # 5304447882 - B - D Suction Tube

Publication No: 5995437299 FAS155P1A / FAS156P1A

05/05 6

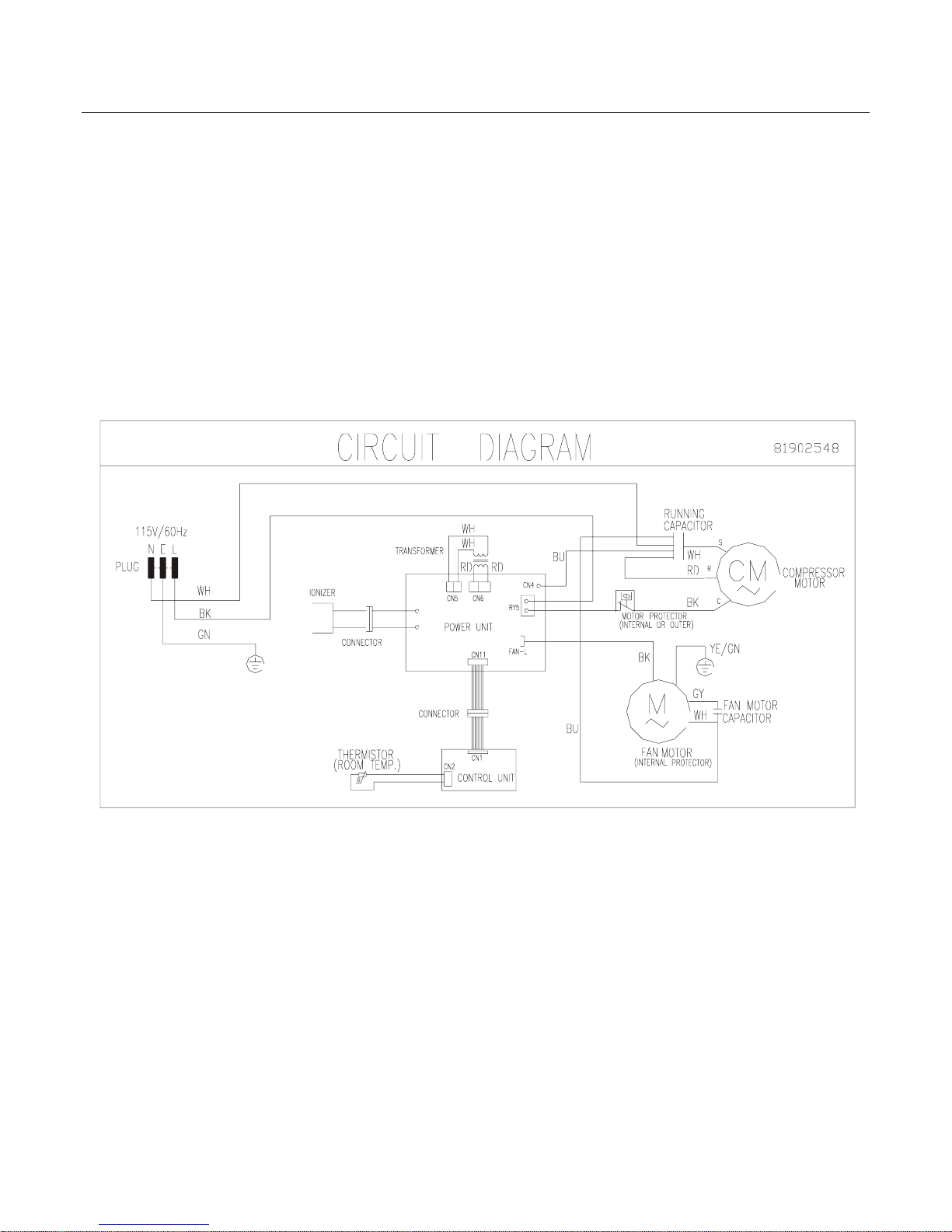

WIRING DIAGRAM

81902548
