Frigidaire FAC083K7A5 Bedienungsanleitung

ROOM AIR CONDITIONER

Model No.

FAC083K7A5

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309367473

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAC083K7A5 FAC083K7A 115 8000 BTU

MARKET

USA

Publication No.

5995367892

020309

-EN/SERVICE /BLT

345

03/02 2

Publication No. FAC083K7A5

5995367892

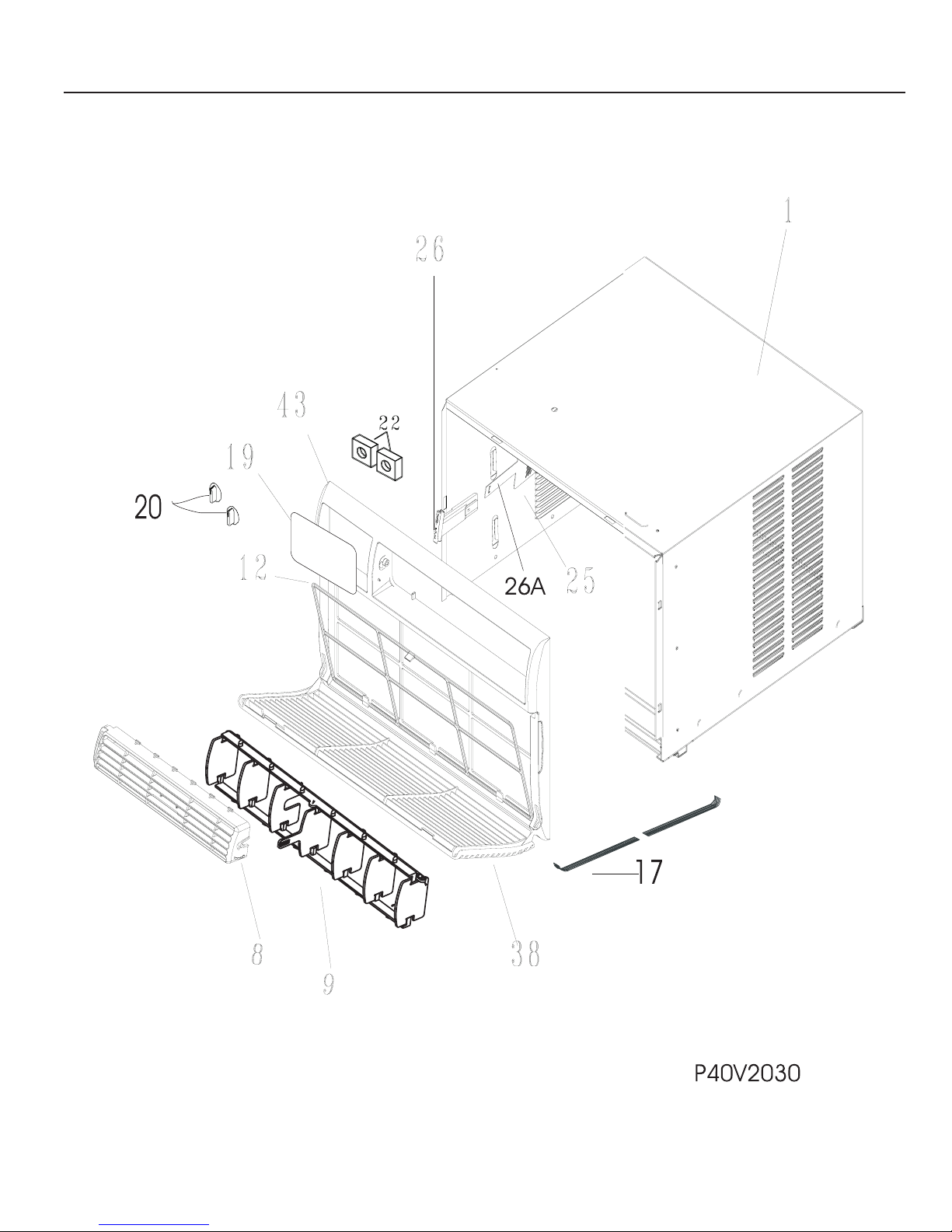

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 03/02

* = Non-Illustrated Parts

FAC083K7A5 Publication No.

5995367892

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

8 309640204 Louver Assy,Includes8&9

8 309639302 * Louver,horizontal

9 309647201 * Louver,vertical ,with link

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640104 Front-cabinet,4 way ,complete assy

* 3015312 Screw,8-18AB x 0.500

19 309342903 Dial Plate

20 309306811 Knob,rotary control

22 5303001775 Spacer,dial plate

25 309328603 Door,fresh air vent

26 309638201 Handle,vent door

26A 309330201 Detent-vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

* 309367473 Energy Guide,FAC083K7A5

03/02 4

Publication No. FAC083K7A5

5995367892

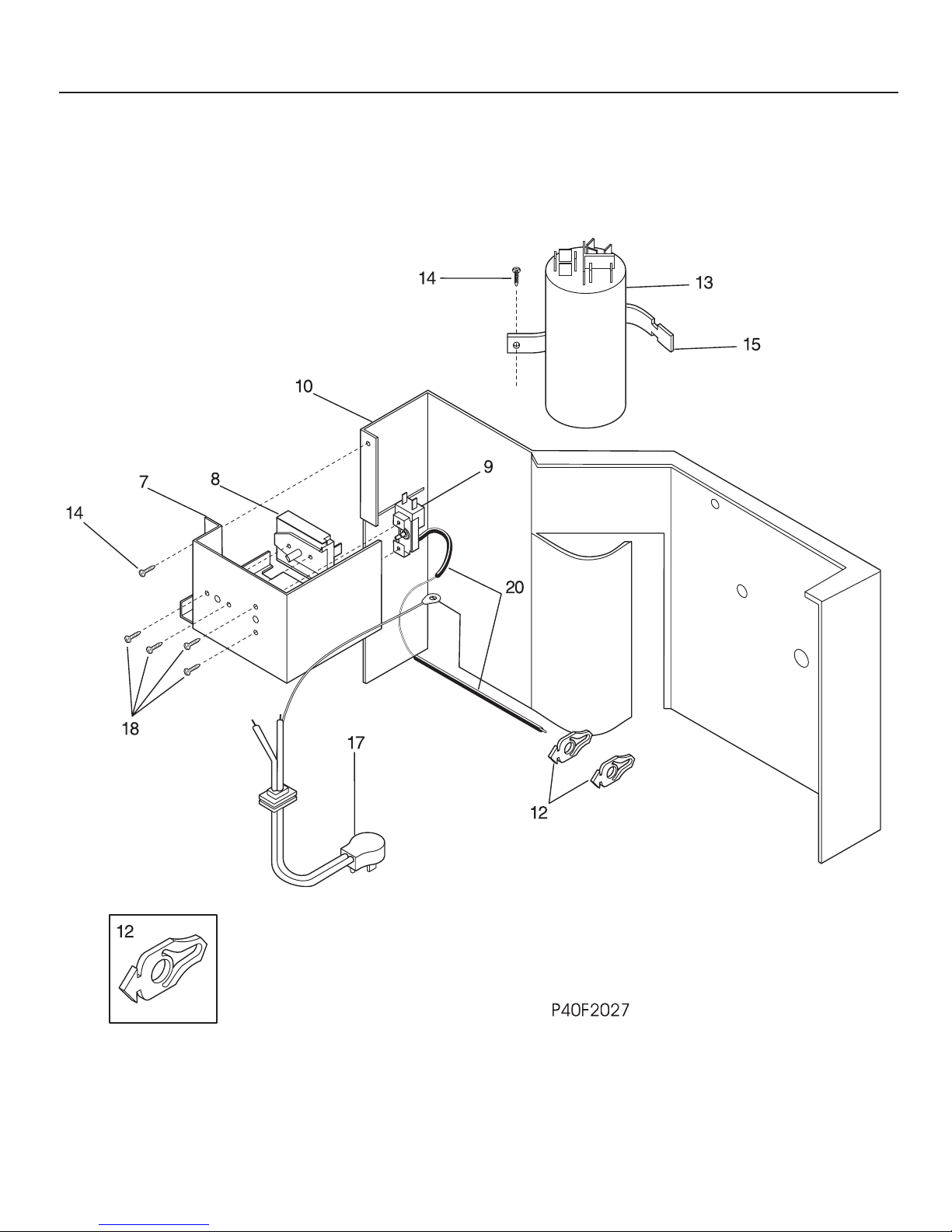

CONTROLS

# = Fast-moving Parts 5 03/02

* = Non-Illustrated Parts

FAC083K7A5 Publication No.

5995367892

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Control Box

8 # 5303323284 Switch,selector ,7 posn,3 speed

9 # 5304402838 Control,temperature

10 309643701 Bulkhead

10* 309111201 Grommet,wire protector

12 309101202 Clip,retainer ,temp sensor ,(2)

13 # 5304426450 Capacitor,250 V ,40+10 mfd

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap,capacitor mtg.

17 # 309343101 Cord-electric power,18 AWG ,115 V

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,ground

18 5303007754 Screw,6-32 x 0.188

20 5304417582 Sleeve,temp sensor ,6 in.

03/02 6

Publication No. FAC083K7A5

5995367892

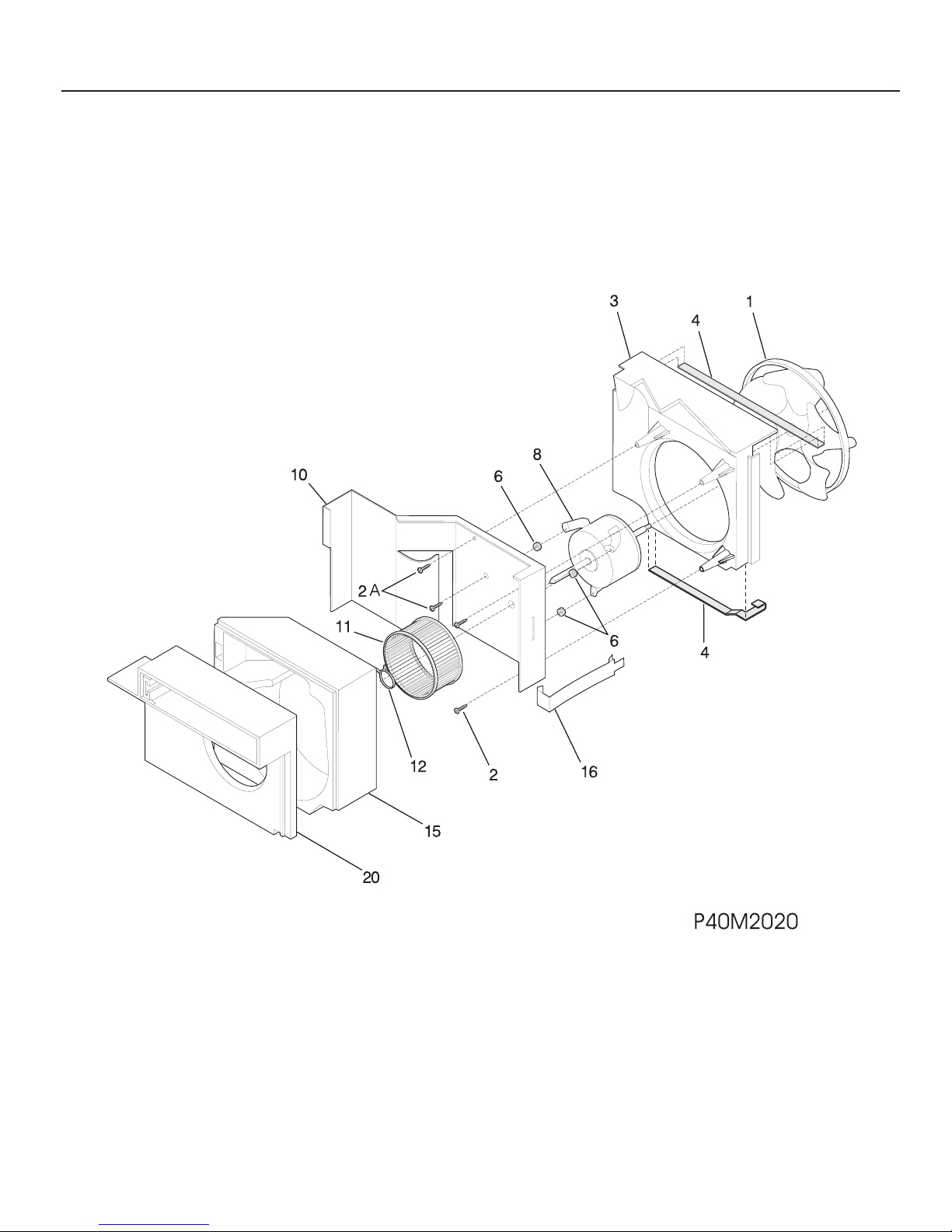

AIR HANDLING PARTS

# = Fast-moving Parts 7 03/02

* = Non-Illustrated Parts

FAC083K7A5 Publication No.

5995367892

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

2A 5303317224 Screw,indt hex head ,10-16 ,(3)

3 309643901 Housing,fan shroud

4 5303303759 Seal,bottom

4 5304421913 Seal,top

6 5300105402 Grommet,motor ,(3)

8 # 309642404 Motor,fan

10 309643701 Bulkhead

11 # 309643301 Blower Wheel

12 309112101 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate,housing/scroll

03/02 8

Publication No. FAC083K7A5

5995367892

COMPRESSOR PARTS

03/02 9

FAC083K7A5 Publication No.

5995367892

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616918 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover,compr terminal

8 # 5304402840 Overload Protector

9 3201670 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619313 Evaporator

12 # 5303307226 Condenser

13 # 309642801 Tray,evap drip

14 309644003 Base,compressor mt. ,with studs

16 # 5304409280 Capillary Tube,37 inch long

17 # 5300265301 Drier-filter,service kit

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

03/02 10

Publication No. FAC083K7A5

5995367892

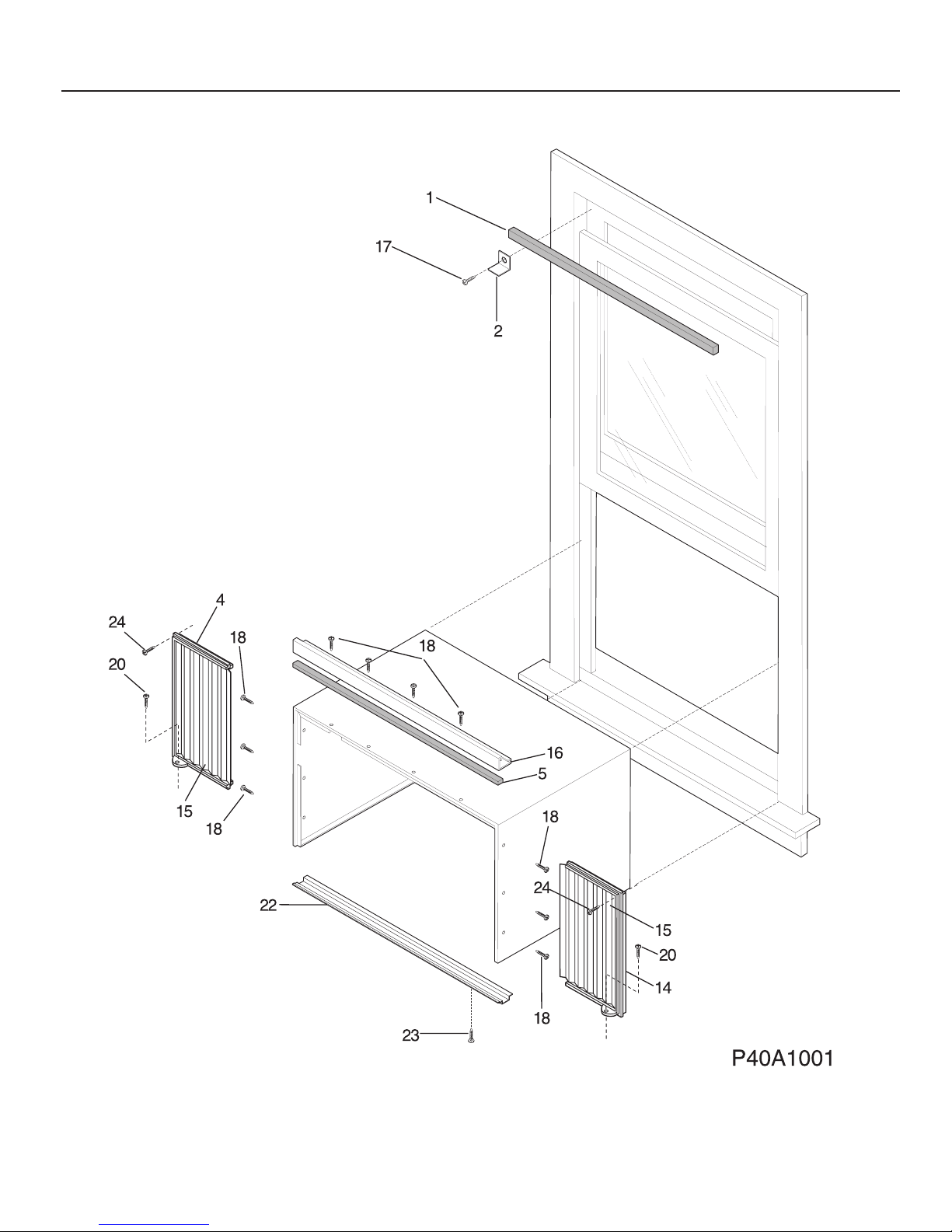

WINDOW MOUNTING PARTS
