Frigidaire FAC085K7A4 Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAC085K7A4 FAC085K7A 115 8000 BTU

FAC085K7A5 FAC085K7A 115 8000 BTU

MARKET

USA

Publication No.

5995367488

020305

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAC085K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

03/02 2

Publication No. FAC085K7A

5995367488

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 03/02

* = Non-Illustrated Parts

FAC085K7A Publication No.

5995367488

CABINET FRONT AND WRAPPER

A = FAC085K7A (FAC085K7A4)

B = FAC085K7A (FAC085K7A5)

POS. NO PART NO DESCRIPTION

1 309643602 A B Cabinet

* 5303303691 A B Screw,truss head ,8-18AB x 0.375 ,w/nibs

8 309640204 A B Louver Assy,Includes8&9

8 309639302 A B * Louver,horizontal

9 309647201 A B * Louver,vertical ,with link

12 309343501 A B Filter-air,7.12 x 17.31 ,no frame

17 309640104 A B Front-cabinet,4 way ,complete assy

* 3015312 A B Screw,8-18AB x 0.500

19 309340802 A B Overlay,control

25 309328603 A B Door,fresh air vent

25* 309330201 A B Detent-vent

26 309638201 A B Handle,vent door

38 309646301 A B Panel,cabinet front

43 309646401 A B Frame,cabinet front

70 309342201 A B Enclosure,elec control mt

78 309350502 A B Remote Control,transmitter ,with batteries

* 309367437 A - Energy Guide,FAC085K7A4

* 309367479 - B Energy Guide,FAC085K7A5

03/02 4

Publication No. FAC085K7A

5995367488

CONTROLS

# = Fast-moving Parts 5 03/02

* = Non-Illustrated Parts

FAC085K7A Publication No.

5995367488

CONTROLS

A = FAC085K7A (FAC085K7A4)

B = FAC085K7A (FAC085K7A5)

POS. NO PART NO DESCRIPTION

7 # 309643801 A B Control Box

10 309643702 A - Bulkhead

10 309643701 - B Bulkhead

10* 309111201 A B Grommet,wire protector

12 5304413782 A B Holder,thermistor ,w/seal

13 # 5304426450 A B Capacitor,250 V ,40+10 mfd

14 3015312 A B Screw,8-18AB x 0.500

15 309351901 A B Strap,capacitor mtg.

17 # 309343101 A B Cord-electric power,18 AWG ,115 V

* 5303285199 A B Screw,Ph truss hd ,8-18 x 0.38 ,ground

70 309342201 A B Enclosure,elec control mt

71 # 309350401 A B PC Board,power ,w/temp sensor

72 # 309350402 A B PC Board,input

72*# 5304417643 A B Ribbon Protector

74 5303301590 A B Screw,6-20AB x 0.38

75 5304413781 A B Support,PC board

76 309111601 A B Transformer,120/12 Volt

03/02 6

Publication No. FAC085K7A

5995367488

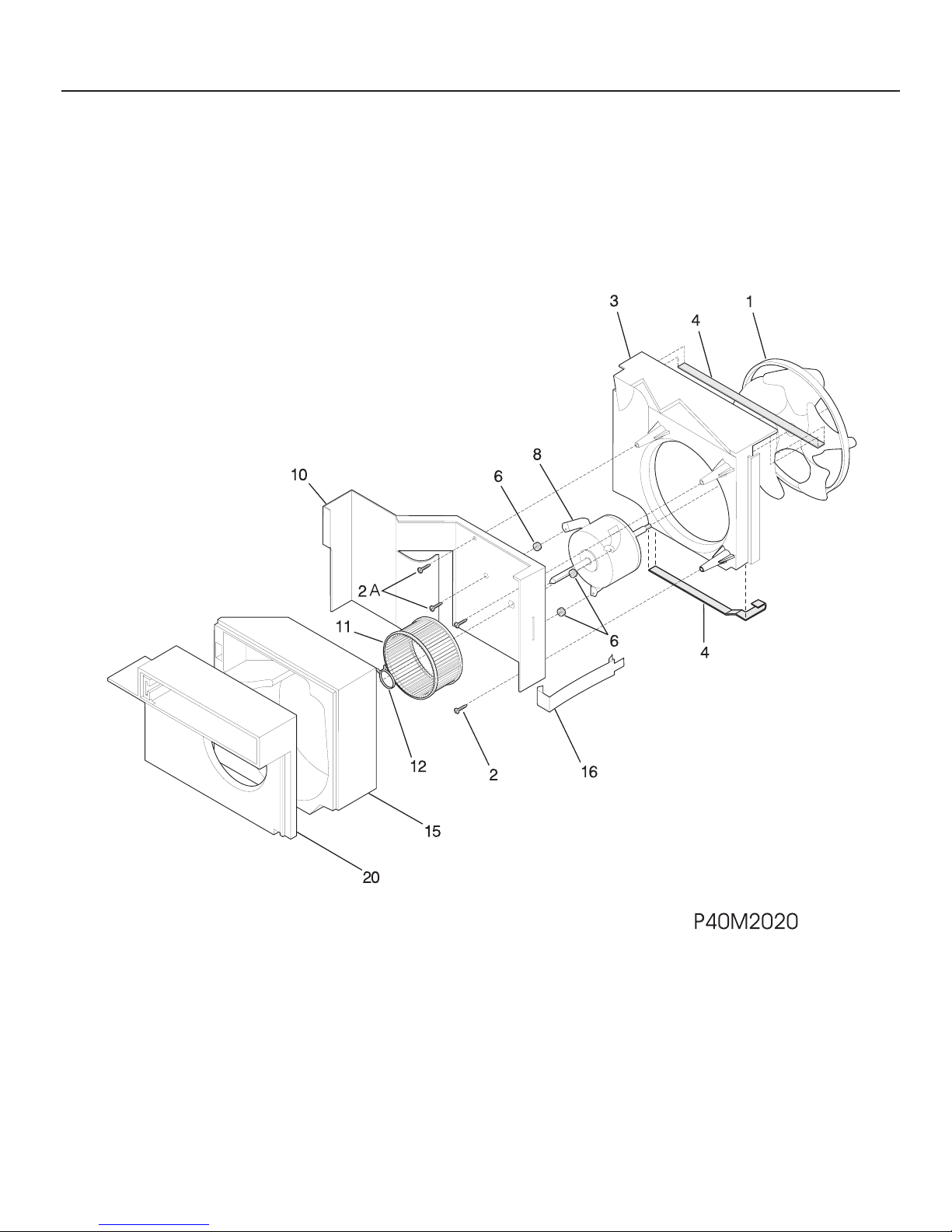

AIR HANDLING PARTS

# = Fast-moving Parts 7 03/02

* = Non-Illustrated Parts

FAC085K7A Publication No.

5995367488

AIR HANDLING PARTS

A = FAC085K7A (FAC085K7A4)

B = FAC085K7A (FAC085K7A5)

POS. NO PART NO DESCRIPTION

1 # 309624502 A B Fan Blade,with clamp

2 3202975 A B Screw,10-16AB x 0.72 ,square drive

2A 5303317224 - B Screw,indt hex head ,10-16 ,(3)

3 309643901 A B Housing,fan shroud

4 5303303759 A B Seal,bottom

4 5304421913 A B Seal,top

6 08007481 A - Nut,Keps ,motor mtg ,(4)

6 5300105402 - B Grommet,motor ,(3)

8 # 309644302 A - Motor,fan

8 # 309642404 - B Motor,fan

10 309643702 A - Bulkhead

10 309643701 - B Bulkhead

11 # 309631701 A - Blower Wheel

11 # 309643301 - B Blower Wheel

12 309112101 A B Clamp,compression ,blower wheel

15 309642901 A B Housing,blower scroll ,Extended

16 309100201 A B Clip,evap/bulkhead

20 309643002 A B Plate,housing/scroll

03/02 8

Publication No. FAC085K7A

5995367488

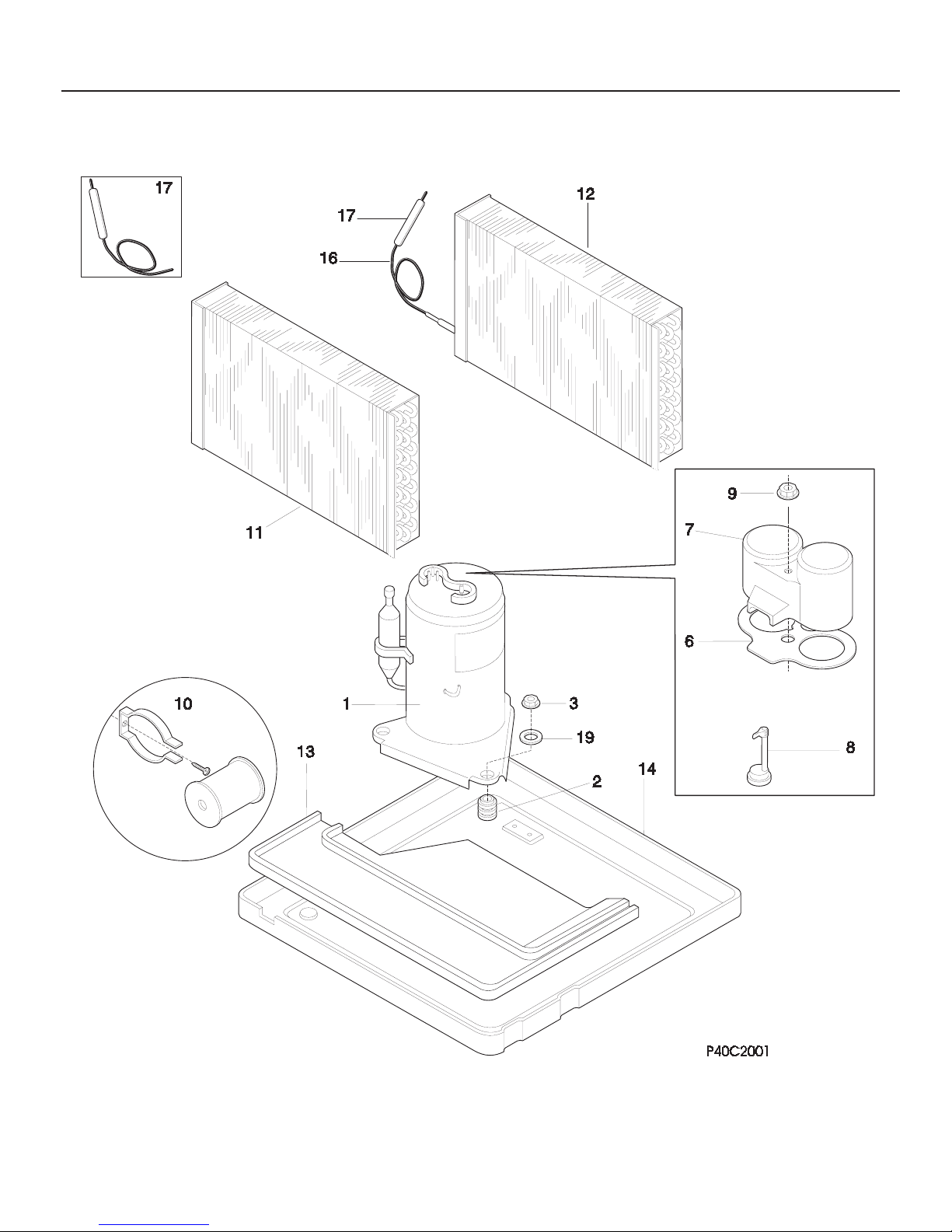

COMPRESSOR PARTS

03/02 9

FAC085K7A Publication No.

5995367488

COMPRESSOR PARTS

A = FAC085K7A (FAC085K7A4)

B = FAC085K7A (FAC085K7A5)

POS. NO PART NO DESCRIPTION

1 # 309616918 A B Compressor

2 5303283877 A B Grommet,compressor mtg ,(3)

3 5308006948 A B Nut,compressor mtg ,(3)

6 3201668 A B Gasket,terminal cover

7 5304405245 A B Cover,compr terminal

8 # 5304402840 A B Overload Protector

9 3201670 A B Nut,terminal cover

10 # 5303317601 A B Start Assist Kit,compressor

11 # 309619313 A B Evaporator

12 # 5303307226 A B Condenser

13 # 309642801 A B Tray,evap drip

14 309644003 A B Base,compressor mtg ,with studs

16 # 5304409280 A B Capillary Tube,37 inch long

17 # 5300265301 A B Drier-filter,service kit

19 5303002664 A B Washer,compressor mtg

19* 309112501 A B Washer,metallic

03/02 10

Publication No. FAC085K7A

5995367488

WINDOW MOUNTING PARTS
