Frigidaire FDB1980RG Bedienungsanleitung

P30L0065.eps P30C0149.eps P30B0037.eps P30U0021.eps P30M0039.eps P30F0022.eps

P30R0109.eps

Product No. FDB1980RGB0 FDB1980RGC0 FDB1980RGQ0 FDB1980RGS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154659901 154659901 154659901 154659901

Owner's Guide Spanish 154659903 154659903 154659903 154659903

Owner's Guide French 154659902 154659902 154659902 154659902

Service Data Sheet 154526501 154526501 154526501 154526501

Energy Guide 154540045 154540045 154540045 154540045

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995502506

07/10/19

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB1980RG

Publication No: 5995502506 FDB1980RG

10/07 2

CONTROL PANEL

FDB1980RG Publication No: 5995502506

# Functional Parts 3 10/07

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB1980RG (FDB1980RGB0)

BFDB1980RG (FDB1980RGC0)

CFDB1980RG (FDB1980RGQ0)

DFDB1980RG (FDB1980RGS0)

POS. NO PART NO. DESCRIPTION

1 154486003 A B - - Panel, control, black

1 154486004 - - C - Panel, control, bisque

1 154486001 - - - D Panel, control, white

2 154577303 A B - - Insert, control panel, 9 pad, black

2 154577304 - - C - Insert, control panel, 9 pad, bisque

2 154577301 - - - D Insert, control panel, 9 pad, white

3 # 154636001 A B C D Board, control

3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask

4 154554601 A B C D Cover, control

4* 154478901 A B C D Gasket, cover

8 # 154474701 A B C D Switch, selector, 9 pad

8A 154486201 A B C D Shield, tactile switch

20 154423601 A B C D Vent assy, active dry, w/actuator

20* 154436201 A B C D Screw, dry duct, (3)

27 154433501 A B C D Actuator, active dry vent

28 154474401 A B C D Adapter, vent

* # 154547001 A B C D Wiring Harness

* 154227501 A B C D Thermistor

* 154540045 A B C D Energy guide label

Publication No: 5995502506 FDB1980RG

10/07 4

DOOR

FDB1980RG Publication No: 5995502506

# Functional Parts 5 10/07

* Non-Illustrated Parts

DOOR

Model Index: AFDB1980RG (FDB1980RGB0)

BFDB1980RG (FDB1980RGC0)

CFDB1980RG (FDB1980RGQ0)

DFDB1980RG (FDB1980RGS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154597503 A B C D Arm Assy, LH

3A 154596103 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154494601 A B C D Liner, door assy.

9 154542103 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 154529403 A B - - Latch assy, black

12 # 154529404 - - C - Latch assy, bisque

12 154529401 - - - D Latch assy, white

20 154599403 A - - - Door, black

20 154599806 - B - - Door, stainless

20 154599405 - - C - Door,bisque

20 154599401 - - - D Door,white

20* 5304428306 A B C D Screw, door mtg., (2)

49 154588201 A B C D Gasket, door wiper

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995502506 FDB1980RG

10/07 6

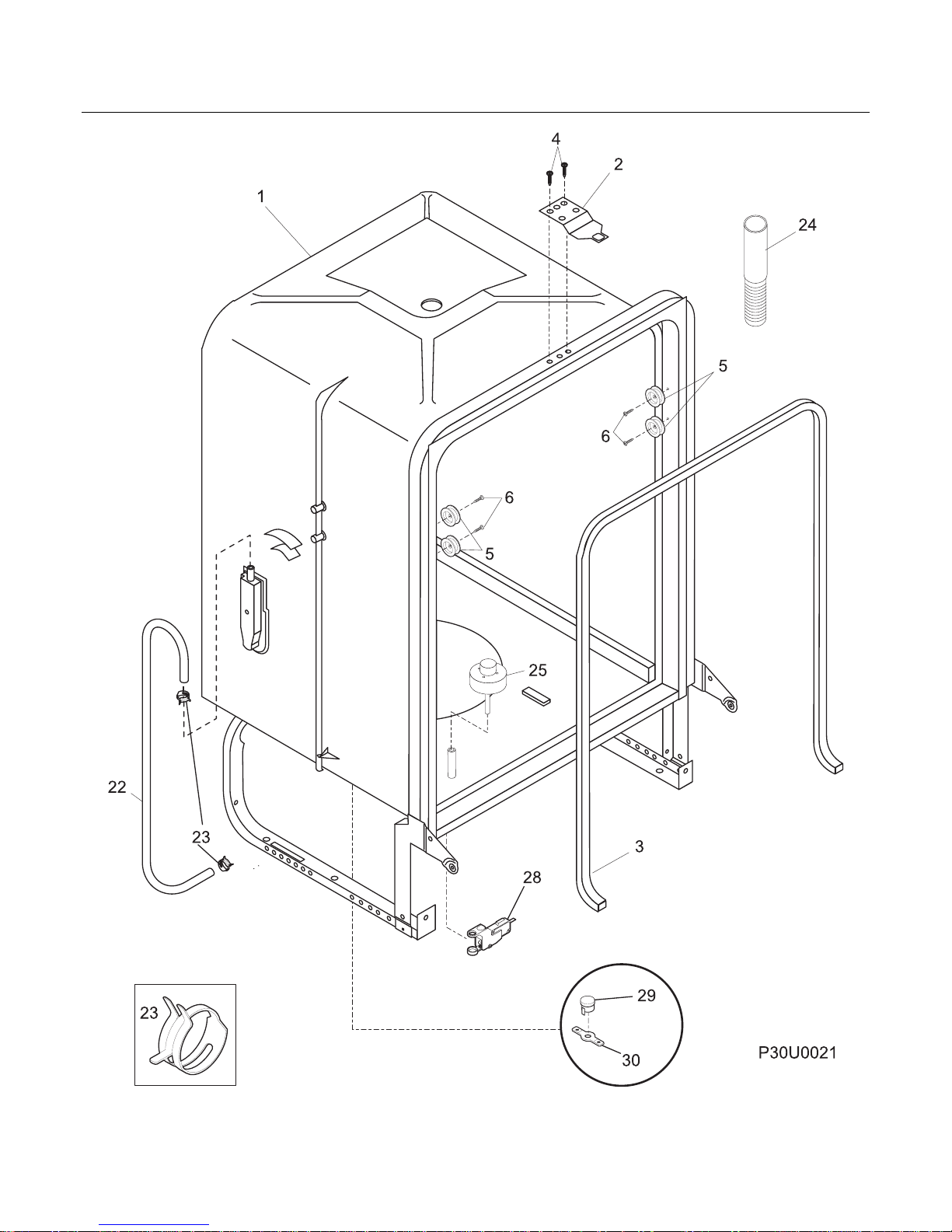

TUB

FDB1980RG Publication No: 5995502506

# Functional Parts 7 10/07

* Non-Illustrated Parts

TUB

Model Index: AFDB1980RG (FDB1980RGB0)

BFDB1980RG (FDB1980RGC0)

CFDB1980RG (FDB1980RGQ0)

DFDB1980RG (FDB1980RGS0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154606701 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154641601 A B C D Insulation,blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995502506 FDB1980RG

10/07 8

MOTOR & PUMP

FDB1980RG Publication No: 5995502506

# Functional Parts 9 10/07

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB1980RG (FDB1980RGB0)

BFDB1980RG (FDB1980RGC0)

CFDB1980RG (FDB1980RGQ0)

DFDB1980RG (FDB1980RGS0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154106202 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461901 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154568002 A B C D Spray arm, grey, lower, w/heat shield

24A 154468502 A B C D Spray arm, grey, center

24B 154520601 A B C D Nozzle, shower, assembly

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154106801 A B C D Clamp, hose, worm/drain

40* 154380601 A B C D Clamp, hose, worm/gear

54 154491201 A B C D Hose, connector, drain pump

55 154595901 A B C D Bracket, motor

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 # 154580301 A B C D Pump Assy, drain

61 154463402 A B C D Grommet, delivery tube

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154594201 A B C D Motor & Pump Assy

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995502506 FDB1980RG

10/07 10

FRAME
