Frigidaire FDB4050LH Bedienungsanleitung

P30L0078.eps P30C0161.eps P30B0052.eps P30U0027.eps P30M0043.eps P30F0022.eps

P30R0119.eps

Product No. FDB4050LHB0 FDB4050LHC0 FDB4050LHS0

Series Built-in 24" Built-in 24" Built-in 24"

Color black stainless white

Owner's Guide English 154720101 154720101 154720101

Owner's Guide Spanish 154720103 154720103 154720103

Owner's Guide French 154720102 154720102 154720102

Service Data Sheet 154718601 154718601 154718601

Energy Guide 154678521 154678521 154678521

Installation Instructions 154427301 154427301 154427301

Market North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995523346

08/09/04

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB4050LH

Publication No: 5995523346 FDB4050LH

09/08 2

CONTROL PANEL

FDB4050LH Publication No: 5995523346

# Functional Parts 3 09/08

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB4050LH (FDB4050LHB0)

BFDB4050LH (FDB4050LHC0)

CFDB4050LH (FDB4050LHS0)

POS. NO PART NO. DESCRIPTION

1 # 154639209 A - - Console Panel, assembly, black, & foam, w/overlay

1 # 154639212 - B - Console Panel, assembly, stainless/black

1 # 154639210 - - C Console Panel, assembly, white, & foam, w/overlay

3 # 154543602 A B C Board, control

4 154718801 A B C Cover, control

5 154718901 A B C Gasket, control cover

8 # 154543401 A B C Board, display

* # 154597601 A B C Harness, wiring, main

* 154678521 A B C Energy guide label

* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

* 154409401 A B C Screw, #8-18 x .375

Publication No: 5995523346 FDB4050LH

09/08 4

DOOR

FDB4050LH Publication No: 5995523346

# Functional Parts 5 09/08

* Non-Illustrated Parts

DOOR

Model Index: AFDB4050LH (FDB4050LHB0)

BFDB4050LH (FDB4050LHC0)

CFDB4050LH (FDB4050LHS0)

POS. NO PART NO. DESCRIPTION

1 154430601 A B C Spring, door, (2)

1A 154325201 A B C Linkage, door spring, (2)

2 154093301 A B C Screw, arm assy, (4)

3 154598201 A B C Arm Assy, LH, w/foam

3A 154597701 A B C Arm Assy, RH, w/foam

* 154529101 A B C Pin, arm assy

5 154079601 A B C Nut, arm assy, and handle mtg.

7 154494309 A B C Liner, door assembly, white, complete

9 154542104 A B C Dispenser, det/rinse aid, w/read

9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C Screw, latch mtg, (2)

12 # 154543901 A B C Latch assy, black

20 154580707 A - - Door Assy, outer, black, w/badge

20 154580701 - B - Door Assy, outer, stainless, w/badge

20 154580708 - - C Door Assy, outer, white, w/badge

20* 5304428306 A B C Screw, door mtg., (2)

40 154585001 A B C Backer, handle mtg, (2)

41 154543703 A - - Towel bar assy, black

41 154543705 - B - Towel bar assy, stainless

41 154543701 - - C Towel bar assy, white

49 154576501 A B C Gasket, door, bottom

50 154598501 A B C Support, door hinge, w/foam

51 154320301 A B C Clamp, drip loop, wire

53 154425001 A B C Nut, Keps, (2), handle mtg.

* 154200601 A B C Screw, #10-16 x 3/8

* 154409401 A B C Screw, #8-18 x .375

Publication No: 5995523346 FDB4050LH

09/08 6

TUB

FDB4050LH Publication No: 5995523346

# Functional Parts 7 09/08

* Non-Illustrated Parts

TUB

Model Index: AFDB4050LH (FDB4050LHB0)

BFDB4050LH (FDB4050LHC0)

CFDB4050LH (FDB4050LHS0)

POS. NO PART NO. DESCRIPTION

1 # 154643301 A B C Tub assy, w/frame parts, white, & vent hole

2 154544601 A B C Strike, door

3 # 154561001 A B C Gasket, tub

4 154200602 A B C Screw, 10-16 x 3/8, hex

5 154333902 A B C Roller, tub

6 5303943103 A B C Screw, w/washer, (8)

9 # 154682301 A B C Vent assy, blower

9* 154691601 A B C Cover, connector, vent assy

9* # 154682201 A B C Harness, wiring, vent assy

10 154562902 A B C Bezel, vent, gray

22 154446002 A B C Tubing, water inlet

23 5303318539 A B C Clamp, tubing, (2)

24 # 154606701 A B C Hose, drain

25 # 154209701 A B C Float

28 154408701 A B C Switch Assy, float

29 # 154642901 A B C Thermostat, hi limit

30 154241101 A B C Retainer, thermostat

30* 154297701 A B C Screw, retainer-thermo

* 154528701 A B C Cabinet Seal Kit

* 154635001 A B C Insulation,blanket

* 154635101 A B C Insulation, back

* 154685101 A B C Gasket, tub, corner, (2)

* 154598801 A B C Foam, tub, (2)

* 5300807270 A B C Screw, (2), countertop mtg.

* 154041001 A B C Screw, plask #1, 10-10 x 9/16

Publication No: 5995523346 FDB4050LH

09/08 8

MOTOR & PUMP

FDB4050LH Publication No: 5995523346

# Functional Parts 9 09/08

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB4050LH (FDB4050LHB0)

BFDB4050LH (FDB4050LHC0)

CFDB4050LH (FDB4050LHS0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C Heater, round

1* 154106202 A B C Nut, heater, (2)

1* 154289801 A B C Shield, heater terminal

2 154465101 A B C Bracket, heater, (2)

10 154245501 A B C Cover, volute

13 154246801 A B C Gasket, sump

14 154461902 A B C Housing, sump

16 154246502 A B C Retainer, sump

24 154467702 A B C Spray arm, grey, lower

24A 154468502 A B C Spray arm, grey, center

24B 154520601 A B C Nozzle, shower, assembly

32 154464101 A B C Tube, delivery

32* 154491101 A B C Screw, delivery tube

32A 154406401 A B C Gasket, delivery tube

40 154106801 A B C Clamp, hose, 1.29" open, worm gear, (2)

40* 154380601 A B C Clamp, hose, 1.5" open, worm gear, (5)

54 154491201 A B C Hose, connector, drain pump

55 154595901 A B C Bracket, motor

55* 5303316032 A B C Screw, truss ss, 8 .625, (7)

58 154246402 A B C Check ball

59 154246901 A B C O-ring, rear

59A 154247001 A B C O-ring, front

60 # 154580301 A B C Pump Assy, drain

61 154463402 A B C Grommet, delivery tube

62 154294102 A B C Support, spray arm, grey, lower

63 154252201 A B C Base, soil director

64 154252302 A B C Filter, soil director, grey

65 154283005 A B C Filter Assy, grey

66 154252702 A B C Trap, glass, grey

70 # 154683201 A B C Motor & Pump Assy

71 # 154473901 A B C Sensor, turbidity

71* 154376001 A B C O-ring, turbidity

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995523346 FDB4050LH

09/08 10

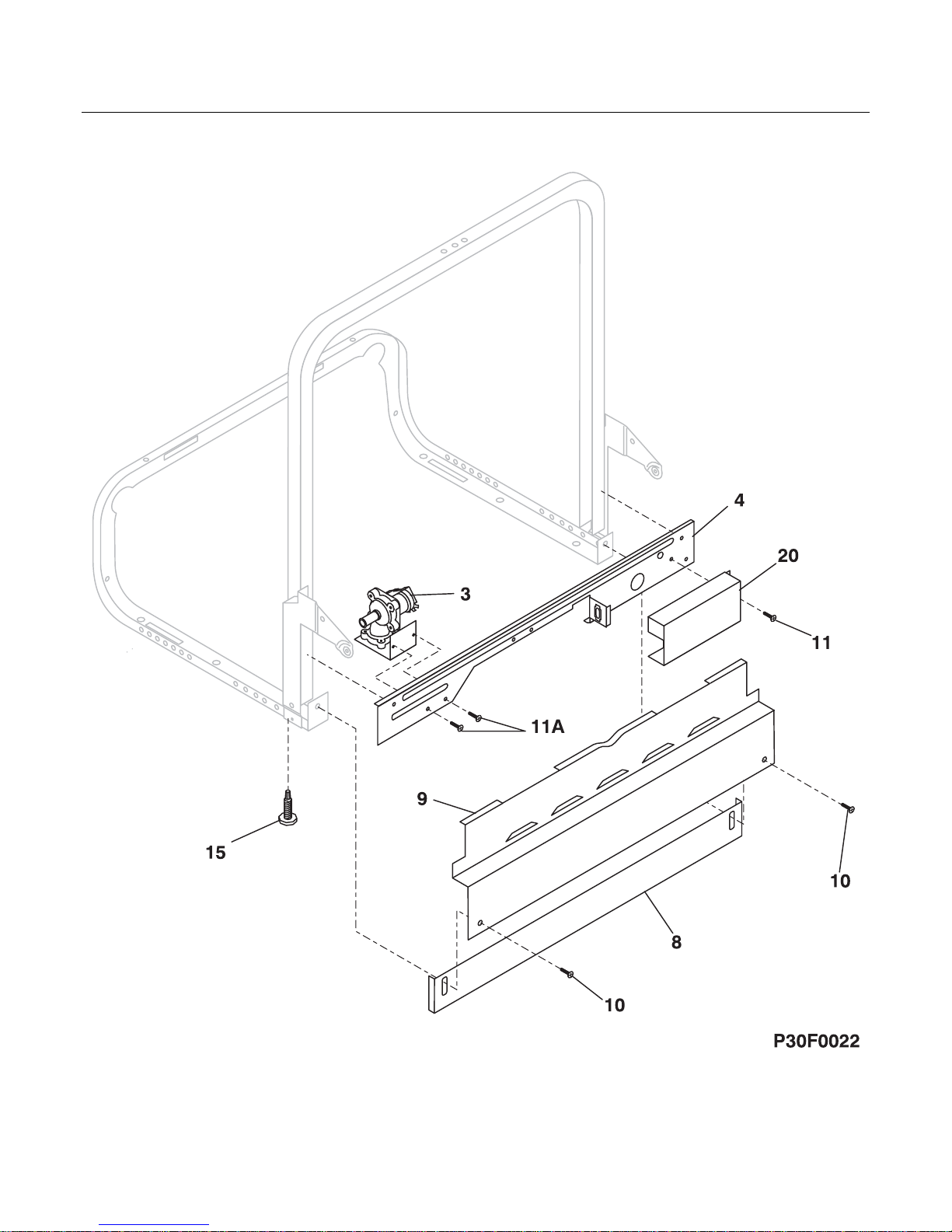

FRAME
