Frigidaire FDB737GF Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. COLOR

FDB737GFR2 FDB737GF black

FDB737GFS2 FDB737GF white

FDB737GFT2 FDB737GF almond

Publication No.

5995306585

980507

-EN/SERVICE /ECL

911

24" BUILT-IN

DISHWASHER

Model No.

FDB737GF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154278801

OWNER’S GUIDE # - 154255802

INSTALLATION INST - 154318401

101 Masters Blvd.

Anderson, SC 29624

5/98 2

Publication No. FDB737GF

5995306585

CONTROL PANEL

# = Fast Moving Part 3 5/98

* = Non-Illustrated Part

FDB737GF Publication No.

5995306585

CONTROL PANEL

A = FDB737GF (FDB737GFR2)

B = FDB737GF (FDB737GFS2)

C = FDB737GF (FDB737GFT2)

POS. NO PART NO DESCRIPTION

1 154222803 A - - Panel-control,black

1 154222801 - B - Panel-control,white

1 154222802 - - C Panel-control,almond

2 154305903 A - - Insert-control pnl,black

2 154305901 - B - Insert-control pnl,white

2 154305902 - - C Insert-control pnl,almond

3 # 154227701 A B C Control

4 154287801 A B C Cover-control

4A 154301301 A B C Cover-pc protector

10 154103702 A B C Screw-switch mtg,(2)

20 154228301 A B C Duct-dynamic

25 154229201 A B C Seal-chamber

26 154303901 A B C Gasket-vent

27 154226701 A B C Actuator-wax

28 154226901 A B C Valve-vent

29 154226401 A B C Gasket-valve

30 154226802 A B C Blower-crossflow

31 154228101 A B C Chamber-vapor

33 154292401 A B C Gasket-cover

34 # 154303101 A B C Keypad,7pad

* 154200401 A B C Screw,6-10 x 3/8 ,pan plask

* 154234702 A B C Harness-wiring

* 154283901 A B C Screw,#8-10 ,3/8 phillips

* 154306101 A B C Spacer-pocket console

5/98 4

Publication No. FDB737GF

5995306585

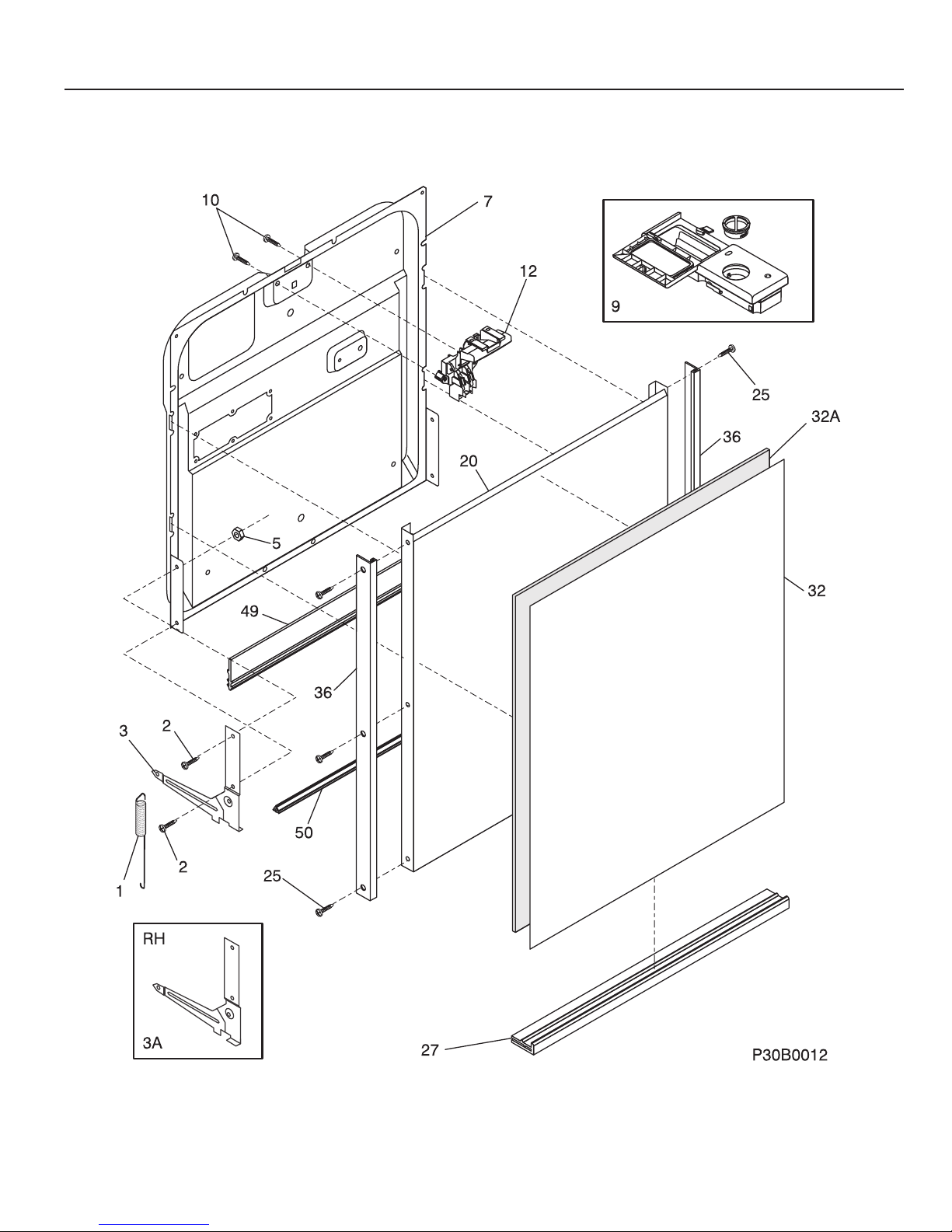

DOOR

# = Fast Moving Part 5 5/98

* = Non-Illustrated Part

FDB737GF Publication No.

5995306585

A = FDB737GF (FDB737GFR2)

B = FDB737GF (FDB737GFS2)

C = FDB737GF (FDB737GFT2)

POS. NO PART NO DESCRIPTION

1 154226002 A B C Spring-door,(2)

2 154093301 A B C Screw-arm assy

3 154225902 A B C Arm Assy,LH

3* 154211501 A B C Pin-arm

3A 154225901 A B C Arm Assy,RH

5 154079601 A B C Nut-arm assy

7 154299002 A B C Door-inner assy

9 154230101 A B C Dispenser-det/rinse aid

10 154304301 A B C Screw-latch mtg,(2)

12 # 154308103 A - - Latch assy,black

12 # 154308101 - B - Latch assy,white

12 # 154308102 - - C Latch assy,almond

20 154210601 A B C Mid Door Assy

27 154257603 A - - Trim-door,black ,bottom

27 154257601 - B - Trim-door,white ,bottom

27 154309502 - - C Trim-door,almond ,bottom

32 5303943148 A B C Insert-door kit,wht/alm&blk/wht

32A 154229001 A B C Spacer-insert,door

36 154254203 A - - Trim-door,side

36 154254201 - B - Trim-door,white ,side

36 154309302 - - C Trim-door,almond ,side ,(2)

49 154297601 A B C Gasket-door,bottom

50 154211401 A B C Support-door hinge

* 154200601 A B C Screw-#10-16 x 3/8

* 154253201 A B C Insulation,door

* 154298101 A B C Washer,arm

* 5300808749 A B C Screw,C.R. truss ,#8 .625

DOOR

5/98 6

Publication No. FDB737GF

5995306585

TUB

# = Fast Moving Part 7 5/98

* = Non-Illustrated Part

FDB737GF Publication No.

5995306585

A = FDB737GF (FDB737GFR2)

B = FDB737GF (FDB737GFS2)

C = FDB737GF (FDB737GFT2)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B C Tub assy,w/frame parts

2 154211601 A B C Strike-door

3 # 154211801 A B C Gasket-tub

5 154080001 A B C Roller-tub

6 5303943103 A B C Screw w/washer,(8)

22 154239801 A B C Tubing-water inlet

23 5303318539 A B C Clamp-tubing,(2)

24 # 154225602 A B C Hose-drain

25 # 154209701 A B C Float

28 # 154225501 A B C Switch-float

28* 154200701 A B C Screw-#10-32 x 3/8

28A 154209801 A B C Bracket-float switch

29 # 154290204 A B C Thermostat,re-settable

29A# 154227501 A B C Thermister

30* 154297701 A B C Screw,retainer-thermo

* 154041001 A B C Screw,plask #1 ,10-10 x 9/16

* 154238305 A B C Insulation

* 154241101 A B C Retainer-thermostat

* 154249401 A B C Dampener-tub,front

* 154249402 A B C Dampener-tub,back

* 5300807270 A B C Screw

TUB

5/98 8

Publication No. FDB737GF

5995306585

MOTOR & PUMP

# = Fast Moving Part 9 5/98

* = Non-Illustrated Part

FDB737GF Publication No.

5995306585

A = FDB737GF (FDB737GFR2)

B = FDB737GF (FDB737GFS2)

C = FDB737GF (FDB737GFT2)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut-heater,(2)

1* 154289801 A B C Shield-heater terminal

2 154211001 A B C Bracket-heater

7 154245901 A B C Macerator

10 154245501 A B C Cover-volute

12 154245801 A B C Impeller

12* 154282701 A B C Screw,ss impeller

13 154246801 A B C Gasket-sump

14 154245401 A B C Housing-sump

15 # 154246701 A B C Check valve

16 154246501 A B C Retainer,sump

24 # 154250901 A B C Spray arm-lower,w/cover

24* 154252001 A B C Nut-spray arm

24A 154313601 A B C Spray arm-center

32 154251701 A B C Tube-delivery

32A 154251601 A B C Gasket-delivery tube

34 154064901 A B C Washer-insulating

40 154106801 A B C Clamp-hose

40 154247301 A B C Clamp,drain pump

54 154234401 A B C Hose-connector

55 154245601 A B C Bracket-motor

55A 154246201 A B C Bracket-motor,front

56 # 154245706 A B C Motor,circulation

57 154246001 A B C Barrel,front

57* 154246101 A B C Barrel,rear

58 154246402 A B C Check ball

59 154246901 A B C O-ring,rear

59A 154247001 A B C O-ring,front

60 154247501 A B C Drain Pump Assy

60* 154234501 A B C Bracket-motor,drain

61 154250201 A B C Nozzle,3rd level ,spray arm

62 154294101 A B C Support-spray arm

63 154252201 A B C Base-soil director

64 154252301 A B C Filter-soil director

65 154283004 A B C Filter Assy

66 154252701 A B C Trap-glass

67 154246601 A B C Hose-drain,shunt

70 # 154291504 A B C Motor & Pump Assy,includes#7,#12 ,

#57A,#59 & #59A,#55A,#56,#57

* # 154289901 A B C Transformer

* 154200601 A B C Screw-#10-16 x 3/8

* 154241101 A B C Retainer-thermostat

* 154247101 A B C Clamp,drain side

* 154247201 A B C Clamp,intake

* 154247401 A B C Clamp,connector pump

* 154287201 A B C Screw,motor mounting

* 5303316032 A B C Screw,truss ss ,8 .625

MOTOR & PUMP

5/98 10

Publication No. FDB737GF

5995306585

FRAME
