Frigidaire FDB435RFR4 Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. COLOR

FDB435RFR4 FDB435RF reversible

Publication No.

5995307914

980602

-EN/SERVICE /JLT

911

24" BUILT-IN

DISHWASHER

Model No.

FDB435RFR4

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154297101

OWNER’S GUIDE # - 154255502

INSTALLATION INST - 154329601

101 Masters Blvd.

Anderson, S.C. 29624

6/98 2

Publication No. FDB435RFR4

5995307914

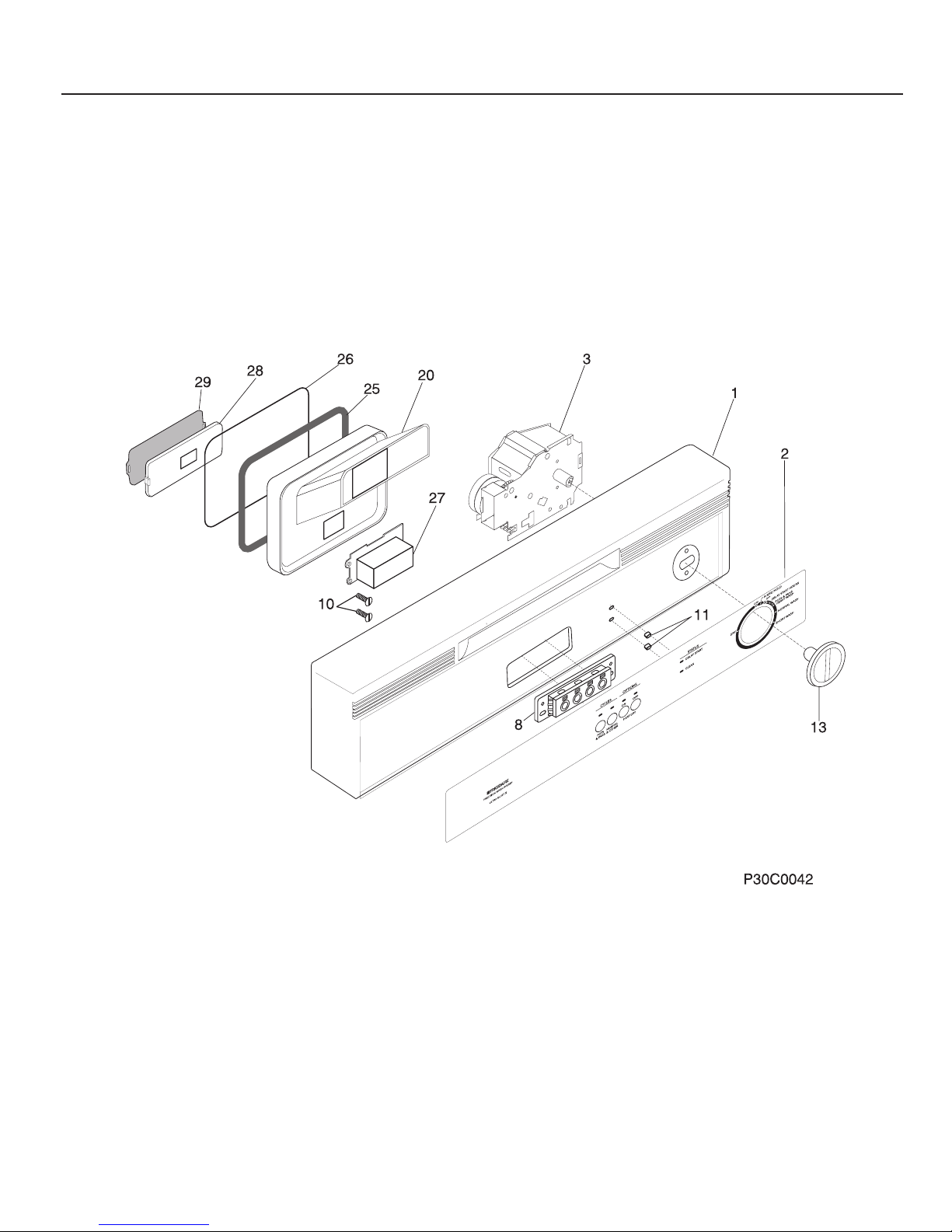

CONTROL PANEL

# = Fast Moving Parts 3 6/98

* = Non-Illustrated Parts

FDB435RFR4 Publication No.

5995307914

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154222703 Panel-control

2 154236603 Insert-control pnl

3 # 154295701 Timer

3* 154095701 Screw-timer,thread rolling ,(2)

3* 154131203 Shield-timer

8 # 154215101 Switch-selector,4B tap touch

8* 154248601 Shield-switch

10 5303318719 Screw,(3) ,timer mtg.

11 154298301 Lens-light

13 154239503 Knob-timer

20 154283701 Vapor Weldment Assy

25 154229201 Seal-chamber

26 154303901 Gasket-vent

27 154226701 Actuator-wax

28 154226901 Valve-vent

29 154226401 Gasket-valve

* 154283901 Screw,#8-10 ,3/8 phillips

* # 154296002 Harness-wiring

6/98 4

Publication No. FDB435RFR4

5995307914

DOOR

# = Fast Moving Parts 5 6/98

* = Non-Illustrated Parts

FDB435RFR4 Publication No.

5995307914

POS. NO PART NO DESCRIPTION

1 154226002 Spring-door,(2)

1* 154325201 Spring linkage

2 154093301 Screw-arm assy

3 154325303 Arm Assy,RH

3 154325304 Arm Assy,LH

3* 154211501 Pin-arm

5 154079601 Nut-arm assy

7 154299002 Door-inner assy

9 154230101 Dispenser-det/rinse aid

10 154304301 Screw-latch mtg,(2)

12 # 154308103 Latch assy,black

20 154327701 Mid Door Assy

27 154257603 Trim-door,black ,bottom

32 5303943148 Insert-door kit,wht/alm&blk/wht

32A 154229001 Spacer-insert,door

36 154254203 Trim-door,side

49 154297602 Gasket-door,bottom

50 154211401 Support-door hinge

* 154200601 Screw-#10-16 x 3/8

* 5300808749 Screw,C.R. truss ,#8 .625

DOOR

6/98 6

Publication No. FDB435RFR4

5995307914

TUB

# = Fast Moving Parts 7 6/98

* = Non-Illustrated Parts

FDB435RFR4 Publication No.

5995307914

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154211601 Strike-door

3 # 154211801 Gasket-tub

4 5300807270 Screw

5 154213401 Roller-tub

6 5303943103 Screw w/washer,(8)

22 154239801 Tubing-water inlet

23 5303318539 Clamp-tubing,(2)

24 # 154225602 Hose-drain

25 # 154209701 Float

28 # 154225501 Switch-float

28* 154200701 Screw-#10-32 x 3/8

28* 154209801 Bracket-float switch

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer-thermostat

30* 154297701 Screw,retainer-thermo

* 154041001 Screw,plask #1 ,10-10 x 9/16

TUB

6/98 8

Publication No. FDB435RFR4

5995307914

MOTOR & PUMP

# = Fast Moving Parts 9 6/98

* = Non-Illustrated Parts

FDB435RFR4 Publication No.

5995307914

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut-heater,(2)

1* 154289801 Shield-heater terminal

2 154322501 Bracket-heater

7 154245901 Macerator

10 154245501 Cover-volute

12 154245801 Impeller

12* 154282701 Screw,ss impeller

13 154246801 Gasket-sump

14 154335403 Housing-sump

15 # 154246701 Check valve

16 154246502 Retainer,sump

24 # 154250901 Spray arm-lower,w/cover

24* 154252001 Nut-spray arm

24A 154313601 Spray arm-center

30 154241101 Retainer-thermostat

32 154251701 Tube-delivery

32A 154251601 Gasket-delivery tube

34 154064901 Washer-insulating

40 154106801 Clamp-hose

40 154247301 Clamp,drain pump

54 154234401 Hose-connector

55 154245601 Bracket-motor

55A 154246201 Bracket-motor,front

56 # 154245706 Motor,circulation

57 154246001 Barrel,front

57* 154246101 Barrel,rear

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154247502 Drain Pump Assy

60* 154234501 Bracket-motor,drain

61 154250201 Nozzle,3rd level ,spray arm

62 154294101 Support-spray arm

63 154252201 Base-soil director

64 154252301 Filter-soil director

65 154252401 Filter-polypro

66 154252701 Trap-glass

67 154246601 Hose-drain,shunt

70 # 154291504 Motor & Pump Assy,includes#7,#12 ,

#57A,#59 & #59A,#55A,#56,#57

* 154200601 Screw-#10-16 x 3/8

* 154247101 Clamp,drain side

* 154247201 Clamp,intake

* 154247401 Clamp,connector pump

* 154287201 Screw,motor mounting

* 154329001 Cover-fan

* 5303316032 Screw,truss ss ,8 .625

* # 154227806 Thermostat-temp boost

MOTOR & PUMP

6/98 10

Publication No. FDB435RFR4

5995307914

FRAME
