Frigidaire FDB836GF Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. COLOR

FDB836GFB4 FDB836GF black

FDB836GFS4 FDB836GF white

MARKET

North America

Publication No.

5995327383

990902

-EN/SERVICE /ECL

821

18" PORTABLE

DISHWASHER

Model No.

FDB836GF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154320701

OWNER’S GUIDE # - 154314302

WIRING DIAGRAM # - 154320701

101 Masters Blvd.

Anderson, SC 29624

This Publication Supercedes

Publication Number 5995306981

9/99 2

Publication No. FDB836GF

5995327383

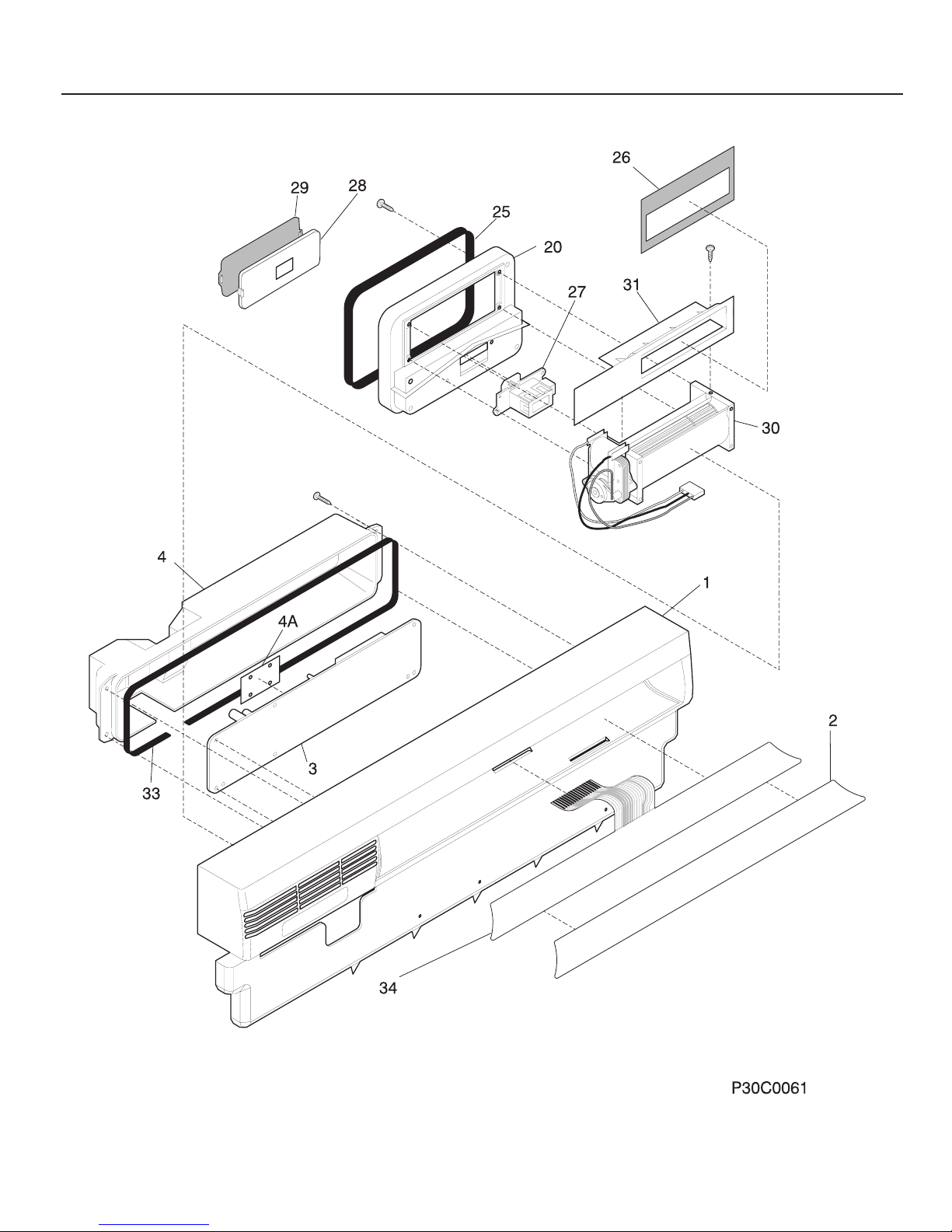

CONTROL PANEL

# = Fast Moving Part 3 9/99

* = Non-Illustrated Part

FDB836GF Publication No.

5995327383

CONTROL PANEL

A = FDB836GF (FDB836GFB4)

B = FDB836GF (FDB836GFS4)

POS. NO PART NO DESCRIPTION

1 154253103 A - Panel-control,black

1 154253101 - B Panel-control,white

2 154236903 A - Insert-control pnl,black

2 154236901 - B Insert-control pnl,white

3 # 154227703 A B Control

3* 154200401 A B Screw,6-10 x 3/8 ,pan plask

4 154287901 A B Cover-control

4A 154301301 A B Cover-pc protector

20 154228301 A B Duct-dynamic

25 154229201 A B Seal-chamber

26 154303901 A B Gasket-vent

27 154226701 A B Actuator-wax

28 154226901 A B Valve-vent

29 154226401 A B Gasket-valve

30 154226802 A B Blower-crossflow

31 154228101 A B Chamber-vapor

33 154292402 A B Gasket-cover

34 154321901 A B Keypad,8pad

* 154301202 A B Wiring Harness,main

* 154302303 A - Nameplate Assy,black

* 154302301 - B Nameplate Assy,white

9/99 4

Publication No. FDB836GF

5995327383

DOOR

# = Fast Moving Part 5 9/99

* = Non-Illustrated Part

FDB836GF Publication No.

5995327383

A = FDB836GF (FDB836GFB4)

B = FDB836GF (FDB836GFS4)

POS. NO PART NO DESCRIPTION

1 154226002 A B Spring-door,(2)

2 154093301 A B Screw-arm assy,(4)

3 154225902 A B Arm Assy,LH

3A 154225901 A B Arm Assy,RH

* 154211501 A B Pin-arm

* 154298101 A B Washer,arm

5 154079601 A B Nut-arm assy,(4)

7 154299002 A B Door-inner assy

7A 154226601 A B Liner grate

9 154230101 A B Dispenser-det/rinse aid

9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.

10 154304301 A B Screw-latch mtg,(2)

12 # 154308103 A - Latch assy,black

12 # 154308101 - B Latch assy,white

20 154292603 A - Door,black

20 154292601 - B Door,white

49 154297601 A B Gasket-door,bottom

50 154211401 A B Support-door hinge

51 154320301 A B Clamp-wire,drip loop

* # 154227501 A B Thermister

* 154200601 A B Screw-#10-16 x 3/8

* 154253201 A B Insulation,door

* 5300808749 A B Screw,C.R. truss ,#8 .625

DOOR

9/99 6

Publication No. FDB836GF

5995327383

TUB

# = Fast Moving Part 7 9/99

* = Non-Illustrated Part

FDB836GF Publication No.

5995327383

A = FDB836GF (FDB836GFB4)

B = FDB836GF (FDB836GFS4)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B Tub assy,w/frame parts

2 154211601 A B Strike-door

3 # 154211801 A B Gasket-tub

4 154200602 A B Screw,10-16 x 3/8 ,hex

5 154080001 A B Roller-tub

6 5303943103 A B Screw w/washer,(8)

22 154239801 A B Tubing-water inlet

23 5303318539 A B Clamp-tubing,(2)

24 # 154225602 A B Hose-drain

25 # 154209701 A B Float

28 # 154225501 A B Switch-float

28A 154209801 A B Bracket-float switch

28A* 154200701 A B Screw-#10-32 x 3/8

29 # 154290204 A B Thermostat,re-settable

30 154241101 A B Retainer-thermostat

30* 154297701 A B Screw,retainer-thermo

* 154041001 A B Screw,plask #1 ,10-10 x 9/16

* 154238305 A B Insulation

* 154249401 A B Dampener-tub,front

* 154249402 A B Dampener-tub,back

TUB

9/99 8

Publication No. FDB836GF

5995327383

MOTOR & PUMP

# = Fast Moving Part 9 9/99

* = Non-Illustrated Part

FDB836GF Publication No.

5995327383

A = FDB836GF (FDB836GFB4)

B = FDB836GF (FDB836GFS4)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B Heater

1* 154106201 A B Nut-heater,(2)

1* 154289801 A B Shield-heater terminal

2 154211001 A B Bracket-heater

7 154245901 A B Macerator

10 154245501 A B Cover-volute

10* 5303316032 A B Screw,truss ss ,8 .625

12 154245801 A B Impeller

12* 154282701 A B Screw,ss impeller

13 154246801 A B Gasket-sump

14 154245401 A B Housing-sump

15 # 154246701 A B Check valve

16 154246501 A B Retainer,sump

24 # 154250901 A B Spray arm-lower,w/cover

24A 154313601 A B Spray arm-center

24A* 154252001 A B Nut-spray arm

32 154251701 A B Tube-delivery

32A 154251601 A B Gasket-delivery tube

34 154064901 A B Washer-insulating

40 154106801 A B Clamp-hose

40* 154247301 A B Clamp,drain pump

54 154234401 A B Hose-connector

55 154245601 A B Bracket-motor

55A 154246201 A B Bracket-motor,front

57 154246001 A B Barrel,front

57* 154246101 A B Barrel,rear

58 154246402 A B Check ball

59 154246901 A B O-ring,rear

59A 154247001 A B O-ring,front

60 154247501 A B Drain Pump Assy

60* 154234501 A B Bracket-motor,drain

61 154250201 A B Nozzle,3rd level ,spray arm

62 154294101 A B Support-spray arm

63 154252201 A B Base-soil director

64 154252301 A B Filter-soil director

65 154283004 A B Filter Assy

66 154252701 A B Trap-glass

67 154246601 A B Hose-drain,shunt

70 # 154291504 A B Motor & Pump Assy,includes#7,#12 ,

#55A,#57,#59,,#59A

70* 154287201 A B Screw,motor mounting

71 # 154289901 A B Transformer

* 154200601 A B Screw-#10-16 x 3/8

* 154247101 A B Clamp,drain side

* 154247201 A B Clamp,intake

* 154247401 A B Clamp,connector pump

MOTOR & PUMP

9/99 10

Publication No. FDB836GF

5995327383

FRAME
