Frigidaire FDBB240F Bedienungsanleitung
P30L0055.eps P30C0140.eps P30B0032.eps P30U0018.eps P30M0033.eps P30F0022.eps
P30R0045.eps
Product No. FDBB240FB0 FDBB240FS0
Series Built-in 24" Built-in 24"
Color black white
Owner's Guide English 154575101 154575101
Owner's Guide Spanish 154575203 154575203
Owner's Guide French 154575202 154575202
Service Data Sheet 154585401 154585401
Energy Guide 154540032 154540032
Installation Instructions 154427301 154427301
Market North America North America
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995466017
06/05/08
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
FDBB240F
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995466017 FDBB240F
05/06 2

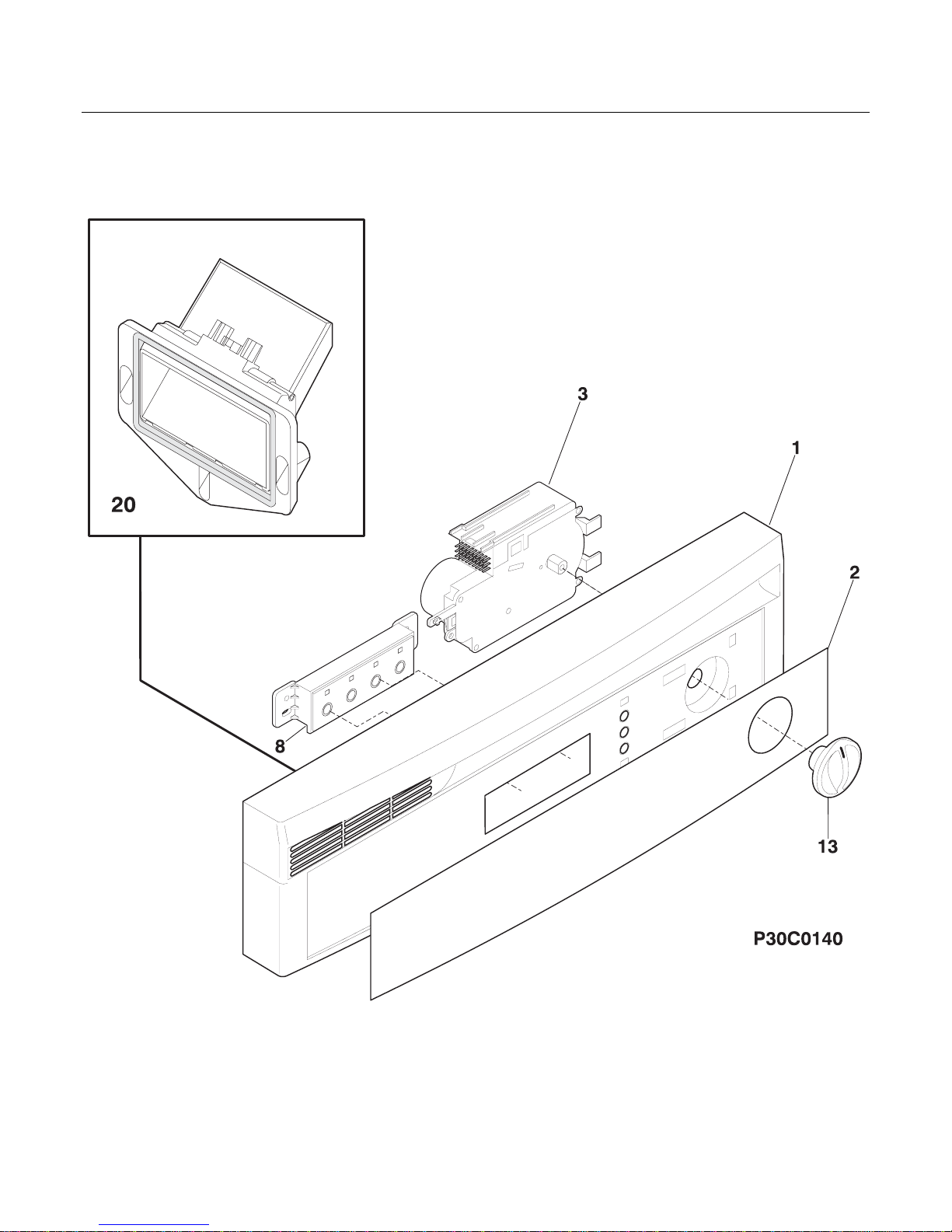

CONTROL PANEL
FDBB240F Publication No: 5995466017
# Functional Parts 3 05/06
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AFDBB240F (FDBB240FS0)
BFDBB240F (FDBB240FB0)
POS. NO PART NO. DESCRIPTION
1 154454201 A - Panel, control, white
1 154454203 - B Panel, control, black
2 154583001 A - Insert, control panel, 4 pad, white
2 154583003 - B Insert, control panel, 4 pad, black
3 # 154495901 A B Timer
3* 154131204 A B Shield, timer
3* 154095701 A B Screw, thread rolling, (2), timer
8 # 154466001 A B Switch, selector, 4 button
8* 154248601 A B Shield, switch
8* 5303318719 A B Screw, mtg.
13 154426901 A - Knob, timer, white
13 154426903 - B Knob, timer, black
20 154433001 A B Vent assy, static dry
20* 154436201 A B Screw, dry duct, (3)
* # 154491801 A B Wiring Harness
* 154540032 A B Energy guide label
Publication No: 5995466017 FDBB240F
05/06 4
DOOR
FDBB240F Publication No: 5995466017
# Functional Parts 5 05/06
* Non-Illustrated Parts
DOOR
Model Index: AFDBB240F (FDBB240FS0)
BFDBB240F (FDBB240FB0)
POS. NO PART NO. DESCRIPTION
1 154430501 A B Spring, door, (2)
1A 154325201 A B Linkage, door spring, (2)
2 154093301 A B Screw, arm assy, (4)
3 154558102 A B Arm Assy, LH
3A 154558502 A B Arm Assy, RH
* 154529101 A B Pin, arm assy
5 154079601 A B Nut, arm assy, and handle mtg.
7 154299004 A B Door, inner assy
9 154230103 A B Dispenser, det/rinse aid, includes #22
9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.
10 154103702 A B Screw, latch mtg, (2)
12 # 154537301 A - Latch assy, white
12 # 154537303 - B Latch assy, black
20 154359105 A - Door, white
20 154359107 - B Door, black
20* 5304428306 A B Screw, door mtg., (2)
22 154388801 A B Cap, Rinse aid
49 154297603 A B Gasket, door, bottom
50 154211401 A B Support, door hinge
51 154320301 A B Clamp, drip loop, wire
* # 154227806 A B Thermostat, temp boost, hi temp rinse
Publication No: 5995466017 FDBB240F
05/06 6
TUB
FDBB240F Publication No: 5995466017
# Functional Parts 7 05/06
* Non-Illustrated Parts
TUB
Model Index: AFDBB240F (FDBB240FS0)
BFDBB240F (FDBB240FB0)
POS. NO PART NO. DESCRIPTION
1 # 154357301 A B Tub assy, w/frame parts
2 154429101 A B Strike, door
3 # 154561001 A B Gasket, tub
4 154200602 A B Screw, 10-16 x 3/8, hex
5 154333902 A B Roller, tub
6 5303943103 A B Screw, w/washer, (8)
22 154446001 A B Tubing, water inlet
23 5303318539 A B Clamp, tubing, (2)
24 # 154525301 A B Hose, drain
25 # 154209701 A B Float
28 154408701 A B Switch Assy, float
29 # 154290204 A B Thermostat, re-settable
30 154241101 A B Retainer, thermostat
30* 154297701 A B Screw, retainer-thermo
* 154041001 A B Screw, plask #1, 10-10 x 9/16
* 5300807270 A B Screw, (2), countertop mtg.
* 154200601 A B Screw, #10-16 x 3/8
Publication No: 5995466017 FDBB240F
05/06 8
MOTOR & PUMP
FDBB240F Publication No: 5995466017
# Functional Parts 9 05/06
* Non-Illustrated Parts
MOTOR & PUMP
Model Index: AFDBB240F (FDBB240FS0)
BFDBB240F (FDBB240FB0)
POS. NO PART NO. DESCRIPTION
1 154247601 A B Heater
1* 154106201 A B Nut, heater, (2)
1* 154289801 A B Shield, heater terminal
2 154479601 A B Bracket, heater, (2)
10 154335301 A B Cover, volute
13 154246801 A B Gasket, sump
14 154365903 A B Housing, sump
16 154246502 A B Retainer, sump
24 154550002 A B Spray arm, lower, w/heat shield
24A 154335201 A B Nut, spray arm
40 154348401 A B Clamp, red, pump
40 154348502 A B Clamp, red, pump
40* 154380601 A B Clamp, hose, worm/gear
54 154234401 A B Hose, connector
55 154362301 A B Bracket, motor
55* 5303316032 A B Screw, truss ss, 8 .625
59 154246901 A B O-ring, rear
59A 154247001 A B O-ring, front
60 154474101 A B Drain Pump Assy
60* 154426201 A B Bracket, motor, drain
63 154252201 A B Base, soil director
64 154332602 A B Filter, soil director
65 154252401 A B Filter, polypro
70 # 154474001 A B Motor Assembly, circulation, w/o o'rings
* 154200601 A B Screw, #10-16 x 3/8
Publication No: 5995466017 FDBB240F
05/06 10

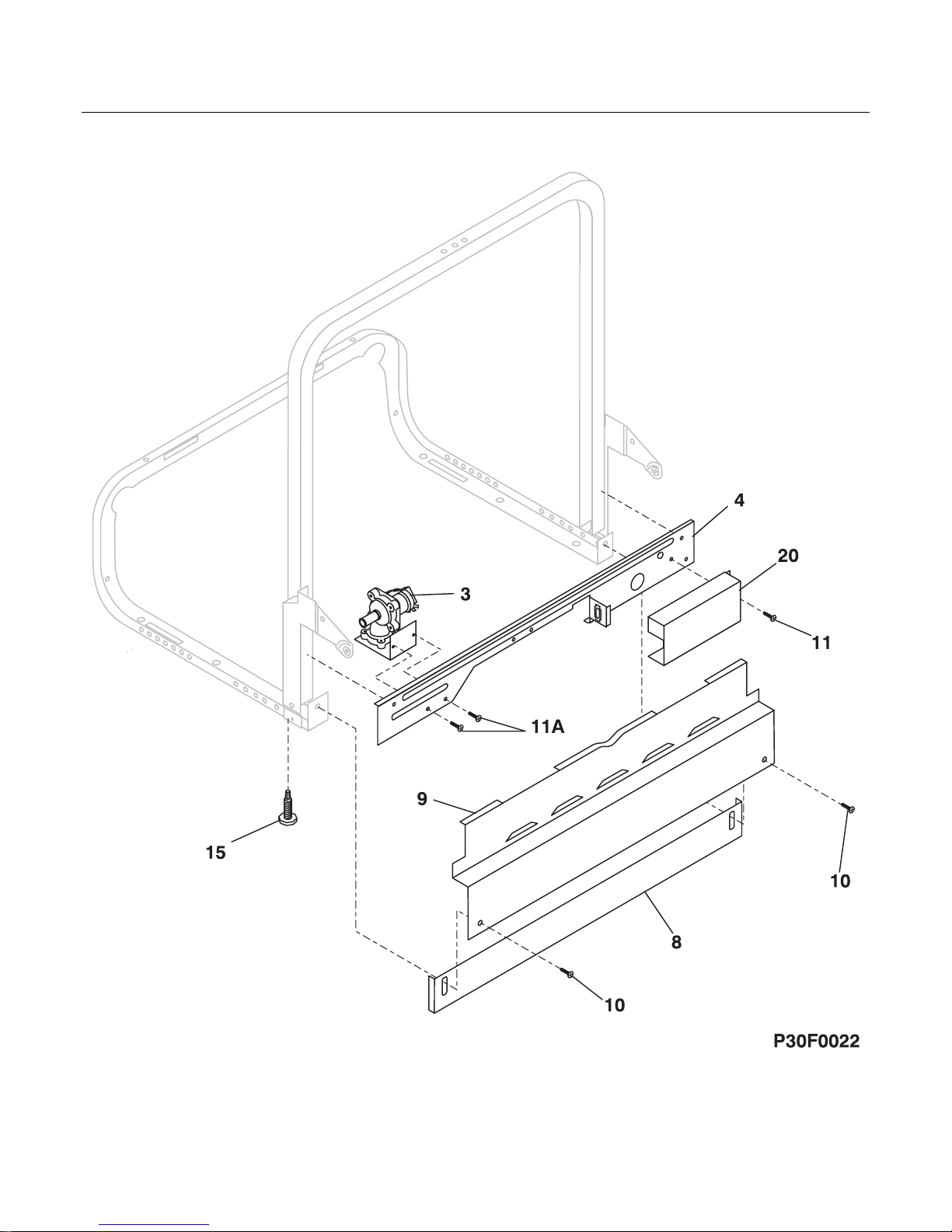

FRAME
