PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDR251RJR0 FDR251RJ 18" Built-in black

FDR251RJS0 FDR251RJ 18" Built-in white

MARKET

North America

Publication No.

5995344487

001009

-EN/SERVICE /ECL

821

18" BUILT-IN

DISHWASHER

Model No.

FDR251RJ

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154384501

OWNER’S GUIDE # - 154381201

WIRING DIAGRAM # - 154384501

101 Masters Blvd.

Anderson, SC 29624

10/00 2

Publication No. FDR251RJ

5995344487

CONTROL PANEL

# = Fast Moving Part 3 10/00

* = Non-Illustrated Part

FDR251RJ Publication No.

5995344487

CONTROL PANEL

A = FDR251RJ (FDR251RJS0)

B = FDR251RJ (FDR251RJR0)

POS. NO PART NO DESCRIPTION

1 154357602 A - Panel-control,white

1 154357601 - B Panel-control,black

2 154381101 A - Insert-control pnl,white

2 154381103 - B Insert-control pnl,black

3 # 154376202 A B Timer

8 # 154220401 A B Switch-selector,5 button

8* 154242201 A B Shield-switch

8* 5303318719 A B Screw,mtg.

11 5300809036 A B Lens-light

12 154236502 A - Pushbutton,white

12 154236501 - B Pushbutton,black

13 154239501 A - Knob-timer,white

13 154239503 - B Knob-timer,black

* 5300809144 A B Shield-wire

* # 154376601 A B Harness-wiring

10/00 4

Publication No. FDR251RJ

5995344487

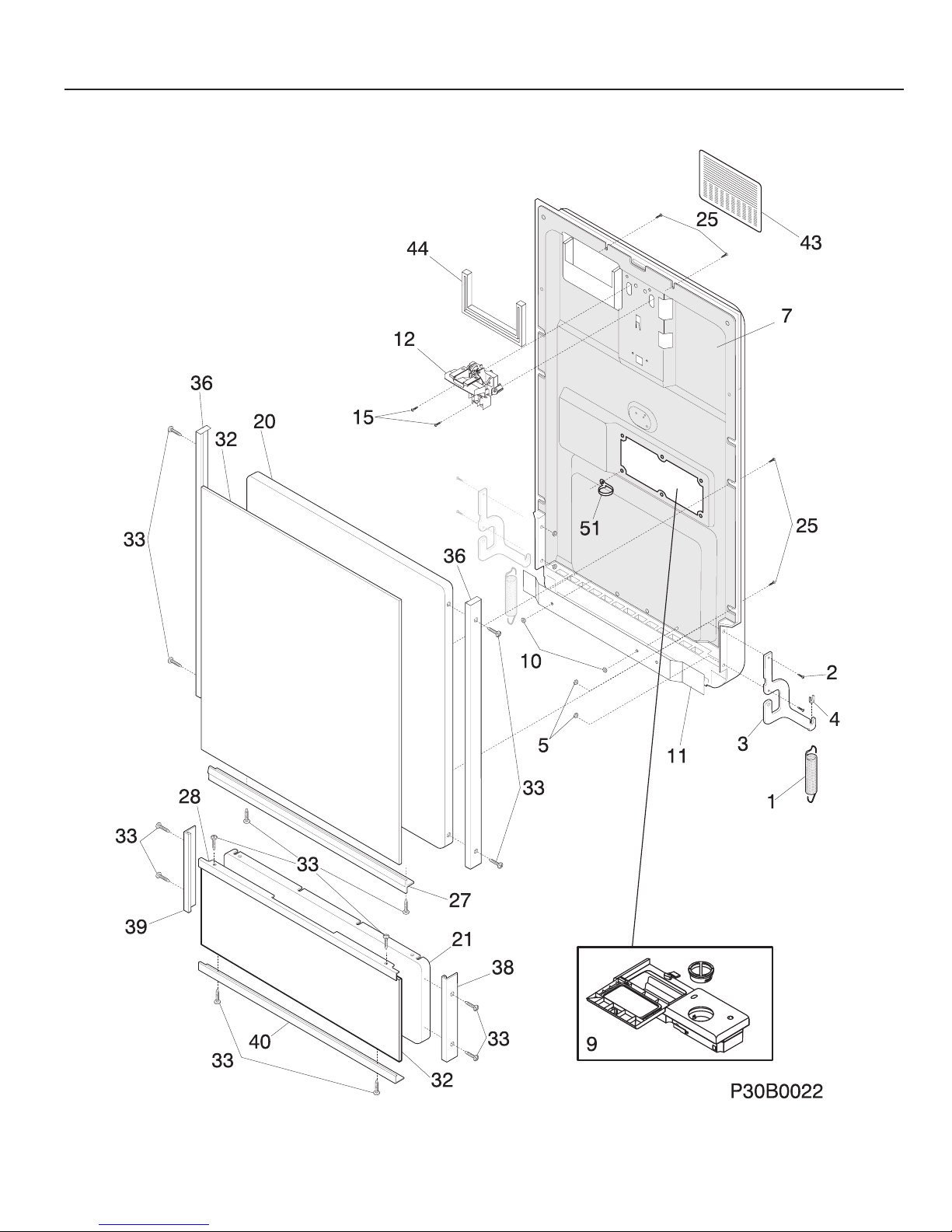

DOOR

# = Fast Moving Part 5 10/00

* = Non-Illustrated Part

FDR251RJ Publication No.

5995344487

A = FDR251RJ (FDR251RJS0)

B = FDR251RJ (FDR251RJR0)

POS. NO PART NO DESCRIPTION

1 154237401 A B Spring-door,(2)

2 154093301 A B Screw-arm assy,(4)

3 5303270031 A B Arm Assy,RH & LH

3* 154221401 A B Cover-arm

3* 5303298513 A B Pin-arm

4 5300805884 A B Pad-spring

5 154079601 A B Nut-arm assy,(4)

7 154352201 A B Door-inner assy

9 154230101 A B Dispenser-det/rinse aid

9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.

10 154026601 A B Speednut-baffle

11 # 154221101 A B Baffle seal

12 # 154361201 A - Latch assy,white

12 # 154361203 - B Latch assy,black

15 154103702 A B Screw-latch mtg,(2)

20 5303308615 A B Panel-door,galv

21 5303318023 A B Panel-access,galv

25 5300809055 A B Screw,cr truss s.s. ,8 .438

27 5303303652 A B Trim-door,chrome ,bottom

28 5300808471 A B Trim-access top,chrome

32 5300808756 A B Insert-door/access,alm/blk

32 5303318022 A B Insert-door,wht/clr

32 5303318024 A B Insert-access,wht/clr

33 5303318540 A B Screw-door trim,phillips ,8-18

36 5303943080 A B Trim-door,chrome ,RH & LH

38 5303272124 A B Trim-access panel,chrome ,RH

39 5303272125 A B Trim-access panel,chrome ,LH

40 154043802 A B Trim-access,chrome ,bottom

43 154229301 A B Cover-vent

43* 154229401 A B Screw-vent cover,(2)

44 154221001 A B Gasket,vent cover

51 154320301 A B Clamp-wire,drip loop

* 154227808 A B Thermostat-temp boost

DOOR

10/00 6

Publication No. FDR251RJ

5995344487

TUB

# = Fast Moving Part 7 10/00

* = Non-Illustrated Part

FDR251RJ Publication No.

5995344487

A = FDR251RJ (FDR251RJS0)

B = FDR251RJ (FDR251RJR0)

POS. NO PART NO DESCRIPTION

1 # 154218701 A B Tub assy w/gasket

2 154211601 A B Strike-door

3 # 154219501 A B Gasket-tub

4 154200602 A B Screw,10-16 x 3/8 ,hex

5 154333901 A B Roller-tub

6 5303943103 A B Screw w/washer,(8)

19 5300809902 A B Inlet-water

22 154239801 A B Tubing-water inlet

23 5303318539 A B Clamp-tubing,(2)

24 154369601 A B Hose-drain

25 # 154209701 A B Float

* 154238301 A B Insulation,tub

* 5300807270 A B Screw,(2) ,countertop mtg.

TUB

10/00 8

Publication No. FDR251RJ

5995344487

MOTOR & PUMP

# = Fast Moving Part 9 10/00

* = Non-Illustrated Part

FDR251RJ Publication No.

5995344487

A = FDR251RJ (FDR251RJS0)

B = FDR251RJ (FDR251RJR0)

POS. NO PART NO DESCRIPTION

1 # 154220901 A B Heater

1* 154289801 A B Shield-heater terminal

2 154359701 A B Bracket-heater,(2)

3 154106201 A B Nut-heater,(2)

7 154365101 A B Macerator

10 154365301 A B Cover-volute

12 154365401 A B Impeller-lower

12A 154365501 A B Slinger-pump

14 154364801 A B Housing-pump

15 # 154367701 A B Check valve

16 154246502 A B Retainer,sump

18 # 154384301 A B Motor

22 154200201 A B Screw-pump housing

23 154234301 A B Nut-spray arm

24 154219201 A B Spray arm-lower

27 154377501 A B Screw-upper impeller

28 154370601 A B Impeller-upper

34 154064901 A B Washer-insulating

35 154200901 A B Screw-motor mtg

36 154381001 A B Sleeve & seal assy.

38 154367402 A B Diffuser

42 154365601 A B Gasket-pump

44 154122502 A B Base-tower

45 154122601 A B Middle-tower

46 154122701 A B Tip-tower

52 154365201 A B Cover,pump housing

* 154200601 A B Screw-#10-16 x 3/8

* 154380601 A B Clamp-hose

MOTOR & PUMP

10/00 10

Publication No. FDR251RJ

5995344487

FRAME
