Frigidaire FRT15HB3D Bedienungsanleitung

N05L00004.eps N05DBDCJA1.eps N05BBAABA15.eps N05SADDCA21.eps

N05CAAAAC1.eps 240398801.eps 240398601.eps

Product No. FRT15HB3DQ0 FRT15HB3DT0 FRT15HB3DW0 FRT15HB3DZ0

Series R134a R134a R134a R134a

Color bisque (right) bisque (left) white (right) white (left)

Volts 115 115 115 115

Wiring Diagram 240398801 240398801 240398801 240398801

Owner's Guide 240400110 240400110 240400110 240400110

Market North America North America North America North America

Energy Guide 241538732 241538732 241538732 241538732

Service Data Sheet 240379015 240379015 240379015 240379015

Installation Instructions 240568300 240568300 240568300 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995406369

04/03/24

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT15HB3D

Publication No: 5995406369 FRT15HB3D

03/04 2

DOOR

FRT15HB3D Publication No: 5995406369

# Functional Parts 3 03/04

* Non-Ilustrated Parts

DOOR

Model Index: AFRT15HB3D (FRT15HB3DQ0)

BFRT15HB3D (FRT15HB3DT0)

CFRT15HB3D (FRT15HB3DW0)

DFRT15HB3D (FRT15HB3DZ0)

POS. NO PART NO. DESCRIPTION

1 # 240554101 A B C D Gasket-frzr door, white,magnetic

2 # 240542102 A B C D Gasket, refr door seal, white, magnetic

4 240535101 A B C D Rack-door

4A 240535301 A B C D Rack-door

4B 240535201 A B C D Rack-door

7 240337701 A B C D Door-dairy, w/o graphics, white

8 240535001 A B C D Rack-door

10 240381302 A B - - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - C D Plug-button, white, hinge brg hole, (2)

11 240415402 A B - - Door, frzr, bisque

11 240415401 - - C D Door, frzr, white

12 240415203 A B - - Label-nameplate, bisque

12 240415201 - - C D Label-nameplate, white

13 240312407 A B - - Door Stop, bisque, ref

13 240312403 - - C D Door Stop, white, ref

13A 240312408 A B - - Door Stop, bisque, frzr

13A 240312404 - - C D Door Stop, white, frzr

14 240494002 A B - - Plug-button, bisque

14 240494001 - - C D Plug-button, white

15 240415502 A B - - Door, refr, bisque

15 240415501 - - C D Door, refr, white

18A 218428119 A B - - Handle-door, bisque, w/block & screw

18A 218428101 - - C D Handle-door, white, w/block & screw

21 240383401 A B C D Screw, truss hd quad, #10-16 x .500

21A 240521301 A B C D Screw, #10-16 x 1/2

21C 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B C D Bearing-hinge, natural color

73 218396700 A B C D Block-handle mtg, dovetail

74 215503200 A B C D Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995406369 FRT15HB3D

03/04 4

CABINET

12A

35A 36

N05BBAABA15

43 21C

21C

FRT15HB3D Publication No: 5995406369

# Functional Parts 5 03/04

* Non-Ilustrated Parts

CABINET

Model Index: AFRT15HB3D (FRT15HB3DQ0)

BFRT15HB3D (FRT15HB3DT0)

CFRT15HB3D (FRT15HB3DW0)

DFRT15HB3D (FRT15HB3DZ0)

POS. NO PART NO. DESCRIPTION

1 240355401 A B C D Cover-fan

2 240367001 A B C D Knob-damper control

3 5303001028 A B C D Nut, push-on

4 241523701 A B C D Damper-fan cover

5 # 5308000010 A B C D Fan Blade, red, evaporator fan

8 5300157666 A B C D Bushing-motor mtg, (2)

9 5303292396 A B C D Bracket-motor mtg, front

10 240462011 A B C D Cover-evap coil

10* 240568601 A B C D Seal-coil cover

10*# 241520701 A B C D Harness-wiring

11 5303208309 A B C D Plug-hole, factory test

12 240366801 A B C D Plug-ice maker harness, rectangular

12* 218843800 A B C D Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 A B C D Plug-wtr inlet tube, round, 1"

13 # 240369701 A B C D Motor-evap fan

13* 215474201 A B C D Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B C D Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C D Bracket-motor mtg, rear

14* 5303274237 A B C D Screw, hex washer head, 8-32CA x 0.500, motor bracket

18 240411901 A B C D Support-evap cover, (2)

21C 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500

22 215774919 A B - - Plug-button, bisque, upr hinge holes

22 215774901 - - C D Plug-button, white, upr hinge holes

30 240357104 A B - - Bracket, bottom hinge, bisque

30 240357102 - - C D Bracket, bottom hinge, white

34 240311303 A B C D Washer, hinge, nylon, (2)

35 240357004 A B - - Bracket, center hinge, bisque

35 240357002 - - C D Bracket, center hinge, white

35A 240336802 A B C D Spacer-hinge, center

36 240516401 A B C D Pin-center hinge

37 240337604 A B - - Trim-cabinet corner, bisque, (2)

37 240337601 - - C D Trim-cabinet corner, white, (2)

38 240356901 A B C D Bracket, upper hinge

40 240354403 A B - - Cover-upper hinge, bisque

40 240354401 - - C D Cover-upper hinge, white

41 5303001609 A B C D Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B C D Grommet, shelf mtg, 1.25", LH

42 240578901 A B C D Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559602 A B C D Roller Assy, front LH, (2)

43* 241559601 A B C D Roller Assy, front RH, (2)

56 240516501 A B C D Pin-lower hinge

58 5303001343 A B C D Screw, hex washer head, 8-15A x 0.500

59 240442704 A B - - Screw-#10-32 X 3/4, bisque

59 240442702 - - C D Screw-#10-32 X 3/4, white

72 240368302 A B - - Grille/Kickplate, bisque, lower front

72 240368301 - - C D Grille/Kickplate, white

81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995406369 FRT15HB3D

03/04 6

CABINET

12A

35A 36

N05BBAABA15

43 21C

21C

FRT15HB3D Publication No: 5995406369

# Functional Parts 7 03/04

* Non-Ilustrated Parts

CABINET

Model Index: AFRT15HB3D (FRT15HB3DQ0)

BFRT15HB3D (FRT15HB3DT0)

CFRT15HB3D (FRT15HB3DW0)

DFRT15HB3D (FRT15HB3DZ0)

POS. NO PART NO. DESCRIPTION

82 5304418225 A B C D Roller, compressor base, rear, (2)

83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326114 A B C D Cover, access, system compt, with label

89* 241500302 A B C D Screw, hex washer head, 8-18AB x 0.625

92 5303001479 A B C D Screw-hinge mtg, hex hd, 1/4-20 x 0.875

* 240479601 A B C D Plug, button, cab liner holes, (2)

* 5304414035 A B - - Paint, touch-up, bisque

* 5303305324 - - C D Paint, touch-up, white

Publication No: 5995406369 FRT15HB3D

03/04 8

SHELVES

FRT15HB3D Publication No: 5995406369

# Functional Parts 9 03/04

* Non-Ilustrated Parts

SHELVES

Model Index: AFRT15HB3D (FRT15HB3DQ0)

BFRT15HB3D (FRT15HB3DT0)

CFRT15HB3D (FRT15HB3DW0)

DFRT15HB3D (FRT15HB3DZ0)

POS. NO PART NO. DESCRIPTION

11 5303282284 A B C D Shelf-freezer, "table type"

12 240545001 A B C D Diffuser, air, top

13 240362601 A B C D Diffuser, air, bottom

14 # 241554901 A B C D Switch-light/lamp

15 241555401 A B C D Light Bulb

16 241559801 A B C D Socket-light

17 240368001 A B C D ControlBox

17*# 240388701 A B C D WiringHarness, control box

18 240360801 A B C D Knob, temp control

21 # 5304421256 A B C D Control, temperature

22A 240468201 A B C D Tube, sensor sleeve, 31 inch, plastic, white

23 # 240371001 A B C D Timer-defrost

23* 5303001259 A B C D Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360902 A B C D Shelf, sliding, wire

25 240364706 A B C D Cover, crisper pan

26 240364501 A B C D Pan, crisper, (2)

81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

* 241538732 A B C D EnergyGuide

Publication No: 5995406369 FRT15HB3D

03/04 10

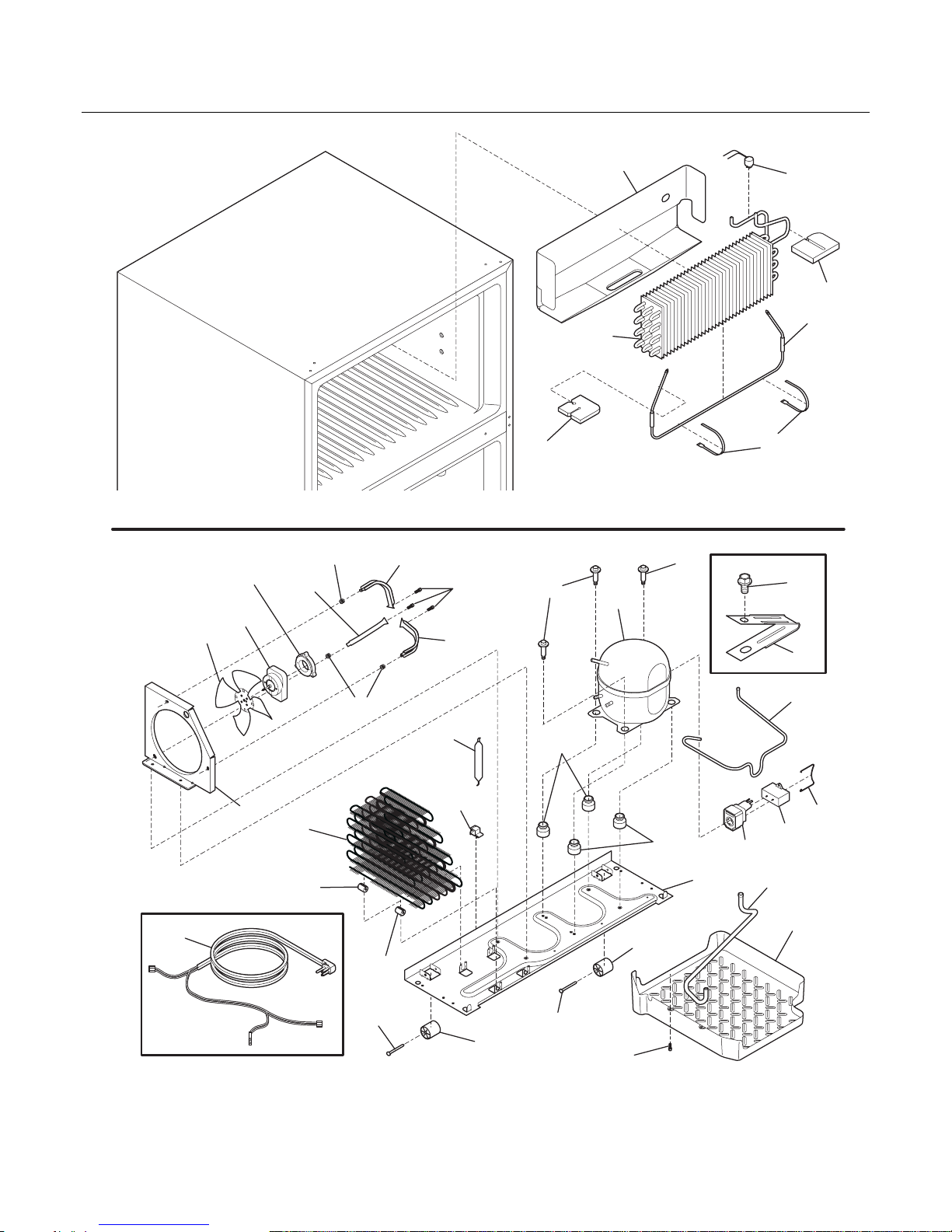

SYSTEM

61B

59B

59A

59A 58

N05CAAAAC1
