PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT21H7ASB0 FRT21H7AS R134a stain/blk 115

MARKET

North America

Publication No.

5995369351

020402

-EN/SERVICE/DCS

357

TOP MOUNT

REFRIGERATOR

Model No.

FRT21H7AS

ENERGY GUIDE LABEL - # 240465001

OWNER’S GUIDE - # 240400105

SERVICE DATA SHEET - # 240379009

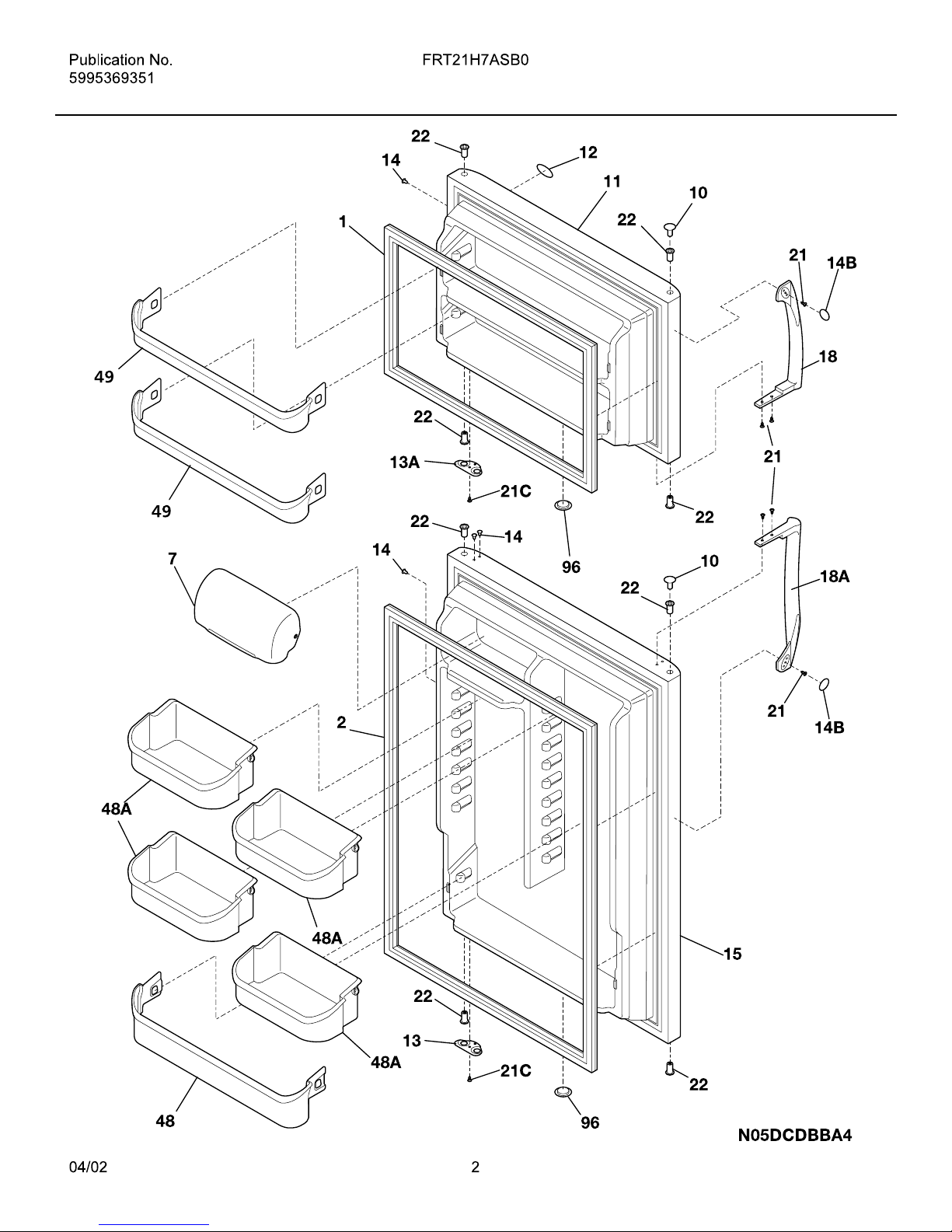

DOOR

5995369351

POS. NO PART NO DESCRIPTION

1 # 240514611 Gasket-frzr door,black ,magnetic

2 # 240514612 Gasket-refr door,black ,magnetic

7 240338303 Door,dairy ,clear

10 240381305 Plug-button,gray ,hinge brg hole ,(2)

11 240450323 Panel-frzr door,stainless steel, complete assy

12 240416304 Label-nameplate,black

13 240312405 Door Stop,black ,ref

13A 240312406 Door Stop,black ,frzr

14 240494005 Plug-button,gray

14B 240383603 Plug-button,black ,door handle

15 240450428 Panel-refr door,stainless steel, complete assy

18 240339203 Handle-door,black

18A 240339208 Handle-door,black

21 240383401 Screw,truss hd quad ,#10-16 x .500

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240311202 Bearing-hinge,black ,(8)

48 240338101 Bin-door,pseudo ,bottom

48A 240338201 Bin-door,gallon

49 240495801 Bin-door,pseudo ,frzr

96 240345506 Plug,door foam hole ,black

* 218490900 Cleaner,stainless steel

DOOR

CABINET

5995369351

POS. NO PART NO DESCRIPTION

1 240355404 Cover-fan

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240313606 Cover-evap coil

10* 240371303 Seal,insulation ,53.23 in. long, foam, coil cover

10*# 240385402 Wiring Harness,freezer section

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg,rear

14* 240433201 Screw,hex washer head ,8-18 x 0.375

18 240411901 Support-evap cover,(2)

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 215774918 Plug-button,black ,upr hinge holes

28 240335501 Bolt-roller adj,hex wshr hd,1/4-20 x 4.020, (2), special

30 240314003 Bracket-lower hinge,black

34 240311301 Washer,hinge ,nylon ,(2)

35 240313803 Bracket-ctr hinge,black

35A 240336801 Spacer-hinge,center

36 240516401 Pin-center hinge

37 240337603 Trim-cabinet corner,black

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge,black

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

47 218233300 Channel-shelf mtg,side ,(2)

48 5303292395 Channel-shelf mtg,center

49 218362500 Screw,hex washer head ,8-18AB x 1.250

56 240516501 Pin-lower hinge

58 5303001343 Screw,hex washer head ,8-15A x 0.500

59 240442703 Screw-#10-32 X 3/4,black

72 240368203 Grille/Kickplate,black

81 5308016566 Screw, hex wshr hd,8-15A x 0.625, low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head,1/4 OD x 1-3/4, roller pin

89 240326115 Cover-access,with label

89* 241500301 Screw,hex washer head ,8-18AB x 0.500

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 218990901 Clip-wire

* 240479601 Plug,button ,cab liner holes

* 5303305345 Paint,touch-up ,black

CABINET

SHELVES

5995369351

POS. NO PART NO DESCRIPTION

10 215667501 Tray-ice,plastic

11 240358003 Shelf-freezer

11* 5303299664 Spacer,shelf

12 240417802 Diffuser-air,top

13 240362601 Diffuser,air ,bottom

13* 240466001 Seal,air diffuser

14 # 240505801 Switch,light/lamp

15 240436701 Light Bulb/Lamp, A-15, 40 W,120 V, miniature

16 241500701 Socket-light/lamp

17 240407301 Control Box

17*# 240375501 Wiring Harness,control box

18 240360801 Knob,temp control

21 # 5304421256 Control,temperature

22A 240468201 Tube,sensor sleeve, 31 inch, plastic, white

23 # 240375801 Control-defrost,adaptive timer, PC board

23* 5303001259 Screw-timer mtg,pan hd, 6-20 x 0.438, (2)

24 240355214 Shelf-"Spill-Safe",fixed

25 240364718 Cover-crisper pan

25B 240361201 Control-humidity

25C 240361301 Damper, humdity control

26 240343803 Pan-crisper,(2)

28 3201150 End Cap,freezer shelf ,protector

31 240530903 Pan-meat,w/o graphics ,clear

34 240385201 Container-ice

42 240356501 Hanger-meat pan,RH

42 240365401 Hanger-meat pan,LH

47 240350654 Insert-pan cover,glass

81 5308016566 Screw,hex washer head, 8-15A x 0.625, low profile

120 240366401 Guide-follower,cam follower

121 240366602 Cam Follower

122 240366501 Cam-damper,damper

123 215005100 Screw-roller/hanger,8-10 x 0.438

130 240366101 Damper-control box

130* 218249806 Seal,insulation ,foam ,damper

131 240366201 Retainer-damper,damper

132 240366302 Control Rod,damper

* 3205266 Edge Protector,wiring harness

SHELVES

SYSTEM

5995369351

POS. NO PART NO DESCRIPTION

1 240444401 Condenser,dynamic

4 # 218944001 Drier-filter,R134a System

6 240496101 Wiring Harness, machine compt, w/electric cord

6* # 240375501 Wiring Harness,control box

6* # 240385402 Wiring Harness,freezer section

14 # 5303918247 Defrost Heater Kit

15 # 5303918250 Evaporator Kit

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 240434002 Trough-drain

18 240362301 Insulation Block,RH

20 240362401 Insulation Block,LH

21 # 5303918202 Thermostat-defrost,kit

22 240330001 Plate-compr mtg

22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 Grommet-compr mtg,(4)

25 240491501 Screw-compr mtg,hex wshr hd,1/4-28 x 1.16,shoulder,typ CF

26 240332602 Pan-defrost drain

29 5303918265 Compressor,w/electricals

30 # 218721120 Starter-PTC

32 240493301 Clamp, elec cont mtg, compressor, bale wire

34 240405201 Grommet,rubber ,black ,cond tube/wire

41 218897001 Screw,hex washer head, 8-32 x 1/4

41* 5308000039 Screw,hex wshr hd, 8-32CA x 0.500, serr head

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

57 240403601 Clip-wiring harness

58 215004600 Screw,hx serr wshr hd, 8-36 x 7/16, cond fan motor,(2)

59 240315501 Shroud-cond fan

59* 240346701 Tape-foam seal,shroud

59* 240359401 Screw-fan shroud,(2)

59A 240346501 Bracket-support,cond mtr ,(3)

59B 240346601 Grommet-bracket,(3)

60 # 240334001 Motor,condenser fan

61 # 240315401 Fan Blade,galv steel ,condenser fan

61A 215004700 Nut,speed

61B 215004800 Grommet-silencer

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain,lower

85 240493101 Tube-connector,suction

86 240409302 Spacer-cond tube,black

* 218843800 Screw,hex wshr hd ,8-15A x 0.500

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* # 5303918210 Heat Exchanger Kit,suction line

* 5304421289 Hot Tube Repair Kit,Service

SYSTEM

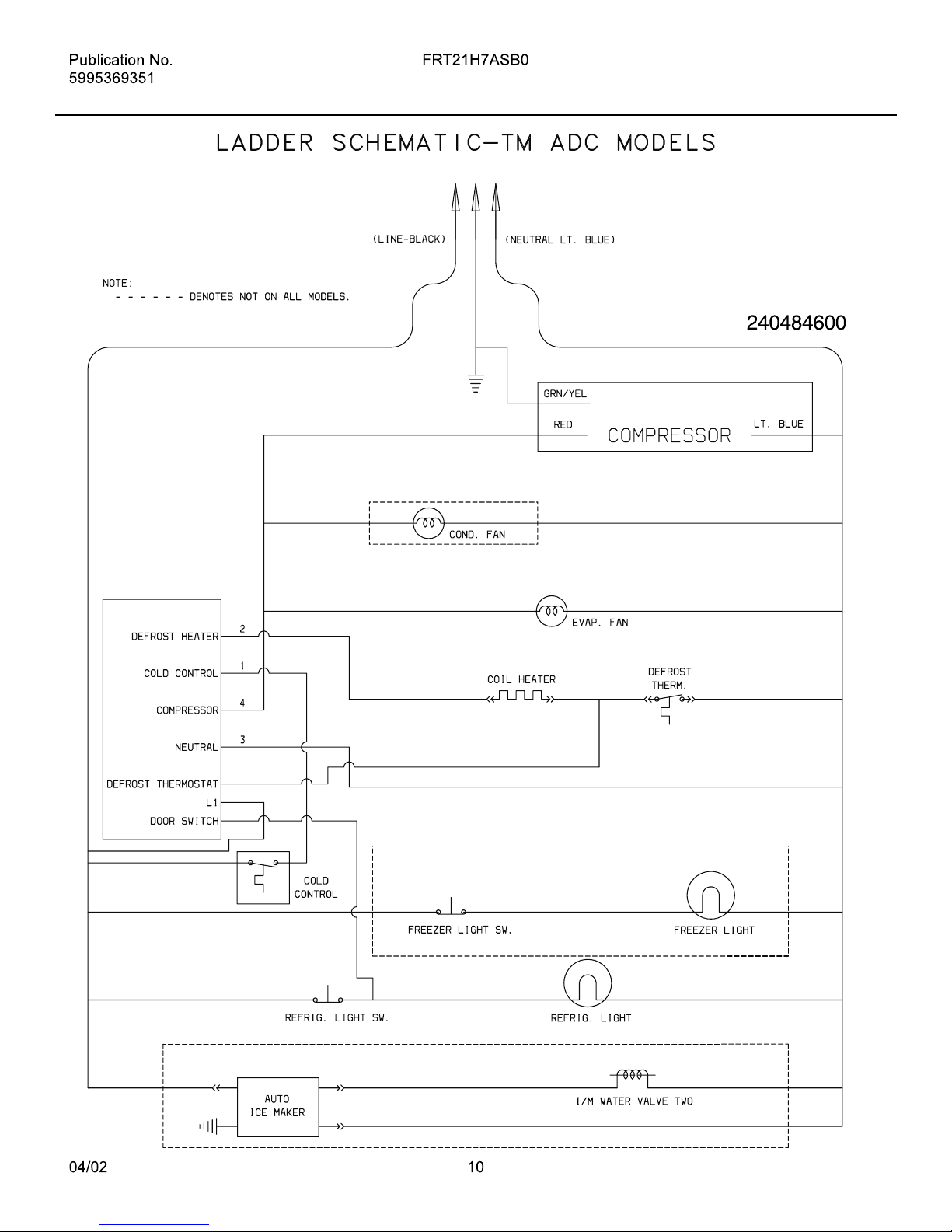

WIRING SCHEMATIC
